Updating Firmware (HP-Qualified Only)

90 Configuration
Obtain the latest disk system firmware release from the support web site before
traveling to the customer site. When you arrive at the site:
1 Save the firmware file on the customer's system, preferably in the default
firmware directory: /var/tmp
2 If you want to run STM in graphic mode, make sure DISPLAY is exported.
3 Start STM by typing xstm& on the HP-UX command line. This command
starts the graphic version of STM and keeps the X window open when you
quit STM.
4 Select License from the System menu and install the password-protected
HP-Only license.
5 Select Firmware Update > Run from the Tools menu. A tool window opens,
displaying the current firmware version and instructions for updating. A
second window lists the available firmware files in the var/tmp directory.
That second window is similar to the one shown below.

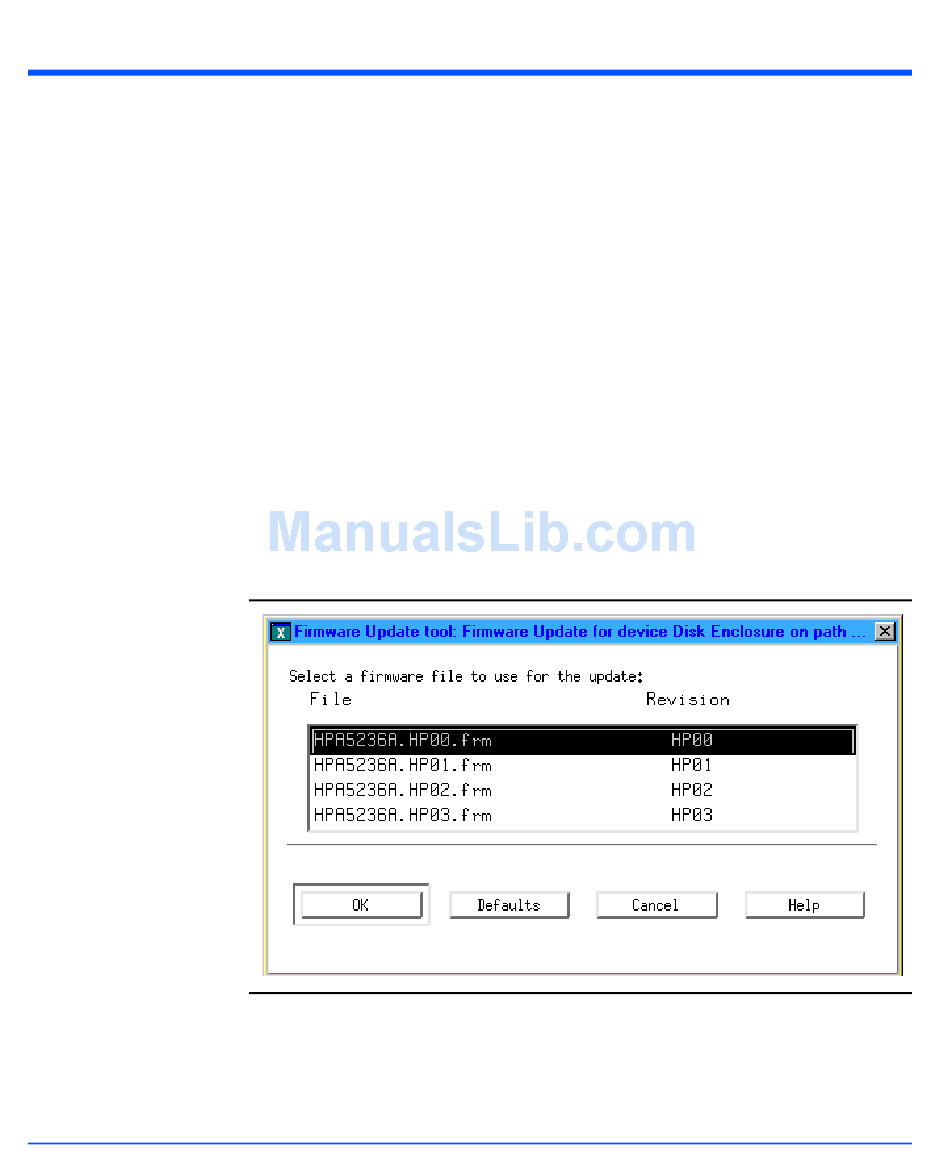

Figure 51. Firmware File Selection Window
If there are no firmware files in the default directory, a pop-up window instructs
you to select an optional path and STM displays a list of directories. Enter the
directory path you used to save the firmware file (in step 1) and click OK.
