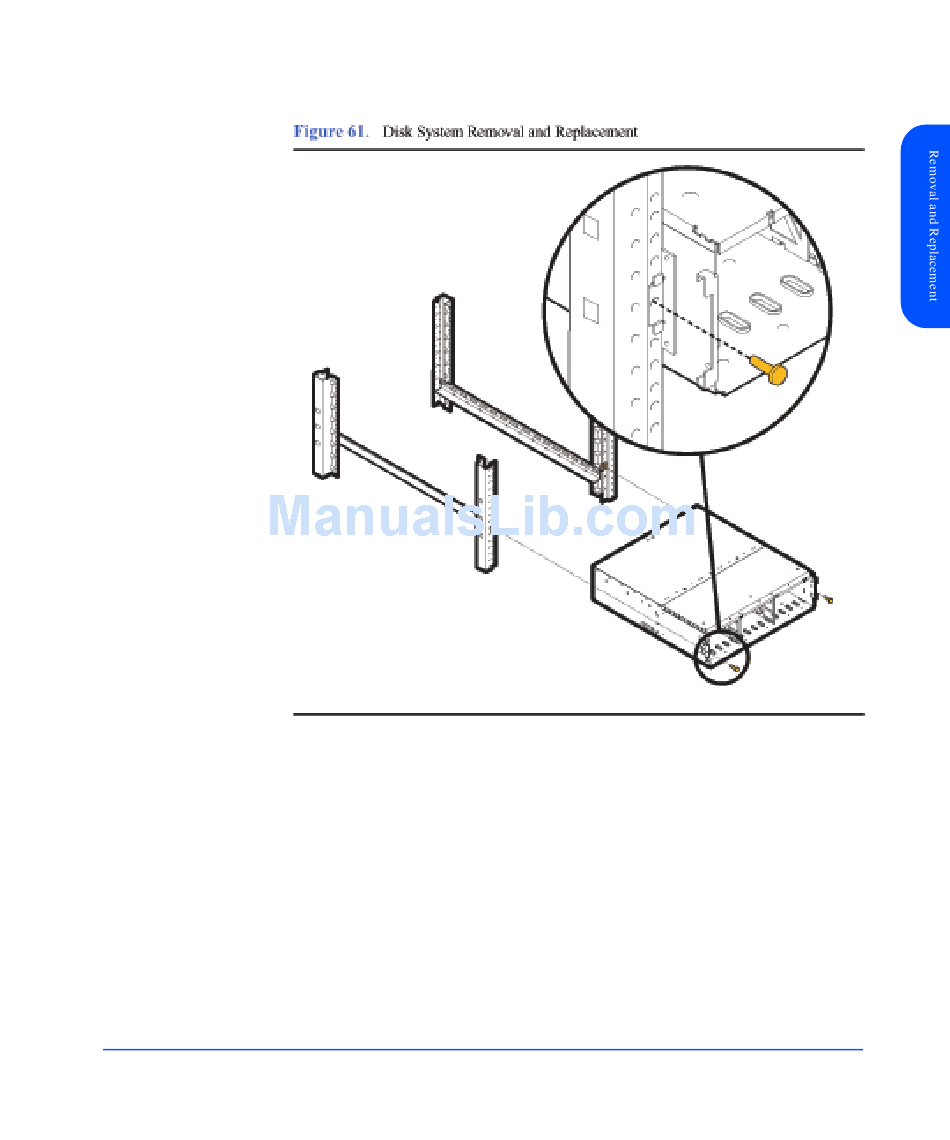

Figure 61 Disk System Removal And Replacement - HP StorageWorks 2405 - Disk System User Manual

7 Push the disconnected disk system forward or lift it completely out of the
rack, as needed.
8 When you are ready to replace the disk system, push the chassis back into the
rack.
9 Insert and tighten the front mounting screws.
10 Reinstall the power supply/fan module(s).
11 Reinstall the disk modules in the slots from which they were removed.
12 Reconnect Fibre Channel cables and power cords.
13 Push the power/standby button in to turn on the disk system.
14 Perform necessary system administration to return file systems to service.
Removal and Replacement 123
