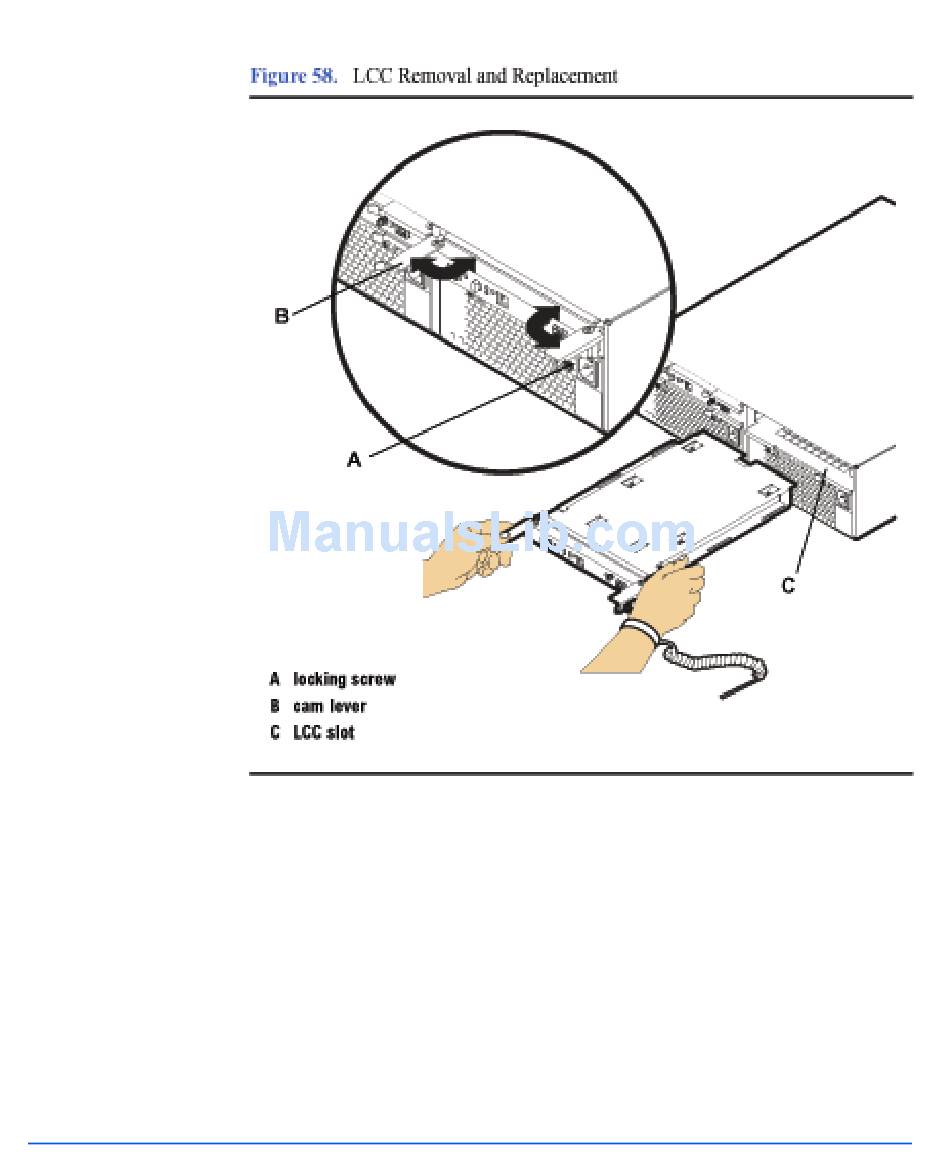

Figure 58 Lcc Removal And Replacement - HP StorageWorks 2405 - Disk System User Manual

118 Removal and Replacement
3 Open the cam levers (B) by pulling them away from the center of the card.
This disconnects the LCC pins from the midplane.
4 Pull the LCC out of the slot (C).
Replace the LCC immediately if the product is in use (see next step).
5 Attach the clip end of your ESD wrist strap to the ground stud at the top of the
rack.
Caution Touching the LCC pins can cause high energy discharge and
permanently damage the LCC.
6 Remove the replacement LCC from its ESD bag.
