Server Board Connector and Component Locations

The SCB2 comes in both SCSI and ATA versions. Figure 1 is a composite view of both versions.
AA
A. Speaker
B. ID LED
C. Battery
D. Diagnostic LEDs (POST code)
E. 66 MHz/64-bit PCI riser slot (full height)
F. DIMM slots
G. I/O ports
H. ICMB connector
I. COM 1 serial header
J. Chassis intrusion connector
K. 66 MHz/64-bit PCI riser slot (low profile)
L. USB 3 & 4 header
M. Sys fan 3 connector
N. CPU 2 fan connector
O. Secondary processor socket
P. Primary processor socket
Q. Sys fan 2 connector

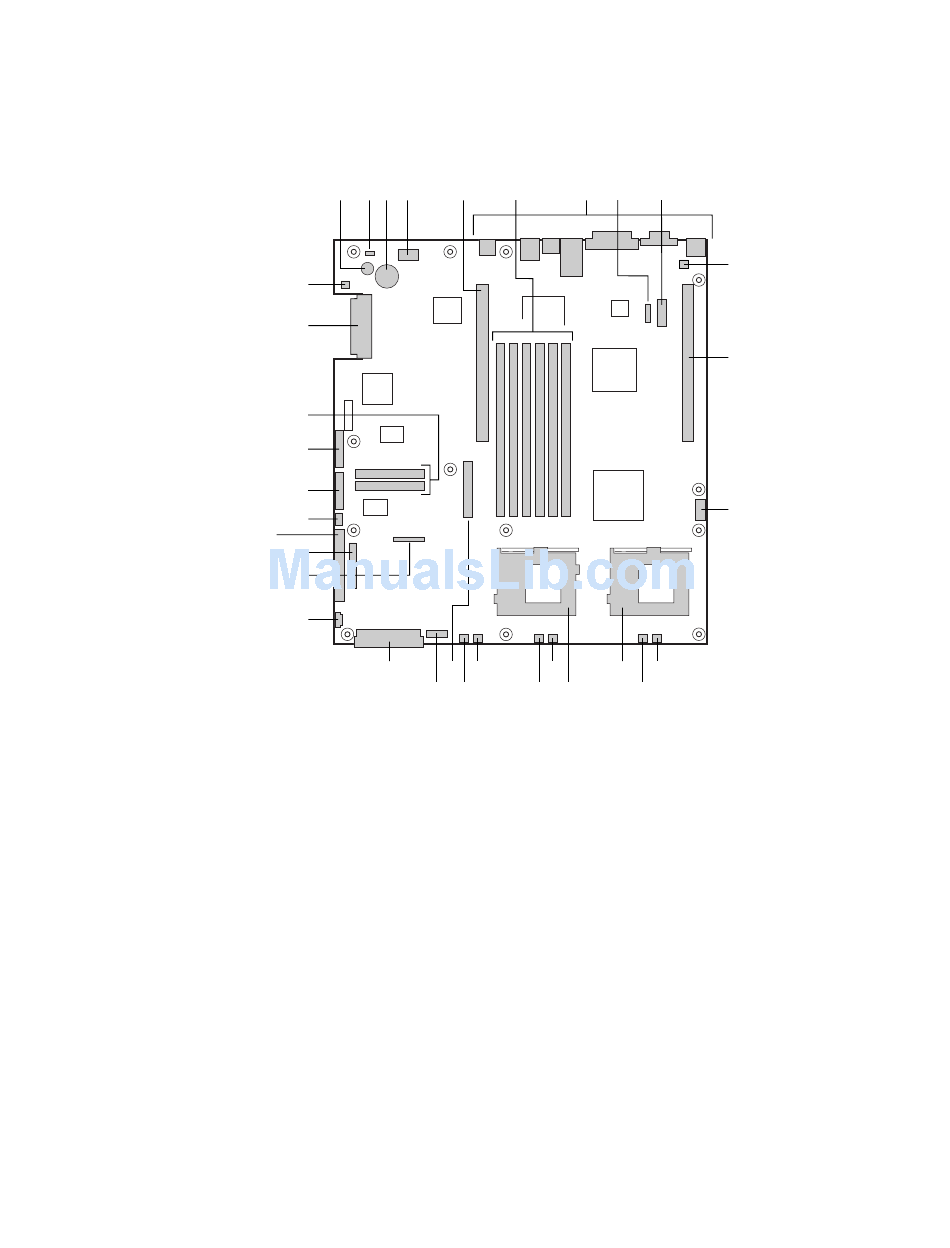

Figure 1. Server Board Connector and Component Locations
8
A B C D E
GG
FF
EE
DD
CC
BB
Z
Y
X
W U
V
F H
G
S Q O
T R P N
R. CPU 1 fan connector
S. Sys fan 1 connector
T. Aux fan connector
U. Floppy drive connector
V. Fan module connector
W. Main power connector
X. Auxiliary signal connector
Y. Floppy/FP/IDE connector
Z. Alternate front panel connector
AA. ATA/IDE connector
BB. IPMB connector
CC. SSI front panel connector
DD. Configuration jumper block
EE. ATA-100 connectors (ATA version only)
FF. SCSI connector (SCSI version only)
GG. Hard Disk Drive LED header
