CAUTION
Use care when closing the locking lever—do it slowly.
9. Slowly close the locking lever (A) until it contacts tab (B).
NOTE
When using the boxed Intel Pentium III processor, compatible with the
SCB2 server board, it will come with a fan for the processor heat sink. This
fan cannot be used in a 1U server chassis. If you are integrating a 2U
chassis, proceed to the next step.
10. Following the instructions provided with the processor, install the fan on the processor heat
sink.
11. Connect the fan to (A) if it is on the primary processor or to (B) if it is on the secondary
processor.
Installation Procedures
A

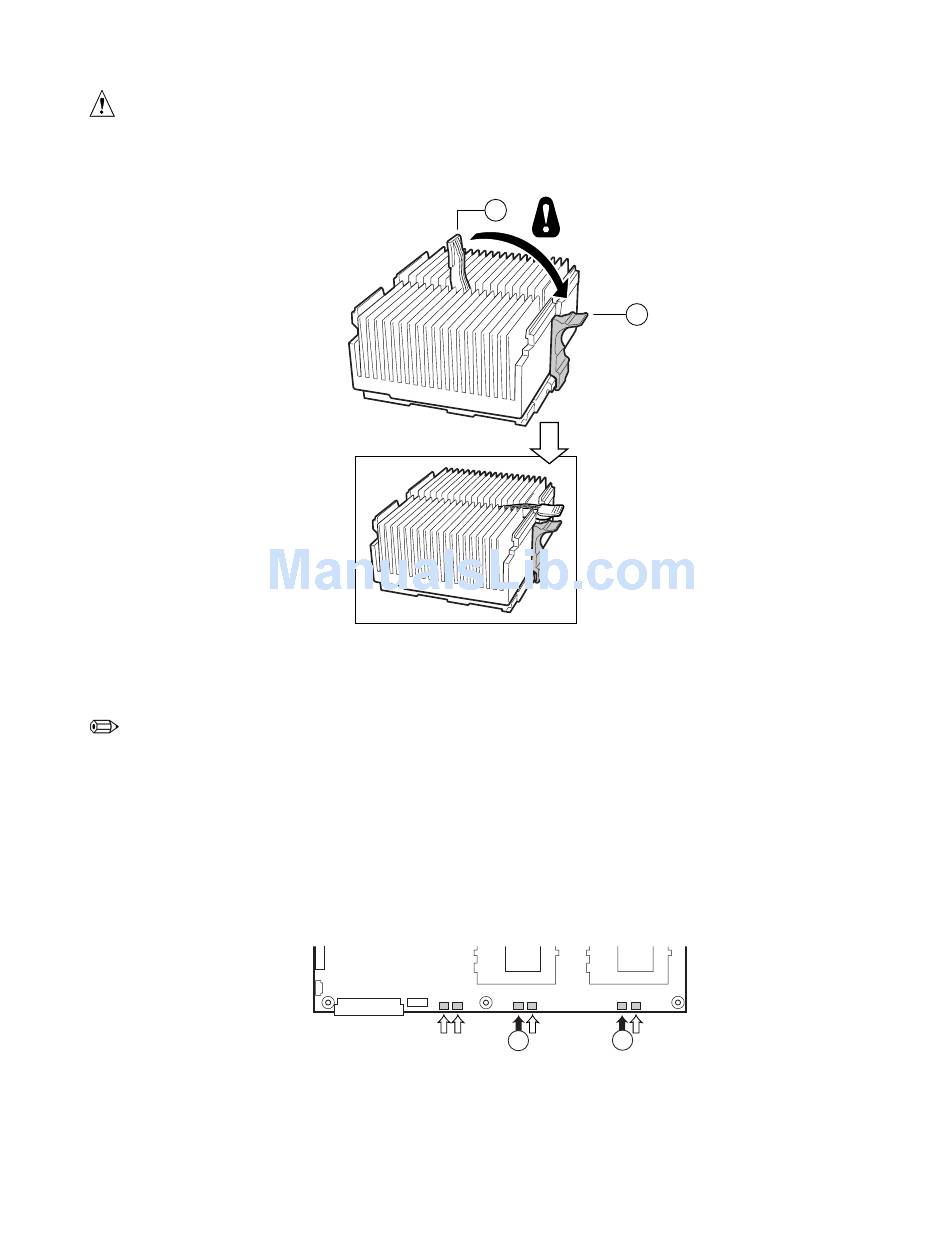

Figure 12. Closing the Locking Lever
A
CPU 1 Fan
Figure 13. Connecting the Heat Sink Fan
B
OM11709A
B
CPU 2 Fan
OM12163
27
