Installing the Processor

To install a processor, follow these instructions:
1. Observe the safety and ESD precautions in
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the AC power cord from the server.
4. Remove the server's cover. See the documentation that came with your server
chassis for instructions on removing the server's cover.
5. Locate the processor socket and raise the socket handle completely (see
6. Push the rear tab with your finger tip to bring the front end of the load plate up
slightly. Open the load plate as shown (see
Note: Do not touch the socket pins; they are very sensitive and easily damaged.
22

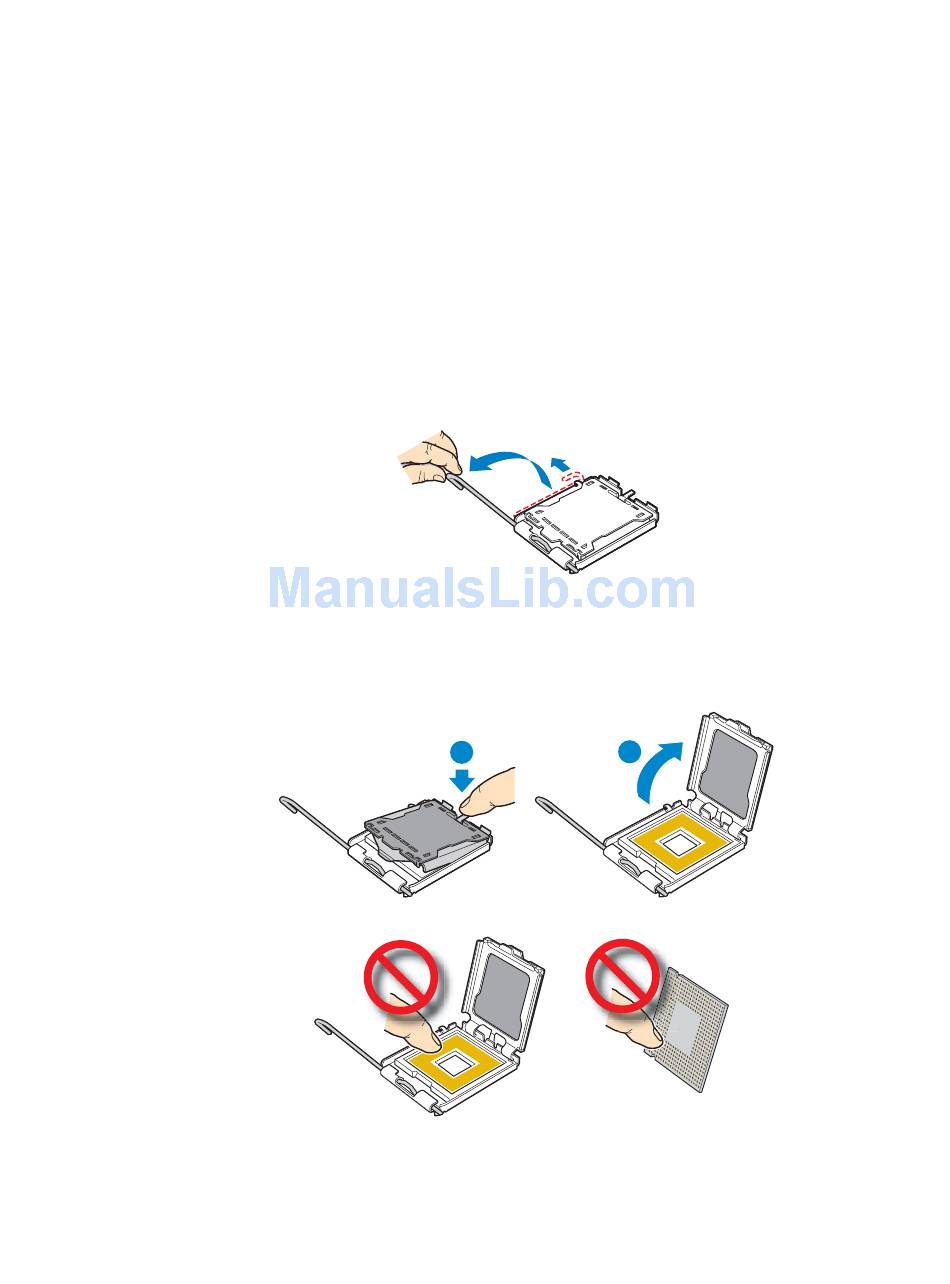

Figure 8. Lifting the Socket Handle

A

Figure 9. Open the Load Plate

"Safety Information".
AF000176
Figure 9).
B
AF000177
®
"Intel Server Board S5000VSA User's Guide"
Figure 8).
