Replacing the Secure USB Compartment Cover
To replace the secure compartment cover:
1.
Place the cover on top of the unit so it is offset about 1.27 cm (1/2 inch) toward the rear of the unit,
allowing the tabs on the cover to align and insert into the slots on the chassis (1).
2.
Slide the cover toward the back of the unit until it locks in place and the cover is flush with the front
panel of the chassis (2).
3.
Replace the screw (3).

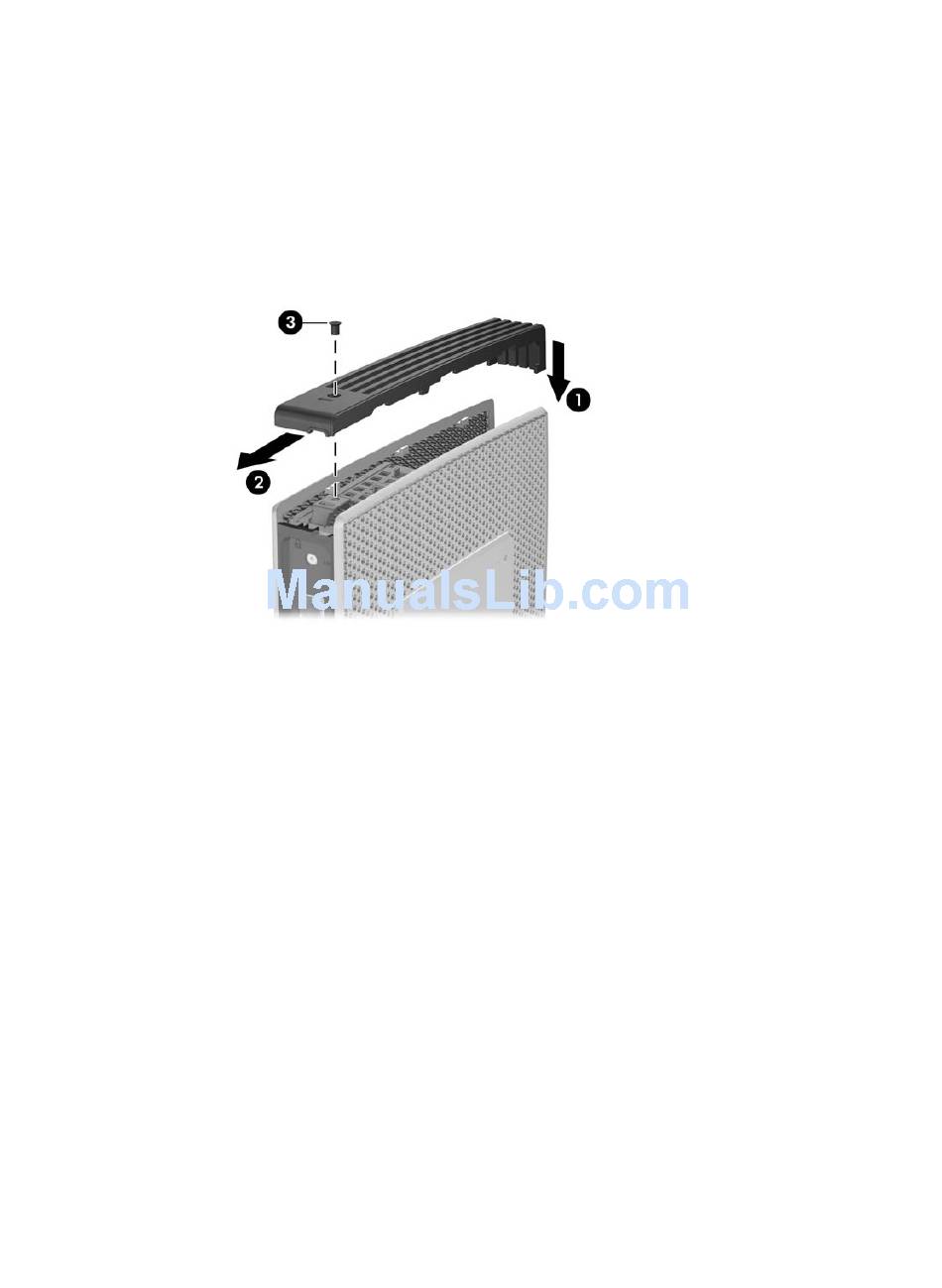

Figure 2-2
14
Chapter 2 Hardware Changes
Replacing the secure compartment cover
ENWW
