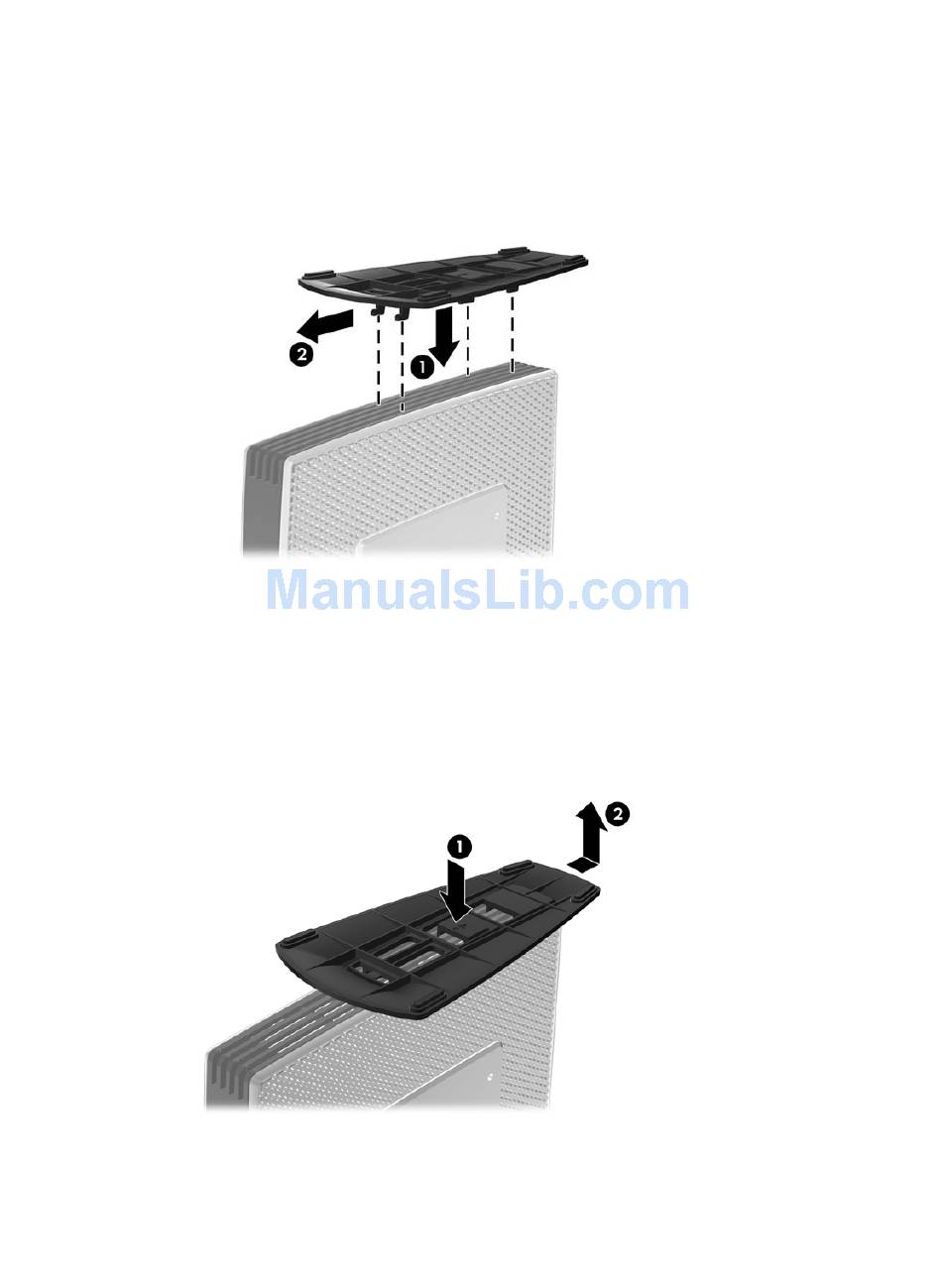

To install the stand:
1. Turn unit upside down.
2. Locate the slots on the bottom of the unit into which the tabs on the stand fit.
3. Insert the tabs into the slots (1), and then slide the stand about 1.26 cm (1/2 inch) toward the front
of the unit until it locks into place (2).
Figure 1-7

Removing the Stand

To remove the stand:
1. Turn unit upside down.
2. Press the tab (1), and then slide the stand about 1.26 cm (1/2 inch) toward the back of the unit and
lift the stand off the unit (2).
Figure 1-8
6 Chapter 1 Product Features
Installing the stand
Removing the stand
