Bump aligner gear removal

See the Bump aligner gear kit on
1.
Remove the paper pick mechanism assembly. See
page 4-68.
2.
Close the front access door for better access to the gears.
3.

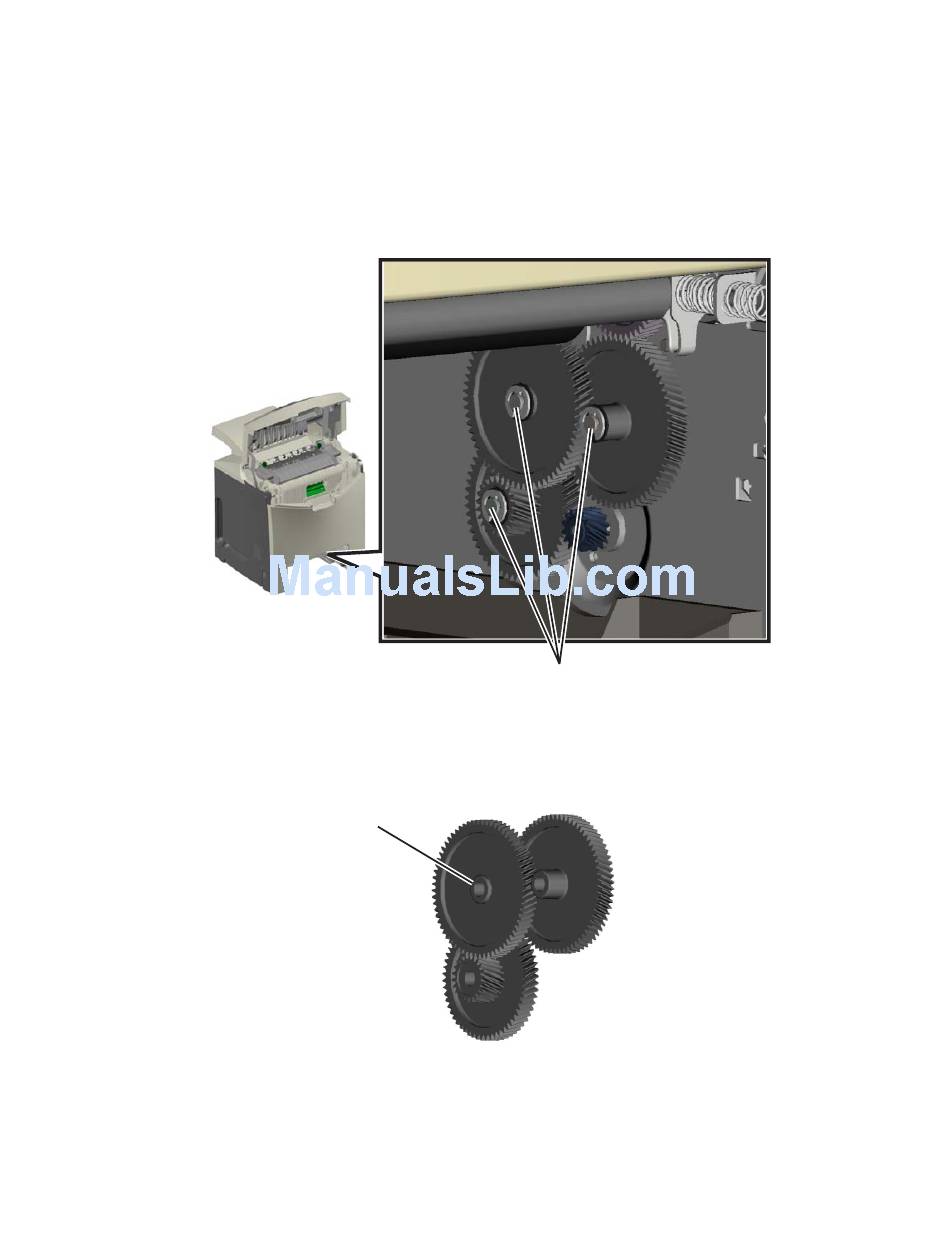

Remove the three e-clips and washers (A).
4.
Remove the gears.
Installation notes:
•
When reinstalling the gears, apply a light coat of the packaged grease.
•
The following illustration shows proper orientation of the gears for installation. The two gears are reduction
gears with the largest of the two (B) located in the middle, on the top.
page 7-5 for the part number.
"Paper pick mechanism assembly removal" on
B
A
Repair information
5022-xxx
4-39
