Open the door and remove the assembly

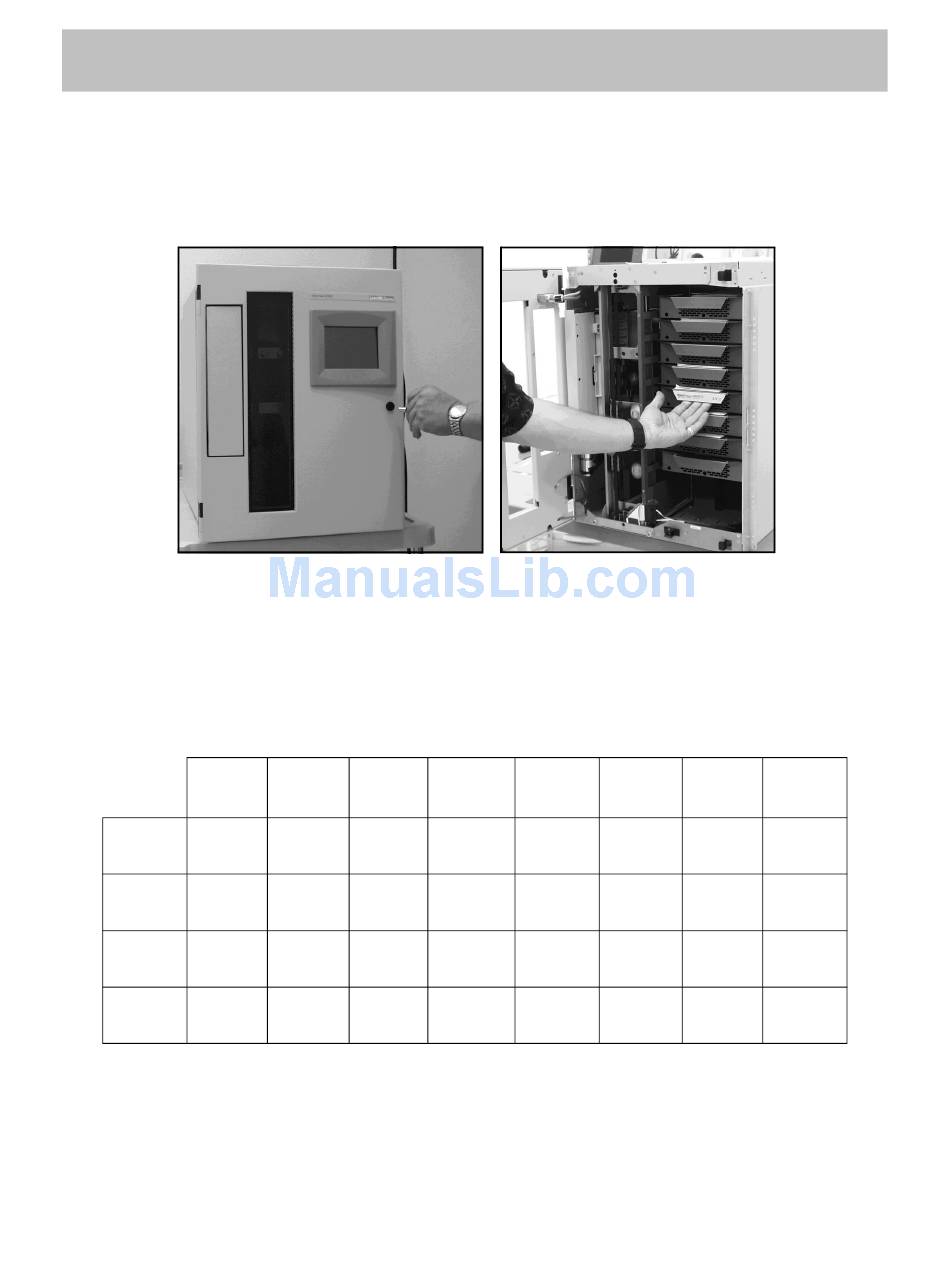

1. Use the library door key to unlock the upper lock on the front door of the Gator
(Figure 3). Open the door.
Figure 4 Unlock the door.
2. Pull all of the drive sleds out of their slots (Figure 5), taking note of their location
so they can be replaced in the same slot.
3. In the below table, record the dip switch settings for each passive QIP. If the switch
is pressed down, it is on. You will use these settings to set the dip switches on the
new passive QIP.
Passive
QIP #1
Switch #1
(On/Off)
Switch #2
(On/Off)
Switch #3
(On/Off)
Switch #4
(On/Off)
8 Part Number 90910895

Remove the Old Passive QIP

Passive Passive
QIP #2 QIP #3
Table 1. Dip Switch Settings
Figure 5 Remove all drive sleds.
Passive Passive Passive
QIP #4 QIP #5 QIP #6
Passive Passive
QIP #7 QIP #8
