Replace both QIPs

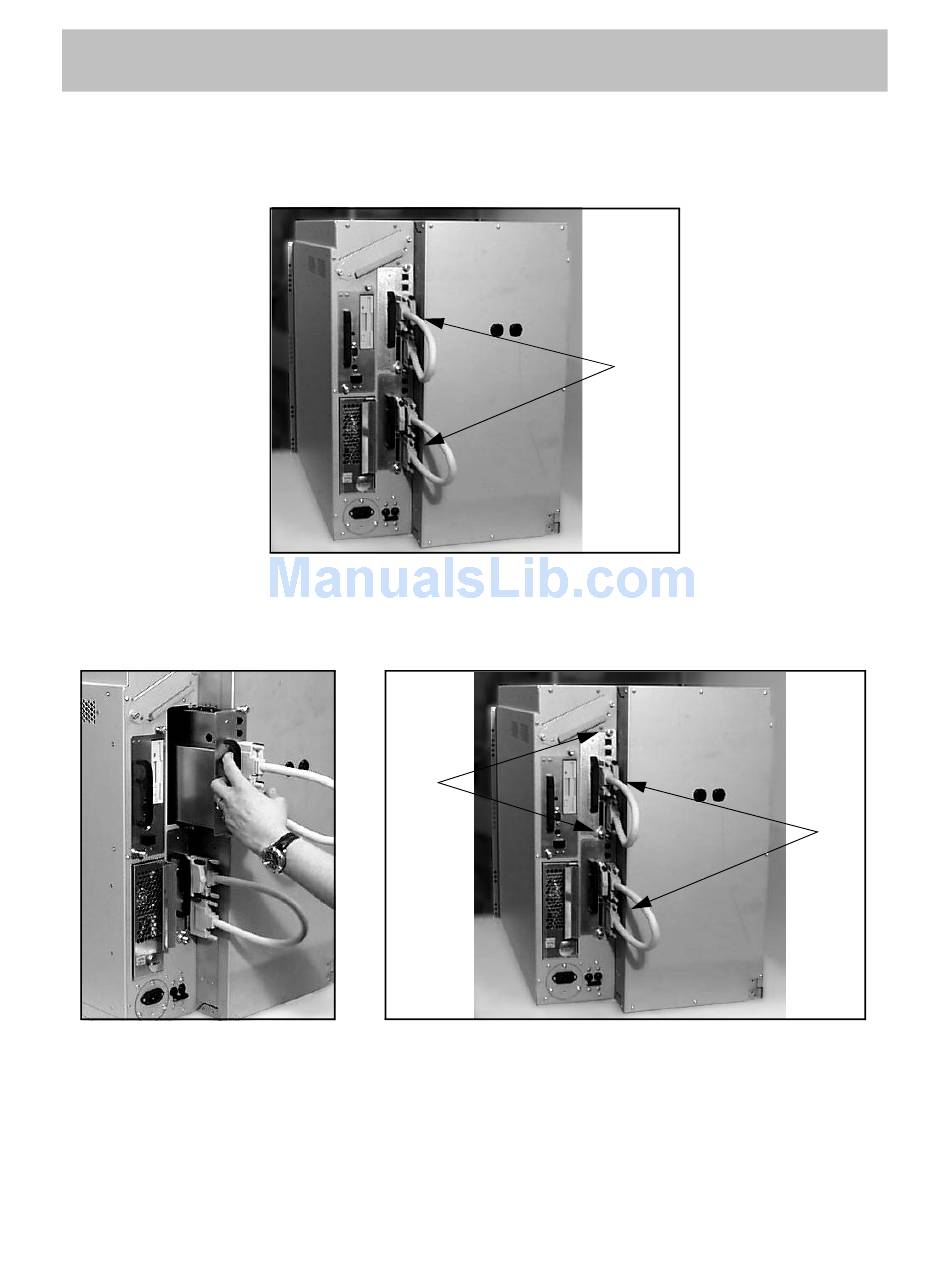

1. Slide the QIP assemblies into place (Figure 14).
Figure 14 Replace the QIP Assemblies.
2. Use the flat head screwdriver to tighten the two captive screws connecting each QIP
assembly to the chassis (Figure 15).
14 Part Number 90910895
Replace the QIPs
Figure 13 Replace the QIPs.
Captive
Screws
Figure 15 Tighten the captive screws.
QIPs
QIPs
