Install the New Passive QIP
1. Thread the CAN cable through the port in the new passive QIP, and thread the
voltage sense cable around the right side so it comes out by the connector (Figure 9).
2. Use the #2 Phillips screwdriver to attach the new passive QIP to the chassis (Figure
10).

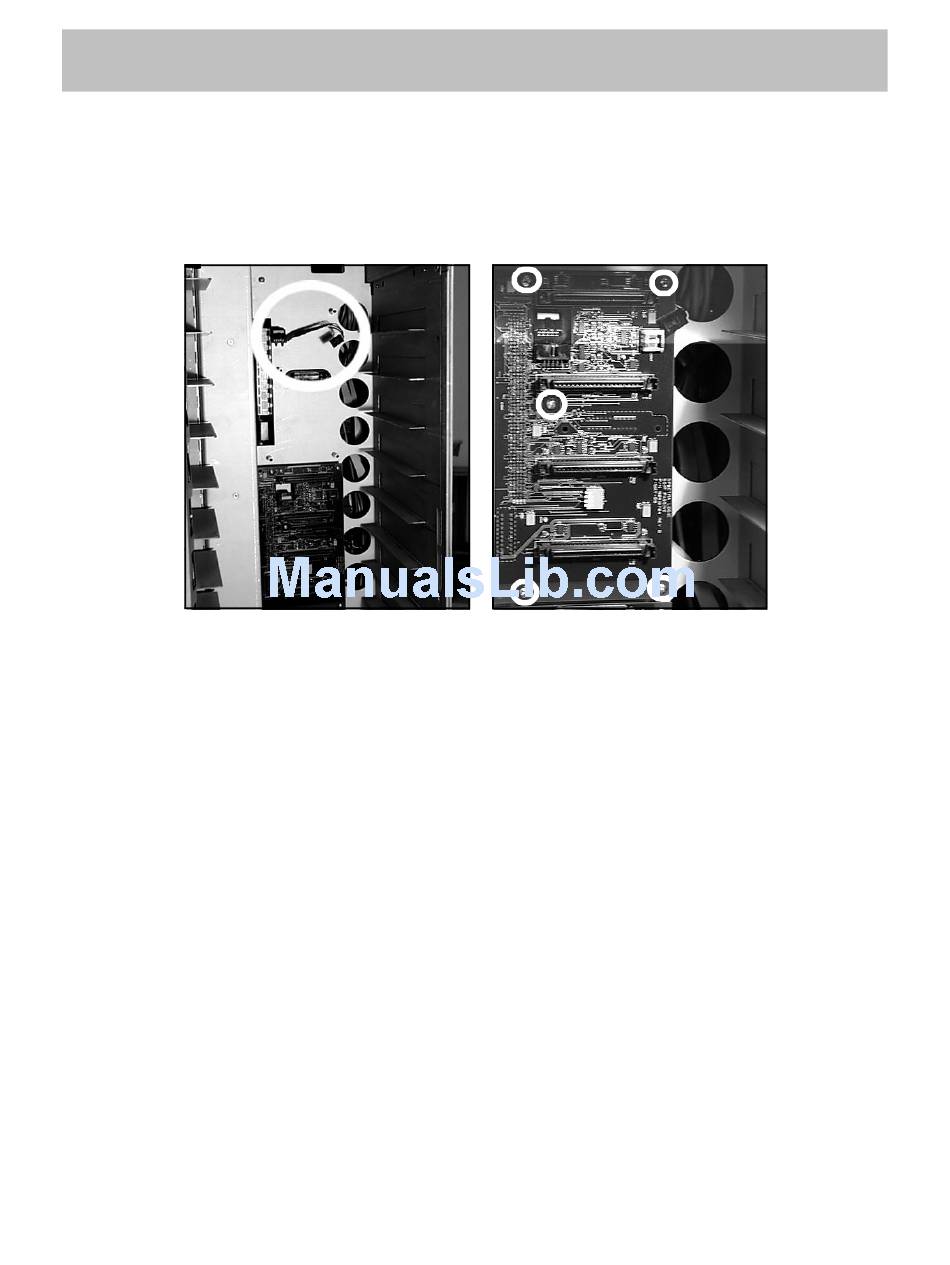

Figure 9 The voltage sense and CAN cables.
Figure 10 Attach the passive QIP to the
chassis.
Passive QIP Replacement Guide: Spectra 12000, Spectra 64000 11
