Transition Networks E-CX-FRL-03 Installation Manual

Technical Support:
For more information about this product or other Transition Networks products, call your
local Transition Networks distributor.
Direct numbers are listed below:
TE Main Phone Numbers:
TE Technical Support Number:
TE Fax Number:

Media Converter Specifications:

Fiber Connection:
Fiber Optic Cable Maximum Distance:
Fiber Optic Cable Recommended:
Optional
Coax Cable Specifications:
Coax Cable Maximum Distance:
Coax Devices:
Power Supply:
Environment:
Limited Warranty:

Monitoring the Media Converter's LED's:

Main: Power - Lit green LED indicates normal operation.
Jabber - Flashing red LED indicates Jabber is active.
Coax Port: Receive (RX) - Flashing or lit green LED indicates packet(s) are being
received.
Collision - Flashing or lit red LED indicates a collision has occurred.
Fiber Port: Link - Lit green LED indicates the transceiver is receiving link
pulsed from a 10Base FL (or FOIRL) compliant device.
Receive (RX) - Flashing or lit green LED indicates one or more packets
have been received.
Collision - Flashing or lit red LED indicates line collisions.
(800) 325-2725 or (612) 941-7600
(800) 260-1312
(612) 941-2322
ST type connectors (SMA type available upon
request)
2,000 Meters (6,600 feet)
62.5 / 125 µm multimode fiber
100 / 140 µm multimode fiber
85 / 125 µm multimode fiber
50 / 125 µm multimode fiber
50 ohm RG 58, approved Ethernet cable
recommended
185 Meters (610 feet)
24 workstations (or DTEs) daisy chained per
segment
External AC/DC Class 2 wall mount unit, reg. 9
VDC at 0.5 A
0 -70 degrees C, 5% - 90% humidity
non-condensing, 0 - 10,000 feet altitude
Two years
Fiber Optic (10BaseFL) to Coax (10Base2
Media Converter Installation Guide

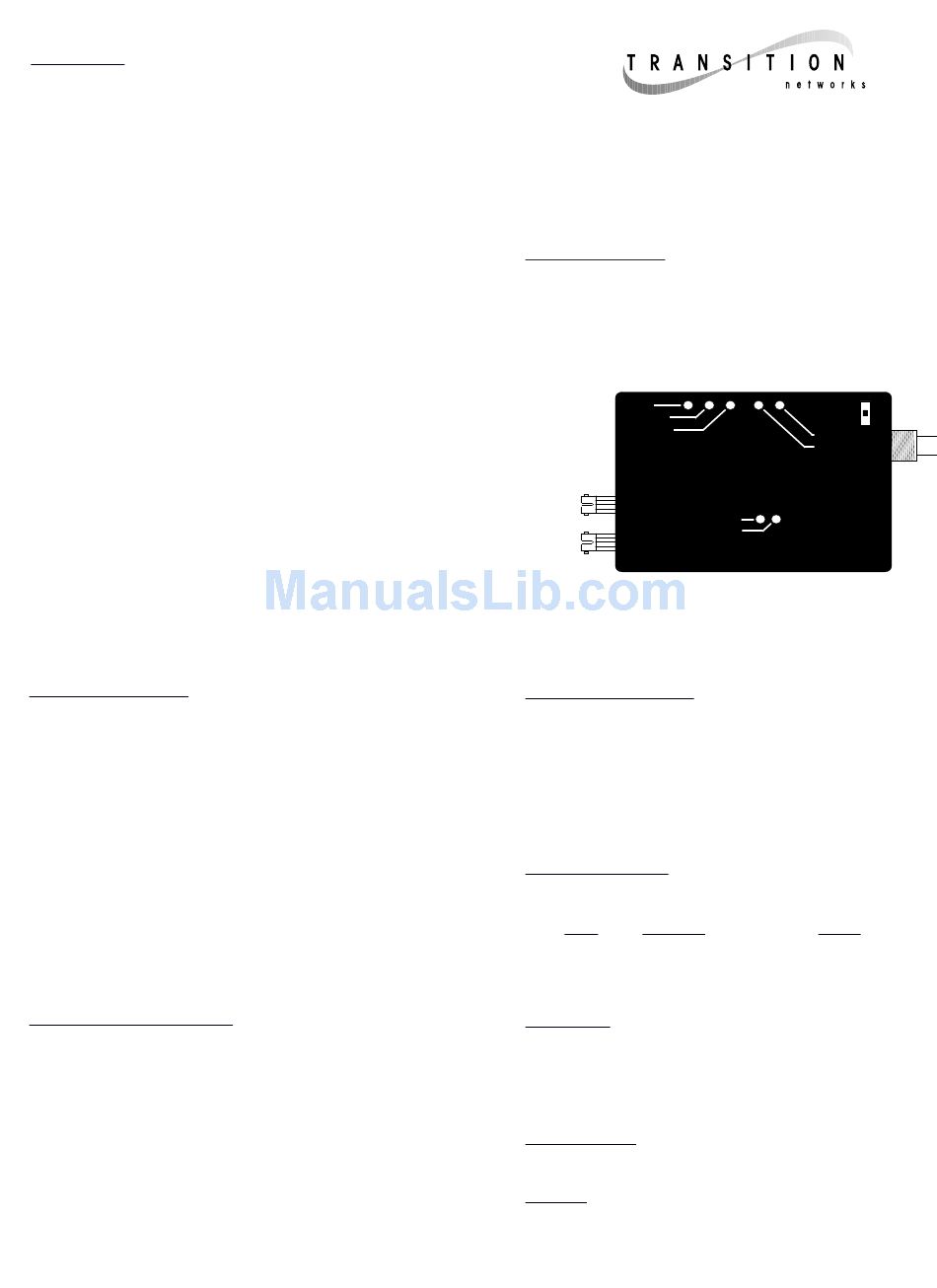

About the Media Converter:

The Transition Networks, P/N E-CX-FRL-03, is an Ethernet Media Converter that
provides conversion from fiber optic cable (10BaseFL) to thin coax cable (10Base2).
The Media Converter has a BNC female coax connection and two Receive and Tran
ST type fiber optic connectors. The coax side will allow up to 24 coax devices to be
daisy chained together (610 feet max). The fiber optic ST connections will extend th
transmission distance up to 2000 meters (6,600 feet). An SMA type fiber connection
is also available, Transition Networks P/N E-CX-FRL-03(SMA).
TX
RX
Rev 06/95
P/N 7340.B
T
erminating the BNC connection:
The Media converter has an external thin coax 50 ohm, 25 ohm and NO terminatio
switch, which can be changed depending on the type of thin coax connection requi
Position (1) 50 ohms, is used when connecting the end of a coax segment directly to
BNC. NOTE: The other end of the coax segment must be terminated using a 50 ohm
terminator.
Position (2) requires a BNC "T" connector (NOT INCLUDED). This is used when
connecting the Media converter into the middle of a coax segment.
Position (3) is for 25 ohm termination and allows coax connection directly to the
workstation or DTE. A connection (cable) of less than 6 inches is required. A BNC m
to male adapter is recommended.

Power Supply Requirements:

Connect the power supply cable to the Media Converter before connecting to the ou
Replace power supply with only the equivalent input rating (refer to the table below)
output rating (regulated 9VDC at 0.5 A).
TE PN
3514
3515
3516
3517
3518

FCC Regulations:

Note: This equipment has been tested and found to comply with the limits for a Cla
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro
reasonable protection against harmful interference when the equipment is operated
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own cost.

Canadian Regulations:

Note: This digital apparatus does not exceed the Class A limits for radio noise for di
apparatus set out on the radio interference regulations of the Canadian Department o
Communications.

Trademarks:

Ethernet is a registered trademark of the Xerox Corporation, Inc.
Transition Networks is a trademark of Transition Networks, Inc.
P/N E-CX-FRL-03
Link
Receive
Collision
Ethernet™
10Base FL / 10Base2 Adapter
Power
Jabber
E-CX-FRL-03
Dimensions are : 4.1" x 2.9" x .85 " (104mm x 74mm x 22mm)
Requirement
100 volts, 50-60 hertz
240 volts, 50 hertz
230 volts, 50 hertz
240 volts, 50 hertz
120 volts, 60 hertz
3
Coax
2
Config.
1
Collision
Receive
TRANSITION
Location
Japan
Australia
Europe
United Kingdom
USA/Canada/Mexico
