Statistics Menu

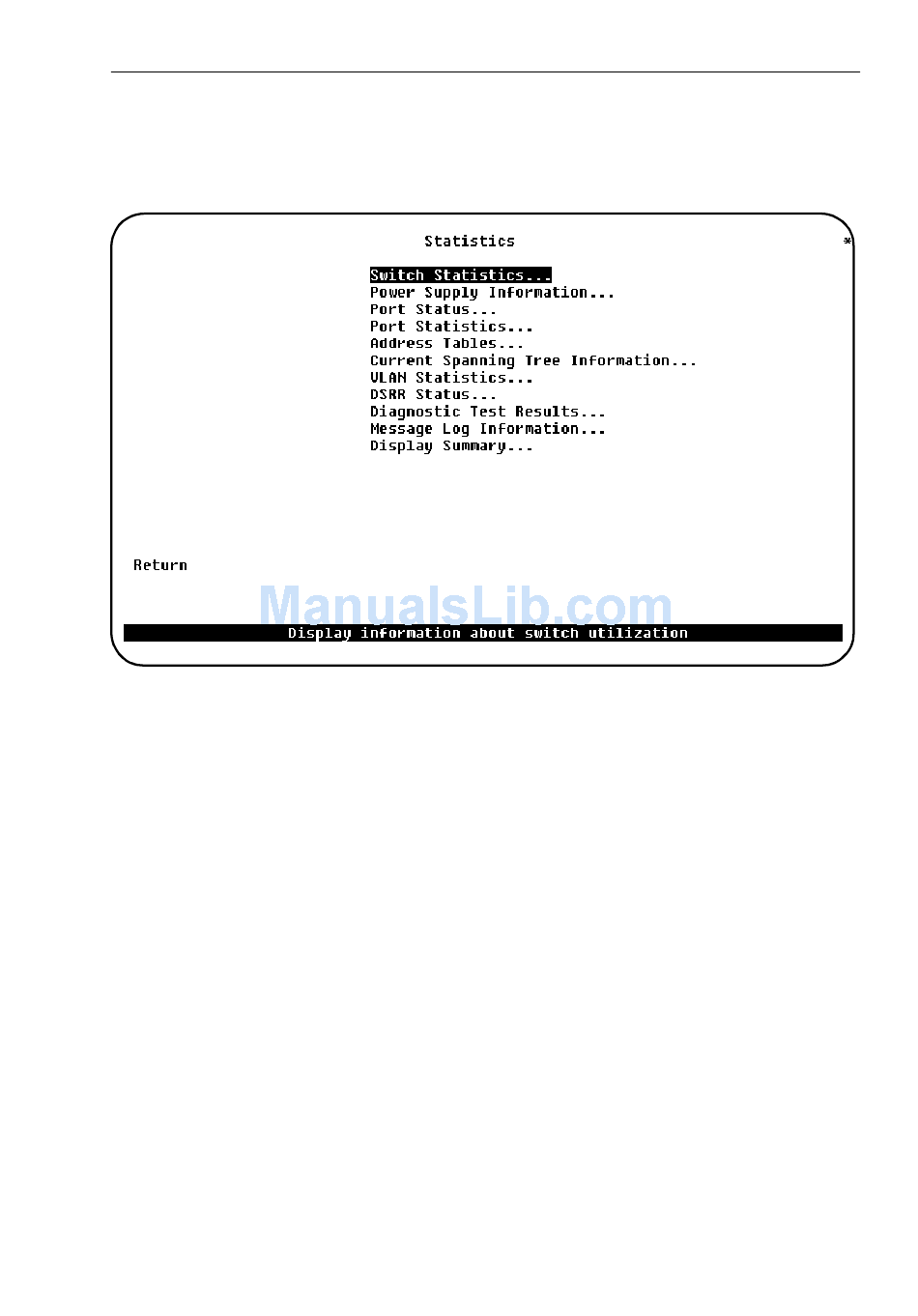

To access the statistics menu, select Statistics from the Main menu. The following
menu is displayed:
The menu items shown in the illustration above are described in the manual you
received with your STS16-20RM Token-Ring Switch. For more information about
the menu items, refer to that manual.
Several of the menu items contain additional information relating to the SSIM-Ax-
01 ATM 155 Uplink Module. They are as follows:
•
Port Status—The SmartStack SSIM-Ax-01 is included in the overview of all
ports in the system.
•
Port Statistics—By selecting this item and entering the port number of the
SSIM-Ax-01 ATM module, you will be presented with a menu containing a
wide range of statistics for the SSIM-Ax-01 ATM module.
•
Address Table—The address table will contain addresses located on the ATM
side of an SSIM-Ax-01 ATM module.
•
Message Log Information—The message log can contain messages relating
to the SSIM-Ax-01 ATM module.
SmartStack SSIM-A2-01/SSIM-A8-01 Statistics
