Page 1: Installation Guide

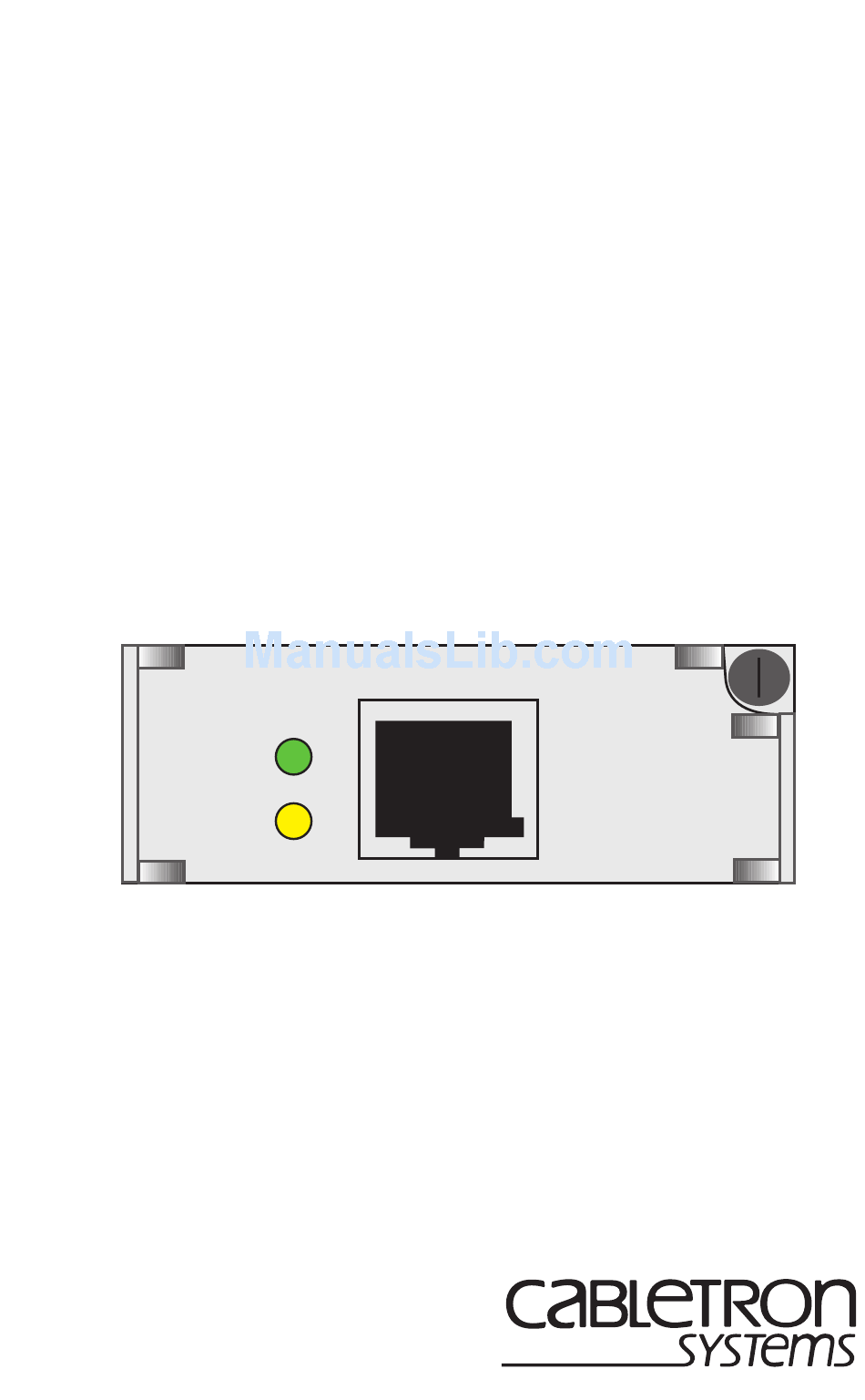

SWPIM-BRI Title Page Installation Guide SWPIM-BRI 9033038-02... -
Page 3: Fcc Notice
Only qualified personnel should perform installation procedures. Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. -
Page 4: Industry Canada Notice
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions. AUSTRALIAN TELECOM This equipment has been tested and is compliant with ACA TS 031. VCCI NOTICE SWPIM-BRI Installation Guide... -
Page 5: Program License Agreement
If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, You agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for military purposes. SWPIM-BRI Installation Guide Notice... - Page 6 BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU. SWPIM-BRI Installation Guide...
- Page 7 BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Sales and Service, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package.
- Page 8 BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU. SWPIM-BRI Installation Guide...
- Page 9 If the Program is exported from the United States pursuant to the License Exception CIV under the U.S. Export Administration Regulations, You agree that You are a civil end user of the Program and agree that You will use the Program for civil end uses only and not for military purposes. SWPIM-BRI Installation Guide Notice...
- Page 10 BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR IN THE DURATION OR LIMITATION OF IMPLIED WARRANTIES IN SOME INSTANCES, THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT APPLY TO YOU. viii SWPIM-BRI Installation Guide...
-
Page 11: Declaration Of Conformity
Mr. Thomas R. Whissel ___________________________________ Full Name Compliance Engineering Manager ___________________________________ Title Rochester, NH, USA ___________________________________ Location SWPIM-BRI Installation Guide 89/336/EEC 73/23/EEC Cabletron Systems, Inc. 35 Industrial Way PO Box 5005 Rochester, NH 03867 Mr. Jim Sims Cabletron Systems Limited... - Page 12 Notice SWPIM-BRI Installation Guide...
-
Page 13: Table Of Contents
Related Manuals...xv Document Conventions ... xvi Getting Help... xvii CHAPTER 1 INSTALLATION Unpacking the SWPIM-BRI ... 1-1 Installing the SWPIM-BRI ... 1-2 LANVIEW LED Indications ... 1-4 Connecting to the Network ... 1-5 Completing the Installation ... 1-5 APPENDIX A SPECIFICATIONS Physical Properties...A-1... - Page 14 Contents SWPIM-BRI Installation Guide...
-
Page 15: Introduction
Only qualified personnel should perform installation procedures. Welcome to the Cabletron Systems SWPIM-BRI Installation Guide. This manual gives an introduction to the SWPIM-BRI, lists features and capabilities, details the cabling pinouts, and explains how to install the SWPIM-BRI. The SWPIM-BRI provides S/T-interface (digital) functionality or U-interface (analog) functionality for a host platform designed to receive the SWPIM (Sliding WAN Physical Interface Module) architecture. -
Page 16: Structure Of This Guide
SWPIM-BRI, gives an overview of the SWPIM-BRI and its features, and information on how to get help from Cabletron Systems. Chapter 1, Installation, provides instructions on how to install the device into a host platform, and gives the LED indications. -
Page 17: Related Manuals
Introduction RELATED MANUALS The following Cabletron Systems manuals may help the user to set up and manage the SWPIM-BRI: SSR-600 Installation Guide HSIM-SSR-600 Installation Guide 6C105 SmartSwitch 6000 Overview and Setup Guide Ethernet Technology Guide Cabling Guide The manuals referenced above can be obtained on the World Wide Web in Adobe Acrobat Portable Document Format (PDF) at the following site: http://www.cabletron.com/... -
Page 18: Document Conventions
Tip symbol. Conveys helpful hints concerning procedures or actions. Caution symbol. Contains information essential to avoid damage to the equipment. CAUTION Electrical Hazard Warning symbol. Warns against an action that could result in personal injury or death due to an electrical hazard. SWPIM-BRI Installation Guide... -
Page 19: Getting Help
A description of any action(s) already taken to resolve the problem (e.g., changing mode switches, rebooting the unit, etc.) • The serial and revision numbers of all involved Cabletron Systems products in the network • A description of your network environment (layout, cable type, etc.) •... - Page 20 Introduction xviii SWPIM-BRI Installation Guide...
-
Page 21: Chapter 1 Installation
2. Attach the antistatic strap (refer to the instructions in the wrist strap package) before removing the SWPIM-BRI from the antistatic packaging. 3. Verify that the SWPIM-BRI is undamaged. Refer to Getting Help if there is any damage to the device. Do not attempt to install the SWPIM-BRI if it is damaged. -
Page 22: Installing The Swpim-Bri
See Figure 1-1. 6. Locate the rail guides inside the slot in which the SWPIM-BRI will be installed, as shown in Figure 1-1. 7. Install the SWPIM-BRI in the host platform by aligning the SWPIM-BRI with the rail guides in the host platform and sliding it in. - Page 23 10. The SWPIM-BRI must be configured before the WAN connection is made. Once the SWPIM-BRI has been configured, the host platform must undergo a soft or hard restart in order for the SWPIM-BRI to be recognized and for traffic to pass. Refer to the appropriate software manual to configure the SWPIM-BRI.
-
Page 24: Lanview Led Indications
Chapter 1: Installation LANVIEW LED INDICATIONS Refer to Table 1-1 for the link LED indications for the SWPIM-BRI. Color Blinking Red Blinking Amber Green Refer to Table 1-2 for the status LED indications for the SWPIM-BRI. Color Blinking Amber Green... -
Page 25: Connecting To The Network
CONNECTING TO THE NETWORK Figure 1-2 depicts a typical configuration for the SWPIM-BRI. The Cabletron Systems part number for the cable is 9360005-x, where x is the length of the cable. Site 1 SSR-600 SWPIM-BRI U-interface Figure 1-2 Typical Configurations... - Page 26 Chapter 1: Installation SWPIM-BRI Installation Guide...
-
Page 27: Appendix Aspecifications
This section describes the environmental specifications and safety and approval requirements for the SWPIM-BRI. Cabletron Systems reserves the right to change these specifications at any time without notice. PHYSICAL PROPERTIES Dimensions: Weight (Unit): Nominal current draw on +5V supply from host platform:... -
Page 28: Network Interface
Appendix A: Specifications NETWORK INTERFACE The SWPIM-BRI uses an RJ48 connector for the network port, with two separate pinouts, one for the S/T-interface and the other for the U-interface. The Cabletron Systems Part Number for the cable for both the S/T-interface and the U-interface is 9360005-x, where x is the length of the cable. -
Page 29: Pinout For The U-Interface Connector
The connector for the U-interface is shown in Figure A-2: Figure A-2 U-Interface RJ48 Pinout ENVIRONMENTAL REQUIREMENTS Operating Temperature: Non-operating Temperature: Operating Humidity: SWPIM-BRI Installation Guide Environmental Requirements Direction 1 2 3 4 5 6 urj45 +5° to +40°C (41° to 104°F) -30°... -
Page 30: Regulatory Compliance
Telecommunications UL 1950, CSA C22.2 No. 950, 73/23/EEC, EN 60950, IEC 950, EN 60825 FCC Part 15, CSA C108.8, 89/336/EEC, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024, AS/NZS 3548, VCCI V-3 FCC CFR47 Part 68, CS-03 SWPIM-BRI Installation Guide... - Page 31 You will be advised of your right to file a complaint with the FCC. 7. The attached affidavit must be completed by the installer. SWPIM-BRI Installation Guide APPENDIX B REN/SOC 6.0P...
- Page 32 Company or an authorized agent. It is the responsibility of the users requiring service to report the need for service to our Company or to one of our authorized agents. Service can be obtained at Cabletron Systems Technical Support: Address: Phone: Internet mail: Cabletron Systems, Inc.
- Page 33 • The encoded analog and billing protection is factory set and is not under the control of the customer. SWPIM-BRI Installation Guide , of (Customer Name) (Telephone Number)
- Page 34 Subscribed and sworn to me this (Notary Public) My commission expires: above. (Telco’s Name) SWPIM-BRI Installation Guide with proper documentation (Signature) (Title) (Date) day of , 19...
