Setting the Mode Switches

B.2 SETTING THE MODE SWITCHES
CAUTION: Read the appropriate sections to be fully aware of the consequences when
changing switch settings.
Only qualified personnel should change switch settings.
Figure B-1 shows the location of the mode switches and the switch settings for normal operation.
These switches are set at the factory and rarely need to be changed.

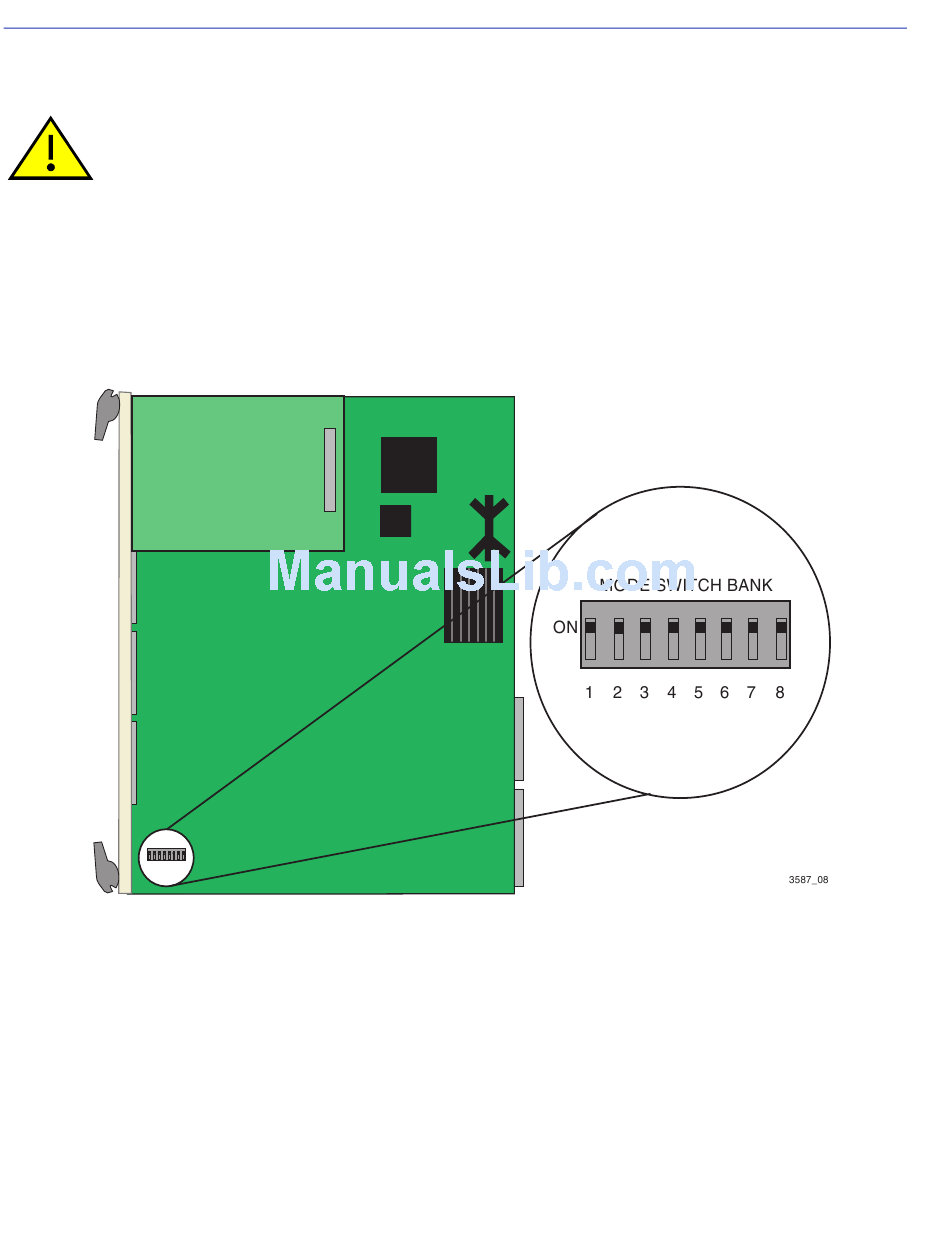

Figure B-1 Mode Switch Location
Switch definitions and positions are as follows:
• Switches 1 through 4 – For Enterasys Networks use only.
• Switch 5 – If the boot up diagnostics have been disabled, changing the position of this switch
will enable them.
• Switch 6 – No function.
B-2 Mode Switch Bank Settings
