Connecting the 5G106-06 to the Network
To connect the GPIM-09 to the network using multimode fiber, perform the following steps:
1. Connect Launch Mode Conditioning cable to the multimode fiber on both ends of the multimode
cable, before connecting the SmartSwitch with a GPIM-09 to the multimode fiber cabling. See
Figure 3-13.

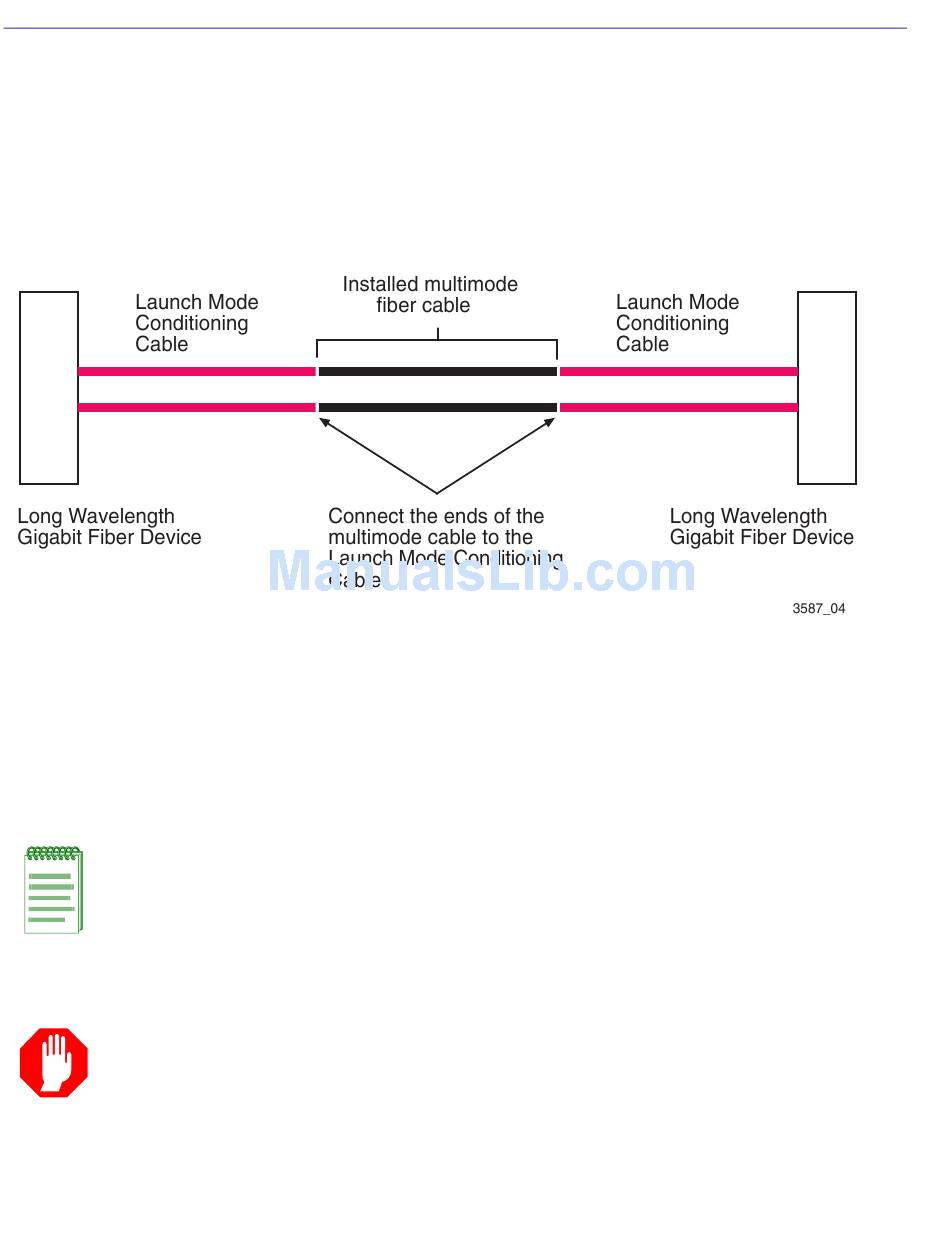

Figure 3-13 GPIM-09 Launch Mode Conditioning Cable Connection
2. Once the Launch Mode Conditioning cable is connected to the ends of the multimode fiber optic
cable, proceed to
3.6.3

5G106-06 Network Connection

To connect the module using fiber optic cable to the network, perform the following steps:
NOTE: If connecting the module with a GPIM-09 to the network using multimode fiber
optic cable, refer to
1. Remove any protective covers from the fiber optic ports and from the ends of the connectors.
WARNING: The GPIM-08 and GPIM-09 use Class 1 lasers. Do not use optical
instruments to view the laser output. The use of optical instruments to view laser output
increases eye hazard. When viewing the output optical port, power must be removed
from the network adapter.
3-16 Installation
Section 3.6.3 to complete the installation to the GPIM-09 device.
Section 3.6.2 before following this procedure.
