Eagle FishElite 320 Installation And Operation Instructions Manual
  1. Manuals
  2. Brands
  3. Eagle Manuals
  4. Fish Finder
  5. FishElite 320
  6. Installation and operation instructions manual

Eagle FishElite 320 Installation And Operation Instructions Manual

Eagle electronics installation and operation instructions fish-finding sonars & mapping gps fishelite 320, seacharter 320df
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pub. 988-0143-672
www.eaglesonar.com

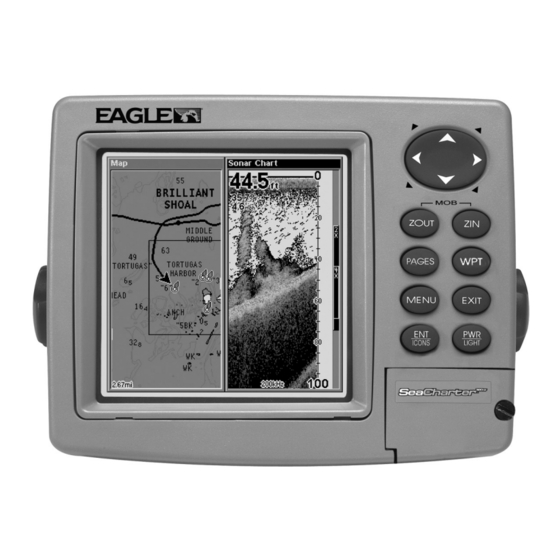

FishElite 320 and
SeaCharter 320DF
Fish-finding Sonars & Mapping GPS
Installation and Operation
Instructions

Advertisement

Table of Contents
loading

Related Manuals for Eagle FishElite 320

Summary of Contents for Eagle FishElite 320

  • Page 1 Pub. 988-0143-672 www.eaglesonar.com  FishElite 320 and  SeaCharter 320DF Fish-finding Sonars & Mapping GPS Installation and Operation Instructions...
  • Page 2 Ltd. Exit Authority and eXitSource are trademarks of Zenrin Co. Ltd. Eagle Electronics may find it necessary to change or end our policies, regulations, and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice.

  • Page 3: Table Of Contents

    Section 1: Read Me First!... 1 Capabilities and Specifications: ... 3 How Eagle Sonar Works... 5 How Eagle GPS Works ... 6 How To Use This Manual: Typographical Conventions... 10 Section 2: Installation & Accessories... 13 Transducer Installation... 13 Recommended Tools and Supplies ... 14 Selecting a Transducer Location ...
  • Page 4 Calibrate Speed... 58 Chart Speed... 59 Depth Cursor... 60 Depth Range - Automatic ... 60 Depth Range - Manual ... 61 FasTrack ... 61 Fish I.D. (Fish Symbols & Depths) ... 62 FishTrack ... 64 FishReveal ... 64 Frequency (Change Trans Frequency – 320DF only) ... 66 ...
  • Page 5 Basic GPS Quick Reference ... 103 Find Your Current Position... 104 Moving Around the Map: Zoom & Cursor Arrow Keys ... 104 Selecting Any Map Item With the Cursor ... 105 Searching... 105 Set a Waypoint... 107 Navigate To a Waypoint ... 109 Set Man Overboard (MOB) Waypoint...
  • Page 6 Edit a Waypoint (Name, Symbol, and Position) ... 131 Selecting a Waypoint ... 132 Set a Waypoint By Average Position ... 132 Set a Waypoint By Projecting a Position ... 132 Section 8: System & GPS Setup Options ... 135 Alarms ...
  • Page 7 Section 9: Searching ... 165 Find Addresses... 165 Find Any Item Selected By Map Cursor... 168 Find Interstate Highway Exits ... 169 Find Map Places or Points of Interest (POI) ... 171 Find Streets or Intersections... 172 Find Waypoints... 176 Section 10: Supplemental Material ...
  • Page 8 A CAREFUL NAVIGATOR NEVER RELIES ON ONLY ONE METHOD TO OBTAIN POSITION INFORMATION. When showing navigation data to a position (waypoint), a GPS unit will show the shortest, most direct path to the waypoint. It provides navigation data to the waypoint regardless of obstructions.

  • Page 9: Section 1: Read Me First

    The manual is organized into 10 sections. This first section is an intro- duction to Eagle sonar and GPS. It tells you the basics you need to know before you can make the unit look around and tell you where you are, or look below the surface to find some fish.
  • Page 10 After you've gained some experience with your sonar, you'll want to check out Section 4, which discusses more advanced Sonar Options and Other Features. When you come to a sonar menu command on the screen, you can look it up in the manual by skimming over the table of contents, just flipping through Section 3 or scanning through the sonar options in Section 4.

  • Page 11: Capabilities And Specifications

    SeaCharter 320DF. It has 35°/12° cone an- gles. A single-frequency Skimmer transducer with built-in temperature sensor is packed with the FishElite 320. It has a 20º cone an- gle. Transducers operate at speeds up to 70 mph (61 kts). ...
  • Page 12 Receiver/antenna: ... External; EGC-12w 12 parallel channel Recording:... MMC & SD cards for recording GPS trip de- Background map:... Built-in custom, detailed Eagle map. Con- Custom mapping: ... MapCreate 6 software optional; Navionics Mapping memory: ... Up to 128 MB on one MMC (or SD) card.

  • Page 13: How Eagle Sonar Works

    Sonar has been around since the 1940s, so if you already know how it works, skip down to read about the relatively new technology of GPS. But, if you've never owned a sonar fish finder, this segment will tell you the under water basics.

  • Page 14: How Eagle Gps Works

    Sonar Simulator function, or play it back on a per- sonal computer using our free Sonar Viewer. The viewer is available for download from the Eagle web site, www.eaglesonar.com. You can save several different sonar log files, erase 'em and record new ones, over and over again.
  • Page 15 These MapCreate custom maps contain much greater de- tail than the basic background map. These Custom Map Files (file format *.lcm) can also be shared between Eagle GPS or sonar/GPS units and personal computers. This unit automatically reads Custom Map Files directly from the MMC or SDC.

  • Page 16: Introduction To Gps And Waas

    Introduction to GPS and WAAS Well, now you know the basics of how the unit does its work. You might be ready to jump ahead to Section 2, Installation & Accessories, on page 13, so you can mount your unit and plug in the power. Or you might want to see how our text formatting makes the manual tutorials easy to skim.
  • Page 17 determine a position. This is called a 2D fix. It takes four satellites to determine both position and elevation (your height above sea level — also called altitude.) This is called a 3D fix. Remember, the unit must have a clear view of the satellites in order to receive their signals.

  • Page 18: How To Use This Manual: Typographical Conventions

    receiver is only a tool. Always have another method of navigation avail- able, such as a map or chart and a compass. Also remember that this unit will always show navigation information in the shortest line from your present position to a waypoint, regardless of terrain! It only calculates position, it can’t know what’s between you and your destination, for example.
  • Page 19 1. From the Map Page, press 2. Press ↓ to Trail 1| 3. You are asked to wait while it converts the trail into a route. 4. The wait message disappears and the unit begins showing navigation information along the trail. Now, begin moving and follow your unit.
  • Page 20 Notes...

  • Page 21: Section 2: Installation & Accessories

    Installation & Accessories Preparations You can install the sonar and GPS systems in some other order if you prefer, but we recommend this installation sequence: Caution: You should read over this entire installation section before drill- ing any holes in your vehicle or vessel! 1.

  • Page 22: Recommended Tools And Supplies

    Read these instructions carefully before attempting the installation. Determine which of the mounting positions is right for your boat. Use extreme care if mounting the transducer inside the hull, because once it is epoxied into position, the transducer usually cannot be removed. Remember, the transducer installation is the most critical part of a sonar installation.
  • Page 23 2. The transducer should be installed with its face pointing straight down, if possible. 3. If the transducer is mounted on the transom, make sure it doesn't interfere with the trailer or hauling of the boat. Also, don't mount it closer than approximately one foot from the engine's lower unit.

  • Page 24: Transom Transducer Assembly And Mounting

    However, there are times when you may need to adjust the transducer slightly higher or lower. (The slots in the mounting brackets allow you to loosen the screws and slide the transducer up or down.) If you fre- quently lose bottom signal lock while running at high speed, the trans- ducer may be coming out of the water as you cross waves or wakes.
  • Page 25 bracket. This position sets the transducer's coarse angle adjustment for a 14° transom. Most outboard and stern-drive transoms have a 14° angle. Align plastic ratchets in bracket. B. Two-piece bracket: Locate the four plastic ratchets in the trans- ducer's hardware package. Press two ratchets into the sides of the plas- tic bracket and two on either side of the transducer as shown in the fol- lowing illustrations.
  • Page 26 Transducer Transducer bracket Ratchet Ratchet Add ratchets to bracket and transducer. 2. Aligning the transducer on the transom. A. One-piece bracket: Slide the transducer between the two ratch- ets. Temporarily slide the bolt though the transducer assembly and hold it against the transom. Looking at the transducer from the side, check to see if it will adjust so that its face is parallel to the ground.
  • Page 27 B. Two-piece bracket: Assemble the transducer and bracket as shown in the following figure. Temporarily slide the bolt though the transducer assembly but don't tighten the nut at this time. Hold the assembled transducer and bracket against the transom. Looking at the transducer from the side, check to see if it will adjust so that its face is parallel to the ground.
  • Page 28 B. Two-piece bracket: Once you determine the correct position for the ratchets, assemble the transducer as shown in the figure in step 2B. Don't tighten the lock nut at this time. 4. Drilling mounting holes. Hold the transducer and bracket assembly against the transom. The transducer should be roughly parallel to the ground.
  • Page 29 Both bracket types: Attach the transducer to the transom. Slide the transducer up or down until it's aligned properly with the bottom of the hull as shown in the preceding and following figures. Tighten the bracket's mounting screws, sealing them with the caulking compound. Adjust the transducer so that it's parallel to the ground and tighten the nut until it touches the outer washer, then add 1/4 turn.

  • Page 30: Trolling Motor Bracket Installation

    Manual locking collar connector requires a 1" hole. Caution: If you drill a hole in the transom for the cable, make sure it is lo- cated above the waterline. After installation, be sure to seal the hole with the same marine grade above- or below-waterline seal- ant used for the mounting screws.
  • Page 31 Transducer mounted on trolling motor, side view. TRANSDUCER ORIENTATION AND FISH ARCHES If you do not get good fish arches on your display, it could be because the transducer is not parallel with the ground when the boat is at rest in the water or at slow trolling speeds.

  • Page 32: Shoot-Thru-Hull Preparation And Installation

    NOTE: Periodically wash the transducer's face with soap and water to re- move any oil film. Oil and dirt on the face will reduce the sensitivity or may even prevent operation. SHOOT-THRU-HULL PREPARATION The transducer installation inside a fiberglass hull must be in an area that does not have air bubbles in the resin or separated fiberglass lay- ers.
  • Page 33 Next, take the transducer out of the water and place it in the water in the sump of the boat. Observe the sonar signal to see if there is a no- ticeable decrease in sensitivity. The second bottom signal may disap- pear and the bottom signal may decrease in intensity.

  • Page 34: Speed/Temperature Sensors

    However, the FishElite 320 can only use one accessory at a time, so if you would like to use a speed sensor and a second temperature sensor at the same time, you will need a combination device.

  • Page 35: Sensor Charts

    SeaCharter 320DF Sensor Chart (MY-4X adapter included) Single-temperature sensor installation MY-4X Cable Two-temperature sensor installation Three-temperature sensor installation SeaCharter 320DF rear view Temperature sensor built into transducer SP-X speed sensor TS-2X temperature sensor (optional) TS-3X temperature sensor (optional)
  • Page 36 FishElite 320 with secondary external temperature sensor. Primary temp sensor is built into the transducer. Power/transducer cable FishElite 320 with external speed sensor or combo speed/temp sensor. The primary temperature sensor is built into the transducer. Temperature sensor built into transducer...
  • Page 37 Optional Speed Sensor Installation All the units in this family can display speed and distance traveled, but only the SeaCharter 320DF comes packed with a speed sensor. If you wish to purchase an optional additional sensor for your unit, refer to the accessory ordering information inside the back cover of this manual.

  • Page 38: Gps Antenna/Receiver Module

    If the base of the transom has a radius, fill the gap between the tran- som and the sensor with the caulking compound. This will help ensure a smooth water flow. Route the sensor's cable through or over the transom to the sonar unit. If you need to drill a hole in the transom to pass the connector through, the required hole size will depend on the connector on the end of your sensor's cable.

  • Page 39: Power Connections

    You need to select an antenna installation location that has a clear, un- obstructed view of the sky. After the module is installed, route the cable to the unit, plug it in the center socket on the back and your system is ready to use.

  • Page 40: Nmea/Dgps Cable Connections (Seacharter 320Df Only)

    However, the unit will not work until the wires are attached correctly. An optional 8-foot, CA-4 external power cable with a cigarette lighter adapter is available from Eagle for use with the SeaCharter only. NMEA/DGPS Cable Connections (SeaCharter 320DF only) NMEA is a standard communications format for marine electronic equipment.
  • Page 41 GPS receiver (such as the SeaCharter 320DF). Eagle of- fers an optional DGPS receiver for your unit. See the diagrams on the following page for general wiring connections. Read your other product’s owner’s manual for more wiring information.
  • Page 42 SeaCharter 320DF, rear view Sonar socket Transducer SeaCharter 320DF cable connections. FishElite 320, rear view Sonar/Power socket Power wires Transducer FishElite 320 cable connections. Power/Data socket Power wires (two) GPS antenna module antenna module GPS socket Com port data wires...

  • Page 43: Mounting The Unit: Bracket, In-Dash Or Portable

    Mounting the Unit: Bracket, In-Dash or Portable You can install the unit on the top of a dash with the supplied gimbal bracket. It can also be installed in the dash or mounted on a portable power supply. If you use the supplied bracket, you may be interested in the optional ...
  • Page 44 Drill a 1-inch (25.4 mm) hole in the dash for the power, transducer and antenna cables. The best location for this hole is immediately under the gimbal bracket location. This way, the bracket can be installed so that it covers the hole, holds the cables in position and results in a neat in- stallation.

  • Page 45: In-Dash Installation

    Portable Installation Like many Eagle products, these units are capable of portable operation by using the optional portable power pack (PPP-14 for FishElite 320, PPP-11 for SeaCharter 320DF). The power pack, the magnet-equipped antenna module and an optional portable transducer expand the uses for your sonar/GPS unit.
  • Page 46 "D" cell battery Install batteries in power pack battery adapter. MMC or SDC Memory Card Installation Your sonar/GPS unit uses a MultiMedia Card to store information, such as sonar logs, custom maps, waypoints, trails and other GPS data. The unit can also use Secure Digital Cards (SD card or SDC) to store data.

  • Page 47: Other Accessories

    MMC groove for card removal Thumb screw Insert card face up, this way Memory card compartment with a 16 MB MMC card installed. To remove an MMC 1. Open the card compartment door by unscrewing the thumb screw. The screw should only be finger tight. If it was over-tightened, use a thumbnail, a coin or a screwdriver to open the door.
  • Page 48 MapCreate™ 6 CD-ROM, left; MMC card reader for USB ports, right. Now that you have your unit installed, move on to Section 3, Basic So- nar Operations. There, we'll present a series of step-by-step tutorials to teach you the basics of sonar operation. NOTE: When you first turn the unit on, the Map Page appears.

  • Page 49: Section 3: Basic Sonar Operation

    Section 3: Basic Sonar Operation This section addresses the unit's most basic sonar operations. The in- structions presented in Sec. 3 follow a chronological order. Sec. 4, Sonar Options & Other Features, will discuss other more advanced functions and utilities. Material in Sec. 4 is arranged in alphabetical order. Before you turn on the sonar unit, it's a good idea to learn about the different keys, the Main Menu, the four Page screens and how they all work together.

  • Page 50: Power/Lights On And Off

    4. ARROW KEYS – These keys are used to navigate through the menus, make menu selections, move the map and sonar chart cursors and enter data. 5. ENT/ICONS (Enter & Icons) – This key allows you to save data, ac- cept values or execute menu commands.
  • Page 51 You can access the Main Menu from any of the four Page screens by pressing . To clear the menu screen and return to the page MENU MENU display, press . (Remember, our text style for " " means EXIT MENU MENU "press the Menu key twice."...

  • Page 52: Satellite Status Page

    Timers command: controls the up timer, down timer and alarm clock settings. Browse MMC Files command: this allows you to view the installed MMC card and the files it contains. Pages The unit has four Page displays that represent the four major operating modes.

  • Page 53: Navigation Page

    Satellite Status Page showing satellite lock-on with a 3D position acquired (latitude, longitude and altitude), including WAAS reception. Navigation Page This screen has a compass rose that not only shows your direction of travel, but also the direction to a recalled waypoint. To get to the Navi- | →...

  • Page 54: Sonar Page

    Map Page, showing position on Bull Shoals Lake, Arkansas. At left is the full map option. At right, map with sonar option. Map Page is also the default screen that appears when you turn on the unit. To get to the Map Page from another page: Press EXIT You can display a split screen showing both the Map and Sonar pages at the same time.
  • Page 55 At left, Pages Menu, showing sonar chart display option commands. At right, Sonar Page in full sonar chart display mode. Sonar chart display options (from left) split zoom and split frequency. At left, digital data sonar chart display options. At right, Sonar Page Menu.
  • Page 56 Digital data overlay (depth & temperature) Fish arches Structure Sonar Page, showing full sonar chart mode. You can customize how the Sonar Page displays its pictures and other data in many ways. Your unit also includes several special sonar fea- tures and options that can help you better interpret the underwater scene.

  • Page 57: Basic Sonar Quick Reference

    Basic Sonar Quick Reference 1. Mount the transducer, antenna and unit. Connect the unit to electric power and the transducer. (If GPS operation is desired, connect GPS antenna, too.) Make sure the MMC is in. (See complete installation de- tails beginning on page 13.) 2.

  • Page 58: Sonar Operations

    Sonar Operations As you can see from the quick reference on the previous page, basic operation is pretty easy, right out of the box. If you are a sonar novice, try operating the unit with the factory defaults until you get a feel for how it's working. As you're learning the basics, there is one setting you might want to tinker with from time to time —...
  • Page 59 You can change the sensitivity level whether you are in Auto Sensitivity mode or Manual Sensitivity mode. The adjustment method works the same in both modes, but it gives you slightly different results. Adjusting sensitivity in Auto Sensitivity Mode is similar to manually ad- justing a car's speed with the accelerator pedal while cruise control is on.

  • Page 60: Fish Symbols Vs. Full Sonar Chart

    NOTE: If you want to change the sensitivity in Manual Mode, first turn off Auto Sensitivity: from the Sonar Page, press |↑ to ENSITIVITY sensitivity setting. When it's set at the desired level, press Important Tip: While you are experimenting and learning, it's possible to scramble the settings so that the sonar picture disappears from your screen.

  • Page 61: Other Free Training Aids

    Aside from being just plain fun, this program can help you learn both basic and advanced operations without burning boat fuel! Eagle is one of the first sonar manufacturers to provide this type of training tool for customers.
  • Page 62 Free training emulator is available for your unit on our web site. The emulator works exactly like your real sonar/GPS unit. Using the Sonar Simulator and GPS Simulator features, it allows you to play back sonar logs, run GPS routes and trails, even create real waypoints you can use in the field! You can even take snapshots of the Sonar Chart and print them or e-mail them to friends.

  • Page 63: Section 4: Sonar Options & Other Features

    Section 4: Sonar Options & Other Features Material in this section is arranged in alphabetical order. ASP (Advanced Signal Processing) The ASP feature is a noise rejection system built into the sonar unit that constantly evaluates the effects of boat speed, water conditions and interference.

  • Page 64: Alarms

    Alarms This unit has three different types of sonar alarms. The first is the Fish Alarm. It sounds when the Fish I.D. feature determines that an echo is a fish. Another alarm is the Zone Alarm, which consists of a bar on the side of the screen.

  • Page 65: Zone Alarm

    5. To turn off the alarm, press ONAR LARMS To switch to a different depth setting, open the Sonar Alarms menu and repeat the instructions in step 3 above. To adjust and turn on the deep alarm: 1. Press MENU MENU 2.

  • Page 66: Fish Alarm

    5. Press |← to EXIT echo — fish, bottom, structure — within the zone alarm's depth range will trigger the zone alarm. 6. To turn off the alarm, press |↓ to ONAR LARMS To switch to a different depth setting, open the Sonar Alarms menu and repeat the instructions in steps 3 and 4 above.

  • Page 67: Chart Speed

    When you make a run to compare GPS ground speed to speed sensor speed, perform your test in relatively calm water free of current, if pos- sible. (Unless, of course, you are taking the current speed into consid- eration when making your calculation.) After you have a correction fig- ure, here's how to enter it: 1.

  • Page 68: Depth Cursor

    1. From the Sonar Page, press 2. The Chart Speed Control Bar appears. Press ↓ to decrease chart speed; press ↑ to increase chart speed. 3. When it's set at the desired level, press Depth Cursor The depth cursor consists of a horizontal line with a digital depth box on the right side.

  • Page 69: Depth Range - Manual

    At left, Sonar Page menu with Depth Range command selected. At right, the Depth Range Control Scale. 2. The Depth Range Control Scale appears. Press ↑ or ↓ to select a dif- ferent depth range. A black bar highlights the selected range. Range numbers in gray cannot be selected.

  • Page 70: Fish I.d. (Fish Symbols & Depths)

    Surface clutter Structure  Grayline Bottom signal Fish I.D. (Fish Symbols & Depths) The Fish I.D. feature identifies targets that meet certain conditions as fish. The microcomputer analyzes all echoes and eliminates surface clutter, thermoclines, and other signals that are undesirable. In most instances, remaining targets are fish.
  • Page 71 Sonar Features menu with Fish I.D. Symbols selected (at left, dual- frequency menu; at right, single-frequency menu). When the check box to the left is checked, the feature is on. Fig. 1 A Fig. 1 B Many fish Fewer fish arches visible symbols visible Fig.

  • Page 72: Fishtrack

    To turn the Fish I.D. feature on: 1. From the Sonar Page, press 2. Press → ↓ or → to To turn off Fish I.D., repeat the instructions in step 1. FishTrack The FishTrack feature shows the depth of a fish symbol when it ap- pears on the display.
  • Page 73 clines – are also emphasized. This can make it hard to distinguish fish signals inside thermoclines or other cover. In FishReveal mode, the weakest echoes are white and the strongest echoes are black. Echoes in between vary in gray in proportion to their signal strength.

  • Page 74: Frequency (Change Trans Frequency - 320Df Only)

    NOTE: Water conditions vary greatly, and that affects sonar performance. Under certain conditions, FishReveal will show you more fish than normal grayscale mode, but the reverse will be true in other cir- cumstances. We suggest you become familiar with both modes so you can best match your sonar's performance to the current water conditions.

  • Page 75: Grayline

    To change the frequency setting to 50 kHz: 1. From the Sonar Page, press 2. Press ↓ to 3. Press EXIT EXIT To change the frequency setting to 200 kHz: 1. From the Sonar Page, press 2. Press EXIT EXIT ...
  • Page 76 Fig. 1A Fig. 2A Fig. 3A This series of figures shows how different Grayline settings can reveal more information. The "A" figures to the left show locations with Gray- line set at the factory level of 64 percent. At right, the "B" figures show the same locations with Grayline increased to 84 percent.

  • Page 77: Hyperscroll

    HyperScroll See the entry on Ping Speed, which controls the HyperScroll feature. Log Sonar Chart Data If you have an MMC installed in the unit, the sonar data shown on the screen can be saved to the MMC. This can be played back at any time (to play a recorded sonar chart log, see the entry in this section for So- nar Simulator).

  • Page 78: Overlay Data

    Overlay Data To change the digital data shown on top of the Sonar Page or the Map Page: , use → or ← to select a Page Name, then press First, press PAGES To select data for display: 1. From the Map or Sonar page, press 2.
  • Page 79 2. Press ↓ or ↑ to select Data Type| from the top of the list and reverts to its previous, unchecked position. (If you wish, you may now use ↓ or ↑ to select other Data Types to turn off.) 3.

  • Page 80: Ping Speed & Hyperscroll

    NOTE: Some data types can be displayed in only one font size. If that is the case, the Data Size box will not be displayed for that data type. Ping Speed & HyperScroll Ping Speed controls the rate at which the transmitter and transducer broadcast sonar sound waves —...

  • Page 81: Reset Options

    To adjust Sensitivity: 1. From the Sonar Page, press 2. The Sensitivity Control Bar appears. Press ↓ to decrease sensitivity; press ↑ to increase sensitivity. When it's set at the desired level, press . (When you reach the maximum or minimum limit, a tone sounds.) EXIT To turn off HyperScroll: 1.

  • Page 82: Reset Water Distance

    NOTE: Reset Options does not erase any waypoints, routes, plot trails, or sonar logs. Reset Water Distance The sonar chart's Digital Data display option includes a window that shows distance traveled, called Water Distance ("W Distance"). This information is calculated from an optional water speed sensor, not the GPS.

  • Page 83: Sensitivity & Auto Sensitivity

    you can calibrate the depth indicators so that they show the actual wa- ter depth from surface to bottom. To do this, first measure the distance from the face of the transducer up to the surface (the water line on the boat).

  • Page 84: To Turn Auto Sensitivity Back On

    justments, allowing for the setting you selected. In manual mode, you have complete control over sensitivity, with the ability to set it anywhere from zero to 100 percent. Once you select a level in manual, the unit will continue to use that exact sensitivity set- ting until you change it or revert to auto mode.

  • Page 85: Sonar Color Mode

    Control Bar on the screen as the chart scrolls. You can see the changes on the screen as you press the up or down arrows. This is handy when there's a lot of clutter in the water, and you are matching the sensitivity to rapidly changing water conditions.

  • Page 86: Split Zoom Sonar Chart

    sensor or a transducer with a temp sensor built in) show at the top left corner of the screen. The FasTrack™ display shows just to the right of the scale. This changes all echoes into short horizontal bars, replicating a flasher so- nar.

  • Page 87: Split Frequency Sonar Chart (320Df Only)

    Split Frequency Sonar Chart (SeaCharter 320DF only) This page shows sonar data from the 50 kHz transducer element on the left side of the screen and data from the 200 kHz transducer on the right side. All other functions and features are the same as the Full Chart page.

  • Page 88: Digital Data/Chart

    Digital Data/Chart This mode shows the chart on the right side of the screen. The left side has six large digital boxes or windows containing: Water Depth; Water Speed (from an optional speed sensor); Water Distance (distance traveled or log, it also requires a speed sensor);...

  • Page 89: Map With Sonar Split Screen

    Options List for customizing Digital Data windows. At left, the list first appears with Water Speed selected. At right, Maximum Speed has been picked to replace Water Speed in the top digital data window. Tip: You can customize other digital data windows before returning to the Sonar Page.

  • Page 90: Sonar Simulator

    Sonar Simulator This unit has a built-in simulator that lets you run it as if you were on the water. All sonar features and functions are useable. When in simulator mode, you will see the chart file name in the Sonar Page title bar and a play symbol will flash on and off at the right end of the title bar.
  • Page 91 Tip: The Sonar Simulator can use sonar charts that you or a friend have recorded (logged) on an MMC card. (To see how, read the entry in this section on Log Sonar Chart Data.) To play back your own sonar chart, make sure the MMC containing the chart is installed, then: 1.

  • Page 92: Stop Chart

    matically stop as soon as you turn on the unit with a transducer at- tached. The simulator will continue to function normally. Stop Chart If you are running multiple units on a boat or using this unit in a car, there are times when you may want to turn off the sonar.

  • Page 93: Zoom & Zoom Bar

    Sonar Features menu with Surface Clarity selected (at left, dual- frequency menu; at right, single-frequency menu). 2. Press → to URFACE press 3. Press ↓ or ↑ to select clarity level| Surface clutter In the illustration at left, Surface Clarity is turned off. The right view shows Surface Clarity set at High.

  • Page 94: Zoom Pan

    For example, pressing the key once will enable a 2X zoom which will show all echoes that are between the top and bottom of the 2X zoom bar. Pressing the key again will give a 4X zoom and only the ech- oes between the top and bottom of the 4X bar will show on the screen.

  • Page 95: Section 5: Sonar Troubleshooting

    Section 5: Sonar Troubleshooting If your unit is not working, or if you need technical help, please use the following troubleshooting section before contacting the factory customer service department. It may save you the trouble of returning your unit for repair. For contact information, refer to the last page, just inside the back cover of this manual.
  • Page 96 noise rejection feature. This can cause the unit to eliminate weaker signals such as fish or even structure from the display. 3. The water may be deeper than the sonar's ability to find the bottom. If the sonar can't find the bottom signal while it's in the automatic mode, the digital sonar display will flash continuously.
  • Page 97 NOISE A major cause of sonar problems is electrical noise. This usually appears on the sonar's display as random patterns of dots or lines. In severe cases, it can completely cover the screen with black dots, or cause the unit to operate erratically, or not at all. To eliminate or minimize the effects of electrical noise, first try to determine the cause.
  • Page 98 Notes...

  • Page 99: Section 6: Basic Gps Operations

    Basic GPS Operations This section addresses the unit's most basic GPS operations. The tuto- rials presented in Sec. 6 follow a chronological order. Sec. 7, Advanced GPS Operations, will discuss other more advanced functions and utili- ties. Material in Sec. 7 is arranged in alphabetical order. Before you turn on the unit and find where you are, it's a good idea to learn about the different keys, the four Page screens and how they all work together.

  • Page 100: Power/Lights On And Off

    3. MENU – Press this key to show the menus and submenus, which allow you to select a command or adjust a feature. This also accesses search functions for streets, intersections, addresses and highway exits. 4. ARROW KEYS – These keys are used to navigate through the menus, make menu selections, move the map cursor and sonar chart cursor and enter data.
  • Page 101 with the factory default settings. But, if you want to learn about the various options, see Section 8, System Setup and GPS Setup Options. You can access the Main Menu from any of the four Page screens by pressing . To clear the menu screen and return to the page MENU MENU display, press...

  • Page 102: Sonar Page

    Sun/Moon Calculations command: finds the rising and setting time of the sun and the moon. Trip Calculator command: shows trip status and statistics. Timers command: controls the up timer, down timer and alarm clock settings. Browse MMC Files command: this allows you to view the installed MMC card and the files it contains.
  • Page 103 No matter what Page you are on, a flashing current position indica- tor/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed. The Sat- ellite Status Page shows you the quality and accuracy of the current satellite lock-on and position calculation.

  • Page 104: Navigation Page

    The Satellite Status Page has its own menu, which is used for setting various options. (Options and setup are discussed in Sec. 8). To access the Satellite Status Page Menu, from the Status Page, press Navigation Page This screen has a compass rose that not only shows your direction of travel, but also the direction to a recalled waypoint.
  • Page 105 you wish, you can customize the Speed window to display Closing Speed instead. Closing Speed is also known as velocity made good. It's the speed that you're making toward the waypoint. For instructions, see the Customize Page Displays entry in Sec. 8.) Track is the heading, or the current direction you are actually travel- ing.

  • Page 106: Map Page

    Current track or heading, shown in degrees Compass bearing to destination Course line Navigation information displays Navigation Page, backtracking a trail while creating a new trail. The Navigation Page has its own menu, which is used for some ad- vanced functions and for setting various options. (Options and setup are discussed in Sec.

  • Page 107: Background Map Vs. Mapcreate Map Content

    Far left, Map Page opening screen. Center, zoomed to 100 miles and right, zoomed to 10 miles. Over Zoomed means you have reached the detail limits in an area covered only by the basic background map. Zooming in any closer will reveal no more map details because a high- detail custom map has not been loaded on the MMC for this area.
  • Page 108 The medium-detail U.S. maps contain: all incorporated cities; shaded metropolitan areas; county boundaries; shaded public lands (such as national forests and parks); some major city streets; Interstate, U.S. and state highways; Interstate highway exits and exit services informa- tion; large- and medium-sized lakes and streams; and more than 60,000 navigation aids and 10,000 wrecks and obstructions in U.S.
  • Page 109 Tip: In some urban areas, businesses are so close to one another that their POI icons crowd each other on the screen. In the preceding figure, you can see a jumbled pile of POIs along Highway 34. You can reduce screen clutter and make streets and other map features easier to see by simply turning off the display of POIs you're not watching for.
  • Page 110 Pages Menu with Two Map option selected, left. Map Page with two map windows, at right. The left map is active. Resize Window is another extremely handy feature for pages that have two major windows. You can change the horizontal size of the windows to suit your viewing preference.

  • Page 111: Basic Gps Quick Reference

    Basic GPS Quick Reference Start outdoors, with a clear view of the open sky. As you practice, try navigating to a location at least a few blocks away. While you're learning, navigation in too small an area will constantly trigger arrival alarms. 1.

  • Page 112: Find Your Current Position

    Find Your Current Position Finding your current position is as simple as turning the unit on. Un- der clear sky conditions, the unit automatically searches for satellites and calculates its position in approximately one minute or less. NOTE: "Clear sky" means open sky, unobstructed by terrain, dense foliage or structures.

  • Page 113: Selecting Any Map Item With The Cursor

    Now that you've seen how the unit can find where you are, let's search for something somewhere else. Searching is one of the most powerful features in the Eagle GPS product line. In this example, we'll look for the nearest fast-food restaurant. For more information on different types of searches, refer to Section 9, Searching.
  • Page 114 3. The unit says it is calculating, then a list of restaurants appears, with the closest at the top of the list, and the farthest at the bottom of the list. The nearest is highlighted. Find Waypoint Menu, left; Category Selection menu, center; and list of 4.

  • Page 115: Set A Waypoint

    Map screen showing Finding Waypoint, 7. To clear the search and return to the last page displayed, press EXIT EXIT EXIT EXIT menus, you could have gone looking for another place.) NOTE: Search works from mapping and POI data loaded in the unit. If you do not have a high-detailed custom map (containing POI data) for the area you are searching loaded on the MMC, you may not find anything.
  • Page 116 Create Waypoint at Current Position While you are traveling, press automatically given a name with a sequential number, such as "way- point 003." The waypoint symbol and number appear on the map. Step 1. Step 3. Sequence for setting a waypoint. Step 1: while traveling, quickly press WPT twice to call up Find Waypoint screen (seen in Step 2) and set a point.

  • Page 117: Navigate To A Waypoint

    NOTE: The Quick Save method uses the default waypoint symbol until you edit an existing waypoint and change its symbol. (Edit Waypoint Symbol is described in Sec. 7.) After you have changed a waypoint symbol, the unit will remember the one you chose and use it the next time you "quick save"...

  • Page 118: Set Man Overboard (Mob) Waypoint

    and repeat until the name is correct, then press below.) 3. If the list is short, you can jump directly to the . Use ↑ or ↓ to select the waypoint name, press pressing the waypoint information screen appears with the lected.

  • Page 119: Navigate To Cursor Position On Map

    the man overboard position, and the destination name says "Going To Man Overboard." The Map Page displays a Man Overboard waypoint, represented by a human figure, and the steering arrow points where to steer to reach that position. Navigating to Man Overboard: Navigation Page, left, and Map Page, right.
  • Page 120 Navigate to cursor. In this example, the cursor has selected the town of Oologah, Oklahoma. 3. Press and the unit will begin navigating to the cursor lo- MENU cation. The Map Page will display a dotted line from your current position to the cursor position.

  • Page 121: Navigate To A Point Of Interest

    Navigate to a Point of Interest For POIs that are in view on the map, you can easily use the Navigate to Cursor command above; just use the cursor to select the POI. The other method involves searching for POIs with the Find Waypoint command, launched with the lier in this section, or turn to Sec.
  • Page 122 Active symbol Visible symbol Sequence for saving a trail and beginning a new one. At left, My Trails command. Center, the Trails Menu. The arrow to the right of Trail 14 indicates the trail is "active," and the check to the left indicates the trail is visible on the map display.

  • Page 123: Displaying A Saved Trail

    Tip: Another quick way to stop recording one trail and begin a new one is to use the New Trail command: Press RAILS Caution: You also have the option of completely turning off trail record- ing, under the trail Options command. However, if the Update Active Trail option is left turned off, it will cancel the automatic trail creation feature.
  • Page 124 tween them is "navigating a trail" follows a trail forward (from start to end) while "backtracking" follows a trail in reverse (from end to start.) When hiking at walking speed with a hand-held GPS, we often just use visual back trailing because it is a bit better at following each little turn on a foot path.
  • Page 125 Figure 1. Navigate a trail menu sequence: Fig. 1, My Trails command. Fig. 2, Trails Menu. Fig. 3, Edit Trail Menu. Fig. 4, Edit Route Menu with Navigate command highlighted for Trail 6. A trail is always converted to a "route" when you navigate the trail. On the Map Page, the trail you are navigating is represented by a dot- ted line that alternates with a flashing solid line.

  • Page 126: Transfer Custom Maps And Gps Data Files

    Track or compass heading indicator Trail waypoint symbol Course line made from trail Navigate trail, navigation page (compass rose) views: at left, driver is northbound heading straight toward trail point 6; bearing arrow shows the trail point is due north (straight ahead.) At right, driver has reached trail point 6 and must turn west to follow the trail.
  • Page 127 NOTE: To load a Navionics GPS Data files: GPS Data Files contain waypoints, routes, trails and event marker icons. Instructions for copying GPS Data Files between your computer and an MMC are contained in the instruction manual for your MMC card reader and MapCreate 6 software.

  • Page 128: Cancel Navigation

    From left to right, these figures show the menu sequence for naming and saving a GPS Data File from the unit's memory to an MMC. 4. Loading to unit memory: There may be more than one GPS Data File (*.USR) on the card. To select a file, press to activate the selec- tion box, use ↓...

  • Page 129: Section 7: Advanced Gps Operations

    Advanced GPS Operations Find Distance From Current Position To Another Location 1. While on the Map Page press: 2. Center your cursor over the position you want to find the distance to. A rubber band line appears, connecting your current position to the cursor's location.

  • Page 130: Icons

    Icons Icons are graphic symbols used to mark some location, personal point of interest or event. They can be placed on the map screen, saved and re- called later for navigation purposes. These are sometimes referred to as event marker icons. This unit has 42 different symbols you can pick from when creating an icon.

  • Page 131: Navigate To An Icon

    1. Press |↓ to MENU 2. Press ↓ to ELETE press ENT The Delete All Icons command will ask if you are sure. Press ← to . All icons will be deleted from the map. The Delete by Symbol command will launch the Select Symbol menu. Press ←...

  • Page 132: Create And Save A Route

    A route provides the automatic capability to navigate through several waypoints without having to reprogram the unit after arriving at each waypoint. Once programmed into the GPS unit, a route provides the option of navigating forward through the route waypoints or in reverse order (you can even begin navigating in the middle of a route!) Create and Save a Route You have the option of creating and editing a route in the unit, or you...
  • Page 133 Edit Route menu, left. Edit Route Waypoints menu, right, with Add From Map command selected. 3. Use the Zoom keys and arrow keys to move the map and cursor until the cursor is centered on the spot where you want your route to begin. (If you are starting at your current position or the current cursor posi- tion, you are already at the starting spot.) 4.
  • Page 134 Route creation sequence, from left: Fig. 1. Set route waypoint (1) at 11th St. & 145th Ave. Fig. 2. Zoom in; move cursor north to set point (2) at 145th & Admiral. Fig. 3. With point (2) set, move cursor east to mark interstate on-ramp with waypoint (3).

  • Page 135: Delete A Route

    Delete a Route 1. From the AVIGATION press |↓ to MENU MENU 2. Press ↓ to route name| 3. Press ↓ to AVIGATE Tip: You can also delete all routes at once: 1. From the AVIGATION press MENU MENU 2. Press → to Edit a Route You can edit the route name if you wish.

  • Page 136: Navigate A Route

    route by clicking on a map location with the cursor. Add Waypoint calls up the Waypoint List so you can insert a waypoint from the list. Re- move Waypoint will delete the waypoint from the route. View Waypoint will show you where the selected waypoint is on the map. Navigate a Route 1.

  • Page 137: Trails

    Figure 1. Figure 3. Navigating along a route: Fig. 1 shows the Navigation Page at the start of a route, heading straight for the first waypoint (Wpt 1). In Fig. 2, the traveler has arrived at Wpt 1; the arrival alarm has been triggered and the bearing arrow on the compass rose has turned to point toward Wpt 2, off to the east.

  • Page 138: Edit A Trail Color

    Tip: You can quickly call up the Edit Trail menu by selecting a trail on the map with the cursor. Simply move the cursor over a trail and a pop-up box appears. Press At left, trail selected with map cursor. The pop-up box shows distance and bearing from current position to the selected point on the trail.

  • Page 139: Alarm Clock

    Alarm Clock To get to the alarm clock menu: press LARM LOCK Sun/Moon Rise & Set Calculator To get to the Sun/Moon menu: press ALCULATIONS Trip Calculator To get to the Calculator menu: press LATOR Trip Down Timer To get to the Down Timer menu: press IMER Trip Up Timer To get to the Up Timer menu: press...

  • Page 140: Selecting A Waypoint

    Waypoint Symbol To edit waypoint symbol: 1. Press |↓ to AYPOINT 2. Use arrow keys to select desired symbol and press the previous page, press Waypoint Position To edit waypoint position: 1. Press AYPOINT 2. Latitude: press → to character, then press → to the next character and repeat until the lati- tude is correct.
  • Page 141 lected from your waypoint list, a map feature or from the Points of In- terest list. 1. Press |→ to 2. Press ↓ to ROJECTED 3. Press → to HOOSE map feature or Point of Interest. When the point has been selected, press and the point's position appears as the reference position.
  • Page 142 Notes...

  • Page 143: Section 8: System & Gps Setup Options

    Section 8: System & GPS Setup Options Alarms This unit has several GPS alarms. The factory default setting has all the alarms turned on. You can turn the alarms off and on and change their distance settings. You can set an arrival alarm to flash a warning message and sound a tone when you cross a preset distance from a waypoint.

  • Page 144: Auto Satellite Search

    4. When your adjustments are finished, return to the last page dis- played by repeatedly pressing IMPORTANT ALARM NOTES: Anchor Alarm - The anchor alarm may be triggered even when you're sitting still. This typically happens when using small (less than .05 mile) anchor alarm ranges.

  • Page 145: Check Mmc Files And Storage Space

    GPS Auto Search on the Satellite Status Menu. You can force the unit to immediately kick into auto search mode. Here's how: From the Satellite Status page, |↓ to |← to MENU GPS A EARCH Check MMC Files and Storage Space To check MMC Files: Press |↓...

  • Page 146: Configure Dgps (320Df Only)

    vice, such as an autopilot. The com port can be used for either NMEA, DGPS or SiRF Binary data transfer. Menus for changing Com Port settings. For connectors and wiring information for another device, see page 32. For assistance in configuring the unit to communicate with another device, consult the factory;...

  • Page 147: Configure Nmea (320Df Only)

    |press UNING vious page. Configure NMEA You can configure the unit to use specific NMEA sentences. 1. Press MENU MENU 2. Press ↓ to OMMUNICATIONS 3. A menu appears showing the prefixes of the available NMEA sen- tences. A check mark next to a prefix means the prefix is in use. Use ↑ ↓...
  • Page 148 British, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwan, and Greek grid systems are the national coordinate system used only in their respective countries. In order to use these grid systems, you must be in the respective country. This unit will pick the matching datum for you when you select the grid.

  • Page 149: Map Fix

    Map Fix Map Fix is used with charts or maps. This system asks for a reference position in latitude/longitude, which you take from a marked location on the map. It then shows the present position as distance on the map from that reference point.

  • Page 150: Customize Page Displays

    Press ↓ to ELECT lect the waypoint that you saved the reference point under and press . The unit displays a waypoint information screen with the com- mand RIGIN figure Map Fix menu. Finally, press ↑ to OORD YSTEM All position information now shows as a distance from the reference point you chose.
  • Page 151 tion) or from a stored waypoint, map place or POI location ( command). You can steer your position and change speed on the map by using the arrow keys ( and speed in the dialog boxes provided on the simulator menu screen. To get to the GPS Simulator: 1.

  • Page 152: Hide Gps Features

    3. Begin navigating along the trail/route. (If you are close enough to the first waypoint, the arrival alarm will usually go off as soon as naviga- tion begins. Press press ↑ to increase speed to the desired setting. 4. Press to turn off the steering and speed boxes.

  • Page 153: Map Auto Zoom

    Map Auto Zoom This receiver has an auto zoom feature that eliminates much of the but- ton pushing that other brands of GPS receivers force you to make. It works in conjunction with the navigation features. First, start navigation to a waypoint. (See the waypoint section for more information on navigating to a waypoint.) Then, with the auto zoom mode on, the unit zooms out until the entire course shows, from the present position to the destination waypoint.

  • Page 154: Map Boundaries

    . With the option highlighted, press and uncheck it (turn off.) After the option is set, press turn to the page display. Map Boundaries From the Map Page, press . With the option highlighted, press OUNDARIES and uncheck it (turn off.) After the option is set, press turn to the page display.

  • Page 155: Map Detail Category Selection

    ated using different datums will show the same latitude/longitude in slightly different locations. All datums are named. The GPS system is based on the WGS-84 da- tum, which covers the entire world. Other datums may also cover the entire world, or just a small portion of it. By default, your position shows using the WGS-84 datum.

  • Page 156: Map Orientation

    Map Menu, left, Map Categories Drawn Menu, right. Map Orientation By default, this receiver shows the map with north always at the top of the screen. This is the way most maps and charts are printed on paper. In Track Up mode, map shows "N" and arrow to indicate north. Map orientation at left is shown in north up and at right, track up.

  • Page 157: Navionics  Charts

    To change map orientation: from the Map Page, press . Use ↑ or ↓ to select the desired mode, then press RIENTATION Press to return to the page display. EXIT EXIT Map Menu, left; Map Orientation menu with the North Up map orientation option selected, right. ...
  • Page 158 The lower window lists the detailed services available in each basic category. Port Services icons Navionics chart showing Port Services icon selected by cursor. Eagle . Use ↑ or ↓ to select HOICE |↓ to MENU...
  • Page 159 3. To scroll through the Service Categories window: press then use ↑ or ↓ to see the types of services available. As you highlight a different category, the list in the lower window changes. To return to the Map Page, press EXIT EXIT 4.
  • Page 160 Tidal Current Station icon in animated mode Cursor lines Navionics chart showing Tidal Current Station icon selected by cur- sor. In this example, the tidal current is in flood but it's about to enter the slack water stage. The current is flowing to the west at 0.1 mph. The Tidal Current Information screen displays daily tidal current data for this station on this date at the present time.
  • Page 161 Slack water, the period of little or no current, is represented by the Slack Water Line (SWL). The flood appears above the SWL and the ebb appears below the SWL. You can look up tidal current data for other dates by changing the month, day and year selection boxes.

  • Page 162: Pop-Up Help

    Tide Information screen. The Tide Information screen displays daily tidal data for this station on this date at the present time. The graph at the top of the screen is an approximate view of the tidal range pattern for the day, from midnight (MN), to noon (NN) to midnight (MN).

  • Page 163: Position Pinning

    System Setup menu, left, with Pop-up Help command highlighted. At right, this example shows the Pop-up Help message for the Go To Cur- sor command, located on the Map Menu. Position Pinning When you are standing still or moving at extremely slow speed, a GPS receiver can have trouble determining the direction you are traveling.

  • Page 164: Require Dgps (320Df Only)

    and the Reset Options Menu, right. Require DGPS (SeaCharter 320DF only) You can force the SeaCharter 320DF to require DGPS for reporting a valid position. (The default setting, off, uses DGPS automatically when an optional DGPS beacon receiver is connected. However, this auto mode doesn't require DGPS reception to yield a position.) Here's how to turn mandatory DGPS on and off.

  • Page 165: Set Language

    slider bar is already selected. Press → or ← to move the ONTRAST bar. The left end of the scale is minimum contrast; the right end is maximum contrast. Screen Command, left, and Screen Menu with Contrast bar selected, right. To adjust the display's brightness: Press ↓...

  • Page 166: Set Local Time

    2. Press ↓ to ANGUAGE 3. Use ↓ or ↑ to select a different language and press now appear in the language you selected. Set Local Time Using the correct local time setting is handy when estimating local ar- rival time while navigating. Also, the time and date are saved when a waypoint is created.

  • Page 167: Software Version Information

    check it (turn on.) After the option is set, press to return to EXIT EXIT the page display. 3. You can return to this command and press again to turn the fea- ture on. Software Version Information From time to time, Lowrance updates the operating system software in some of its products.

  • Page 168: Track Smoothing

    Once in the Sounds menu: To set Key Press Sounds: With the option highlighted, press check it (turn on) and uncheck it (turn off.) After the option is set, press to return to the page display. EXIT EXIT To set Alarm Sounds: Press ↓ to lighted, press to check it (turn on) and uncheck it (turn off.) After the option is set, press...
  • Page 169 Main Menu, left, Trails Menu, center, Trail Options, right. Delete All Trails To remove all of the trails from memory: from the Trails Menu, press → |← to ELETE Flash Trails on Screen Option From the Trails Menu, press → to the option highlighted, press (turn off.) Update Trail Option...
  • Page 170 highlight either the . Press ↑ or ↓ to change the first character, then press → to press the next character and repeat until the entry is correct. Press return to the Trail Options Menu. Trail Options menu: Update Time Rate setting, left, and Update Dis- Specific Trail Options Delete Trail To delete a specific trail: From the Trails Menu, press ↓...

  • Page 171: Units Of Measure

    Units of Measure This menu sets the speed and distance (statute or nautical miles, me- ters), depth (feet, fathoms, or meters), temperature (degrees Fahrenheit or Celsius) and heading (true or magnetic) units. To change the units: Press |↓ to MENU MENU YSTEM ETUP...
  • Page 172 Notes...

  • Page 173: Section 9: Searching

    NOTE: The background map loaded in your unit lets you to search for U.S. Interstate Highway exits and exit services, as well as some land features, including cities and lakes. For a full set of searchable land features, including landmarks, streets, addresses and Points of In- terest, you must load your own high-detail custom map produced with our MapCreate 6 software.
  • Page 174 Find Address Menu. 4. To enter a street name, press ↓ to . There are two op- TREET tions: A. You can spell out the name in the top selection box. Press ↑ or ↓ to change the first letter, then press → to move the cursor to the next letter and repeat until the name is correct, then press .
  • Page 175 NOTE: We recommend that you do not enter a city name unless the list you are given is too large when searching without it. This unit can ac- tually search quicker without a city and you save time by not en- tering a city name.

  • Page 176: Find Any Item Selected By Map Cursor

    Tip: If the address also happens to be an item in the Point of Interest database, you can look up the item's phone number in the Waypoint Information list. With the address location selected by the cursor on the map, press pears, with the Go To Waypoint command highlighted.

  • Page 177: Find Interstate Highway Exits

    Find Interstate Highway Exits 1. From the Map Page, press |↓ to , which calls MENU IGHWAY XITS up the Find Exit menu. Find Highway Exits command, left, and Find Exit menu, right. 2. First, select a highway name by pressing , which calls up the Find By Name menu.
  • Page 178 Find Exit menu, with an exit selected in the Exit List. 4. In the Exit Information screen you have two choices. A. Press navigate or "go to" the exit. B. Press →| "Go To Exit" option, left, "Find On Map" option, right. Tip: You can also look up some additional information on the Exit Serv- ices located near this exit.

  • Page 179: Find Map Places Or Points Of Interest (Poi)

    Find Map Places or Points of Interest (POI) ↓ ↑ 1. Press , press to select a map place or POI category, then . (To narrow your search, press → then press ↓ or ↑ to select a press subcategory before pressing .) You will be given two options;...

  • Page 180: Find Streets Or Intersections

    Find by Name option, left, Find by Name menu, right. 4. When the POI's Waypoint Information screen is displayed, you can choose to "Go To" the POI waypoint by pressing or find it on the map by pressing→| "Go To" POI option, left, "Find on Map" POI option, right. Find Streets or Intersections Find a Street 1.
  • Page 181 Find Streets command, left, Find Streets menu, right. 2. You must first fill in a street name in the First Street dialog box. Press to display the Find By Name menu. There are two options: A. You can spell out the street in the top selection box. Press ↑ or ↓ to change the first letter, then press →...
  • Page 182 you to wait while the unit finds the street. When the Streets Found list appears, press ↑ or ↓ to select the street you are searching for and press ENT. At left, the Find Streets menu with the Find First Street command highlighted.
  • Page 183 1. From the Map Page, press Streets Menu appears. 2. You must fill in a street name in the First Street dialog box. Press to display the Find By Name menu. There are two options: A. You can spell out the street in the top selection box. Press ↑ or ↓ to change the first letter, then press →...

  • Page 184: Find Waypoints

    ↑ or ↓ to select the intersection you are searching for and press . (In the example on the previous page, we selected the intersection of SW 80th Street and SW 71st Avenue in Miami, Fla.) 7. The Map Page appears, with the cursor pointing to the found inter- section.
  • Page 185 3. If you're looking for nearest, the unit says it is calculating, then a list of waypoints appears. The closest is highlighted at the top of the list and the farthest at the bottom of the list. Calculating message, left, and list of the nearest waypoints, right. 4.
  • Page 186 down to the lower selection list by pressing select a waypoint from the list, then press tion screen appears. Find By Name menu, left. Waypoint Information screen, center. At right, the found waypoint is highlighted by the cursor on the Map Page. A.

  • Page 187: Section 10: Supplemental Material

    Section 10: Supplemental Material Datums Used by This Unit WGS 1984 Default Adindan Mean for Ethiopia, Sudan Adindan Burkina Faso Adindan Cameroon Adindan Ethiopia Adindan Mali Adindan Senegal Adindan Sudan Afgooye Somalia Ain el Abd 1970 Bahrain Ain el Abd 1970 Saudi Arabia Anna 1 Astro 1965 Cocos Islands...
  • Page 188 DOS 1968 New Georgia Islands (Gizo Island) Easter Island 1967 Easter Island European 1950 Mean for Austria, Belgium, Denmark, Finland, France, West Germany, Gibraltar, Greece, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland European 1950 Mean for Austria, Denmark, France, West Germany, Netherlands, Switzerland European 1950...
  • Page 189 North American 1927 Mean for CONUS (Continental United States) North American 1927 Mean for CONUS (East of Mississippi River) including Louisiana, Missouri, Minnesota North American 1927 Mean for CONUS (West of Mississippi River) North American 1927 Alaska North American 1927 Bahamas (Except San Salvador Island) North American 1927...
  • Page 190 Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Trinidad & Tobago, and Venezuela South American 1969 Argentina South American 1969 Bolivia South American 1969 Brazil South American 1969 Chile South American 1969 Colombia South American 1969 Ecuador South American 1969 Ecuador (Baltra, Galapagos) South American 1969...

  • Page 191: Fcc Compliance

    This device complies with Part 15 of the U.S. Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 192 SeaCharter 320DF Sensor Chart (MY-4X adapter not included) MY-4X Cable (optional) Two-temperature sensor installation Three-temperature sensor installation For more detail on this configuration, see page 27. SeaCharter 320DF rear view SPY-X Speed Sensor with second connector Single-temperature sensor installation Temperature sensor built into transducer Transducer...
  • Page 193 Notes...
  • Page 194 Notes...
  • Page 195 THIS IS A LEGAL AGREEMENT BETWEEN THE END-USER WHO FIRST PURCHASES THIS PRODUCT AS A CONSUMER ITEM FOR PERSONAL, FAMILY, OR HOUSEHOLD USE ("YOU") AND EAGLE ELECTRONICS, A DIVISION OF LEI, THE MANUFACTURER OF THIS PRODUCT ("WE", "OUR", OR "US"). USING THE PRODUCT ACCOMPANIED BY THIS LICENSE AGREEMENT CONSTITUTES ACCEPTANCE OF THESE TERMS AND CONDITIONS.

  • Page 196: Databases Limited Warranty

    DATABASES LIMITED WARRANTY "We", "our", or "us" refers to Eagle Electronics, a division of LEI, the manufacturer of this product. "You" or "your" refers to the first person who purchases the product as a consumer item for personal, family, or household use.
  • Page 197 FULL ONE-YEAR WARRANTY "We," "our," or "us" refers to EAGLE ELECTRONICS, a division of LEI, the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family, or household use.

  • Page 198: How To Obtain Service

    8 a.m. to 5 p.m. Central Standard Time, M-F Eagle Electronics may find it necessary to change or end our shipping policies, regulations, and special offers at any time. We reserve the right to do so without notice.
  • Page 199 1. Always use the original shipping container and filler material the product was packed in. 2. Always insure the parcel against damage or loss during shipment. Eagle does not assume responsibility for goods lost or damaged in transit. 3. For proper testing, include a brief note with the product describing the problem.
  • Page 200 Eagle Pub. 988-0143-672 Printed in USA 021903 Visit our web site: www.eaglesonar.com  © Copyright 2003 All Rights Reserved Eagle Electronics...

This manual is also suitable for:

Fishelite, seacharter 320, 320dfSeacharter 320df

Table of Contents
