Download or Print Buffer Module Removal

Notes:
•
Turn the printer Off and disconnect the power cord at the
printer.
•
The Download Module and the Print Buffer Module are options.
1. Remove the rear cover.
2. Remove the paper support.

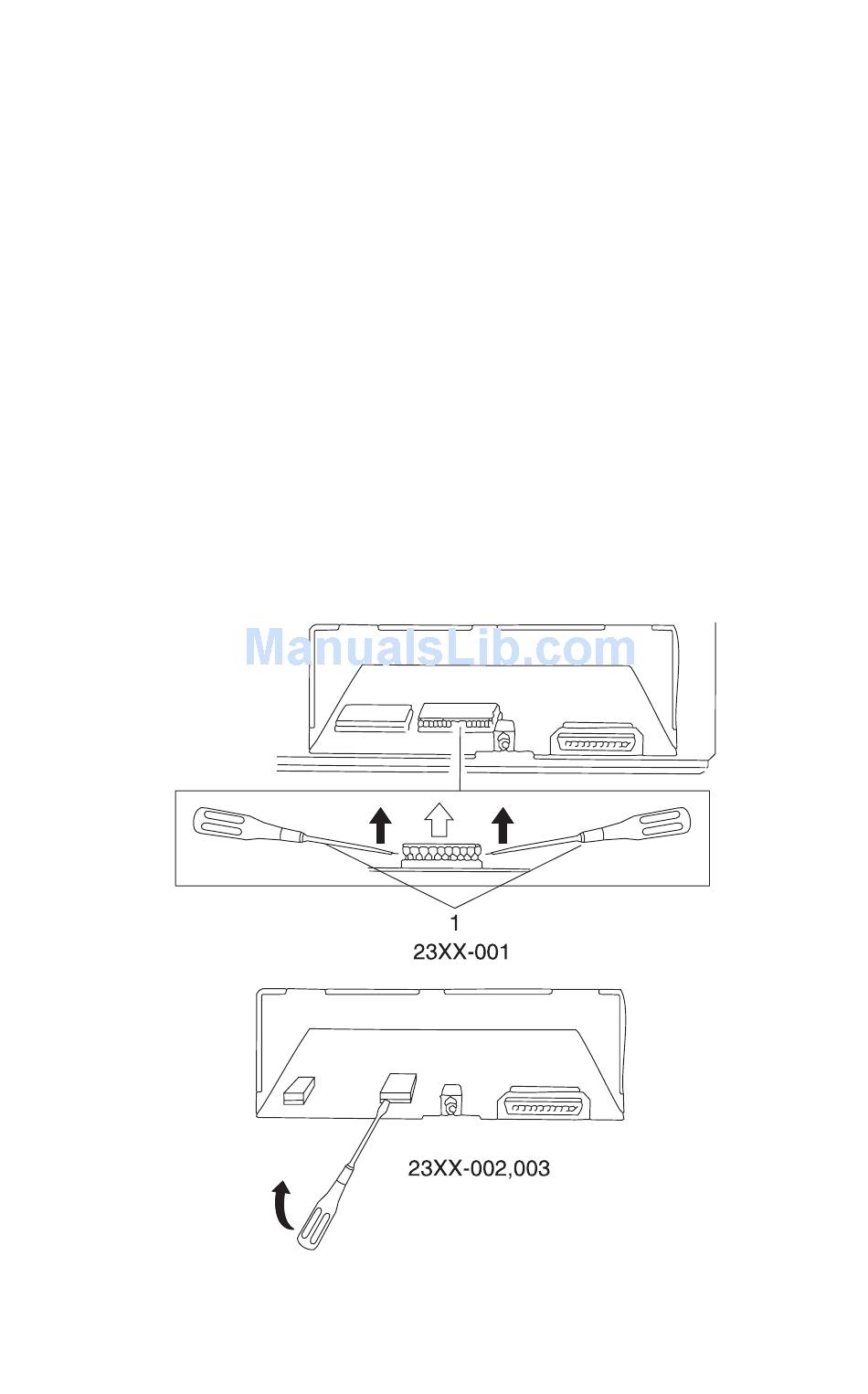

3. Insert a small flat screwdriver [1] under each end of the module
and lift up gently. (On 23XX-002, 003 printers only one end of
the module is accessible.) Do not insert the screwdriver too
deep, or the main logic board may be damaged.
Note: Be careful not to bend the pins when you re-install the
module.
Repair Information 4-21
