Paper Select Sensor Removal

1. Remove the top cover
see "Top Cover Removal" on page
2. Remove the print unit see
3. Using diagonal pliers, cut 4 mm off the ends of the last two ribs
on the paper guide to allow better screwdriver access. If
necessary, also remove the molded hook on the paper guide.

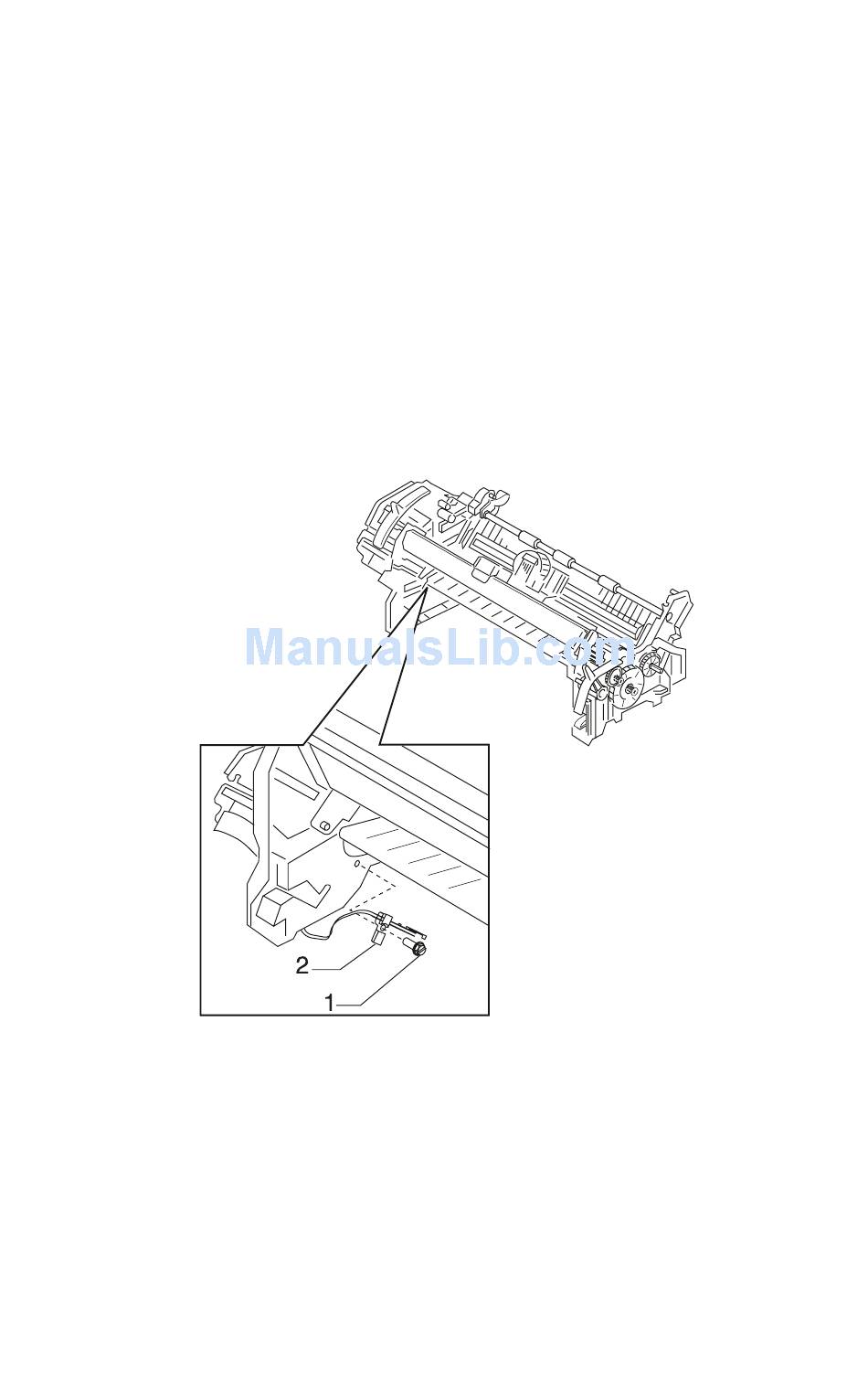

4. Use a #1 Phillips screwdriver to remove the screw [1] and the
sensor [2]. Disconnect the sensor connector from the sub logic
board.
4-61.
"Print Unit Removal" on page
Repair Information 4-43
4-47.
