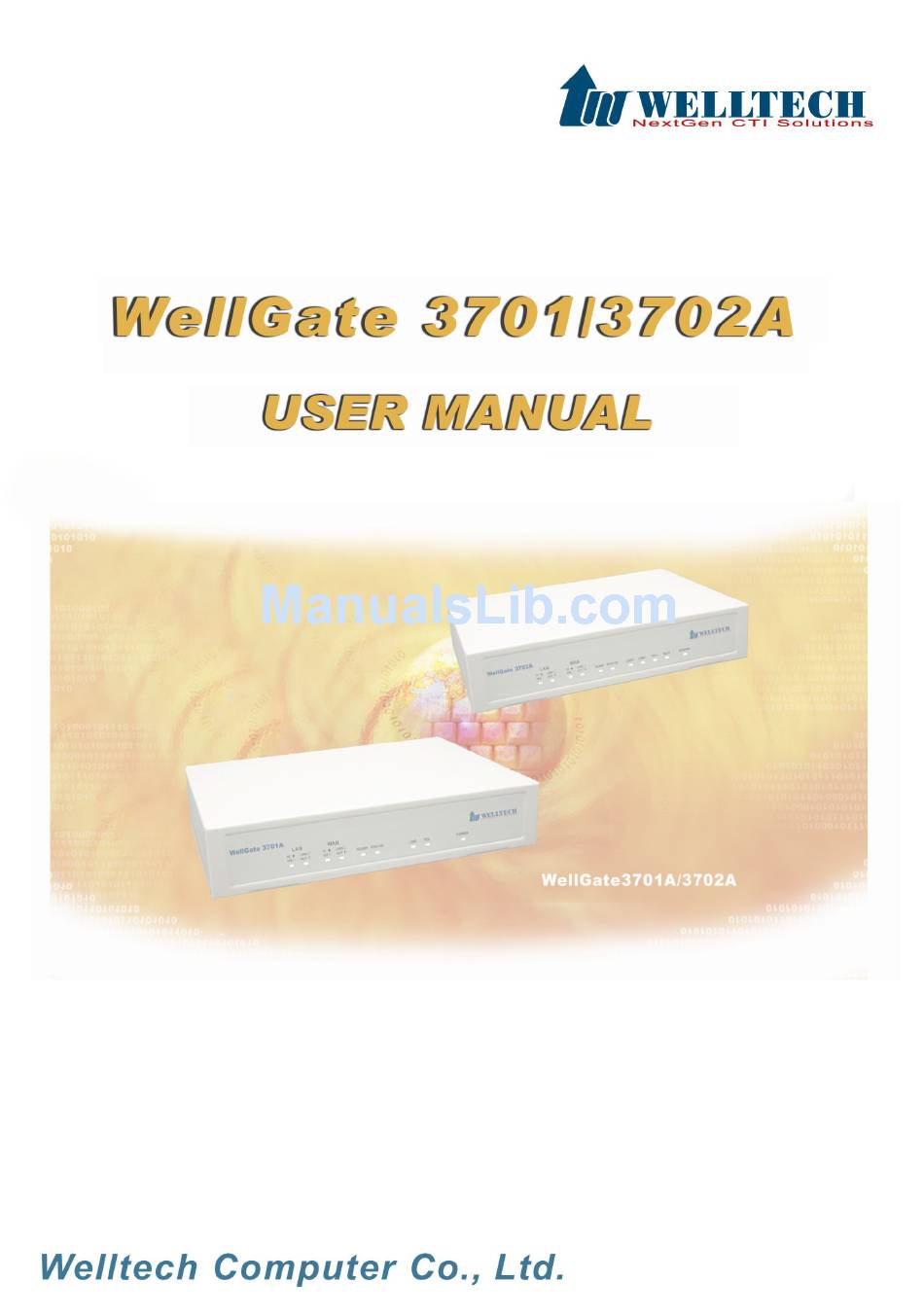

WELLTECH FXSO GATEWAY H.323 3701A - VERSION 1.0 Manual

One-port/two-port fxs+fxo gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXSO GATEWAY H.323 3701A - VERSION 1.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WELLTECH FXSO GATEWAY H.323 3701A - VERSION 1.0

Summary of Contents for WELLTECH FXSO GATEWAY H.323 3701A - VERSION 1.0

  • Page 2 Computer Co., Ltd. retains all rights not expressly granted. No part of this publication may be reproduced in any form whatsoever or used to make any derivative work without prior written approval by Welltech Computer Co., Ltd. No representation of warranties for fitness for any purpose other than what is specifically mentioned in this guide is made either by Welltech Computer Co.,...
  • Page 3 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 RELEASE NOTE: Version Date Modified Contents Apr., 2003 RELEASE June, 2003 RELEASE Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 4: Table Of Contents

    REBOOT 6.5 [ ] .......................29 FLASH 6.6 [ ] ......................29 COMMIT 6.7 [ ]......................30 IFADDR 6.8 [ ] .........................31 TIME 6.9 [ ]........................32 PING 6.10 [ ]......................32 PPPOE 6.11 [ ] ......................33 SYSCONF Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 5 ERMINAL 3.P2P ......................66 MODE APPENDIX: WEB CONFIGURATION..............68 1. B IP A RS-232....68 ROWSE THE DDRESS WHICH HAS PREDEFINED VIA 2. I ............69 NPUT THE LOGIN NAME AND PASSWORD 3. S ..................70 TART CONFIGURE Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 6: Introduction

    Network Network Trunk side Trunk side Extension Extension  FXO ports can connect with PSTN Line or Extension Line of  FXS ports can connect with Phone Set or Trunk Line of PBX Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 7 Provide In-band or Out-band DTMF generation/detection Provide call progress tone Management Feature TELNET/Console port and Web Browser configuration Certification UL, CE, FCC FXS Features 2-wire loop start Programmable On-Hook voltage, Ring voltage/Cadence/Frequency, Loop Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 8 Support auto-attendant (Tone or voice greeting) PSTN polarity reversal detection Provide 2 dial tone to PSTN Disconnect tone detection Asking ping function with the inside or outside calls Environmental Operation temp:0°C to 40°C Humidity: 10% to 90% (Non-condensing) Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 9 LAN: Switch to another device, such as PC 1. Line- LED light on means Gateway is physically connected to the Ethernet correctly. 2. ACT- LED light on and flash when Ethernet data is being transmitted / received. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 10 LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET 10/100base-T. The pin-out is as following: PIN 1, 2: Transmit PIN 3, 6: Receive 2. COM: RS232 console port (DB-9pin male connector) Note: use straightforward cable to connect to your computer. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 11 RJ-11 connector, FXS interface is for connecting the analog phone sets or trunk line of PABX. 4. LINE: RJ-11 connector, FXO interface is for connecting the extension line of PABX or PSTN Line. 5. 12V DC: Input AC 100V~120V;output DC12V. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 12: Start-Up

    PC or Notebook, and then try to connect to Public Internet (go to well-known website, receive Internet mail, or ping a specific public IP address). If it works, use the same IP address and network configuration for Gateway. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 13: Hyper Terminal Setting

    1. Execute the Hyper Terminal program, and then the following windows will pop-up on the screen. (START – Program files – Accessories – Communication – Hyper Terminal) 2. Define a name such as ‘wg3701’ for this new connection. wg 3701 Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 14 COM1/2 Port, which you are going to use. wg3701 4. Configure the COM Port Properties as following: (1) Bits per second: 9600 (2) Flow control: None Press ‘OK’ button, and then start to configure Gateway. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 15: Basic Configuration

    B. login： root or administrator is the default login name and there is no password needed. C. To set your own password in root login name, just input command “passwd –set root ****”. For example, if password of root account is Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 16: Set Up Ip Address

    1. Confirm the changed configurations, input “commit ” and press “Enter” to save it. 2. Input “reboot” then press “Enter” to restart Gateway. 3. After around 40 seconds, Gateway will take effect in new configurations. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 17: Application Modes

    4.1 Gatekeeper mode User has to prepare a Gatekeeper Program, such as Welltech Call Manager. To assign a gatekeeper address for Gateway, and define it’s own registered ID and phone number. Several important H323 parameters are listed below when setting gatekeeper mode: “–gk”, “gwtype”, ”-prefix”, ”–line(1-4)”...

  • Page 18: Peer-To-Peer Mode

    1. The e164 number defined in Pbook command will be completely carried to destination device. It is said this number shall be matched the destination device’s e164 number. 2. BusyForward function at destination site. (The function is only for FXS series) Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 19 Enable [sysconf –bf 1], then destination device will accept any number, even it is not matched to Line number. The called device will ring in round robin. b. Diable [sysconf –bf 0], then only matched Line number is accepted. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 20: Hotline/Group Mode

    Create phone book table with “pbook ” command. Create a Hotline table with “line ” command. --------------------------------------------------------------------------------------------- usr/config$ pbook –add name welltech ip 10.1.1.1 e164 1001 usr/config$ line –config 1 hotline 1001 ----------------------------------------------------------------------------------------------- In this example means: if user picks up phone set of FXS Line1, gateway will automatically dial out IP address of “1001”.
  • Page 21 Create phone book table with “pbook ” command. Create a Hotline table with “line ” command. --------------------------------------------------------------------------------------------- usr/config$ pbook –add name welltech ip 10.1.1.1 e164 1001 usr/config$ line –config 2 hotline 1001 ----------------------------------------------------------------------------------------------- In this example means: if user calls in FXO Line1, gateway will automatically dial out IP address of “1001”.

  • Page 22: Behind Ip-Sharing Mode

    IP Sharing device pass forwarding the relevant information from WAN to LAN. Besides, a valid IP Address meets the IP Sharing device (LAN site) is the element. ④ Gateway must enable the IP Sharing function for the fixed / dynamic WAN Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 23 –usr/config$ ifaddr –ipsharing 1 ========================================================== Please note: With Dynamic WAN IP Address, a valid WellTech Gatekeeper (Call Manager) for Gateway to get register on is a must. In other word, it is not workable in Peer-to-Peer mode while dynamic WAN IP Address.

  • Page 24: Forward Mode (Only No Answer Forward For Fxs Line)

    –config 1 forward 1002 ----------------------------------------------------------------------------------------------- In this example means: if user calls in FXS Line1 when Line1 is busy, gateway will automatically forward this call to IP address of “1002” in Phone book. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 25: Pppoe Mode

    5. pppoe –pwd : input the password provided by your ISP 6. pppoe –reboot : gateway will automatically reboot if connection is broken(pppoe –reboot 0/1) [commit] and [reboot] the device to make PPPoE configuration work. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 26: Two -Stage Or One-Stage Dialing (For Fxo Line)

    PSTN number. (Ex., IP address of Gateway is 10.1.1.3, Line number of FXO port is 1002, user set a phone book table “pbook –add name 37 ip 10.1.1.3 e164 37”, then user can dial 371002#) Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 27: How To Upgrade

    It will list current versions and default download method. Please check the Application Rom in particular, it is the current version of gateway, If there is special notice from WellTech, one Rom which size around 2MB might be provided for user to upgrade all of Rom files.
  • Page 28 It will keep configurations in IP address and MAC address. B. 2MB Rom: After upgrading 2m rom file, all configurations will be back to default value, excluding IP Address and MAC address. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 29: Command List

    Setup of call progress tones and ringing tone Setup of disconnect tone fxopwd Setup of FXO password record Record voice for greeting and ask pin code ROM file update passwd Password setting information and configuration usage: help [command] Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 30: Quit]

    Remove specified debug flag. -open Start to show debug messages. -close Stop showing debug messages. 6.4 [reboot] After commit command, type reboot to reload Gateway in new configuration. The procedure is as below: usr/config$ reboot Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 31: Flash]

    Warning: Only user who login with root can execute this command. Configurations of IP address and MAC address will be kept. 6.6 [commit] Save changes after configuring Gateway. ----------------------------------------------------------------------------------------------- usr/config$ commit This may take a few seconds, please wait..Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 32: Ifaddr]

    Obtain a set of Internet configuration from DHCP server assgined. SNTP mode (0=no update, 1=specify server IP, 2=broadcast mode). Example: ifaddr -ip 210.59.163.202 -mask 255.255.255.0 -gate 210.59.163.254 ifaddr -dhcp 1 ifaddr -sntp 1 210.59.163.254 ifaddr -ipsharing 1 210.59.163.254 usr/config$ Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 33: Time]

    It only supports Welltech Call Manager. ----------------------------------------------------------------------------------------------- usr/config$ ifaddr -ipsharing 1 -cmcenter Specify a management center IP Address. Welltech will provide a management center program to do centralized control for all devices. 6.8 [time] When SNTP function of Gateway is enabled and SNTP server can be found as well, type time command to show current network time.

  • Page 34: Ping]

    [-dev on/off][-id username][-pwd password] -print Display PPPoE device information. -dev Enable(=1) or Disable(=0) device. -open Open PPPoE connection. -close Disconnect PPPoE connection. Connection user name. -pwd Connection password. -reboot Reboot after remote host disconnection. --------------------------------------------------------------------------------------------------- Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 35: Sysconf]

    Local zone prefix disable character.(one character from 0~9, *, or NONE('-' key)) -usrdefprefix User defined local zone prefix.(0 ~ 20 digits) -codec Codec select method.(Caller:0 / Master:1) -localrbt Local ring back tone.(Enable:1 / Disable:0) Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 36 “*”, then dial 123, gateway will dial out 123 without adding prefix. -usrdefprefix define prefix number. Note: User can also define IP address here in P2P mode, once user press “#”, Gateway will call out this IP address. Note: Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 37 . ”0” means gateway will automatically detect the hardware type, “1” means the hardware type is 1FXS+1FXO, “2” means the hardware type is 2FXS+2FXO. Note: Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 38: H323]

    Line 1(TEL 1) E.164 number. -line2 Line 2(LINE 1) E.164 number. -line3 Line 3(TEL 2) E.164 number. -line4 Line 4(LINE 2) E.164 number. -alias IP side registered H323 ID. -display String representing display information for reporting Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 39 IP address as redundancy. If Gateway fails to register to main GK for 10 time, it will try to register to alternative GK. -gwtype gateway type has two kinds, gateway and terminal. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 40 H.323 ID. If in gatekeeper mode, this h.323 ID must be different from others who are registering to the same gatekeeper. -display An addition name for special application if callee needs this r to recognize in called site. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 41 GK for information about token password if they implement this function in their GK) Note: From –rtp to –conneto commands are for advanced users, please do not change the default settings if not necessary. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 42: Line]

    User just picks up the phone set of one FXS TEL or calls in one FXO line, and gateway will automatically dial out a phone number. In the other hand, user will hear ring back tone or dial tone immediately depended on Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 43 Set gateway under P2P mode. Create phone book table with “pbook ” command. Create a Hotline table with “line ” command. ------------------------------------------------------------------------------- usr/config$ pbook –add name welltech ip 10.1.1.1 e164 1001 usr/config$ line –config 1 hotline 1001 ------------------------------------------------------------------------------- In this example means: if user picks up phone set of FXS Line1, gateway will automatically dial out IP address of “1001”.
  • Page 44 Set gateway under P2P mode. Create phone book table with “pbook ” command. Create a Hotline table with “line ” command. ------------------------------------------------------------------------------- usr/config$ pbook –add name welltech ip 10.1.1.1 e164 1001 usr/config$ line –config 2 hotline 1001 ------------------------------------------------------------------------------- In this example means: if user calls in FXO Line1, gateway will automatically dial out IP address of “1001”.

  • Page 45: Route]

    User can add less than 50 rules. (route –add prefix “prefix number” dst “destination port type” e164 “e.164 number of port” min “minimum digits needed” max “maximum digits can’t Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 46 This command means if gateway has incoming call’s prefix number is 100, and total digits is between 1 to 3, this call will be routed to FXS TEL 1001, and if TEL 1001 is busy, call will be routed to another FXS TEL. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 47: Prefix]

    The prefix of dialed number. drop Drop prefix(Enable:1/Disable:0). insert Insert digits. Example: prefix -add prefix 100 drop 1 insert 2000 prefix -add prefix 100 drop 1 prefix -add prefix 100 drop 0 insert 200 Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 48: Pbook]

    Phone book information and configuration Usage: pbook [-add [name string][e164 number][ip address] [port number][drop digit][insert number]] [-modify number [name string][e164 number][ip address] [port number][drop digit][insert number]] [-delete number] pbook -print -print Display phone book information and configuration. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 49 0 means to keep e.164 number, 1 means to drop e.164 number when dialing out. insert insert digits.(1~10 digits) Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 50: Voice]

    -priority [G723] [G711A] [G711U] [G729] [G729A] [G729B] [G729AB] -print Display voice codec information and configuration. -send Specify sending packet size. G.723 (30/60 ms) G.711A (20/40/60 ms) G.711U (20/40/60 ms) G.729 (20/40/60 ms) Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 51 30/60ms is applicable to G.723.1 codec. -priority codec priority while negotiating with other h323 device. This parameter determines the listed sequence in h.245 TCS message. The codec listed in left side has the highest Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 52 = ON; 0 = OFF). It is applicable to G.723 codec only. An example is demonstrated below: ----------------------------------------------------------------------------------------------- usr/config$ voice -nscng g723 1 -echo activate each canceler (1 = ON; 0 = OFF). -mindelay the minimum jitter buffer size. (Default value= 90 ms) Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 53: Support ]

    H245 message after FastStart support enabled/disabled. -earlyh245 EarlyH245 support enabled/disabled. Example: support -t38 1 support -t38ecm 1 support -faxrdd 1 support -fstart 1 support -tunnel 1 support -h245fs 1 support -earlyh245 1 usr/config$ Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 54: Phone]

    6.19 [phone] Gateway’s progress tone is configurable. Default tone value is set according to U.S. tone specification. Users may adjust the values according to their own country’s tone specification or users-defined tone specification. --------------------------------------------------------------------------------------------- Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 55 (Unit : V) tone frequency : 0 ~ 65535 (Unit : Hz) tone freqLevel : 0 ~ 65535 (Unit : mVrms) tone Tone ON/OFF : 0 ~ 8000 (Unit : ms) Example: phone -print rbt Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 56 The played tone type, when Gateway is receiving a call. -rbt to set RingBackTone value The played tone type, when Gateway receives a Q.931 Alerting message. In condition that Gateway is the originate side. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 57: Tone]

    PBX or PSTN network connected to FXO ports. When making a call from FXO ports, there are 2 ways to detect callee has already picked up the call, one is to detect Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 58: Fxopwd]

    [passwd number][direction number] fxopwd -print FXO password information. passwd The password. direction FXO direction(Out:0/In:1/Both:2). Example: fxopwd -add passwd 1234 direction 0 fxopwd -delete 1 fxopwd -modify 1 passwd 1234 direction 2 usr/config$ Parameter Usages: Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 59: Record]

    FXO line of Gateway. ----------------------------------------------------------------------------------------------- usr/config$ record Recoed greeting voice and ask pin code voice, tone analize. Usage: record -greeting filename -askpin filename -tone Example: record -greeting greeting.100 record -askpin askpin.100 record -tone usr/config$ Parameter Usages: Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 60 Please wait a moment... Write flash ok... Boot Rom : sdboot.200 Application Rom : fxso.100 DSP App : 48302ce3.300 DSP Kernel : 48302ck.300 DSP Test Code : 483cbit.bin Greetings : test.100 Ask Pin askpin.100 Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 61 Press (P) to play the voice or (W) to write to flash or (Q) to quit... Please wait a moment... Write flash ok... Boot Rom : sdboot.200 Application Rom : fxso.100 DSP App : 48302ce3.300 Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 62 3. The value of disconnect tone and ring back tone will not write in flash automatically. Please use the command in “tone” to write Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 63: Tos]

    6.23 [rom] ROM file information and firmware upgrade function. ----------------------------------------------------------------------------------------------- usr/config$ rom ROM files updating commands Usage: rom [-print][-app][-boot][-dsptest][-dspcore][-dspapp][-greet][-askpin] -s TFTP/FTP server ip -f filename rom -print -print show versions of rom files. (optional) Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 64 -method to decide using TFTP or FTP as file transfer server. “0” stands for TFTP, while “1” stands for FTP. -ftp if users choose FTP in above item, it is necessary to specify Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 65: Passwd]

    Note : “login name” can be “root” or “administrator” only. “root” and “administrator” have the same authorization, except some commands that can be executed by “root” only – “passwd –clean”, “rom –boot”, ”rom –bot2m” and “flash –clean”. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 66: Routing And Digital Analysis Priority

    “prefix number” dst “destination port type” e164 “e.164 number of port” min “minimum digits needed” max “maximum digits can’t be exceeded”) F. If doesn’t match C.D.E above, this call will be routed to default value : FXS/FXS→IP side(route –print) Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 67: Gk Mode (Terminal Type)

    F. If doesn’t match C.D.E above, this call will be routed to default value : FXS/FXS→IP side(route –print) Note: No matter how digit being replaced, if destination is FXO port, it will work only when second dial being disabled. Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 68: P2P Mode

    (pbook –add name “name of callee” ip “IP address of callee” e164 “e.164 number” port “call signal port number” drop 0/1 insert “insert number’) H. See if default gateway has been set: Dial the number to default Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 69 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 gateway (h323 –dfgw “IP address of default gateway”) I. If doesn’t match D.E.F.G.H above, this call will be routed to default value : FXS/FXS→IP side(route –print) Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 70: Appendix: Web Configuration

    Basically this version is not the finalized version for web interface. Please refer to the manual for more information. Below provide a simple user guide for user to configure via web interface. Step 1. Browse the IP Address, which has predefined via RS-232 Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 71: Step 2. Input The Login Name And Password

    Document Ver.: 1.0 Release Apr.., 2003 Step 2. Input the login name and password  Login name: root / administrator  Password: None (just press Enter in default value) The web interface main screen Copyright (c) 2003 Welltech Computer Co. Ltd.

  • Page 72: Step 3. Start Configure

    If the WAN IP Address of IP Sharing Server router is not a fixed one, it is not necessary to input any values. If behind the dynamic WAN IP Address situation please configure as GK mode and select Welltech Call Manager as proxy server. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 73 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 74 Gatekeeper RAS Port H225 RAS Port; H225 Call Signal Port; Destination H225 Call Signal Port; Allocate Port Range Start; Allocate Port Range End; Response Timeout; Connection Timeout: For Advanced User only H.235 Security Token: Set token password Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 75 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 76 Type: This item is fixed, unchangeable Hunting Group: Set Hunting group flag Hotline: Set Hot Line number No Answer Fwd.: Set no answer forward number Registration: Display registration status Status: See Line status Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 77 Gateway Prefix: Set if Gateway will drop it’s own prefix number when has incoming call from IP side. Hardware Type: Set hardware type as 1FXS+1FXO , 2FXS+2FXO, or Gateway will automatically detect hardware type. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 78 Adjust the volume in “Voice” (sending out); “Input” (receiving); “ DTMF” (DTMF sending out) Please Noted the value is limited. Echo Cancel: Enable / Disable (suggested always Enable) Jitter Buffer, Min. Delay and Max. Delay: (For Advanced User) Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 79 3.6 Phone Pattern (For FXS Port) (please refer to 6.19 [phone] command) Ring Tone: Ringback Tone: Busy Tone: Dial Tone:. 2nddial Tone: Flash Frequency: Set the above tone Frequency, Level and On/Off time Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 80 3.7 Tone Setting (For FXO Port) (please refer to 6.20 [tone] command) Disconnect Tone 1~4: Set related information of disconnect tone Remote Ring Back Tone 1~4: Set related information of remote ring back tone Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 81 Fast Start: Enable to do Fast Start H.245 Tunneling: Enable to open H.245 Tunneling H.245 Message After Fast Start: Enable for send H.245 messages after fast start Early H.245: Enable for early H.245 mode Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 82 Please Note: The E.164 No. will be carried together to the destination side. It is said if the destination side is requested to match its E.164 No. (Line No.), user cannot input any digit he wished. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 83 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 3.10 Prefix Configuration (please refer to 6.15 [prefix] command) Set prefix configuration rule table. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 84 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 3.11 Routing Table (please refer to 6.14 [route] command) Set routing table. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 85 DNS Primary: After Gateway dial up PPPoE connection, here will display DNS server IP address Reboot After Remote Host Disconnection: If PPPoE connection is broken, Gateway will reboot to re-dial up PPPoE connection. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 86 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 3.13 FXO Password (please refer to 6.20 [fxopwd] command) To set password for FXO ports in 2 directions: from IP side or from PSTN side. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 87 Document Ver.: 1.0 Release Apr.., 2003 3.14 Password (please refer to 6.23 [passwd] command) First select login name as root or administrator, then enter current password, new password and confirm new password again. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 88 Select download method as TFTP or FTP FTP Server IP Address: Set FTP server IP address FTP Login: Set FTP login name and password Target File Type: Select which sector of Gateways to upgrade Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 89 3.16 Flash Clean (please refer to 6.5 [flash] command) Press CLEAN will clean all configurations of Gateways and reset to factory default value. Please be noted: Once execute this function, user must re-configure all other commands except IP Address. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 90 Document Ver.: 1.0 Release Apr.., 2003 3.17 Commit Data (please refer to 6.6 [commit] command) After configuration, user has to commit data then reboot machine. It is an important step after every configuration. Copyright (c) 2003 Welltech Computer Co. Ltd.
  • Page 91 FXS+FXO User Manual Document Ver.: 1.0 Release Apr.., 2003 3.18 Reboot System (please refer to 6.4 [reboot] command) After commit configuration, user has to REBOOT device. It is an important step after every configuration. Copyright (c) 2003 Welltech Computer Co. Ltd.
