WELLTECH FXO GATEWAY H.323 3802 Manual

Fxso h.323 gateway
Hide thumbs Also See for FXO GATEWAY H.323 3802:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
F
X
O
G
F
X
O
G
U
s
e
r
U
s
e
r
(
3
8
0
(
3
8
0
A
T
E
W
A
T
E
W
M
a
n
u
M
a
n
u
2
/
0
4
/
0
6
2
/
0
4
/
0
6
A
Y
A
Y
a
l
a
l
)
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXO GATEWAY H.323 3802 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WELLTECH FXO GATEWAY H.323 3802

Summary of Contents for WELLTECH FXO GATEWAY H.323 3802

  • Page 2: Table Of Contents

    STEPS IN CONFIGURATION 1. START UP 1.1 Introduction 1.2 Features and specification 1.3 Accessories and equipment 1.4 Appearance 1.4.1 3802 1.4.2 3804 1.4.3 3806 2. HOW TO SETUP AND CONNECT BASICALLY 2.1 System Requirement 2.2 IP Environment Setting 2.2.1 For Windows 2000/NT 2.3 Network configurations in your gateway 2.3.1 Static ip address 2.3.2 DHCP mode...
  • Page 3 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 3.2.5 [flash] command 3.2.6 [commit] command 3.2.7 [ifaddr] command 3.2.8 [time] command 3.2.9 [ping] command 3.2.10 [greetrd] command 3.2.11 [pbook] command 3.2.12 [pppoe] 3.2.13 [ddns] command 3.2.14 [sysconf] command 3.2.15 [h323] command 3.2.16 [voice] command 3.2.17 [tos] command...

  • Page 4: Steps In Configuration

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Steps in configuration To check out the peripheral equipments and STEP 1 understand the feature of this gateway. Please Start Up read this step very carefully before starting the configuring.

  • Page 5: Start Up

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 1. Start Up 1.1 Introduction The WellGate FXO gateway provides voice/fax service over IP network with H.323 v3 protocol. By connecting to your existing ADSL or cable modem service, which allows the use of a single, network for voice and fax services with consequent saving in network infrastructure and greatly reduced telephone charges.

  • Page 6: Accessories And Equipment

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 SNTP (Simple Network Time Protocol) Security: Password setting Audio feature Codec -- G.711 a/ law, G.723.1 (6.3K/bps), G.729A (Optional) VAD (Voice Activity Detection), CNG (Comfort Noise Generate) G.168/165-compliant adaptive echo cancellation Dynamic Jitter Buffer Bad Frame Interpolation Call Transfer (H.450.2)

  • Page 7: Appearance

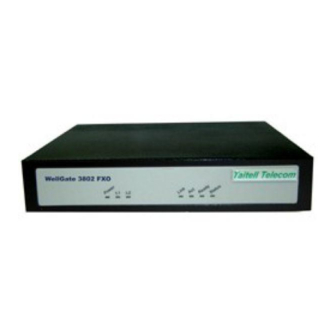

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 1.4 Appearance 1.4.1 3802 Front panel: The LED light provides system message of WellGate3802. Power : Light on means WellGate3802 is power on. L1-L2 : Light on means the line is in use. Link : Light on means WellGate3802 is connected to the network correctly.
  • Page 8 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 1.4.2 3804 Front panel: The LED light provides system message of WellGate FXO GateWay. Power : Light on means WellGate FXO GateWay is power on. L1-L4 : Light on means the line is in use. Link : Light on means WellGate FXO GateWay is connected to the network correctly.
  • Page 9 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 1.4.3 3806 Front panel: The LED light provides system message of WellGate3806. Power : Light on means WellGate3806 is power on. L1-L6 : Light on means the line is in use. Link : Light on means WellGate3806 is connected to the network correctly.
  • Page 10 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 1. Ethernet Port LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET 10/100base-T. The pin-out is as following: PIN 1, 2: Transmit PIN 3, 6: Receive 2. COM: RS232 console port (DB-9pin male connector) Note: use straightforward cable to connect to your computer.

  • Page 11: How To Setup And Connect Basically

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 PABX. 4. LINE: RJ-11 connector, FXO interface is for connecting the extension line of PABX or PSTN Line. 5. 12V DC: Input AC 100V~120V;output DC12V. 2. How to Setup and connect basically 2.1 System Requirement 1.

  • Page 12: Ip Environment Setting

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 2.2 IP Environment Setting User must prepare a valid IP address, complied with IP Network, for Gateway’s proper operation. For testing the validation of chosen IP address, using the same IP configuration in other PC or Notebook, and then try to connect to Public Internet (go to well-known website, receive Internet mail, or ping a specific public IP address).
  • Page 13 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Figure 2.1: Network Configuration Select the Property of the LAN card. Setup the ip address, subnet mask and default gateway as below: Figure 2.2: Configure the network Click OK after you finished the network setup.

  • Page 14: Network Configurations In Your Gateway

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 The default ip address, netmask and default gateway address of the gateway is 10.1.1.3, 255.255.0.0, 10.1.1.254. 2.3 Network configurations in your gateway Key in the ip address of the gateway (http://10.1.1.3) with the browser...
  • Page 15 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 After key in the ip address, you have to enter the user name and password to enter the WEB configuration. (Username: root ; No password) Figure 2.3: Login the username and password You will enter the main page of the configuration after key in the login name and password correctly:...

  • Page 16: Static Ip Address

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Figure 2.4: The main WEB configuration Press the Network Interface to configure the networking of your gateway: Figure 2.5: The Network Interface 2.3.1 Static ip address...
  • Page 17 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Please get the correct ip address, netmask and default gateway address from your ISP first. Press the OK button if you finished. Figure 2.5: Configure the static ip address Press the commit if you finish the configuration.

  • Page 18: Dhcp Mode

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Press the reboot if you want the configuration executed. Figure 2.7: Reboot the system 2.3.2 DHCP mode Enable the DHCP if you are using the cable modem or DHCP server.

  • Page 19: Pppoe Mode

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Figure 2.8: Enable the DHCP function Please commit the data and reboot the machine after you enable the DHCP function. 2.3.3 PPPoE mode Press the PPPoE Configuration and put the info of the PPPoE account and password in the configuration table.

  • Page 20: Making A Voip Call

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Figure 2.9: Configure the PPPoE function Please commit the data and reboot the machine after you finished the configuration of PPPoE. 2.4 Making a VoIP Call There are two modes that you could configure the gateway for making VoIP calls. One is the Peer-to-Peer mode, another is GK routed mode.

  • Page 21: Configure The Gateway Into The Peer-To-Peer Mode

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 2.4.1 Configure the gateway into the Peer-to-Peer mode Enter the H323 Configuration table and change the mode to Peer-to-Peer. Figure 2.10: Configure the Peer-to-Peer mode Press the OK button which is on the buttom of this page to save the configuration. Enter the Phone Book configuration table and configure the name, ip address and phone number of the destination.
  • Page 22 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Figure 2.11: Phone Book Example Figure 2.12: The example of Phone Book configuration This is the first record of Phone Book. So the index is 1 The name of the destination: test...

  • Page 23: Configure The Gateway Into The Gk Routed Mode

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 The E164 number (phone number) of the destination: 123 The ip address of the destination: 10.1.1.100 Press the “Add Data” button when you finished, and the new table will display on the first index if you press the Phone Book configuration button.

  • Page 24: The Type In Gk Routed Mode

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Figure 2.14: Configure the GK info Press the OK button which is on the buttom of this page to save the configuration. Figure 2.15: Press OK to save the data Press the Commit Data and Reboot System buttons when you finished the configuration.
  • Page 25 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 In FXO series gateway, the only difference between the Gateway and Terminal type is for registering on the Cisco GK. The Terminal type is needed if the endpoints want to register on the Cisco GK successfully.

  • Page 26: Command List

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 3. Command List 3.1 Hyper Terminal Setting A terminal emulator is needed when using RS-232 port to configure Gateway. There are kinds of terminal emulator software. Here, we use Microsoft HyperTerminal to depict how to set up terminal emulator: Execute the Hyper Terminal program, and then the following windows will pop-up on the screen.
  • Page 27 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Figure 3.2: Edit the name of the connection After pressing OK button, the next window appear, and then choose COM1/2 Port, which you are going to use. Figure 3.3: Pick up the right interface to use Configure the COM Port Properties as following:...
  • Page 28 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003  Bits per second: 9600  Flow control: None Figure 3.4: Configure the right Bps and control Press ‘OK’ button, and then start to configure Gateway.

  • Page 29: Command List

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 3.2 Command List 3.2.1 [help] command Type help or man or ? to list all the available command. 3.2.2 [quit] command...

  • Page 30: Debug] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Type quit will quit the WellGate FXO GateWay configuration mode. And turn back to login prompt. Note: It is recommended that type the “quit” command before you leave the console. If so, WellGate FXO GateWay will ask password again when next user connects to console port.

  • Page 31: Flash] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 3.2.5 [flash] command This command will clean the configuration stored in the flash rom and reboot WellGate FXO GateWay in factory default setting. Parameter Usage: -clean clean all the user-defined value, and reboot WellGate FXO GateWay in factory default mode.

  • Page 32: Ifaddr] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Note: Users should use commit to save modified value, or they will not be activated after system reboot. 3.2.7 [ifaddr] command Configure and display WellGate FXO GateWay network information.
  • Page 33 (sysconf –cmcenter “IP address of management center”) Note: management center is optional software to help user can easily configure WellTech products, please contact your reseller to know more about it.

  • Page 34: Time] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 FXO GateWay is behind a IP-sharing , user can enable IP sharing function and specify public IP address of IP-sharing. 3.2.8 [time] command When SNTP function of WellGate FXO GateWay is enabled and SNTP server can be found as well, type time command to show current network time.

  • Page 35: Greetrd] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 3.2.10 [greetrd] command This command is for user to record their own greeting and analyze disconnect tone. If WellGate FXO GateWay can’t hang up call and release line correctly, please use this function to analyze disconnect tone of PSTN side.
  • Page 36 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Disconnect Tone Analysis : please follow instructions on screen ; first call in line1 of WellGate FXO GateWay from PSTN side(now can’t hear greeting), hang up the phone and press “enter” to start record disconnect tone. Finally, choose “y/n” to save data analyzed or not.

  • Page 37: Pbook] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 exit : exit this command 3.2.11 [pbook] command Phone Book function allows users to define their own numbers, which mapping to real IP address. It is effective only in peer-to-peer mode. When adding a record to Phone Book, users do not have to reboot the machine, and the record will be effective immediately.
  • Page 38 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 ------------------------------------------------------------------------------------------------- Parameter Usages: -print print out current contents of Phone Book. Users can also add index number, from 1 to 100, to the parameter to show specific phone number. Note: <index number>...
  • Page 39 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 -add add a new record to phone book. When adding a record, users have to specify name, ip, and e164 number to complete the command. -search search a record in phone book. The searching criteria can be name, ip, or e164.

  • Page 40: Pppoe]

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 out IP address of 123. (1) If called party is FXO product, please set e164 of pbook as e.164 of called party, and remember to set sysconf –drule in_drop “e.164”(refer to 5.12.)in called party. (2) If called party is FXS product, please set e164 of pbook as prefix of called party, when dialing to different line of FXS product, please dial line number.
  • Page 41 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Parameter Usages: -enable enable the DDNS function -server enter the server address of the DDNS server you use -hostname enter the domain name address which you get from the DDNS server key in your id -passwd key in your password...

  • Page 42: Sysconf] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 -checkIPsrv1 enter the IP address of the check server -checkIPsrv2 the secondary IP address of the check server -delay service delay time -force execute the DDNS function all the times Note: Support DDNS Server: www.3322.org, www.dyndns.org.
  • Page 43 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 - service: 0  Dial In Service in Dial In Service, WellGate FXO GateWay will pick up incoming calls from PSTN,...
  • Page 44 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 play pre-recorded voice greeting or, and then have users to make a 2 dial to destination. 1/2 HotLine Service (this feature must be implemented after set bureau –table command) HotLine Service provides Hot Line function, which connects directly to pre-defined destination.
  • Page 45 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 three commands belonged to drule. ● drop: drop the dial digit. ● insert: insert the dial digit ● filter: filter the dial digit. Note: 1. out: Through WellGate FXO GateWay to dial out to another Gateway’s e164 number.

  • Page 46: H323] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 will receive caller ID and pass it through. (Note: only FSK type of caller ID is available.) - faxrdd: To add the redundancy depth in fax when the network is not in a good quality. (sysconf -faxrdd 2 ;0:default / 1:first level in depth / 2:highest level in depth) Note: It's will take more bandwidth if the depth level is the highest in 2.
  • Page 47 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Parameters Usage: -print print current h323 related settings -mode alternatives for gatekeeper or peer-to-peer mode (0=gatekeeper mode; 1=peer-to-peer mode). If users select gatekeeper mode, a extra gatekeeper is need when WellGate FXO GateWay is in operation. to assign gatekeeper’s IP address when WellGate FXO GateWay is in gatekeeper mode.

  • Page 48: Voice] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 side dial in WellGate FXO GateWay, when hearing greeting user can dial line number of WellGate 35xx.  For example ,user wants to dial from WellGate FXO GateWay to WellGate 3502 the configuration of 3502 is h323 –line1 101 –line2 102 user can press 101 or 102 dialing to line1 or line2 of WellGate 3502 after hearing greeting of WellGate FXO GateWay.
  • Page 49 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 The voice command is associated with the audio setting information. There are four voice codecs (g.729a optional) supported by WellGate FXO GateWay. ------------------------------------------------------------------------------------------------...

  • Page 50: Tos] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Parameters Usage: -print print current voice information and configurations. -send to define packet size for each codec. 20/40/60ms means to send a voice packet per 20/40/60 milliseconds. The smaller the packet size, the shorter the delay time.

  • Page 51: Tone] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 TOS service allows users to achieve QoS on IP network. ------------------------------------------------------------------------------------------------- Parameter Usages: -print : display current TOS values configurations. -sigtype configure DSCP value of signaling packets from 0 to 63 -rtptype configure DSCP value of RTP packets from 0 to 63 Note:...

  • Page 52: Support] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 ------------------------------------------------------------------------------------------------- 3.2.19 [support] command This command provides some extra functions that might be needed by users. -----------------------------------------------------------------------------------------------------...

  • Page 53: Group] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Parameter Usages: -print print current setting in support command. -t38 to switch ON/OFF (1 = ON; 0 = OFF) T.38 function.T.38 function is for FAX. If user will use FAX machines, please switch on T.38 function. -t38ecm to disable/enable T.38 error correction mode.
  • Page 54 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 application. ------------------------------------------------------------------------------------------------- Parameter Usages: - print : display current grouping information - enable : enable grouping function - disable : disable grouping function - number : set how many groups will be divided - pattern : set how many members in each group - e164 : set e164 of each group For ex: if users need to divide WellGate FXO GateWay into L1 in the 1...

  • Page 55: Bureau] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 the 2 group), and have them register to gatekeeper separately (e164=100 for 1 group; e164=200 for 2 group). They have to use the following command: ------------------------------------------------------------------------------------------------- 3.2.21 [bureau] command Type bureau to display the command usage.

  • Page 56: Prefix] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Parameter Usages: - print: display bureau line information and configuration. ------------------------------------------------------------------------------------------------- - pstn: PSTN number (per port basis). This number is used to display as a caller ID when the caller ID is not available.

  • Page 57: Rom] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 ------------------------------------------------------------------------------------------------ Parameter Usages: -print print current setting in prefix command. -pstnrule to do digit replacement of incoming call from PSTN side. Ex, to set prefix –pstnrule 1 123 456 which means the first set of PSTN side rule is: IF user press 123888 after dialing in WellGate FXO GateWay from PSTN side ,the real number dialed out will become 456888.
  • Page 58 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Parameter Usages: -print show versions of all rom files -app, boot, dsptest, dspcore, dspapp to update main Application program code, Boot code, DSP testing code, DSP kernel code, or DSP application code.

  • Page 59: Passwd] Command

    FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 cause conflict on Ethernet because the original MAC address is erased during 2M ROM file upgrading. Note: To set mac address please key in command setmac:(when key in MAC address ,press enter each time after key in two characters): ------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------------...
  • Page 60 FXSO H.323 Gateway User Manual Document Ver.: 177A Release OCT., 2003 Parameter Usages: -passwd <login name> <password> Note: <login name> can be “root” or “administrator” only. “root” and “administrator” have the same authorization, except3 commands that can be executed by “root” only – “passwd –set root”, “rom –boot”, and “flash –clean”...
