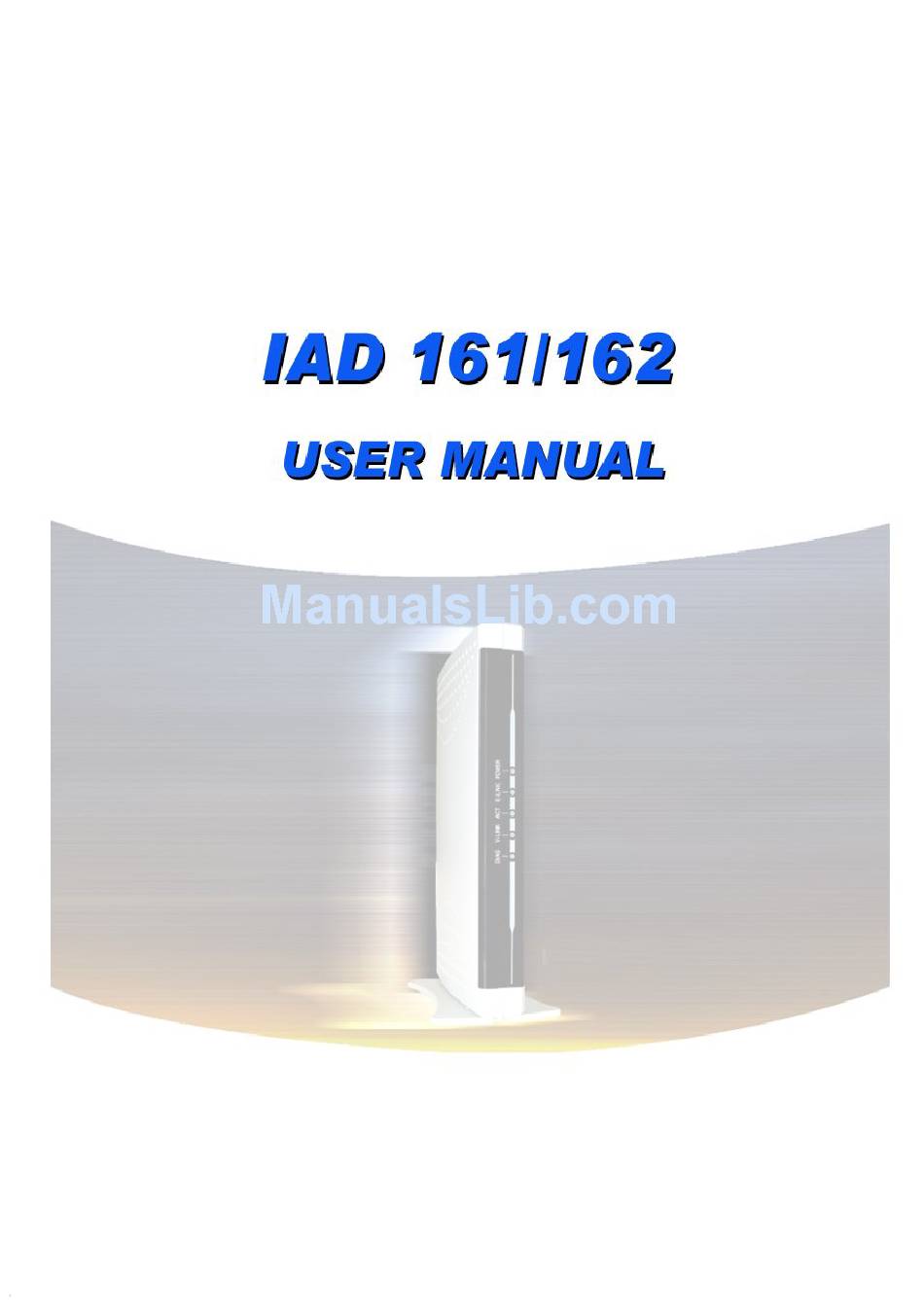

WELLTECH IAD 161 H.323 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAD 161 H.323 and is the answer not in the manual?

Questions and answers

Related Manuals for WELLTECH IAD 161 H.323

Summary of Contents for WELLTECH IAD 161 H.323

  • Page 2: Table Of Contents

    PREFACE___________________________________________________________ V PART I: IAD GATEWAY OVERVIEW_______________________________________1 1.1 Overview________________________________________________________________ 2 1.2 Software Specifications __________________________________________________ 3 1.3 Hardware Specifications _________________________________________________ 4 PART II: START-UP ____________________________________________________7 2.1 Software Installation Guide _______________________________________________ 8 2.1.1 Default Settings of IAD gateway ___________________________________________ 8 2.1.2 Additional Installation Requirements ________________________________________ 8 2.1.3 Essential Configuration via Web Management interface _________________________ 9 2.1.4 Essential Configuration via Telnet Command Line interface_____________________ 19 2.1.5 Essential Configuration via Installation Wizard _______________________________ 23...
  • Page 3 PART IV: WEB MANAGEMENT INTERFACE _______________________________37 4.1 Login and welcome screen ______________________________________________ 38 4.2 Save and Reboot _______________________________________________________ 39 4.3 Web Management Configuration _________________________________________ 40 4.3.1 Network Interface ______________________________________________________ 40 4.3.2 H323 Configuration Screen ______________________________________________ 43 4.3.3 Line Configuration _____________________________________________________ 46 4.3.4 Phone Book Configuration Screen _________________________________________ 47 4.3.5 Support Configuration Screen ____________________________________________ 48 4.3.6 System Configuration Screen _____________________________________________ 49...
  • Page 4 5.3.8 [time] _______________________________________________________________ 75 5.3.9 [ping] _______________________________________________________________ 75 5.3.10 [sysconf] ____________________________________________________________ 76 5.3.11 [h323] ______________________________________________________________ 79 5.3.12 [line] _______________________________________________________________ 82 5.3.13 [prefix] _____________________________________________________________ 83 5.3.14 [pbook] _____________________________________________________________ 84 5.3.15 [voice]______________________________________________________________ 87 5.3.16 [support] ____________________________________________________________ 89 5.3.17 [sysinfo] ____________________________________________________________ 92 5.3.18 [phone] _____________________________________________________________ 92 5.3.19 [tos]________________________________________________________________ 94 5.3.20 [ddns] ______________________________________________________________ 95 5.3.21 [pt] ________________________________________________________________ 97...
  • Page 5 Preface  About this User’s Manual This user’s guide includes specifications, installation guide, web management and command line configuration interface for the IAD 161/162 VoIP Gateway. Revision History:  Version Date Author Modified Contents Revision for IAD 161 162 H323 Gateway. Jan., 11 , 2004 Eason...

  • Page 6: Part I: Iad Gateway Overview

    IAD Gateway User Manual Part I: IAD Gateway Overview This part introduces the software/hardware specifications and default settings of the IAD Gateway. - 1 -...

  • Page 7: Overview

    IAD Gateway User Manual 1.1 Overview The IAD 161 is a one-port telephone extension and three ports SOHO Router to IP network gateway. It provides Data transfer by 10/100Mbps, telephone services and T.38 fax over IP network with easily operation and configuration. It is most suitable for SOHO and small-to-medium enterprise in Internet communication environment.

  • Page 8: Software Specifications

    IAD Gateway User Manual 1.2 Software Specifications  IAD Gateway Features  Provide Voice over IP and Fax over IP features.  Built-in NAT/IP sharing function  FSK and DTMF Caller ID Transmit Voice and T.38 fax simultaneously   Support T.38 ECM function (Error Correction in high speed fax Mode) ...

  • Page 9: Hardware Specifications

    IAD Gateway User Manual  Remote Firmware Upgrade You can use FTP/TFTP to perform firmware upgrade for the IAD Gateway from a remote location. Security   Password protection for system management  Built-in NAT function.  Certification  CE, FCC 1.3 Hardware Specifications Chassis ...
  • Page 10 IAD Gateway User Manual  Power (Green): Light on: IAD is connected with power adapter correctly and power on. Light off: IAD is not connected with power adapter correctly or not power  Status (Green): Light on: IAD is under Gatekeeper mode and successfully register to Gatekeeper.
  • Page 11 IAD Gateway User Manual  Ethernet Port: Ethernet port is for connecting VoIP Gateway to network, transmit rate supports 10/100 Base-T. Ethernet connector（LAN/WAN）  TEL Port: RJ-11 connector, IAD interface to connect analog phone sets or trunk port of PABX. ...

  • Page 12: Part Ii: Start-Up

    IAD Gateway User Manual Part II: Start-UP This part explains how to configure essential and basic items before user can run IAD gateway. - 7 -...

  • Page 13: Software Installation Guide

    IAD Gateway User Manual 2.1 Software Installation Guide This guide covers all essential configurations under different application, user can follow steps below to configure basic items to run IAD gateway. 2.1.1 Default Settings of IAD gateway WAN IP Parameters  ...

  • Page 14: Essential Configuration Via Web Management Interface

    IAD Gateway User Manual Connect the WAN port (silver) on the IAD Gateway to the Ethernet port of your network (e.g. Cable Modem, ADSL Modem) using the standard CAT-5 straight Ethernet cable. Step 2. Connect your PC to the LAN port of IAD Connect your PC to the LAN port of IAD with standard CAT-5 straight Ethernet cable.
  • Page 15 IAD Gateway User Manual 2.1.3.1 Save Data and Reboot After any configuration has been made, user has to save all data and reboot system to make configurations take effect. Step 1. Click [Commit Data] on the navigation panel. In the Commit Configuration Data screen, click the [Commit] button.
  • Page 16 IAD Gateway User Manual Step 3. Close the current browser windows and launch your web browser again. - 11 -...
  • Page 17 IAD Gateway User Manual 2.1.3.2 Setup Network (1) Fixed IP To configure the VoIP Gateway IP address, please click [Network Interface] on the navigation panel. In the Network Interface screen, type a new IP address, subnet mask and the default routing gateway (e.g. IP Address: 192.168.13.62, Subnet mask: 255.255.248.0, Default routing gateway: 192.168.8.254) and click the OK button.
  • Page 18 IAD Gateway User Manual (2) DHCP Click [Network Interface] on the navigation panel. In the Network Interface screen, enable the DHCP function if you are using the cable modem or DHCP server and click the [OK] button. - 13 -...
  • Page 19 IAD Gateway User Manual (3) PPPoE Configuring the VoIP Gateway IP address for PPPoE Mode. Click [Network Interface] on the navigation panel. In the Network Interface screen, Select IP mode: PPPoE, and put the info of the PPPoE User Name, password, and Reboot After Remote Host Disconnection: Enable (e.g.
  • Page 20 IAD Gateway User Manual PPPoE User Name: Set PPPoE authentication User Name. PPPoE Password: Set PPPoE authentication password. Reboot After Remote Host Disconnection: Enable/Disable auto reboot after PPPoE disconnection. If user enables this function, after PPPoE being disconnected, IAD will automatically reboot to re-connect, and after rebooting, if IAD still can’t get contact with server, IAD will keep trying to connect.
  • Page 21 IAD Gateway User Manual 2.1.3.3 Application mode-GK/Peer-to-Peer Mode After setting IP address, user must assign IAD to work under GK routed mode or Peer-to-Peer mode. If there is no Gatekeeper, please set your IAD as Peer-to-Peer Mode. 2.1.3.3.1 GK routed mode GK mode means that there will be an intermediate Gatekeeper between IAD Gateway and the remote entity.
  • Page 22 IAD Gateway User Manual dial. To configure Peer-To-Peer Mode in IAD Gateway, follow the steps below: Step 1. Configure the IAD Gateway H323 Configuration. Click [H323 Configuration] on the navigation panel. In the H323 Configuration screen, select Peer-to-Peer Mode function, set Line1 number and click the [OK] button. Step 2.
  • Page 23 IAD Gateway User Manual - 18 -...

  • Page 24: Essential Configuration Via Telnet Command Line Interface

    IAD Gateway User Manual 2.1.4 Essential Configuration via Telnet Command Line interface This section describes how to setup IAD via Telnet command line interface. Please follow procedures below to configure essential items before you use IAD gateway. 2.1.4.1 Save Data and Reboot After any configuration has been made, user has to save all data and reboot system to make configurations take effect.
  • Page 25 IAD Gateway User Manual usr/config$ commit usr/config$ reboot Step 4. When IAD successfully establish PPPoE connection, use command [ifaddr -print] to see detail information. For example: usr/config$ ifaddr -print IP mode : PPfPoE PPPoE adapter information Status : Ready IP address : 61.223.39.135 Destination : 61.223.128.254...
  • Page 26 IAD Gateway User Manual 2.1.4.3 Application mode-GK/Peer-to-Peer Mode After setting IP address, user must assign IAD to work under GK routed mode or Peer-to-Peer mode. If there is no Gatekeeper, please set your IAD as Peer-to-Peer Mode. 2.1.4.3.1 GK routed mode GK mode means that there will be an intermediate Gatekeeper between IAD Gateway and the remote entity.
  • Page 27 IAD Gateway User Manual Step 2. Configure Phone Book, using “pbook” command. usr/config$ pbook –add name TEST1 ip 10.1.1.1 e164 10 In this case user add one callee record named as TEST1, IP address as 10.1.1.1, and mapping e.164 number as 10. After phone book data has been set, user can dial 10 to make a call for IP 10.1.1.1.

  • Page 28: Essential Configuration Via Installation Wizard

    Installation Wizard is a friendly software tool that can provide you an easy way to configure your WellTech VoIP devices. You only need to Input the MAC address of your product and Click [Search Device]; you can configure your VoIP device without changing your PC’s setting.

  • Page 29: Special Housing Installation Guide

    IAD Gateway User Manual 2.1 Special Housing Installation Guide adjustable IAD has special housing for vertical or horizontal type. Please follow procedures as below to change type you like. 2.1.1 Horizontal Type 2.1.1.1 Insert stand board on one side. 2.1.1.2 Insert the other stand board on the other side.

  • Page 30: Vertical Type

    IAD Gateway User Manual 2.1.2 Vertical Type 2.1.2.1 Insert stand board on one side. 2.1.2.2 Insert the other stand board on the same side. 2.1.2.3 Finally IAD can stand as vertical type. - 25 -...

  • Page 31: Part Iii: Special Applications And Features

    IAD Gateway User Manual Part III: Special Applications Features This part explains how to configure IAD Gateway under special application mode, such as behind NAT, and how to upgrade firmware. - 26 -...

  • Page 32: Behind Ip-Sharing

    IAD Gateway User Manual 3.1 Behind IP-Sharing 3.1.1 IP Sharing Configuration 3.1.1.1 One IAD Gateway behind IAD This application is only for the user who is using the IP Sharing device. It is said Gateway is connected behind IP Sharing. The IP Sharing Device must support the DMZ or Virtual server functions such as ADSL network.
  • Page 33 IAD Gateway User Manual Please see following for example: >Advanced setting > NAT setting > DMZ Host setting DMZ Host setting ▣ Activate DMZ DMZ Host IP: 192.168.1.5 Step 6. Configure the IAD Gateway IP address for IP Sharing Mode. Click [Network Interface] on the navigation panel.
  • Page 34 IAD Gateway User Manual data. Step 9. Click [Reboot System] on the navigation panel. In the VoIP Gateway screen, click the [Reboot] button. It will take around 40 seconds to reboot. Step 10. Close the current browser windows and launch your web browser again. Enter the new IP address in the Location or Address field.

  • Page 35: Nat Mode (Pppoe)

    IAD Gateway User Manual 3.2 NAT mode (PPPoE) Step 1. Set PPPoE mode, using [ifaddr –mode 2], input the user id & password provided by your ISP, using [ifaddr –id –pwd], reboot the device after disconnection, using [ifaddr –reboot 1] usr/config$ ifaddr –mode 2 usr/config$ ifaddr –id 123@hinet.net (PPPoE login account) usr/config$ ifaddr –pwd 123 (PPPoE login Passowd)
  • Page 36 IAD Gateway User Manual time zone : GMT+8 cycle=1024 mins IPSharing : no IPSharing device. IP change : Disable PPPoE user name : 84460791@hinet.net PPPoE password : ******** PPPoE reboot : Yes PPPoE echo : Enable EMS IP : 192.168.10.71 EMS user name : vwusr EMS password...

  • Page 37: Upgrade Your Iad

    IAD Gateway User Manual 3.3 Upgrade Your IAD 3.3.1 Upgrade via Web management interface 3.3.1.1 Before start Step 1. Please confirm Host PC, which is installed as TFTP / FTP server and is in available network. Step 2. Note down your current configurations, such as [H323 Configuration], [Phone Book].
  • Page 38 IAD Gateway User Manual Step 3. Click [Flash Clean] on the navigation panel. In the Flash Clean screen, click the [CLEAN] button. Step 4. In the Flash Clean screen to Display [Flash cleaned!! Please reboot your system!!], when Flash Clean Ok. - 33 -...

  • Page 39: Upgrade Via Telnet Command Interface

    IAD Gateway User Manual Step 5. Click [Reboot System] on the navigation panel. In the Reboot IAD Gateway screen, click the [Reboot] button. It will take 40 seconds to reboot. Step 6. Close the current browser windows and launch your web browser again. Enter the IP address in the Location or Address field.
  • Page 40 IAD Gateway User Manual -app, boot, boot2m, dsptest, dspcore, dspapp, ht: To update main Application program code, Boot code, DSP testing code, DSP kernel code, or DSP application code, and Hold Tone file. Note: Most of all, the Rom file needed to get upgrade is App or Boot2m. Please check the exact Rom file before doing download procedure.

  • Page 41: Iad 162 Pstn Line Application

    IAD Gateway User Manual 3.4 IAD 162 PSTN Line Application 3.4.1 PSTN Outgoing Call 3.4.1.1 Make PSTN call from TEL Phone set Default TEL line is intended to make IP call, if user wants to make a call via PSTN line, please dial “* #”, then user will hear dial tone from PSTN side.

  • Page 42: Part Iv: Web Management Interface

    IAD Gateway User Manual Part IV: Web Management Interface This part explains how to configure the IAD Gateway via WEB management interface. - 37 -...

  • Page 43: Login And Welcome Screen

    IAD Gateway User Manual 4.1 Login and welcome screen Step 1. Start your web browser. Step 2. Launch your web browser and enter [192.168.123.123] (the default IP address of the LAN port) in the Location or Address field. Press Enter. Step 3.

  • Page 44: Save And Reboot

    IAD Gateway User Manual 4.2 Save and Reboot Click OK at the end of every configuration page to confirm your changes. All configurations will not take effect before reboot system. Please remember to do [Commit Data] to save all configuration then [Reboot System] to reboot IAD. - 39 -...

  • Page 45: Web Management Configuration

    IAD Gateway User Manual 4.3 Web Management Configuration 4.3.1 Network Interface Click [Network Interface] in the navigation panel and open the Network Interface Screen. IP Mode: To configure the fixed or dynamic IP address for this unit. Please configure to PPPoE if the ADSL is using the PPPoE type. - 40 -...
  • Page 46 IAD Gateway User Manual IP Address: Set WAN IP Address of IAD. Subnet Mask: Set the Subnet Mask of IAD Default routing gateway: Set Default routing gateway of IAD DHCP server: The DHCP server IP address. DHCP Server switch: Enable the DHCP function for the LAN interface. NAT function switch: To enable or disable the NAT function.
  • Page 47 IAD Gateway User Manual Send PPPoE Echo Request: In the PPPoE mode, if the network connector or the ADSL modem was lost, after the connector and modem connected, it will reboot automatically for the re-connect with the PPPoE server. IP: Set the EMS server IP address. EMS User name: Set the EMS login user name.

  • Page 48: H323 Configuration Screen

    IAD Gateway User Manual 4.3.2 H323 Configuration Screen Click [H323 Configuration] in the navigation panel and open the H323 Configuration Screen. Mode: Pick up the calling mode for this gateway. GK routed: Users have to register on the GK if users picked up this option.
  • Page 49 IAD Gateway User Manual define the phone book for this mode. Gatekeeper IP Address: Enter the GK ip if users pick up the GK routed mode. It support on GK mode only. 2nd Gatekeeper IP: Support the secondary GK function. It support on GK mode only.
  • Page 50 IAD Gateway User Manual Gatekeeper ID: The name of the GK. It has used with the Gatekeeper Discovery function. Support the GK mode only. Time To Live (TTL): The time for registration confirm. Support the GK mode only. Port: The UDP port for the voice sending. RTP ports support a range of the UDP.

  • Page 51: Line Configuration

    IAD Gateway User Manual 4.3.3 Line Configuration Click [System Configuration] in the navigation panel and open the [System Configuration] Screen. The Line configuration will show the status of the registrations and the ports. It includes the hunt group, hotline, and no answer forward configuration. Type: Just show the interface for this port.

  • Page 52: Phone Book Configuration Screen

    IAD Gateway User Manual 4.3.4 Phone Book Configuration Screen Click [PPPoE Configuration] in the navigation panel and open the [PPPoE Configuration] Screen. The Phone Book configuration is only support the gateway in Peer-to-Peer mode. Add Data: User can specify 5 sets of phone book via Web Management Interface.

  • Page 53: Support Configuration Screen

    IAD Gateway User Manual 4.3.5 Support Configuration Screen Click [Support Configuration] in the navigation panel and open the [Support Configuration] Screen. This gateway supports the FAX over IP, fast start function and other functions. T.38 FAX: Enable this function to support the FAX function. T.38 FAX Request Mode: The switch can control the request message sending or not.

  • Page 54: System Configuration Screen

    IAD Gateway User Manual 4.3.6 System Configuration Screen Click [System Configuration] in the navigation panel and open the [System Configuration] Screen. Inter Digit Time: The call will be sent out if user didn’t enter the digits after this timer. - 49 -...
  • Page 55 IAD Gateway User Manual Forward time: It supports the No Answer Forward function. If users configure it for 10, the call will be forwarded when it rings about 10 seconds. From 5 to 65535. Keypad Type: User could define the keypad for the DTMF sending. In-Band : The DTMF signal sending by RTP.
  • Page 56 IAD Gateway User Manual Delay to add DTMF (FXO): The timer for sending DTMF signal, if the calls are from the IP to PSTN side. It could only support the one-stage-dialing function. Only support FXO. Auto connect time (FXO): The FXO will send the connect message to the IP side is this timer is up in the one-stage-dialing function.

  • Page 57: Voice Configuration Screen

    IAD Gateway User Manual 4.3.7 Voice Configuration Screen Click [Voice configuration] in the navigation panel and open the [Support Configuration] Screen. Codec Priority: Set priority preference of installed codes, G.723, G.711A, G.711U, G.729, G.729A, G.729B, and G.729AB. Frame Size: Set Specify sending packet size, G.723: 30/60/90, G.711A, G.711U, G.729, G.729A, G.729B, G.729AB: 20/40/60ms.The smaller the packet size, the shorter the delay time.

  • Page 58: Phone Configuration Screen

    IAD Gateway User Manual 4.3.8 Phone Configuration Screen Click [Phone Configuration] in the navigation panel and open the [Phone Configuration] Screen. For tone simulation, IAD Gateway adopts dual frequencies as traditional telephone does. If users want to have their own call progress tone, they can change the value of tones.
  • Page 59 IAD Gateway User Manual  ringing frequency: 15 ~ 100 (Unit: Hz)  ringing ring ON/OFF: 0 ~ 8000 (Unit: ms)  ringing level: 0 ~ 94 (Unit: V) tone frequency: 0 ~ 65535 (Unit: Hz)   tone freqLevel: 0 ~ 65535 (Unit: mVrms) tone Tone ON/OFF: 0 ~ 8000 (Unit: ms) - 54 -...

  • Page 60: Rtp Pay Load Type Configuration

    IAD Gateway User Manual 4.3.9 RTP Pay Load Type Configuration Click [RTP Payload Type Configuration] in the navigation panel and open the [RTP Payload Type Configuration] Screen. RFC2833 Payload Type: To define the payload type for RFC2833 type. DTMF Payload Type: To define the payload for the DTMF type.

  • Page 61: Ip Packets Tos Configuration Screen

    IAD Gateway User Manual 4.3.10 IP Packets ToS Configuration Screen The Type of Service should be worked with the network router. The router will check all the packets if it support the TOS function. There is a field in the packet for the TOS value.
  • Page 62 IAD Gateway User Manual (AF11) (AF21) (AF31) (AF41) Low Drop Precedence 001010 010010 011010 100010 (AF12) (AF22) (AF32) (AF42) Medium Drop Precedence 001100 010100 011100 100100 High Drop Precedence (AF13) (AF23) (AF33) (AF43) 001110 010110 011110 100110 Please refer to RFC standard documents for more information about what is DSCP. - 57 -...

  • Page 63: Ddns Screen

    IAD Gateway User Manual 4.3.11 DDNS Screen IAD supports DDNS function. Before using this function, please have a DDNS account and some info from your DDNS server. Click [Password configuration] in the navigation panel to open the [Password Configuration] screen. Status: To enable or disable this function.

  • Page 64: Prefix Configuration Screen

    IAD Gateway User Manual 4.3.12 Prefix Configuration Screen The Prefix function is using the drop and inserts function. Click [Prefix Configuration] in the navigation panel and open the [Prefix Configuration] Screen. Index: Setting the index number for prefix record (max 30 record). Prefix: Setting the prefix number of the whole numbers that could be into this VoIP gateway (1~20 digits).

  • Page 65: Password Configuration Screen

    IAD Gateway User Manual 4.3.13 Password Configuration Screen There are two login accounts in this unit. One is the “root” another is “administrator”. The default passwords for these two accounts are null. Users can define the passwords for these two accounts. Click [Password Configuration] in the navigation panel and open the [Password Configuration] Screen.

  • Page 66: Version And Information Screen

    IAD Gateway User Manual 4.3.14 Version and Information Screen Users can get more detail about the software version for all the parts in this web page. Click [Version and Information] in the navigation panel and open the [Version and Information] Screen. Boot Rom: The version of the Boot Rom layer.

  • Page 67: Rom Configuration Screen

    IAD Gateway User Manual 4.3.15 ROM Configuration Screen Click [ROM Upgrade] in the navigation panel and open the [ROM Configuration] Screen. FTP/TFTP Server IP Address: Set TFTP server IP address Target File name: Set file name prepared to upgrade Method: Select download method as TFTP or FTP FTP Login: Set FTP login name and password...

  • Page 68: Flash Clean Screen

    IAD Gateway User Manual 4.3.16 Flash Clean Screen Click [Flash Clean] in the navigation panel and open the [Flash Clean] Screen. Press CLEAN will clean all configurations of IAD and reset to factory default value. Note: User must re-configure all commands all over again (except Network Configure) once execute this function.

  • Page 69: Commit Configuration Data Screen

    IAD Gateway User Manual 4.3.17 Commit Configuration Data Screen Click [Commit Data] in the navigation panel and open the [Commit Configuration Data] Screen. Commit Date to save all configurations. Please remember to commit data before reboot your IAD. - 64 -...

  • Page 70: Reboot Iad System Screen

    IAD Gateway User Manual 4.3.18 Reboot IAD System screen Click [Reboot System] in the navigation panel and open the [Reboot IAD Gateway] Screen. Press reboot will reset IAD. Note: To execute reboot, please remember to do Commit Data before Reboot System. - 65 -...

  • Page 71: Part V: Telnet Command Interface

    IAD Gateway User Manual Part V: Telnet Command Interface This part gives information on how to configure IAD gateway via Telnet command line interface. - 66 -...

  • Page 72: Login

    IAD Gateway User Manual 5.1 Login For you first login, enter the login: [root] and default no password. login: root password: Welcome to Terminal Configuration Mode Please enter your configuration item usr/config$ Note: Login account [root] or [administrator] is the default login account and there is no password needed.

  • Page 73: System Commands Overview

    IAD Gateway User Manual 5.3 System Commands Overview 5.3.1 [help] Press help/man/ ? will display all command list of IAD. The following table lists all of the commands that you can use with the Gateway. Refer to the following chapters for descriptions of commonly used commands.

  • Page 74: Quit]

    IAD Gateway User Manual 5.3.2 [quit] Type [quit] will quit the Gateway configuration mode. And turn back to login prompt. usr/config$ quit Disconnecting.. login: root Welcome to Terminal Configuration Mode Please enter your configuration item usr/config$ Note: It is recommended that type the [quit] command before you leave the console. If so, Gateway will ask password again when next user connects to console port.

  • Page 75: Reboot]

    IAD Gateway User Manual add: Add debug flag. h323: h323 related information vp: voice related information delete: Remove specified debug flag. open: Start to show debug messages. close: Stop showing debug messages. In this example, user open debug flags including h323, vp, h323vp. usr/config$ debug -add h323 vp h323vp usr/config$ debug –open For example:...

  • Page 76: Flash]

    IAD Gateway User Manual login: 5.3.5 [flash] Clean the configuration stored in flash. usr/config$ flash Flash memory information and configuration Usage: flash [-clean] flash -clean Clean the configuration stored. Note: This command will clean the configuration stored in the flash and reboot it. usr/config$ Parameter Usages: clean: clean all the user defined value, and reboot Gateway in factory default...

  • Page 77: Commit]

    IAD Gateway User Manual Flash clean ok!! Rebooting ... Attached TCP/IP interface to cpm unit 0 Attaching interface lo0...done Hardware Type : 1FXS Set RTL8305SB no answer from 192.168.4.114 HTTPD initialized... cmInitialize succeed! Ras port:1024 CallSignal port:1720 AC4804[0] is ok successful 1 2 Initialize OSS libraries...OK! VP v1.44 stack open sucessfully.
  • Page 78 IAD Gateway User Manual Usage: ifaddr [-print][-mode used][-ip IP Address][-mask Subnet Mask] [-gate Default Gateway][-dns 1 IP Address][-http portnumber] [-dhcpsv used][-nat used][-lanip IP Address][-sntp mode [server]] [-timezone GMT][-ipsharing used IP address][-ipchange used] [-id PPPoE username][-pwd PPPoE password][-reboot used][-emsip EMS IP] [-emsid EMS username][-emspwd EMS password][-emstime EMS digit] -print Display network information and configuration.
  • Page 79 IAD Gateway User Manual Range of IP address setting (0.0.0.0 ~ 255.255.255.255). LAN IP can not support subnet x.x.0.x Example: ifaddr -mode 0 ifaddr -ip 210.59.163.202 -mask 255.255.255.0 -gate 210.59.163.254 ifaddr -dns 1 168.92.1.1 -dns 2 168.95.1.2 ifaddr -http 80 ifaddr -lanip 192.168.123.123 ifaddr -sntp 1 210.59.163.254 ifaddr -ipsharing 1 210.59.163.254 -ipchange 1...

  • Page 80: Time]

    IAD Gateway User Manual usr/config$ ifaddr -ipsharing 1 210.11.22.33 Note: If the IP address is not a fixed one, the dedicated IP address is not necessary in the command. However, dynamic IP Address is not working in Peer-to-Peer mode. ipchange: If the unit is behind the IP sharing device and the IP address for the WAN port of that IP sharing is using the dynamic IP address.

  • Page 81: Sysconf]

    IAD Gateway User Manual no answer from 192.168.1.2 usr/config$ ping192.168.1.254 PING 192.168.1.254: 56 data bytes 64 bytes from 192.168.1.254: icmp_seq=0. time=5. ms 64 bytes from 192.168.1.254: icmp_seq=1. time=0. ms 64 bytes from 192.168.1.254: icmp_seq=2. time=0. ms 64 bytes from 192.168.1.254: icmp_seq=3. time=0. ms ----192.168.1.254 PING Statistics---- 4 packets transmitted, 4 packets received, 0% packet loss round-trIP (ms) min/avg/max = 0/1/5...
  • Page 82 IAD Gateway User Manual -gwprefix Drop gateway prefix when call from IP (0=Keep, 1=Drop). -eod End of dial (0=Disable, 1=Enable). -dPSTN FXS dial *# and change to PSTN side(0=Disable,1=Enable). Example: sysconf -idtime 5 Parameter Usages: print: Print current sysconf settings. idtime: Set the duration (in second) of two pressed digits in dial mode as timed out.
  • Page 83 IAD Gateway User Manual who is master.) reverse: If the FXS is the calling party, it will generate the reverse signal to the analog side when it got the connect message from the IP side. It could be used in the pay phone application callerid: Enable or Disable the caller-id function.

  • Page 84: H323]

    IAD Gateway User Manual Dial to PSTN side : Enable usr/config$ 5.3.11 [h323] This command is to configure H.323 related parameters. usr/config$ h323 H.323 stack information and configuration Usage: h323 [-print][-mode used][-gk IP address][-algk IP address][-gwtype used] [-dfgw IP address][-prefix number][-line number][-passwd number] [-alias h323id][-display information][-gkid ID][-gkdis used] -print Display H.323 stack information and configuration.
  • Page 85 IAD Gateway User Manual response of a new call (1~20000). Note: Range of IP address setting (0.0.0.0 ~ 255.255.255.255). Example: h323 -gk 210.59.163.171 -line1 70 -line2 71 h323 -alias Your_Alias_Name -gkid GK -gkdis 1 -passwd 1234 h323 -range start 1024 end 19999 Parameter Usages: print: Print current h323 related settings...
  • Page 86 IAD Gateway User Manual address of GateKeeper is set, before Gateway register to the assigned GateKeeper, it will send out GRQ (GateKeeper Request) message with configured GateKeeper name to GateKeeper first. ttl: To set timer for TTL (Time To Live). Gateway would send RRQ, with keep Alive, to gatekeeper periodically according to TTL timer, default:60 (0~3600 second).

  • Page 87: Line]

    IAD Gateway User Manual H225 Call signal port : 1720 Allocated port range start port : 2000 end port : 19999 Response timeOut : 15 Connect timeOut : 60 usr/config$ 5.3.12 [line] Line information and configuration. usr/config$ line Gateway line information and configuration Usage: line [-print][-config number [hunt number][hotline number] [forward number]]...

  • Page 88: Prefix]

    IAD Gateway User Manual For example: usr/config$ line -print Line information and configuration Index Type Hunt Hotline No Answer Forward Registration Status ============================================================ ==================== FXS 1 Ready usr/config$ 5.3.13 [prefix] This command is for make rules for drop or insert prefix digits. usr/config$ prefix Prefix drop/insert information and configuration Usage:...

  • Page 89: Pbook]

    IAD Gateway User Manual prefix -print prefix -add prefix 100 drop 1 insert 2000 prefix -add prefix 100 drop 1 prefix -add prefix 100 drop 0 insert 200 prefix -modify 1 prefix 100 drop 0 insert 300 prefix -delete 1 usr/config$ Parameter Usages: add: Add a rule to drop or insert prefix digits of incoming call.
  • Page 90 IAD Gateway User Manual Phone book information and configuration Usage: pbook [-print] [-add [name string][e164 number][IP address][port number] [drop used][insert digits]] [-modify number [name string][e164 number][IP address][port number] [drop used][insert digits]] [-delete number] pbook -print Display phone book information and configuration. -add Add new phone book record.
  • Page 91 IAD Gateway User Manual print: Print out current contents of Phone Book. Users can also add index number, from 1 to 100, to the parameter to show specific phone number. Note: Index number: means the sequence number in phone book. If users do request a specific index number in phone book, Gateway will give each record a automatic sequence number as index.

  • Page 92: Voice]

    IAD Gateway User Manual 5.3.15 [voice] The voice command is associated with the audio setting information. There are four voice codecs supported by Gateway. usr/config$ voice Voice codec setting information and configuration Usage: voice [-print] [-send [G723 ms] [G729 ms] [G729A ms] [G729B ms] [G729AB ms] [G711U ms] [G711A ms] ] voice [-priority [G723] [G729] [G729A] [G729B] [G729AB] [G711U] [G711A] ] [-volume line [voice level][input level][dtmf level]]...
  • Page 93 IAD Gateway User Manual -mindelay Setting of jitter buffer min delay. (0~150, default: 90). -maxdelay Setting of jitter buffer max delay. (0~150, default: 150). Example: voice -send g723 60 g729 60 g729a 60 g729b 60 g729ab 60 g711u 60 g711a 60 voice -volume 1 voice 20 input 32 dtmf 27 voice -echo 1 usr/config$...

  • Page 94: Support]

    IAD Gateway User Manual Note: Be sure to know well the application before you change voice parameters because this might cause incompatibility. For example: usr/config$ voice -print Voice codec setting relate information Sending packet size : G.723.1 : 60 ms G.729 : 60 ms G.729A...
  • Page 95 IAD Gateway User Manual usr/config$ support Special Voice function support manipulation Usage: support [-print][-t38 used][-t38ecm used][-t38asn1 used][-faxrdd digits] [-fstart used][-tunnel used][-h245fs used][-earkyh245 used] [-h450 used] support -print Display support information and configuration. -t38 T.38(FAX) (0=Disabled, 1=Enabled). -t38rq T.38(FAX) Send request Mode.(0=Disabled, 1=Enabled). -t38ecm T.38(FAX) ECM (0=Disabled, 1=Enabled).
  • Page 96 IAD Gateway User Manual t38rq: The T.38 could support the request mode message sending or not. 0 for disable the request mode sending and 1 for request mode sending with the T.38. t38ecm: Enable or disable t38ecm function. The function is support the error correction in the high-speed fax mode.

  • Page 97: Sysinfo]

    IAD Gateway User Manual H450 support : Disabled usr/config$ 5.3.17 [sysinfo] This command could show up the line is busy or not. usr/config$ sysinfo System information Index Registration Status =========================== Ready usr/config$ Parameter Usages: Index: Line channel. Reg: Line registration Gatekeeper status. If you use registration Gatekeeper server, then display registration status [No] or [OK].
  • Page 98 IAD Gateway User Manual [-flash [freqLo ][freqHi ]] phone -print Display phone ringing/tone configuration. ring : ringing : ringback tone : busy tone : dial tone flash : flash tone -ring ringing configuration set. -rbt ringback tone configuration set. busy tone configuration set. dial tone configuration set.

  • Page 99: Tos]

    IAD Gateway User Manual To set BusyTone value. The played tone type, when destination is busy. To set DialTone value. The played tone type, when hook off a phone set of workable Gateway. flash: Set the detective flash range in ms, for example, 300-500 ms. Note: For tone simulation, Gateway adopts dual frequencies as traditional telephone does.

  • Page 100: Ddns]

    IAD Gateway User Manual Parameter Usages: rtptype: the packages of voice (0~63). sigtype: the package of call signal (0~63). Note: The value of rtptype and sigtype is from 0 to 63. It’s working if it supported by your network. For example: usr/config$ tos –print IP Packet ToS information: Signalling Packet:...
  • Page 101 IAD Gateway User Manual horus). -force Force execute the dynamic DNS service. Example: ddns -print ddns -enable 1 ddns -server member.dyndns.org -hostname ipphone.dyndns.org ddns -delay 30 m (30 minutes) ddns -delay 12 h (12 hours) ddns -force 11.22.33.44 usr/config$ Parameter Usages: enable: Enable or disable the DDNS function.

  • Page 102: Pt]

    IAD Gateway User Manual IP Check Server2 : checkip.dyndns.org Delay : Off usr/config$ 5.3.21 [pt] RTP payload type configuration and information usr/config$ pt RTP payload type configuration and information Usage: pt [-print][-rfc2833 type][-dtmf type][-fax type][-faxbypass type] [-modembypass type][-redundancy type][-modemrelayp type] pt -print Display the RTP payload type information.

  • Page 103: Rom]

    IAD Gateway User Manual usr/config$ 5.3.22 [rom] ROM file information and firmware upgrade function. usr/config$ rom ROM files updating commands Usage: rom [-print] [-app] [-boot] [-dsptest] [-dspcore] [-dspapp] [-ht] [-method used] [-boot2m] -s TFTP/FTP server ip -f filename rom -print -print show versions of rom files.

  • Page 104: Auth]

    IAD Gateway User Manual application code, and Hold Tone file. Note: Most of all, the Rom file needed to get upgrade is App or Boot2m. Please check the exactly Rom file before doing download procedure. To specify TFTP server’s IP address when upgrading ROM files. To specify the target file name, which will replace the old one.

  • Page 105: Passwd]

    IAD Gateway User Manual usr/config$ auth -h323 1 usr/config$ auth -voice 1 print: Display the configurable items for “administrator” user. For example: usr/config$ auth -print Auth to customized the WEB configuration item for administrator. ifaddr : Enable h323 : Enable line : Disable pbook...
  • Page 106 IAD Gateway User Manual 1. Loginname can be only 'root' or 'administrator' 2. passwd -clean will clear all passwd stored in flash, please use it with care. Example: passwd -set root Your_Passwd_Setting passwd -clean usr/config$ Parameter Usages: set: Set login name and password, input login name then input new password. clean: Will clear all password setup, and change null.
