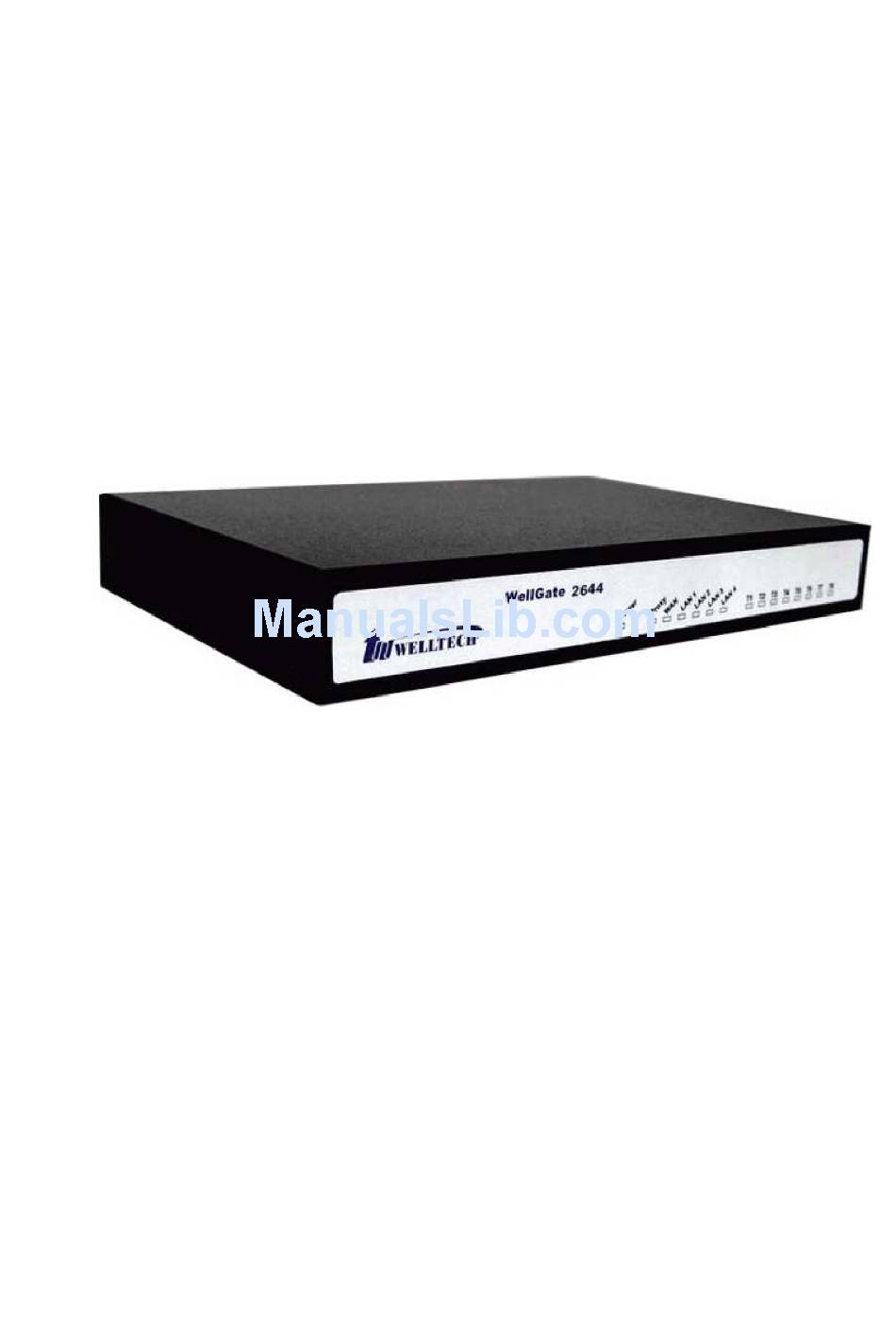

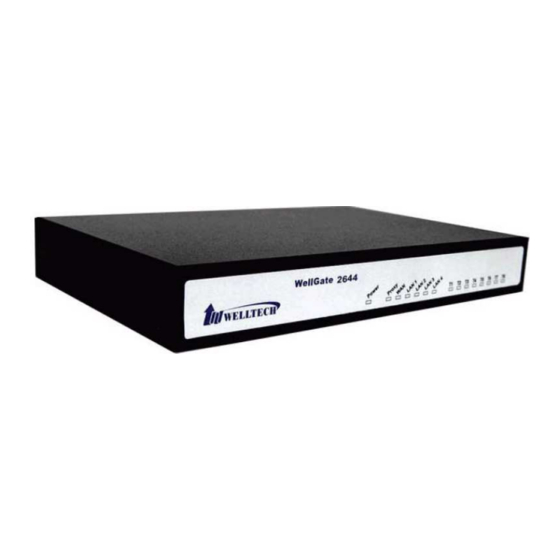

Wellgate 26xx Series

VoIP Gateway

User Manual

1. Introduction ...................................................................................................... 3
1.1 26xx Telephony Gateway .................................................................................. 3
1.2 Benefits .......................................................................................................... 3
1.3 Physical Interface............................................................................................. 3
1.4 Specification.................................................................................................... 4
1.5 Setting and maintenance.................................................................................. 5
1.6 Environmental ................................................................................................. 5
2. Appearance ....................................................................................................... 6
2.1 Front Panel: LED Indicators ............................................................................ 6
2.2 Rear Panel: LED Indicators ............................................................................. 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26xx series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WELLTECH 26xx series

Summary of Contents for WELLTECH 26xx series

  • Page 1: Table Of Contents

    Wellgate 26xx Series VoIP Gateway User Manual 1. Introduction ...................... 3 1.1 26xx Telephony Gateway .................. 3 1.2 Benefits ......................3 1.3 Physical Interface..................... 3 1.4 Specification....................4 1.5 Setting and maintenance.................. 5 1.6 Environmental ....................5 2. Appearance ....................... 6 2.1 Front Panel: LED Indicators ................
  • Page 2 26xx Technical Manual EN-V108 3. Environment Setup and IP Connection ..............9 3.1 Configuration....................9 3.2 Network Configuration ................... 12 3.2.1 WAN Setting ....................12 3.2.1.1 WAN Setting --Static IP ..................17 3.2.1.2 WAN Setting --DHCP ....................18 3.2.1.3 WAN Setting --PPPoE ...................19 3.2.2.
  • Page 3 26xx Technical Manual EN-V108 3.5.9 Password............... 錯誤 錯誤 錯誤 錯誤! 尚未定義書籤 尚未定義書籤 尚未定義書籤 尚未定義書籤。 。 。 。 3.5.10 Account ....................74 3.6 Rebooting the system ..................75 Appendix A: How to set the P2P call ..............76 Appendix B: How to use Http and Ftp provision..........92...

  • Page 4: Introduction

    1-WAN/4-LAN 10/100 base-T NAT router to meet the current network environment. Field-proven quality of Voice communication and Fax transmission over IP broadband access network to makes Wellgate 26xx series to be an excellent solution for various VoIP applications. 1.2 Benefits Ideally suited for Enterprise use, rich-feature designed to inter-work with IP-PBXs for small and middle enterprises.

  • Page 5: Specification

    26xx Technical Manual EN-V108 1.4 Specification IP Network connection IPv4 (RFC 791) MAC Address (IEEE 802.3) PPPoE Client (RFC 2516) DNS Client DHCP Client (RFC 2131) DHCP Server (RFC 2131) NAT (RFC 1631) TCP/UDP (RFC 793/768) ICMP (RFC 792) RTP/RTCP (RFC 1889/1890) SNTP (RFC 2030) TFTP Client Telnet Server...

  • Page 6: Setting And Maintenance

    26xx Technical Manual EN-V108 G.711 pass-through T.38 Fax relay protocol Tone Generation & Detection Ringing Tone Ring Back Tone Dial Tone Programming Tone Call Features Call Hold Call Transfer (Blind & consultant) Call Forward (Unconditional / No Answer / Busy) MWI –...

  • Page 7: Appearance

    26xx Technical Manual EN-V108 Temp.: 0℃～45℃ (32℉～113℉) Humidity: 10％～85% relative humidity, non-condensing Storage Temp. & Humidity Temp.: 0℃～55℃ (32℉～131℉) Humidity: 10％～95％ relative humidity, non-condensing AC Power Adaptor: INPUT: AC100V-240V, 50/60Hz OUTPUT: DC 12V, 3.0A Regulatory Compliance: FCC (Part 15, Class B) & CE 2.
  • Page 8 26xx Technical Manual EN-V108 Description Power When the power adapter is connected, the LED will light up green. Ready When system is startup successfully, the LED will light up green. Proxy When the gateway is registered successfully to a Proxy, this will light up green.

  • Page 9: Rear Panel: Led Indicators

    26xx Technical Manual EN-V108 2.2 Rear Panel: LED Indicators Wellgate 2608 Wellgate 2680 Wellgate 2644 and 2644P Item Description Reset Press and hold over 5 seconds to reload factory default setting, this will erase all the settings configured on the gateway.

  • Page 10: Environment Setup And Ip Connection

    26xx Technical Manual EN-V108 3. Environment Setup and IP Connection First of all, connect your computer to Wellgate 26xx’s LAN port by using DHCP. The IP address assign to your computer should be 192.168.123.x by default. Once you can get the IP address from Wellgate 26xx, you can start the configuration as below.
  • Page 11 26xx Technical Manual EN-V108 2. You will enter the main page of the web configuration interface after you keyed in the username and password correctly (see figure below).
  • Page 12 26xx Technical Manual EN-V108...

  • Page 13: Network Configuration

    26xx Technical Manual EN-V108 3.2 Network Configuration The following instructions will explain the configurations for setting up the WAN port of the 26xx. There are in total three methods of connections: Static IP, DHCP and PPPoE. Note: You can retrieve the IP address of the WAN port by keying #126 on the phone set that is connected to the FXS port of the gateway.
  • Page 14 26xx Technical Manual EN-V108...
  • Page 15 26xx Technical Manual EN-V108 WAN Setting Item Description Static IP DHCP PPPoE Connected mode Select the connection method for the WAN port of the 26xx, you can choose the following: Static IP DHCP PPPoE Current IP Address Show current IP address DNS server mode Select the DNS behavior, you can choose the following:...
  • Page 16 26xx Technical Manual EN-V108 both: http and https access are allowed HTTPS port for WEB The http SSL port (the default management is 443), 1024~65535. IP address Specify the IP address. Subnet mask Specify the subnet mask.
  • Page 17 26xx Technical Manual EN-V108 WAN Setting Item Description Static IP DHCP PPPoE Default gateway Specify the IP address of the default gateway. Remote access Restricts/Blocks users restriction connecting to the WAN port’s IP remotely, you can Enable/Disable this option. PPPoE userID Specify the username of the PPPoE account PPPoE password...

  • Page 18: Wan Setting --Static Ip

    26xx Technical Manual EN-V108 3.2.1.1 WAN Setting --Static IP 1. Press the “Apply” button (at the bottom) after you finish to save changes. 2. Press the “Reboot” button to apply the changes.

  • Page 19: Wan Setting --Dhcp

    26xx Technical Manual EN-V108 3.2.1.2 WAN Setting --DHCP Press the “Apply” button (at the bottom) after you finish to save changes. 2. Press the “Reboot” button to apply the changes. P.S. When you are using DHCP in WAN and WAN’s Ethernet cable are not connected, you will not able to access Wellgate by using WAN port if you don’t know the DHCP IP address.

  • Page 20: Wan Setting --Pppoe

    26xx Technical Manual EN-V108 3.2.1.3 WAN Setting --PPPoE 1. Input PPPoE user ID and password 2. Press the “Apply” button (at the bottom) after you finish to save changes. 3. Press the “CANCEL” button (next to the Apply button) to clear the values in the page.

  • Page 21: Lan Setting

    26xx Technical Manual EN-V108 3.2.2. LAN Setting LAN Setting ITEM Description LAN Mode It supports Bridge or NAT mode LAN IP address Specify the IP address of the 26XX LAN port. LAN mask address Specify the mask address for 26XX LAN port.
  • Page 22 26xx Technical Manual EN-V108 LAN Setting ITEM Description Domain Name You can specify the domain name that will be assigned by the DHCP server to the attached network devices. The DHCP server will send information on the “server host name” to the DHCP client.

  • Page 23: General Configuration

    26xx Technical Manual EN-V108 3.3 General configuration To make VoIP calls, you will need a SIP account provided by the SIP Proxy you are registered with. To configure the relevant SIP settings, please refer to the instructions explained below. 3.3.1 PABX Mode (Wellgate 2644 and 2644P use) This quick setting is dedicated to be used for Wellgate 2644 to become a inter-connection in between PSTN and traditional PABX.
  • Page 24 26xx Technical Manual EN-V108 PABX Connection To enable PABX behavior or not. SIP Setting Please refer to 3.3.2.1 SIP Trunk Configuration It is used when you only have a SIP account to be shared for FXS lines. Please refer to 3.3.2.1 Primary FXS SIP settings When you have multiple SIP accounts...

  • Page 25: Sip Setting

    26xx Technical Manual EN-V108 3.3.2.1 SIP Setting Proxy Redundant Mode Disable: only register to primary proxy. Act-Act: register to primary proxy and secondary proxy simultaneously. The call routing will use primary proxy as the default outbound proxy and only use secondary proxy when the primary one is not registered.
  • Page 26 26xx Technical Manual EN-V108 is only 1 proxy registered at the same time. And once it is registered, it will stop truing. Primary proxy Specify the data of primary proxy: Enable/Disable, IP address, Port#, Domain Name, Expire time and MWI TTL.
  • Page 27 26xx Technical Manual EN-V108 Display name Specify the Display name of the phone number Forward Specify the Representative forwarding type to be used, only choose busy Forward Number Specify the number to be forwarded when the specified forward condition is met.

  • Page 28: Sip Advanced Setting

    26xx Technical Manual EN-V108 3.3.3 SIP Advanced Setting Local SIP port(1~65535) Specify the local starting SIP port. Each account’s interval is 2. For example, the local SIP port is set to 5060. The following is the port number to be used for 26xx: Port 1: 5060 Port 2: 5062 Port 3: 5064...
  • Page 29 26xx Technical Manual EN-V108 remote host or proxy. Min Session Expire(Sec) Specify the minimum session expire time that other host or proxy will need to follow when calling the WELLGATE 26XX. Session Refresh Request Select the session refresh method that will be used on the WELLGATE 26XX, you can choose among the two methods:...
  • Page 30 SIP/RTP Encrypt Enable Welltech proprietary encryption for SIP signaling and RTP or not. It is required a Welltech SIP proxy server (WS6500 or SIPPBX 6200) to work with this feature. When enable it, you can hide your VOIP traffic from ISP’s monitor.
  • Page 31 26xx Technical Manual EN-V108 tone to be played. Custom Tone Please refer to Tone Settings for the detail of custom tone for 100 trying. Press the “Apply” button (at the bottom) after you finish to save changes. 2. Press the “Reboot” button to apply the changes.

  • Page 32: Payload Type Setting

    26xx Technical Manual EN-V108 3.3.4 Payload Type Setting RFC2833 payload type Specify the RFC2833 payload type (range is 96~128, however 100, 102~105 is reserved by other payload types). FAX bypass payload type Specify the FAX payload type (range is 96~128, however 100, 102~105 is reserved by other payload types) Modem by pass payload type Specify the Modem by pass payload...

  • Page 33: Line Setting

    26xx Technical Manual EN-V108 3.3.5 Line Setting...
  • Page 34 26xx Technical Manual EN-V108 No Answer Forward Time (FXS only) If you enable the No Answer Forward function (sip trunk number or L1~L8 number), please specify the time of no answer. The default setting is 180 sec. Enable/Disable FAX T.38 function. Line1~Line8 relevant data Type Displays the port type of that particular...
  • Page 35 26xx Technical Manual EN-V108 The “Disable” option will allow you to disable this particular function. Forward Number Specify the number to forward the call to when the call forwarding feature is enabled. Call Waiting (FXS only) Enable/Disable per-line Call Waiting function.

  • Page 36: Qos Setting

    26xx Technical Manual EN-V108 3.3.6 Qos Setting Type Select Qos Type: DSCP or ToS Differentiated Services Code Point Setting (DSCP) DSCP RTP Select the DSCP value for RTP (voice packets), the value in the drop down list is expressed in binary format, you can choose to meet your network environment.
  • Page 37 26xx Technical Manual EN-V108 choose to meet your network environment. Press the “Apply” button (at the bottom) after you finish to save changes. 2. Press the “Reboot” button to apply the changes.

  • Page 38: Speed Dial Setting

    26xx Technical Manual EN-V108 3.3.7 Speed Dial Setting Speed Dial Editor Specify the speed Dial Number/Telephone Number/Name, and then press the Add or Del button to add or delete record (it can set 50 records).

  • Page 39: Caller Id Setting

    26xx Technical Manual EN-V108 3.3.8 Caller ID Setting Caller ID Setting (Line 1~Line 8) Select the (Line 1~Line 8)Caller ID generation type to use, you can choose the following: Disable DTMF FSK(Bellcore) ETSI(Before Ring) ETSI(Between ring) FXO only choose Enable/Disable the caller ID detection AUTO: You can choose different caller...
  • Page 40 26xx Technical Manual EN-V108 automatically. The “Disable” option will allow you to disable this particular function. DTMF Caller ID Start Symbol Specify the DTMF Caller ID Start Symbol The default symbol is D. DTMF Caller ID End Symbol Specify the DTMF Caller ID End Symbol The default symbol is C.

  • Page 41: Cdr Setting

    26xx Technical Manual EN-V108 3.3.9 CDR Setting CDR mode Select the CDR mode for Enable or Disable. If you Enable this feature, please specify the CDR Server address and port number at the CDR server address and port’s text box, then you can get Call Detail Data form CDR Server.
  • Page 42 26xx Technical Manual EN-V108 P.S. To receive the SYSLOG CDR, you need to have a syslogd server to collect the CDR from Wellgate 26xx. The following is a tool you can be used for testing purpose which can be downloaded from http://tftpd32.jounin.net/. You need to enable syslog server from settings before you can use it.

  • Page 43: Syslog Setting

    26xx Technical Manual EN-V108 3.3.10 Syslog Setting This syslog is used to send the debug log from Wellgate 26xx to syslog server. Syslog mode Select the Syslog mode for Enable or Disable. If you Enable this feature, please specify the Syslog Server address and port number at the Syslog server address and port’s text box, then you can get detail system log...
  • Page 44 26xx Technical Manual EN-V108 P.S: To receive the SYSLOG debug information, you need to have a syslogd server to collect the debug information from Wellgate 26xx . The following is a tool you can be used for testing purpose which can be downloaded from http://tftpd32.jounin.net/.

  • Page 45: Advanced Configuration

    26xx Technical Manual EN-V108 3.4 Advanced Configuration 3.4.1 System setting prack PRACK is defined in RFC 3262: Reliability of Provisional Responses in SIP. You can accommodate your softswitch (Proxy Server) to Enable or Disable this feature. ROH Tone(FXS only) Receiver-Off-Hook (ROH) Tone A ROH tone is sent to the subscriber to inform him that his receiver is off-hook.
  • Page 46 26xx Technical Manual EN-V108 as billing stop signal. T.38 NoAttribute No attribute (Fax version, Bit Rate, Buffer, Datagram…) indicated in T.38 Re-Invite with Session Description Protocol (SDP). You can Enable/Disable this option. FAX redundancy depth Specify the resend times (0~3)for FAX error packet, T.38 FAX Type Select the FAX Type to use, you can...
  • Page 47 26xx Technical Manual EN-V108 Inter Digits Timeout (1~5sec) Specify the interval of input digits, if the interval is over the setting, the system will end the dial and send out the DTMF. The limitation range is 1~5sec. FAXByPass Keyword Some SIP Proxy need specify special keyword for FAXByPass function.
  • Page 48 26xx Technical Manual EN-V108 DTMF Duration Specify the DTMF tone duration. DTMF Interdigit Time Specify the interval of DTMF digit Ring Time Limit ( 10~600sec ) Specify the limitation of Ring time for (FXS only) incoming call, when the ring is over the limit, system will drop the call.
  • Page 49 26xx Technical Manual EN-V108 Traget address The IP address to be used for ping. Ping Interval The interval to ping the target IP address FXO Answer after Ring Count When have an incoming call from PSTN, WG26xx will answer the call by detect ring times, default is 2.

  • Page 50: Sntp Setting

    26xx Technical Manual EN-V108 3.4.2 SNTP Setting SNTP mode Select the SNTP mode : On or Off SNTP server address Specify the SNTP server address for time synchronization. Time Zone -GMT Select the Time Zone of your location Current Time Display the time with year/month/date /hour/minute /second when you select the SNTP mode with “ON”.

  • Page 51: Codec Setting

    26xx Technical Manual EN-V108 3.4.3 Codec Setting Codec Priority Selection order to match the remote SDP for codec selection. Local SDP Order: Use local SDP order to match codec. Remote SDP Order: Use Remote SDP order to match codec. Local Codec Priority You can specify the priority of the codec from First to Fifth (first being the highest priority and Fifth being the...
  • Page 52 26xx Technical Manual EN-V108 G711A 20,40,60 G723 30,60,90 G729A 20,40,60 G726 20,40,60 Bandwidth Required When you select the codec packet size shown above, system will set default requirement of bandwidth. Press the “Apply” button (at the bottom) after you finish to save changes. Press the “Reboot”...

  • Page 53: Voice Setting

    26xx Technical Manual EN-V108 3.4.4 Voice Setting Jitter Buffer Minimal Delay Specify the minimal delay of the jitter buffer. The range is 0~150 ms and the default setting is 0 ms. Maximal Delay Specify the maximal delay of the jitter buffer.
  • Page 54 26xx Technical Manual EN-V108 db). Remote receive volume Specify the volume gain of the voice in the remote side (+5~-20 db, default is -3 db, default is -3 db). DTMF volume Specify the volume gain of the DTMF (+3~-32 db, default is -10 db). Press the “Apply”...

  • Page 55: Tone Setting

    26xx Technical Manual EN-V108 3.4.5 Tone Setting Dial tone Specify the pattern of the Dial tone, you can adjust the high frequency, low frequency, high level, low level, the On and Off time for tone 1 and 2. Ringback tone (FXS only) Specify the pattern of the Ringback tone, you can adjust the high frequency, low frequency, high level,...
  • Page 56 26xx Technical Manual EN-V108 and Off time for tone 1 and 2. P.S. If the disconnect tone only has single frequency, please set it to low frequency. If the disconnect tone only has single cadence, please set it to Tone 1. Disconnect tone 2 Specify the pattern of the disconnect tone for disconnect tone 2 (second...

  • Page 57: Phone Setting

    26xx Technical Manual EN-V108 3.4.6 Phone Setting Primary Ringing Ringing Frequency Specify the Ringing frequency value. ringing frequency : 15~100 (Unit : Hz) Ringing ON Specify the Ringing ON value. ringing ring ON : 0~8000 (Unit : ms) Ringing OFF Specify the Ringing OFF value.
  • Page 58 26xx Technical Manual EN-V108 than the Flash high setting, the flash will be handled as hang-up. Secondary Ringing (FXS only) Note: The feature will be enabled automatically when the Min. Digit Count has been enabled and specified. It is used to have different ring cadence when the incoming caller number is shorter than the setting of “Min.

  • Page 59: Digit Manipulation

    26xx Technical Manual EN-V108 3.4.7 Digit Manipulation Digit Manipulation Editor FXO: This DM group is used for FXO incoming call. FXS: This DM group is used for FXS dialing out. VOIP: This DM group is used for VOIP incoming call. 1-4: These DM groups can be used for routing table.
  • Page 60 26xx Technical Manual EN-V108 8862123456 8800223456 8862123456 8862123456002 8862123456 83456 Note: The DM Group 1~4 can have the feature to delay the dialing by added a “p” into the replace value. It might be useful, if you want to wait for a while and dial the second part of DTMF for calling out.

  • Page 61: Dial Plan

    26xx Technical Manual EN-V108 3.4.8 Dial Plan Dial Plan Editor Using this feature, users can specify the number that will be immediately dialed out without having to press the “#” (at the end of the dialed number) on the keypad or until the dial time timeout period.
  • Page 62 26xx Technical Manual EN-V108 Leading digit: Total digit count: 8 If the user dials an 8 digit number (e.g. 82265699), the WELLGATE 26XX will immediately detect it and dial this number straight away. Third Example Function: Disable Leading digit: 02 Total digit count: 10 If the user set the Function parameter as “Disable”, the call number with a...

  • Page 63: Call Routing Editor

    26xx Technical Manual EN-V108 3.4.9 Call routing Editor Call Routing Status: enable or disable this routing Prefix: matched DNIS (called number) prefix. Min Length: matched DNIS minimum length. This DM can only be executing when the received DNIS is longer than it. Route to: The outgoing call type could be (FXO / FXS / VOIP /P2P ) Backup route to: If primary route...
  • Page 64 26xx Technical Manual EN-V108 route.

  • Page 65: Management

    26xx Technical Manual EN-V108 3.5 Management 3.5.1 Provision Server The Wellgate can support the EMS9510 or http provisioning. For http provisioning, it requires a http web server or hfs (http://www.rejetto.com/hfs/) as the file server and put each mac address’s configuration file inside the http file server. Provision server Mode EMS9510 Provision server IP address...
  • Page 66 26xx Technical Manual EN-V108 Provision server Mode HTTP: Enable auto provisioning service by HTTP Service Provision server IP address Specify the Provision Server’s IP address. Provision server port Specify the Provision server port Polling Interval (min) The checking interval for new configuration Path The http path to store the...
  • Page 67 26xx Technical Manual EN-V108 Provision server Mode Provision server IP address Specify the Provision Server’s IP address. Provision server port Specify the Provision server port Polling Interval (min) The checking interval for new configuration Path The http path to store the configuration files.

  • Page 68: Save-Reload Setting

    26xx Technical Manual EN-V108 3.5.2 Save-Reload setting Export File Click the “Export” button to export “user.cfg” data Import File Specify the file path and file name to Import the configure data. Press the “Reboot” button to apply the changes.

  • Page 69: Voice File

    26xx Technical Manual EN-V108 3.5.3 Voice File Voice File Type Voice files type to be uploaded. It could be greeting or hold Music or Net fail voice. Upload File Specify the file path and file name to upload. Please make sure that the file format needs to be G.711U, 8K, 8 bits raw file.

  • Page 70: Upgrade Firmware

    26xx Technical Manual EN-V108 3.5.4 Upgrade Firmware Http Upload Specify the location of the firmware for uploading through Http. 1. Under Device Management => Software Upgrade web menu, specify the location of the firmware by clicking the Browse button next to the Http Upload text box.

  • Page 71: Reset To Default

    26xx Technical Manual EN-V108 3.5.5 Reset to Default Users can restore back to factory default settings using this feature. The password of the account and the network configurations are the things that will not be changed when this feature is executed.

  • Page 72: Network Status

    26xx Technical Manual EN-V108 3.5.6 Network Status Connection mode Displays the current connection mode. Current IP address Displays the current IP address of the WAN port. Subnet mask Displays the current subnet mask’s IP. Default gateway Displays the current default gateway’s Primary DNS address Displays the current primary DNS address.

  • Page 73: Version Info

    26xx Technical Manual EN-V108 3.5.7 Version Info. Boot version Displays the current boot version loaded on the WELLGATE 26XX. Post version Displays the current post version loaded on the WELLGATE 26XX. If your Boot version name is “BOOT_20100316a”, here will display empty.

  • Page 74: Port Status

    26xx Technical Manual EN-V108 3.5.8 Port Status Refresh Interval Time to update the status Item Displays the corresponding port number. Port Type Displays the port type (FXS, FXO) of the corresponding port number. Enable Whether the port is enabled or disable. Plug Whether PSTN is connected to the FXO port or not...

  • Page 75: Account

    26xx Technical Manual EN-V108 3.5.9 Account Three level of users can be used, administrator, supervisor, user. Each level of users will have different predefined access level. Administrator The administrator level user which has full access of WG26xx. Supervisor Setting The supervisor level user which has limited administrative access right.

  • Page 76: Rebooting The System

    26xx Technical Manual EN-V108 3.6 Rebooting the system Executing this function will reboot the whole system, when configuration changes are made to the device, it needs to be rebooted for the changes to take effect (see figure below).

  • Page 77: Appendix A: How To Set The P2P Call

    26xx Technical Manual EN-V108 Appendix A: How to set the P2P call Example1: This example shows a way to do the P2P in between a 2608 and 2680 by using the call routing features. Used IP address: 1. 2608 IP is 192.168.18.2 2.
  • Page 78 26xx Technical Manual EN-V108 Step 2: Disable Register for all line and apply it.
  • Page 79 26xx Technical Manual EN-V108 Step 3: Create a prefix as follow to route the call to 2680 as follows. Reboot and try it. For this example, we are route 26801 to 2680’s first line, 26802 to 2680’s second line...etc. Since the first port of 2680 is the 5060 and second port is 5062, the setting as show as follows:...
  • Page 80 26xx Technical Manual EN-V108 B. 2680 configuration Step 1: Disable proxy settings as below and apply it.
  • Page 81 26xx Technical Manual EN-V108 Step 2: Disable register for all lines as follows and apply it.
  • Page 82 26xx Technical Manual EN-V108 Step 3: Create prefix to route to 2608’s FXS port. Reboot and try it. For this example, we are route 260801 to 2608’s first FXS line, 260892 to 2608’s second FXS line...etc. Since the first port of 2608 is the 5060 and second port is 5062, the setting as show as follows:...
  • Page 83 26xx Technical Manual EN-V108 Example 2: This configuration shows an example to use the hot line for p2p calling. It is useful when you want your FXS pickup a phone and calling to a predefined destination. A. 2608 configuration Step 1: Disable proxy settings and apply it.
  • Page 84 26xx Technical Manual EN-V108 Step 2: For the line need to do the P2P hot line, put hotline number as the format of “number@uri:port”. Apply and reboot it. In this example, when FXS line 1 pickup the phone, it will be hot line to 26801@192.168.18.235:5060.
  • Page 85 26xx Technical Manual EN-V108 B. 2680 configuration Step 1: Disable proxy settings and apply it.
  • Page 86 26xx Technical Manual EN-V108 Step 2: For the line need to do the P2P hot line, put hotline number as the format of “number@uri:port”. Apply and reboot it. In this example, when FXO line 1 receives an incoming call, it will be hot line to 260801@192.168.18.2:5060.
  • Page 87 26xx Technical Manual EN-V108 Example 3 This configuration shows an example for P2P calling to a representative number. When a PSTN call is coming to 2680 FXO port, it will start the call routing and make the p2p call to the sip trunk number of 2608 which provides serial line hunting.
  • Page 88 26xx Technical Manual EN-V108 Step 2: Disable SIP registers for all lines and apply it.
  • Page 89 26xx Technical Manual EN-V108 Step 3: Create a call routing entry for routing to 2680’s representative number as below. Reboot it to take effective. In this example, the call will be route to 26800@192.168.18.235:5076 (5076 is the port number or representative listened).
  • Page 90 26xx Technical Manual EN-V108 B. 2680 Configuration Step 1: Check the primary proxy and representative number enable option, then setup the required parameters of the representative number. Apply it. Since the P2P call will be used for this representative number, uncheck the primary proxy and apply it.
  • Page 91 26xx Technical Manual EN-V108 Step 2: Disable sip register for all lines and apply it.
  • Page 92 26xx Technical Manual EN-V108 Step 3: Create a call routing entry for routing to 2608’s representative number as below. Reboot it to take effective. In this example, the call will be route to 260800@192.168.18.2:5076 (5076 is the port number or representative listened).

  • Page 93: Appendix B: How To Use Http And Ftp Provision

    26xx Technical Manual EN-V108 Appendix B: How to use Http and Ftp provision Get the http provisioning packet from Welltech and start the provisioning as follows: Step 1: build mac list for mass configuration file generation Please open the “wg26 MAC.csv” gotten from Welltecg by using Microsoft Excel, you can refer the picture below.
  • Page 94 26xx Technical Manual EN-V108 Step 2: create a template configuration file Open the “wg26 Parameter.txt” getting from Welltech and make the required change. Please at least make the changes for those provisioning and SIP proxy settings. For detail, please refer the comments of “wg26 Parameter.txt”.
  • Page 95 26xx Technical Manual EN-V108 Step 5: Put the “*.cfg” file into http or ftp directory. Set the provisioning settings in Wellgate 26xx and reboot to test it.
