  • Page 1 Welltech 2424s FXS Gateway User Guide...

  • Page 2: Table Of Contents

    Contents CH1 Introduction ................4 1-1 Physical Interface ................4 1-2 Environmental .................. 4 1-3 Front Panel: LED Indicators ............5 1-4 Rear Panel: LED Indicators ............6 1-5 QUICK SETUP ................7 CH2 Device Settings ............... 13 2-1 Network Configuration ..............13 2-2 Device Time Setting ...............
  • Page 3 5-1 SIP ....................36 5-2 Audio ....................38 5-3 Ring ....................40 CH6 Dialing Plan ................41 6-1 General.................... 41 6-2 Dialing Rule ..................42 6-3 Digit Manipulation ................. 43 6-4 Phone Book..................44 CH7 FXS Setting ................45 7-2 SIP Proxy ..................48 7-3 Caller ID ..................

  • Page 4: Ch1 Introduction

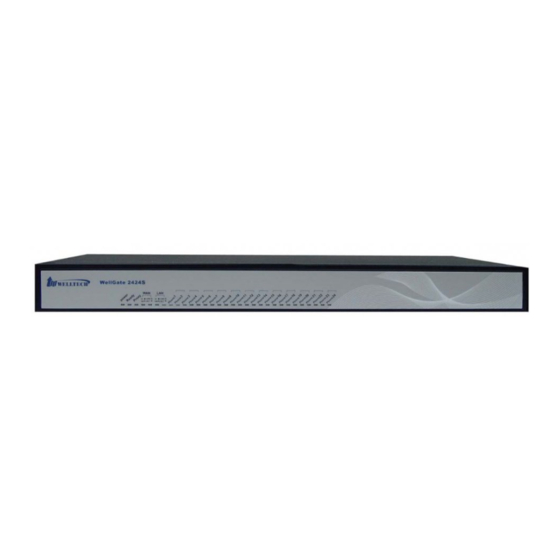

    WellGate 2424s CH1 Introduction 2424s Telephony Gateway The Welltech 2424s is a 24 ports FXS (WellGate 2424s) VoIP gateway which includes 1-WAN/1-LAN (management port) 10/100 base-T network environment. Field-proven quality of Voice communication and Fax transmission over IP broadband access network to makes WellGate 2424s to be an excellent solution for various VoIP applications.

  • Page 5: Front Panel: Led Indicators

    1-3 Front Panel: LED Indicators WellGate 2424s Figure 1-3-1 front panel Description Power When the power adapter is connected, the LED will light up green. Status When system is startup successfully, the LED will light up green. Proxy When the gateway is registered successfully to a Proxy, this will light up green.

  • Page 6: Rear Panel: Led Indicators

    Console Port This port is for RS-232 cable connected , the baud rate is 115200, data bits is 8, parity is none, stop bits is 1, flow control is none. Normally the port is used for Welltech’s engineer debug. Notice: if you want to use it, just could use command “ifaddr –print”...

  • Page 7: Quick Setup

    1-5 QUICK SETUP Note: Please use Windows XP IE 6.0 web browser or above version to configure FXO gateway webpage setting. Welltech products don’t support other Web Browser such as FireFox to configure. Login : Setp1: Setup the administrative PC’s IP address to be same as WellGate 2424s and connect the Ethernet cable into WAN or LAN port.
  • Page 8 Figure 1-5-2 Network configure-1 Change Default IP Network: Step 3: After successfully logon to the system, we need to change the network configuration. Click Device Setting > Network to setup the service network interface (WAN) parameters. Enter the deserved IP address, netmask and default gateway or selected to “DHCP”...
  • Page 9 Change Default Time setting: Step 4: When re-logon to the new IP address, the next is to setup the system time zone. Click Device Setting > Time to setup the system. Enter the current SNTP server, time zone and daylight saving parameters. Apply the Apply change by clicking button.
  • Page 10 set the dedicate FXS SIP proxy server. (See Figure 1-5-6 SIP Proxy) Figure 1-5-6 SIP Proxy Step 7: Setup each FXS line’s parameters by clicking the line ID from FXS settings > FXS Line. Modify the SIP register information and apply it. ( See Figure 1-5-7 SIP Proxy ) Figure 1-5-7 SIP Proxy Soft Reset WellGate 2424s:...
  • Page 11 Figure 1-5-8 Quick-Reset Check WellGate 2424s Registered Status: Step 9: After soft-reset or reboot. >Click Status > SIP Trunk Status to check whether registered or not. (See Figure 1-5-9 SIP Trunk States ) Figure 1-5-9 SIP Trunk States >Click line status to check whether registered or not. (Figure 1-5-10 SIP Trunk States) Figure 1-5-10 SIP Trunk States...
  • Page 12 Through the above settings, the WellGate 2424s should able to do the following: For FXS (WG2424S): 1. The user can pick up the handset and hear dial tone. Call out and talk. 2. For VOIP incoming call to a dedicate FXS number, the dialed phone will ring and can answer to talk.

  • Page 13: Ch2 Device Settings

    CH2 Device Settings From this setting category, all devices related parameters can be found here. 2-1 Network Configuration > Network Figure 2-1 network setting Parameter Description: WAN Setting: Network Type: support “Fixed IP”;”DHCP”;”PPPOE”   IP Address IP address  Default Gateway: Default gateway ...
  • Page 14 LAN Setting: Management mode: This LAN port is used for management purpose,  not used for register or routing. NAT mode: DHCP function on the LAN port. The LAN ports will function  as a DHCP server, network devices connected to them will be issued with IP addresses.

  • Page 15: Device Time Setting

    2-2 Device Time Setting WellGate 2424s support SNTP with time zone and daylight saving. Device Setting > Time Figure 2-2 Time setting Parameter Description: Now: Current Time (display only)  NTP Time Server SNTP time server  NTP Refresh Interval(sec) The frequency to sync NTP server in ...

  • Page 16: Device Advance Setting

    2-3 Device Advance Setting > Advance Figure 2-3 Advance setting Parameter Description:  HTTP Service: The Administrator Web service port (the default is 80)  HTTPS Service: The https web service port (the default is 443)  Telnet Service: The telnet service port (the default is 23) ...

  • Page 17: User Login Setting

     User: The user access right which only allows to setting some user related features.  User ID: Login User ID  Password: Login Password  Confirm Password: Confirm new password again  Language: The web page language used when the account login. To add a customized local language, please contact Welltech.

  • Page 18: Debug Settings

    WellGate 2424s provides the real time debug to syslog or through telnet interface. It generates the debug information based on debug level and modules. Since the generating debug will consume system resource, it is recommended to turn on only for necessary and under Welltech FAE’s instruction. Debug Figure 2-5 Debug setting Parameter Description: ...

  • Page 19: Event Notice

    2-6 Event Notice WellGate 2424s can send Syslog Event Notice when it had the following cases: 1. Register Failure or re-registered 2. FXO is plug or unplug 3. Ethernet reconnected 4. System started Figure 2-6 Event notice setting  SYSLOG: Enable or disable to send system event to SYSLOG server or not ...

  • Page 20: Auto Provisioning

    2-7 Auto Provisioning The WellGate 2424s can be provisioned by WellEMS 9510 for large deployment. Please contact Welltech for availabilities. >Provisioning Figure 2-7-1 Provisioning Select 9510: Figure 2-7-2 Provisioning type of 9510 Parameter Description: (This function is not available yet for WellEMS 9510) ...
  • Page 21 Disable: disable encryption function. Welltech encryption: Enable Welltech proprietary encryption for SIP signaling and RTP. It is required a Welltech SIP proxy server (WS6500 or SIPPBX 6200) to work with this feature. When enable it, you can hide your VOIP traffic from ISP’s monitor.

  • Page 22: Snmp

    2-8 SNMP Figure 2-8 SNMP SNMP Agent:  SNMP Agent: Enable SNMP or not.  Read Only Community Name: The community name to read through SNMP protocol  Read Write Community Name: The community name to read and write through SNMP protocol. ...

  • Page 23: Ch3 Nat Setting

    CH3 NAT Setting The WellGate 2424s can support NAT, 2 ethernet leg (gw) or bridge mode. Here are the settings for NAT related service. 3-1 DHCP Ser. (DHCP server) Figure 3-1 DHCP server  DHCP Server: Enable DHCP server or not. ...

  • Page 24: Upnp (Universal Plug And Play Server)

    3-2 UPNP (universal plug and play server) Figure 3-2 UPnP  UPNP IGD: Enable UPNP server or not. 3-3 Bandwidth (Bandwidth Control) By using bandwidth control feature, the user can manage the traffic based on their needs. Figure 3-3-1 Bandwidth control Bandwidth Control: ...
  • Page 25 the required bandwidth percentage : total bandwidth  priority 1: highest priority percentage  priority 2: Normal priority percentage  priority 3: low priority percentage  Figure 3-3-2 Bandwidth control specific :  priority 1 – Download: highest priority download bandwidth ...
  • Page 26 IP Target Figure 3-3-4 IP Target 1 Figure 3-3-5 IP Target 2  Priority: Priority value for the target  Type: The target type is set to IP  Configure Type: unique IP or a range of IP address Unique: ...
  • Page 27  Type: The target type is set to port number  Configure Type: unique port number or a range of port number Unique:  Port: the port number to be added  Protocol: protocol for the port  Port Range: ...

  • Page 28: Url Filter

    The WellGate 2424s support firewall features as below. 3-4 URL Filter Figure 3-4 URL Filter  URL Filter: the specified url will be blocked 3-5 IP Filter Figure 3-5 IP Filter IP Filter: The specified IP address to be blocked ...

  • Page 29: Mac Filter

    3-6 MAC Filter Figure 3-6 MAC Filter MAC Filter: The MAC address to be blocked  3-7 APP Filter Figure 3-7 App Filter APP Filter: application to be blocked ...

  • Page 30: Port Filter

    3-8 Port Filter Figure 3-8 Port Filter Port Filter: enable port Filter or not.  Port Range: Starting and stopping port to be forward. If you are  using only 1 port, please set the starting equal to stopping port. Protocol: TCP, UDP or both are used for port blocked.

  • Page 31: Ch4 Voip Setting

    VOIP Parameters Setting SIP Parameters: CH4 VOIP Setting 4-1 SIP Figure 4-1 SIP setting Parameter Description:  Session Timer: Enable session timer or not (RFC 4028)  Session Expires (sec): This is the setting of initial session timer expires time according to RFC4028 - Session Timers in the Session Initiation Protocol.

  • Page 32: Audio

    4-2 Audio Figure 4-2 Audio setting  Codec 1~5: The preferred codec priority  G.711u Payload Size: G.711 u-Law payload size  G.711a Payload Size: G.711 A-law payload size  G.729 Payload Size: G.729A payload size  G.723.1 Payload Size: G.723.1 payload size ...
  • Page 33  Silence Suppression: Enable: Start the voice activity (silence) detection when detect silence for 60 seconds, it will hang up the call (For FXO use) Disable: Send silence packet as normal voice packet (no silence detection)  RTP Basic Port: The RTP starting port. Each channel will be add additional 10.

  • Page 34: Tone

    For those countries are not showed in the list, please select a closed country and edit to match your country. You can send an email with the tone definition to Welltech if you would like to put your country into the list.

  • Page 35: Nat Traversal

    4-4 NAT Traversal The WellGate 2424s support the following NAT traversal methods Figure 4-4 NAT Traversal  NAT Traversal: Disable: Disable NAT traversal features  STUN (Type 1,2): Enable STUN for NAT traversal. Since  STUN can be used only for type 1 and type 2 NAT server, it is recommended to use this option.

  • Page 36: Ch5 Voip Advance

    CH5 VOIP Advance 5-1 SIP Figure 5-1 SIP Parameter Description:  SIP Hold Type: SIP on hold message sending method. - Send Only: Set the SDP media to sendonly when send an on-hold SIP message. - 0.0.0.0: Set the SDP connection to 0.0.0.0 when send an on-hold SIP message.
  • Page 37  SIP T2 (msec): Determines the maximum retransmission interval as defined in RFC3261. For example, when an unreliable transport protocol is used, general requests are retransmitted at an interval which starts at T1 and doubles until reaches T2. If a provisional response is received, retransmission continue but at an interval of T2.

  • Page 38: Audio

    will think the request is failed. The default is 5 seconds.  MWI Subscript Expires (sec): You can Enable or Disable the MWI subscribe. The default is 600 sec. If a new voice mail is arrived, the stutter tone will be used instead of regular dial tone. This feature is dedicate to FXS only.
  • Page 39  Max Echo Tail Length (G.168): Enable the echo cancellation feature. The default setting is “128ms”.  Jitter Opt. Factor: Jitter buffer dynamic factor for optimize. Please set to 7 unless under Welltech’s instruction to change.  Impedance: selected analog phone’s impedance. (for FXS port use)

  • Page 40: Ring

    5-3 Ring The ring cadence, voltage and frequency for the phone Figure 5-3 Ring setting Frequency (10~70HZ): Specify the ringing frequency value  (default is 20HZ) Ring on (0~8000ms): Specify the ringing on value (default  is 1000msec) Ring off (0~8000ms): Specify the ringing off value (default ...

  • Page 41: Ch6 Dialing Plan

    CH6 Dialing Plan 6-1 General Figure 6-1 General setting  First Digit Time Out: Specify the duration of dial waiting when the receiver is off hook. The range is 1~60 sec.  Inter Digit Time Out: Specify the interval of input digits, if the interval is over the setting, the system will end the dial and send out the DTMF.

  • Page 42: Dialing Rule

    6-2 Dialing Rule Figure 6-2 Dialing Rule setting Dialing rule is used to speed up the dialing procedure. Some user don’t like to use the end of dialing digit such as “#”, the administrator can use dialing rule instead. The longest prefix will be matched first. Dialed Prefix: The prefix to be matched ...

  • Page 43: Digit Manipulation

    6-3 Digit Manipulation The Digit Manipulation will be processed based on prefix and DM group after the DNIS is determined. Figure 6-3 Digit Manipulation setting  DM Group: Different DM group have different case to be used. FXS: This DM group is used for FXS dialing out. ...

  • Page 44: Phone Book

    6-4 Phone Book Phone Book is used for peer to peer call. Figure 6-4 Phone Book setting  Name: This field supports called number only. If you enter words or text here, it will routes to proxy server automatically.  Tel No: Enter called number and IP address. Please follow this sample of picture, as the format of “number@uri:port”.

  • Page 45: Ch7 Fxs Setting

    CH7 FXS Setting The FXS line setting includes each line number and SIP proxy settings. Figure 7-0 FXS setting  Line ID: FXS line (T1 to T24)  State: The line is active or not  TEL No: The telephone number ...

  • Page 46: Fxs Line

    7-1 FXS line Figure 7-1 FXS setting  User ID: FXS Line number (T1 to T24)  User Type: The line type, FXO or FXS  Line State: Set to active if you would like to use this line. Otherwise, set to Inactive.
  • Page 47 start. When VOIP side disconnect first, WellGate 2424s will reverse back as a billing stop signal  Current Drop generation: Enable current drop (0 voltage) when VOIP is disconnected or not.  Input(Encode)Gain: Adjust the volume from FXS to VOIP (default is 0 db) ...

  • Page 48: Sip Proxy

    7-2 SIP Proxy The SIP proxy server defined here is dedicated used for FXS lines. Figure 7-2 FXS setting  Domain: The SIP domain for register or call making  Primary proxy server: Primary SIP registrar server address  Primary proxy server port: Primary SIP registrar server port number ...

  • Page 49: Caller Id

    7-3 Caller ID The call ID stand for the phone Figure 7-3 Caller ID setting  Caller ID Mode: Caller ID mode to be used for phone (FSK Bellcore/FSK ETSI/DTMF)  Polarity Reverse before caller ID: start polarity reverse before send the caller ID ...

  • Page 50: Others

    7-4 Others Flash time and current drop generation time Figure 7-4 Others setting  Min flash time(80~800msec): Specify the value of the flash (low), If the phone-set’s flash time is smaller than the Flash Low setting, the flash will be ignored. ...

  • Page 51: Ch8 Sip Trunk

    CH8 SIP Trunk The administrator needs to set the SIP trunk for VOIP outgoing call and incoming call. There are up to 16 SIP trunk can be used for whole system. Figure 8-0 SIP Trunk setting  Trunk ID: SIP trunk ID 1 to 16 ...

  • Page 52: Create Sip Trunk

    8-1 Create SIP Trunk Figure 8-1 SIP Trunk page  Trunk ID: SIP trunk ID 1-16  Register Type: Whether this account need register or not Register: When it is set to register, WellGate 2424s will send  REGISTER message to SIP proxy server for registration. Predefine: When it is set to predefine, WellGate 2424s will NOT ...
  • Page 53 part. The SIP FROM header’s URL will be the SIP_User_ID@Domain or SIP_User_ID@SIP_Proxy_Server.  Keep Alive: Enable or Disable it.  Keep Alive Time (sec): Specify of times send sip register message to proxy server. Note: please don’t delete sip trunk, even it is unless at all, because it have to be used with Route plan.

  • Page 54: Ch9 Route Plan

    CH9 Route Plan The core of WellGate 2424s is the routing policy. The policy is based on incoming call type/target, length and prefix to determinate the outgoing call process. For VOIP incoming call, it can send to FXS interface and vice versa. For FXS interface, it could be routed to VOIP and vice versa.

  • Page 55: Create Route Plan

    9-1 Create Route Plan Click Route Plan and Click new to create a new routing policy. Figure 9-1 Route Plan setting  Incoming Call Type: Incoming call type VOIP: The incoming SIP call type  FXS: The FXS extensions incoming call type ...
  • Page 56  Hunting Type: The hunting method will be used for this route. Priority Ring: The call will be hunted based on the  routing list order one by one. Cyclic Ring: The call will be hunted based on the cyclic ...

  • Page 57: Ch10 Status

    CH10 Status WellGate 2424s provides the system status here. Figure 10-0 Device Status 10-1 Device States See the figure 10-0 Device Status  Model: The model number  MAC-Address: The MAC address of WellGate 2424s  Network Type: The Network Interface Type Settings ...

  • Page 58: Line States

    10-2 Line States This page shows the each line’s current status. Figure 10-2 Line Status  Line: L1 to L24  Account: display each line number  Registered: display each line register status.  Call State: The line status for this line ...

  • Page 59: Sip Trunk States

    10-3 SIP Trunk States Figure 10-3 SIP Trunk Status  Account: SIP trunk account  Registered: The SIP trunk register status  Concurrent Call: The concurrent calls are used for this SIP trunk  Refresh Interval (second): The time to refresh the status...

  • Page 60: Ch11 Maintenance

    CH11 Maintenance WellGate 2424s can be managed by this management page for upgrading firmware or reset. Figure 11-0 Maintenance  Backup: Backup the system settings for restoring purpose  Restore: Restoring the backup setting back to WellGate 2424s  Reset to Default: Reset system setting to factory default ...

  • Page 61: Appendix A--- System Recovery

    Start the Welltech 2424s and to check the STATUS led is up or not. If STATUS led is ON, please press the reset button for 5 seconds to reset to default. After all LED are light up, the system is back to factory settings.
  • Page 62 download the firmware into tftp data directory In the telnet terminal or console port, do the following command 1. input login and password 2. input __dmctw 3. cd /config_fs 4. rm -f wg24*.bin 5. tftp –g –r wg24.2.03f.bin 192.168.123.1 (see figure update firmware by tftp)
  • Page 63 Figure - update firmware by tftp 6. copy firmware successfully Check whether the system was recovered or not 1. Enter “ls” of command 2. Check firmware name. (see Figure – update firmware successfully) 3. Reboot it.
  • Page 64 Figure – update firmware successfully...

  • Page 65: Appendix B --- Http Auto Provisioning

    Appendix B --- HTTP auto provisioning Get the http provisioning packet from Welltech and start the provisioning as follows: Step 1: build mac list for mass configuration file generation Please open the “wg2424s MAC.csv gotten from Welltecg by using Microsoft Excel.
  • Page 66 Put the “*.cfg” file into http or ftp directory. Set the provisioning settings in WellGate 2424s and reboot to test it. You can use the hfs for http file server. It can be download from http://www.rejetto.com/hfs/. Note: please link it to download provision file. More information please refers “wg2424s Parameter.txt”. http://www.welltech.com/support/voip2/SIP%20series/FXSO%20series/24x x/provision/WG2424s_provision.zip...
