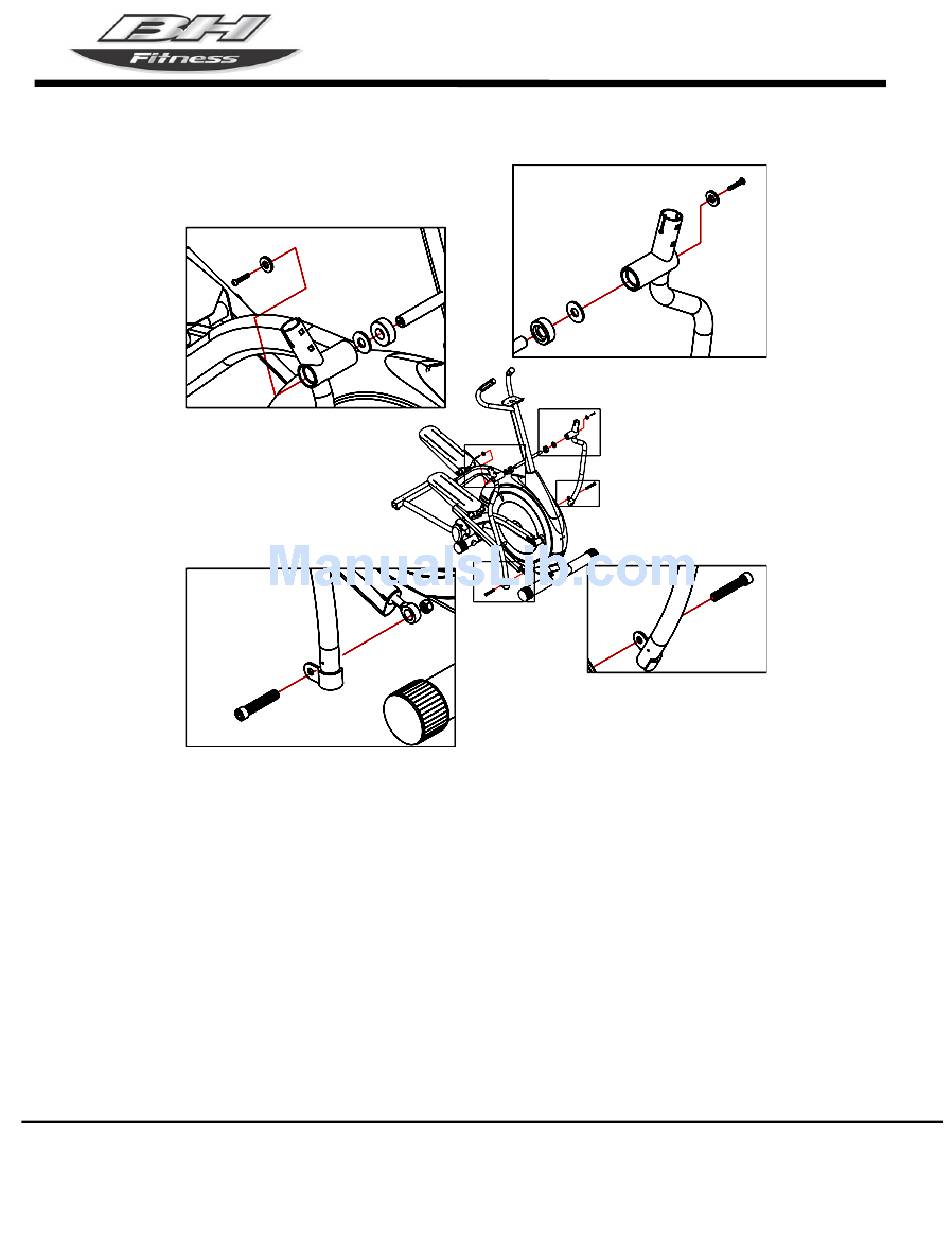

STEP 6. Assembly of Lower Handrails, Mast and Pedals.
1.1 Slide a plastic spacer and a wave washer onto the left horizontal bar. Connect the upper
part of the left handrail with the horizontal bar on the mast. Fasten with washer and bolt.
1.2 Connect the left lower part of the handrail with the bearing at the end of the pedal
assembly. Fasten with nut and bolt.
1.3 Repeat for right side.
Caution:
1. The left and right lower handrails are different. Check the labels for proper assembly.
2. During assembly, be careful not to bump into any protruding parts.
