BH FITNESS X4 Elliptical
ASSEMBLY INSTRUCTIONS CONTINUED

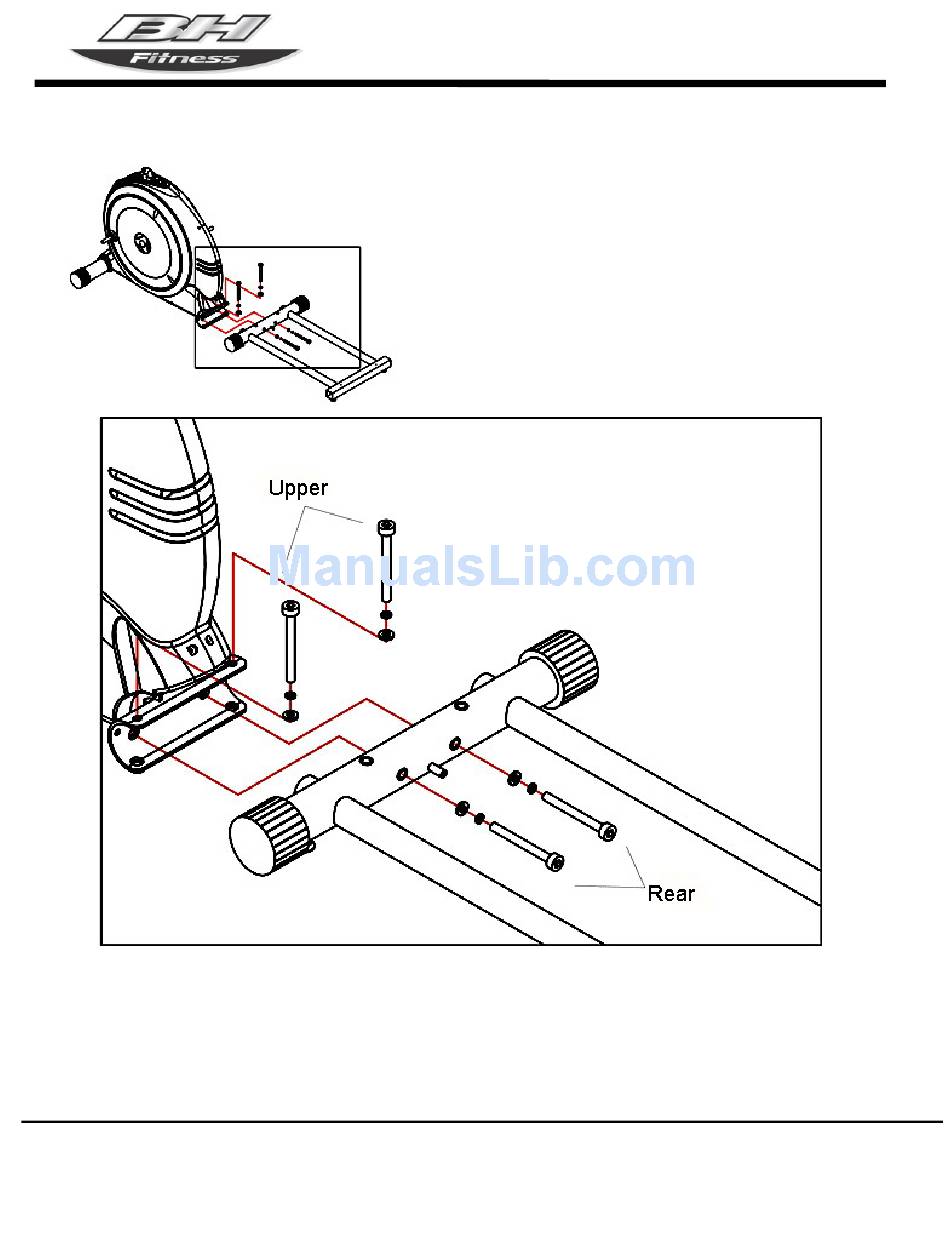

STEP 2. Assembly of Frame and Rear Stabilizer.
1.1 Attach the rear stabilizer to the main frame as shown in the drawing above.
1.2 Verify that all screws are aligned properly before tightening. Tighten the bolts from the rear
side first, then tighten the bolts from the top.
NOTE: After attaching the rear stabilizer, take off the pad from the lower frame and discard.
10
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone 949-206-8152 • Fax 949-206-0013
