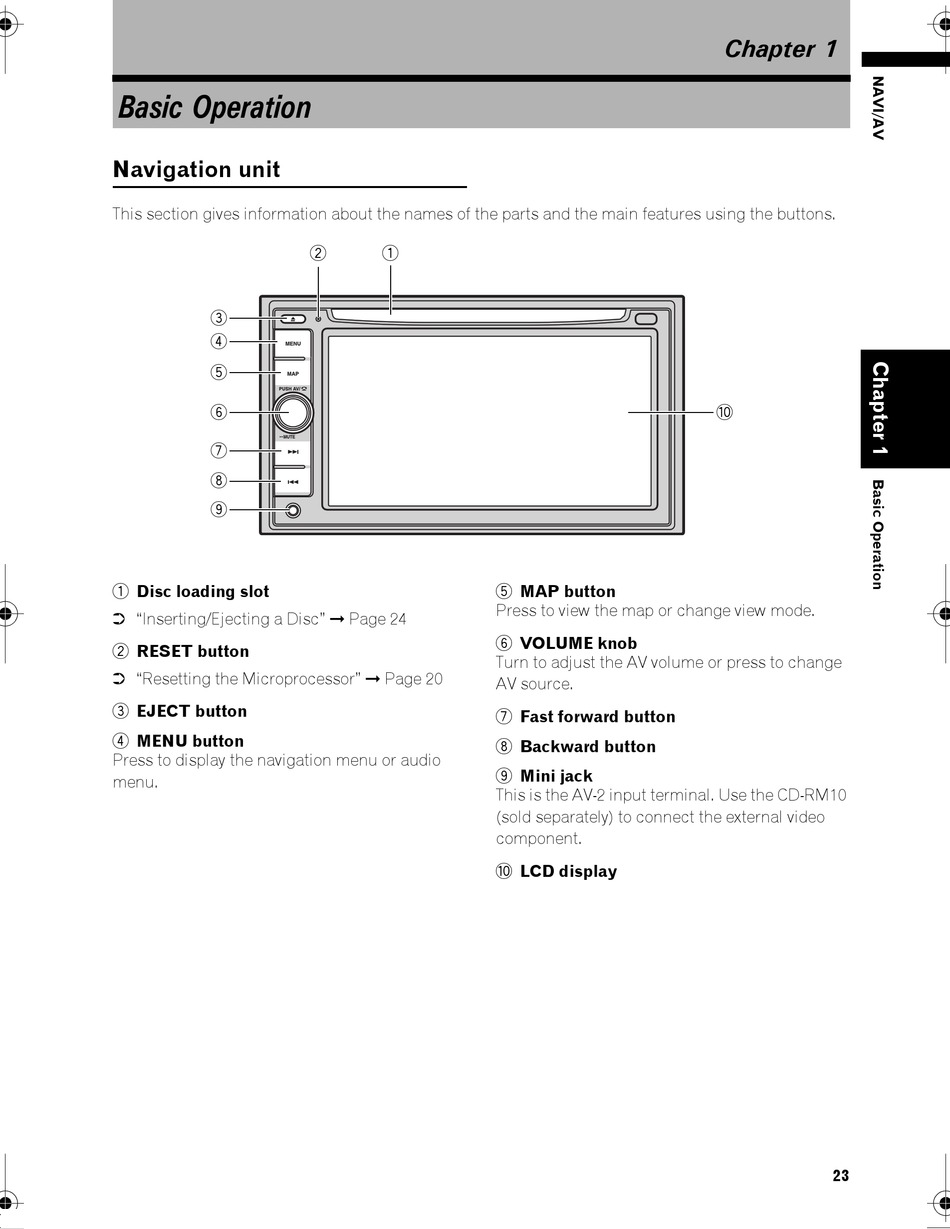

Basic Operation

Navigation unit

This section gives information about the names of the parts and the main features using the buttons.
3
4
5
6
7
8
9
1 Disc loading slot
➲ "Inserting/Ejecting a Disc" ➞ Page 24
RESET button
2
➲ "Resetting the Microprocessor" ➞ Page 20
EJECT button
3
MENU button
4
Press to display the navigation menu or audio
menu.
2 1
5 MAP button
Press to view the map or change view mode.
VOLUME knob
6
Turn to adjust the AV volume or press to change
AV source.
7 Fast forward button
8 Backward button
9 Mini jack
This is the AV-2 input terminal. Use the CD-RM10
(sold separately) to connect the external video
component.
