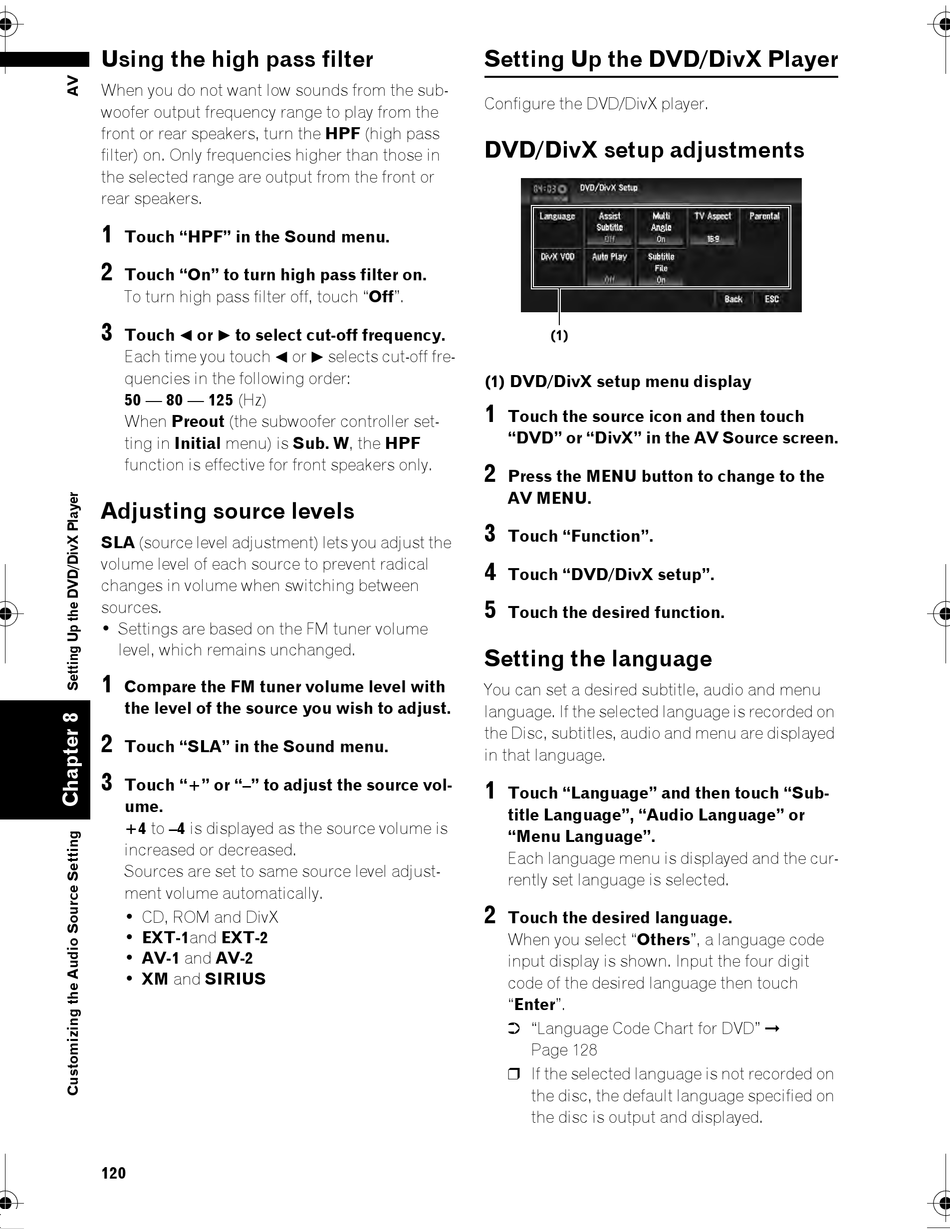

Using the high pass filter

When you do not want low sounds from the sub-
woofer output frequency range to play from the
front or rear speakers, turn the HPF (high pass
filter) on. Only frequencies higher than those in
the selected range are output from the front or
rear speakers.
1
Touch "HPF" in the Sound menu.
2
Touch "On" to turn high pass filter on.
To turn high pass filter off, touch "Off".
3
Touch  or  to select cut-off frequency.
Each time you touch  or  selects cut-off fre-
quencies in the following order:
50 — 80 — 125 (Hz)
When Preout (the subwoofer controller set-
ting in Initial menu) is Sub. W, the HPF
function is effective for front speakers only.

Adjusting source levels

SLA (source level adjustment) lets you adjust the
volume level of each source to prevent radical
changes in volume when switching between
sources.
• Settings are based on the FM tuner volume
level, which remains unchanged.
1
Compare the FM tuner volume level with
the level of the source you wish to adjust.
2
Touch "SLA" in the Sound menu.
3
Touch "+" or "–" to adjust the source vol-
ume.
+4 to –4 is displayed as the source volume is
increased or decreased.
Sources are set to same source level adjust-
ment volume automatically.
• CD, ROM and DivX
• EXT-1and EXT-2
• AV-1 and AV-2
• XM and SIRIUS
120

Setting Up the DVD/DivX Player

Configure the DVD/DivX player.

DVD/DivX setup adjustments

(1)
(1) DVD/DivX setup menu display
1
Touch the source icon and then touch
"DVD" or "DivX" in the AV Source screen.
2
Press the MENU button to change to the
AV MENU.
3
Touch "Function".
4
Touch "DVD/DivX setup".
5
Touch the desired function.

Setting the language

You can set a desired subtitle, audio and menu
language. If the selected language is recorded on
the Disc, subtitles, audio and menu are displayed
in that language.
1
Touch "Language" and then touch "Sub-
title Language", "Audio Language" or
"Menu Language".
Each language menu is displayed and the cur-
rently set language is selected.
2
Touch the desired language.
When you select "Others", a language code
input display is shown. Input the four digit
code of the desired language then touch
"Enter".
➲ "Language Code Chart for DVD" ➞
Page 128
❒ If the selected language is not recorded on
the disc, the default language specified on
the disc is output and displayed.
