Installation guide for :
- AVIC-Z1000D11-CHU
- AVIC-Z1000D12-C
- AVIC-Z1000D16-C

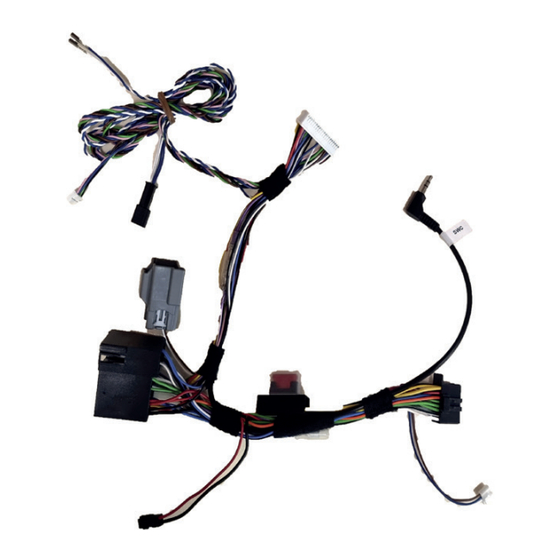

Interface
Depending on the kit, the interface may look different
Original dashboard setup
Remove the two storage pockets
Remove four screws using a T20 screwdriver
Keep them a side for later
Pioneer installation manual - Fiat Ducato 8 - v1.03
Fiat Ducato model year '21 - Open dash only
Installation kit - metal brackets, plastic facia
and rotary command keys
Remove the airvents left an right by pulling
They are attached with two pins
Remove the original frame from the dashboard
