Relay outputs

AO1058

single relay output

Open collector outputs

AO1059 single open collector

output

AO1036 dual open collector

output

Mounting

Installation

AO1035

dual relay output

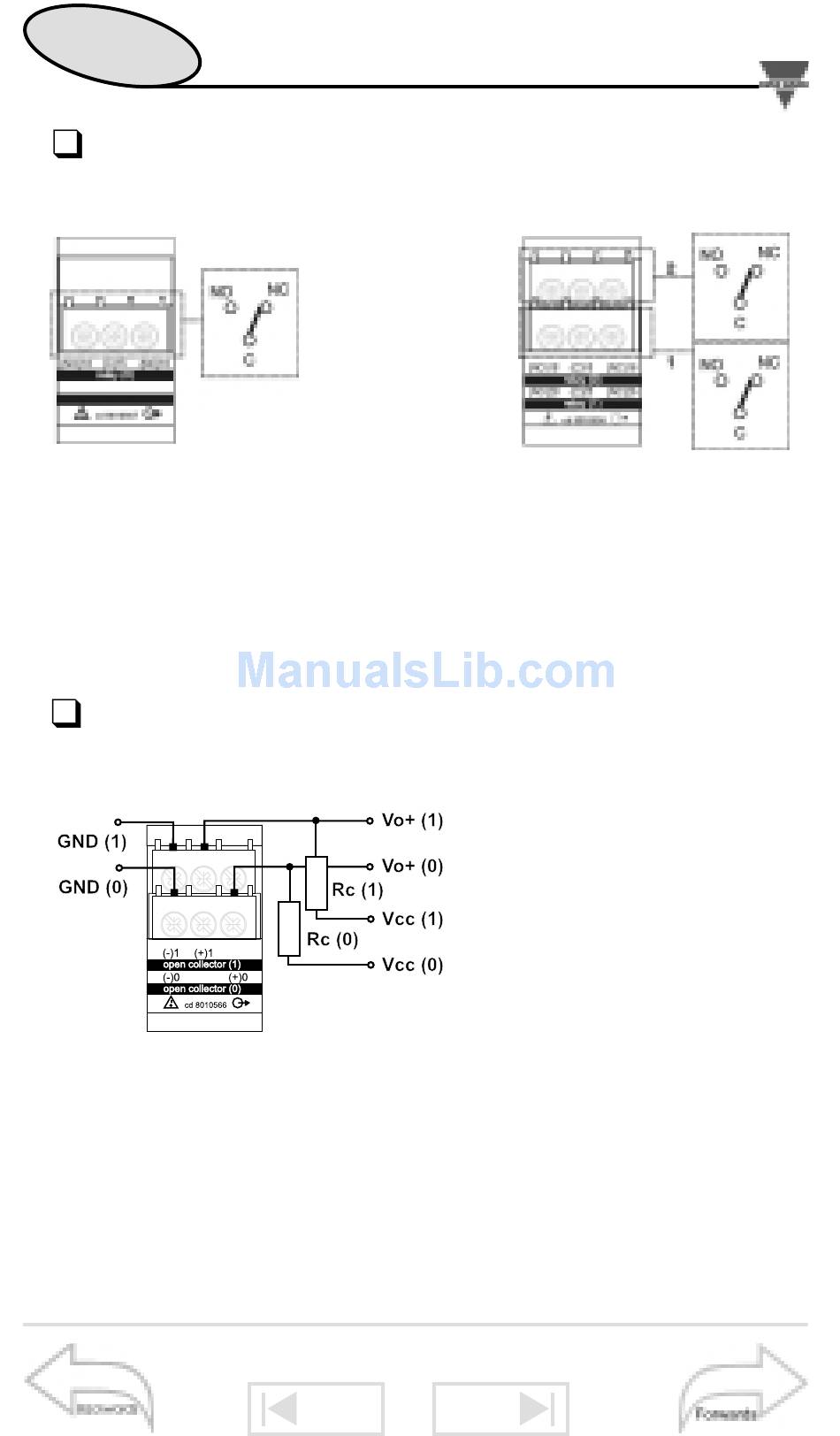

This diagram is valid

also for the open col-

lector modules with a

lower number of out-

puts. The value of the

load resistances (Rc)

must be chosen so that

the short-circuit current

is lower than 100mA;

the VDC voltage must

be lower than or equal

to 30 VDC.
