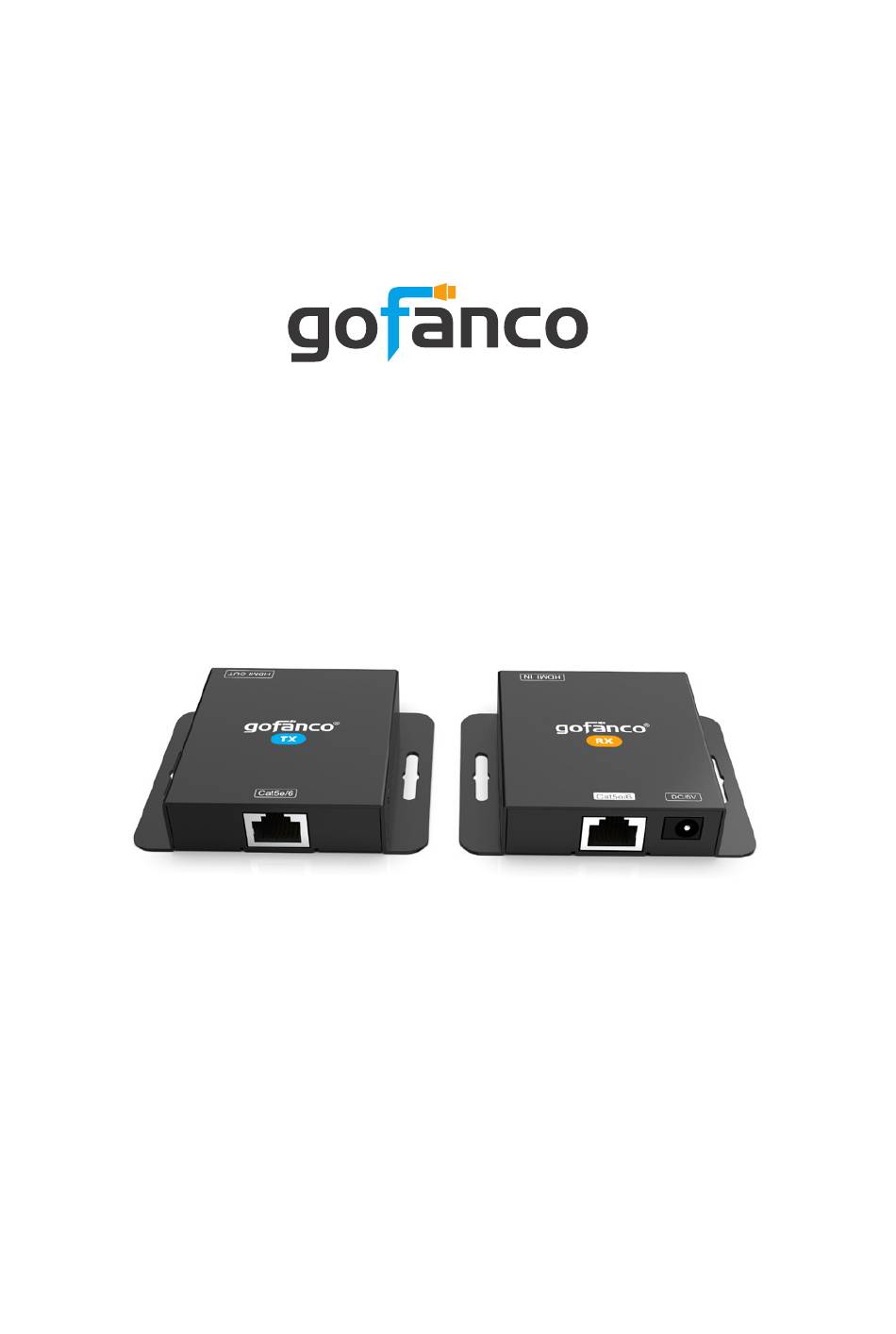

- Page 1 ® 1080p HDMI Extender over CAT5e/6 – 60m G4-0163A P/N: HDExt (v3.0)
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all our connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Important Safety Notices (Continued) • This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. •...
-
Page 4: Table Of Contents
Table of Contents Features ................Package Contents ............Product Layout .............. Specifications ..............Hardware Installation ........... CAT Cable Wiring ............Application Diagram ............. Disclaimer ............... User’s Manual ®... -
Page 5: Features
1. Features • Extend HDMI transmission up to 60m (197ft) at 1080p @60Hz over a CAT5e/6 cable with zero signal loss • Supported resolutions: 1080p, 720p, 1080i • Supports 3D and HDCP 1.4 compliant • Power-over-Cable (PoC) allows 1 power supply connected to the transmitter (TX) to power the receiver (RX) over a CAT cable •... -
Page 6: Product Layout
3. Product Layout 3.1 Transmitter Layout Figure 1: Transmitter Layout Name Function Description CAT5e/6 Connect to the receiver’s CAT Input with a CAT cable Output (cable not included) DC 5V Connect the included power supply here Power Jack Power On when powered on Indicator HDMI On when HDMI signal is detected from the source device... - Page 7 3.2 Receiver Layout Figure 2: Receiver Layout Name Function Description CAT5e/6 Connect to the transmitter’s CAT Output with a CAT cable Input (cable not included) Power On when powered on. The receiver will receive power over Indicator CAT cable via PoC (Power-over-Cable) from the transmitter HDMI On when an HDMI display is connected to the HDMI output Indicator...
-
Page 8: Specifications
4. Specifications Operating Temperature 0 to +40°C (32 to +104°F) Range Operating Humidity 5 to 90%RH (No Condensation) Range Input Video 0.5-1.0 Volts P-P Signal Input DDC 5 volts p-p (TTL) Signal DTV/HDTV: 720P/1080i/1080P Support Video 3D video (Sink must support 3D video when Format sources is 3D device) Video Output... -
Page 9: Hardware Installation
5. Hardware Installation Power off all devices including your HDMI source device and HDMI display. Connect your HDMI source device to the transmitter’s HDMI Input with an HDMI cable (cable not included). Connect a CAT cable between the transmitter and receiver. Connect an HDMI display to the receiver’s HDMI Output with an HDMI cable (cable not included). -
Page 10: Cat Cable Wiring
6. CAT Cable Wiring We suggest both RJ-45 connectors be wired identically using T568B wiring standard for the best performance and com- patibility. 7. Application Diagram The application diagram shows the most typical input and output devices used with this HDMI Extender. Figure 3: Application Diagram User’s Manual ®... -
Page 11: Disclaimer
8. Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products. - Page 12 ® Thank you for choosing gofanco www.gofanco.com...
