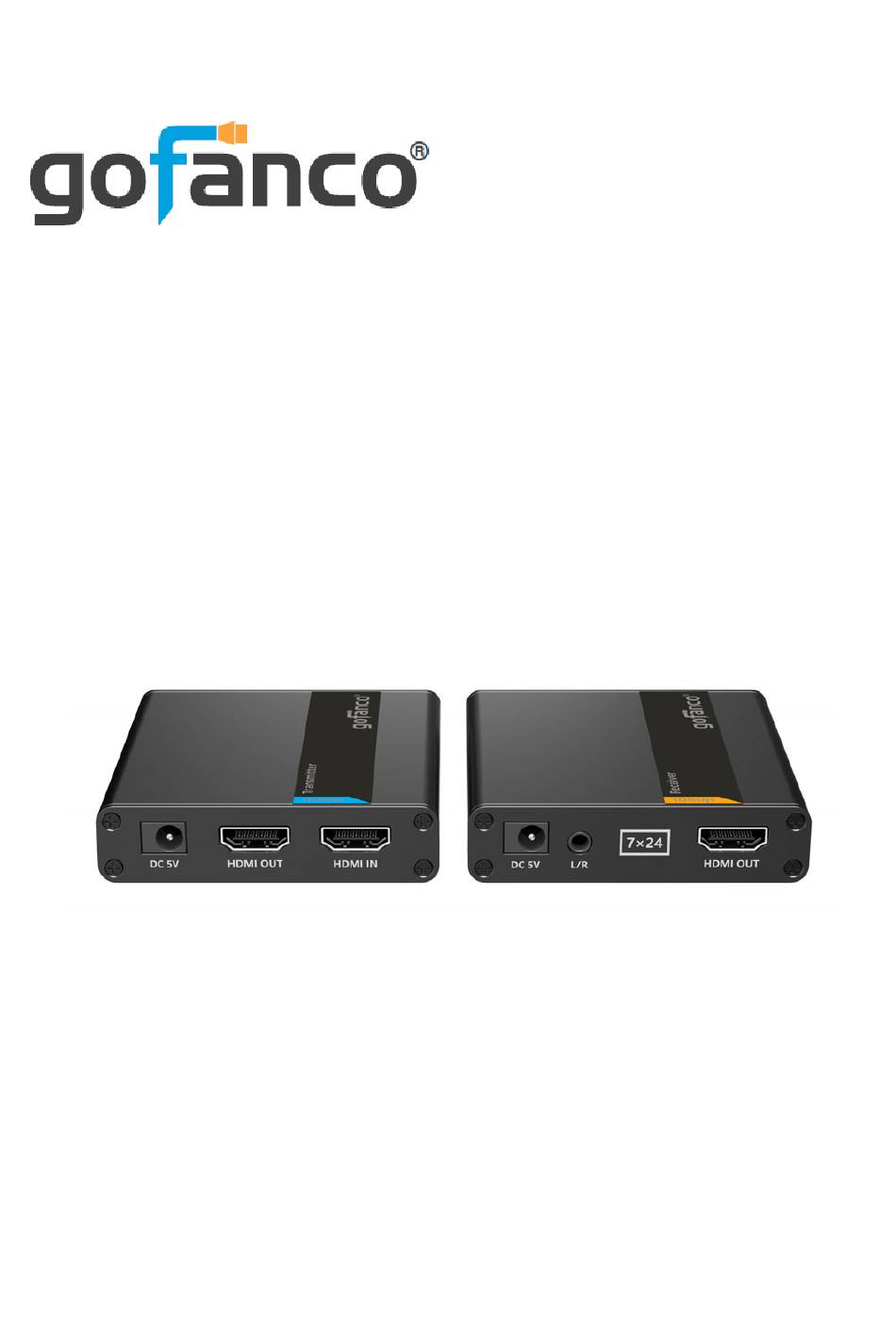

- Page 1 1080p HDMI CAT Extender with Loopout - 70m User's Guide P/N: HDExt70 G4-0116A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
- Page 4 Introduction The 1080p HDMI CAT Extender with Loopout - 70m extends HDMI transmission up to 70m (230ft) over CAT6/7. Features • Supports up to 1080p@60Hz • HDMI 1.3 and HDCP 1.4 compliant • HDMI loop-out equipped on the TX, and bi-directional IR •...
- Page 5 Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) UTP/STP CAT6/7 cable following IEEE-568B wiring standard...
-
Page 6: Product Layout

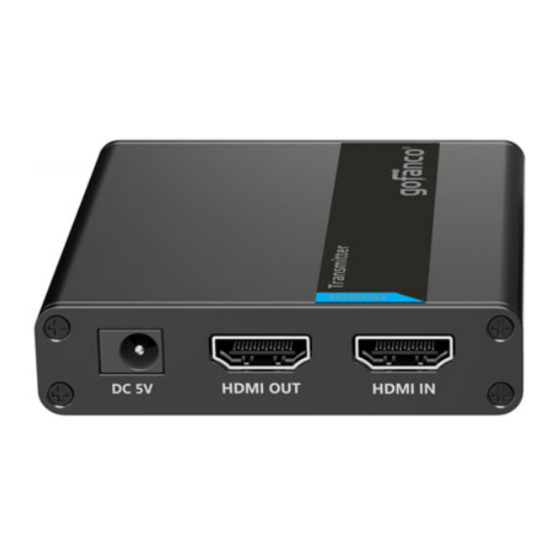

Product Layout Figure 1: Transmitter (TX) Layout Reset: Reset the extender RJ45 Out: Connects to the Receiver's RJ45 In using a CAT cable IR In: Connects to the included IR Receiver cable IR Out: Connects to the included IR Blaster cable... - Page 7 Power/Signal LED: a) Flashing - TX is powered on with no HDMI signal detected; b) On - TX is powered on with HDMI signal detected Power Jack: Connects to the included power adapter HDMI Out: Connects to your HDMI display for local monitoring of the extended display HDMI In: Connects to your HDMI source device...
- Page 8 Figure 2: Receiver (RX) Layout Reset: Resets the extender RJ45 In: Connects to the Transmitter's RJ45 Out using a CAT cable. The green LED lights up when powered on IR In: Connects to the included IR Receiver cable IR Out: Connects to the included IR Blaster cable...
- Page 9 Power/Signal LED: a) Flashing - RX is powered on with no HDMI signal detected; b) On - RX is powered on with HDMI signal detected Power Jack: Connects to the included power adapter Stereo Audio Out: Connect speakers, AVR, headphones, etc HDMI Out: Connects to your HDMI display CAT Cable Wiring We suggest both RJ-45 connectors be wired...
- Page 10 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect a HDMI display to the Transmitter's HDMI Out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal.
- Page 11 Plug the included power adapters into the Transmitter's and Receiver's power jacks, then plug both power adapters into a reliable power source. Power on all connected devices. The HDMI extender is ready for use.
-
Page 12: Connection Diagram
Connection Diagram Figure 3: IR Control - Source Device Figure 4: IR Control - Display Device... - Page 13 FAQ & Solutions There is no video output or audio and video display is not normal: 1) Press the reset button on both TX and RX. 2) Use a shorter network cable. The Receiver's Link LED is flashing: 1) Make sure the network cable follows the IEEE-568B wiring standard.
-
Page 14: Specifications
Specifications... - Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
