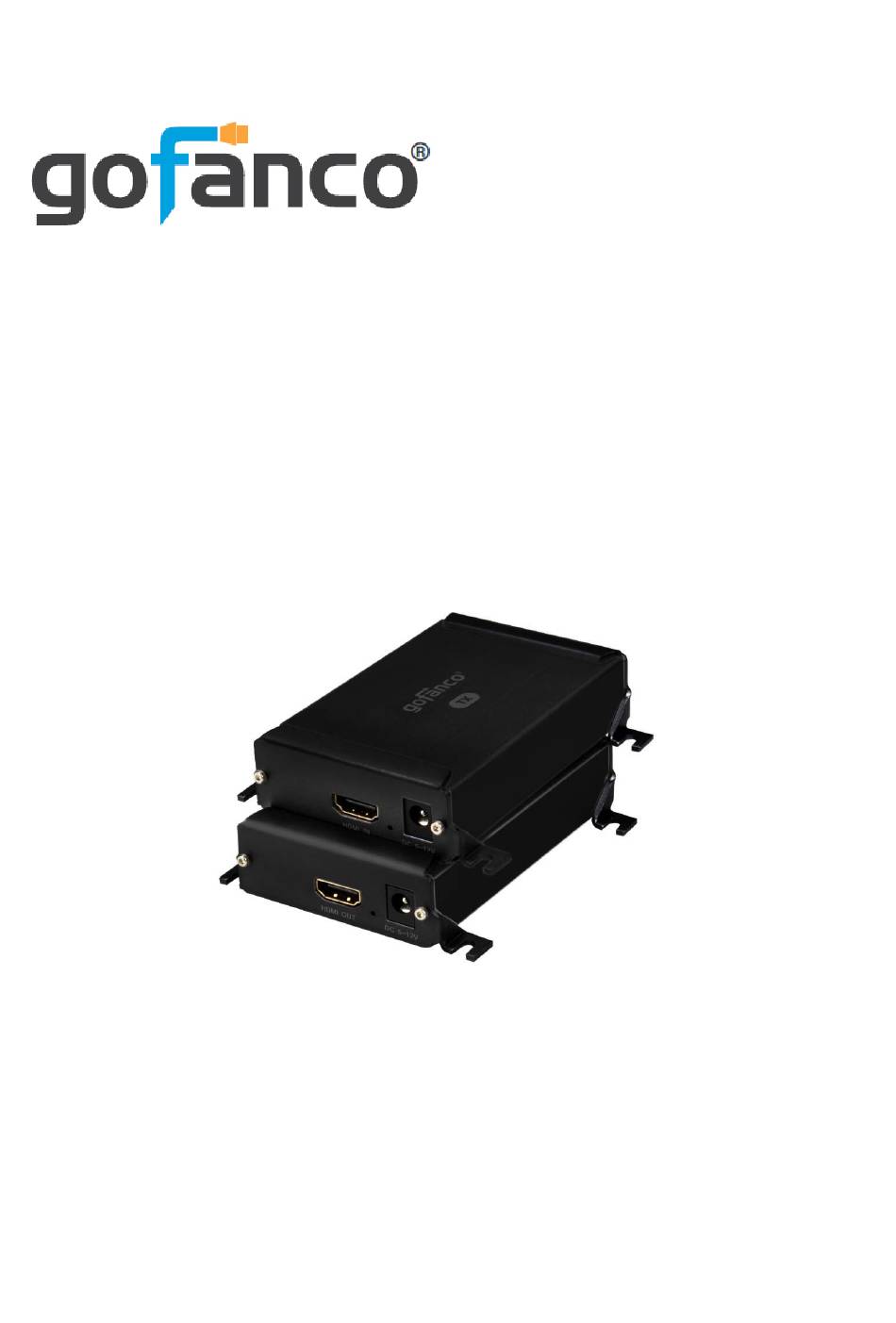

- Page 1 1080p HDMI Extender over Coaxial User's Guide P/N: HDExtCoax G4-0125A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. • Use the included DC5V power adapters only. Make sure the specification matches if using 3rd-party DC power adapters Introduction The 1080p HDMI Extender over Coaxial extends...
- Page 4 Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) COAX cable and HDMI cables Product Layout Transmitter TX Front and Rear Panel HDMI In: Connects to your HDMI source device using an HDMI cable (HDMI cable not included) Power Jack: Connects to the included power adapter...
- Page 5 Product Layout Continued Receiver RX Front and Rear Panel COAX In: Connects to the Transmitter's COAX Out connector using a COAX cable (COAX cable not included) HDMI Out: Connects to your HDMI display using an HDMI cable (HDMI cable not included) Power Jack: Connects to the included power adapter...
- Page 6 Hardware Installation Power off all devices including your HDMI source and HDMI display. Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Connect a COAX cable between the Transmitter's COAX Out and Receiver's COAX In (COAX cable not included).
- Page 7 Connection Diagram Specifications...
- Page 8 We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design. Thank you for choosing gofanco www.gofanco.com...
