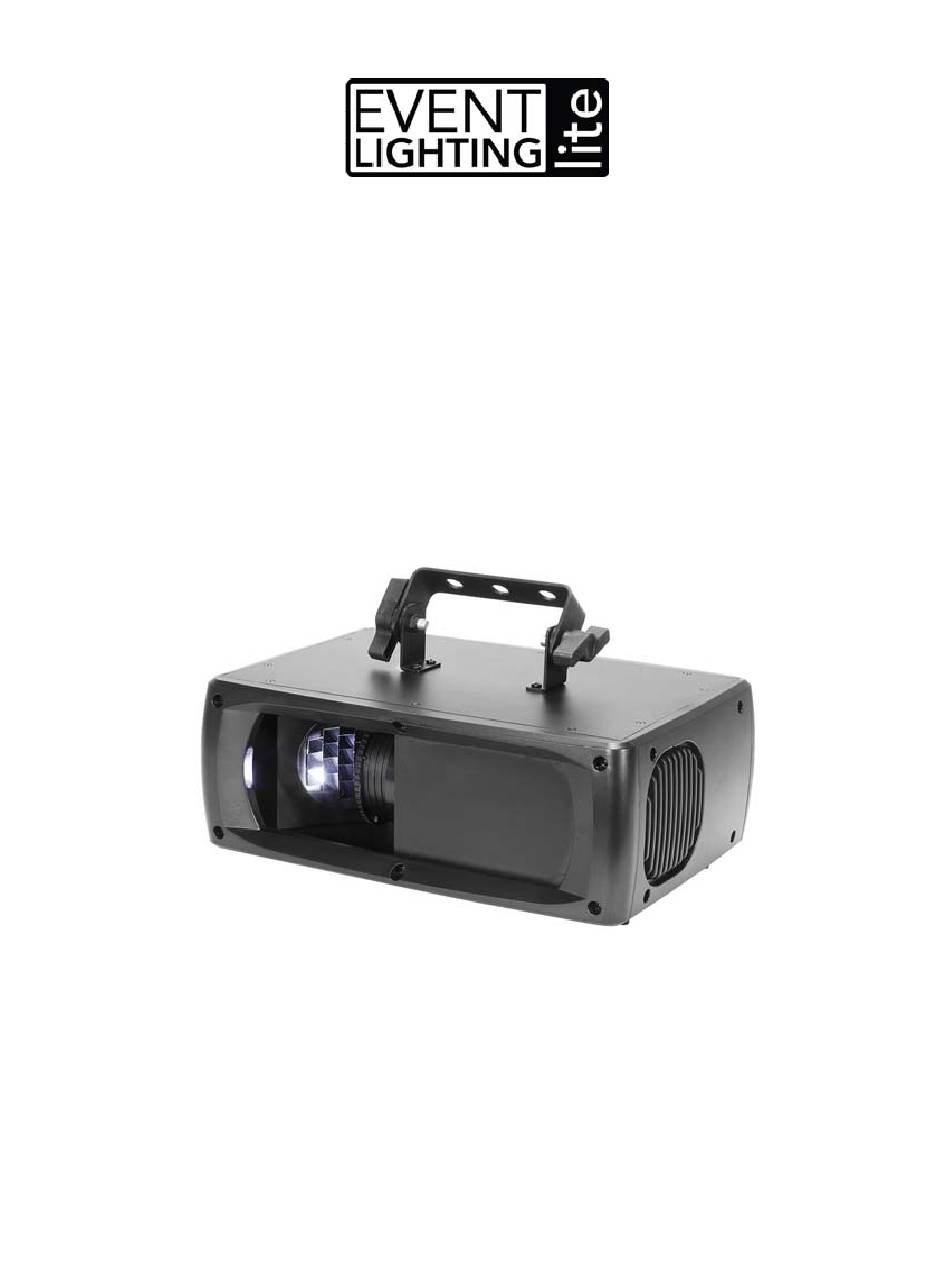

FXGOBO100
Gobo Effect Light with 100W LED
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Ver 1.0 12.09.2024
Advertisement
Related Manuals for Event Lighting FXGOBO100
Summary of Contents for Event Lighting FXGOBO100
- Page 1 FXGOBO100 Gobo Effect Light with 100W LED USER MANUAL For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item. Ver 1.0 12.09.2024 ...
- Page 2 1. INTRODUCTION The FXGOBO100 is a powerful 100W LED effect light. It produces stunning colored gobo effects to cover a wide area of dance floor thanks to its wide beam angle. Ideal for small clubs, bars, parties, etc. To optimize the performance of this product, please read the user manual carefully before use.
- Page 3 1.3 Features ▪ Very wide beam angle: 75° ▪ Colors: 7 colors+white ▪ Gobos: 6 rotating Gobos+open, shaking ▪ Focus: Manual ▪ Dimmer: 0‐100% ▪ Strobe: 0‐30 Hz ▪ Working modes: DMX, Auto,Sound, Master/Slave ▪ 3 DMX modes: 2/6/7 ▪ Display: LED display with 4 buttons 1.4 Product overview Manual Focus 2. SETUP 2.1 Mounting The LED Effect is fully operational in any mounting position, hanging upside‐down, side mounted, or set on a flat llevel surface, etc. IMPORTANT!!! Safety cables must always be used when unit is celling or truss mounted. ...
- Page 4 3. OPERATION INSTRUCTIONS 3.1 Control Panel MENU: to scroll through main menu or move left. UP: to scroll through main menu or increase value. DOWN: to scroll through main menu or decrease value. ENTER ： to move right or confirm setting Mode indicator flashing = DMX/Slave mode solid on = Master mode Sound indicator flashing = fixture in sound mode 3.2 Menu Map 1st Menu 2nd Menu 3rd Menu Description Addr A001 - A512 Set DMX address Chnd Ch02/06/07 Select DMX channel mode Auto Aut1-Aut8 SP01-SP99 Select Auto program and speed Soun Sou1-Sou8 SE00-SE98 Select Sound program and sensitivity level...
- Page 5 Ch Function Value Decription 000‐127 0‐360° indexing 128‐169 Clockwise rotating from fast to slow 2 Mirror rotating 170‐211 Counter clockwise rotating from slow to fast 212‐255 Rotating back and forth from slow to fast 6‐channel mode Ch Function Value Decription 1 Dimmer 000‐255 0‐100% 000‐031 Closed 032‐063 Open 064‐095 Pulse strobe from slow to fast 096‐127 Open 2 Strobe 128‐159 Fade strobe from slow to fast 160‐191 Open 192‐223 Random strobe from slow to fast 224‐255 ...
- Page 6 36‐42 Gobo 5 43‐49 Gobo 6 50‐56 Open shaking from slow to fast 57‐63 Gobo1 shaking from slow to fast Gobo 4 64‐70 Gobo 2 shaking from slow to fast 71‐77 Gobo 3 shaking from slow to fast 78‐84 Gobo 4 shaking from slow to fast 85‐91 Gobo 5 shaking from slow to fast 92‐119 Gobo 6 shaking from slow to fast 120‐184 Forward Gobo flow from fast to slow 185‐190 Stop 191‐255 Backward Gobo flow from slow to fast 0‐127 0‐360° indexing 128‐190 Clockwise rotating from fast to slow 5 Gobo Rotating 191‐192 Stop 193‐255 Counter clockwise rotating from slow to fast 000‐127 0‐360° indexing 128‐169 ...
- Page 7 56‐63 Color3+Color4 64‐71 Color4 72‐79 Color4+Color5 80‐87 Color5 88‐95 Color5+Color6 96‐103 Color6 3 Color 104‐111 Color6+Color7 112‐119 Color7 120‐127 Color7+Color8 128‐191 Forward Color flow from fast to slow 192‐255 Backward Color flow from slow to fast 0‐7 Open 8‐14 Gobo1 15‐21 Gobo 2 22‐28 Gobo 3 29‐35 Gobo 4 36‐42 Gobo 5 43‐49 Gobo 6 50‐56 Open shaking from slow to fast 57‐63 ...
- Page 8 COLORS GOBOS 4. General Maintenance 4.1 Fuse Replacement a. Unscrew the fuse holder and remove the damaged fuse. b. Replace with the exact same type fuse and screw the fuse holder back in its place. 5. Specifications Source: 100 white LED, 9000K Beam angle: 75° Power consumption: 150W Max. Power supply: 100~240V, 50‐60Hz Fuse: F4A/250V Dimensions: 320*220*200 mm Weight: 4.50 kg WARRANTY Please refer to your local dealer.
