ASSEMBLY INSTRUCTIONS

Judy

ITEM NO.: 101 White

105 Teak

RTAM24H004

Need help?

Do you have a question about the Judy 101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arrow Judy 101

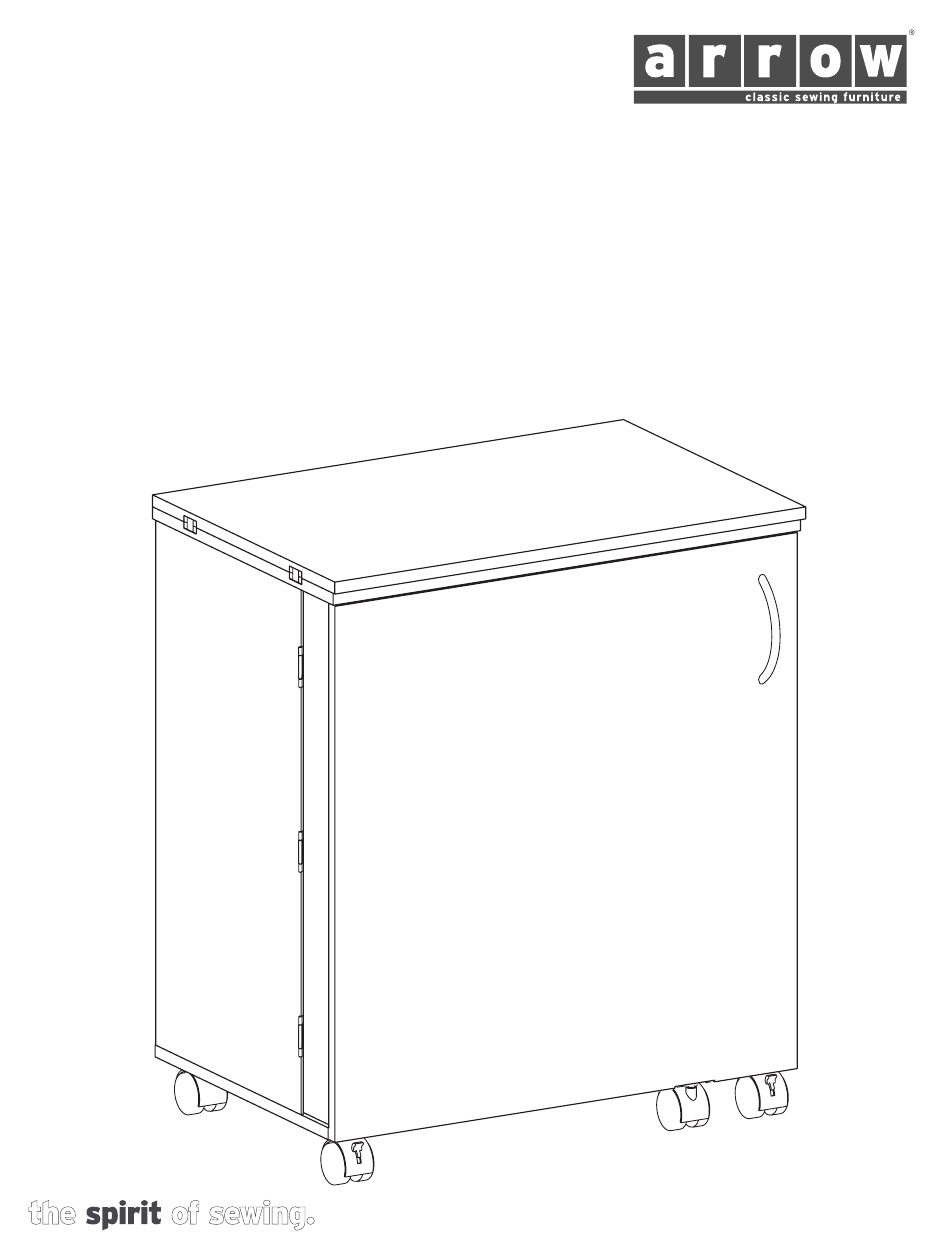

Page 1 ASSEMBLY INSTRUCTIONS Judy ITEM NO.: 101 White 105 Teak RTAM24H004...
Page 2 General A ssembly Guidelines Read the instructions carefully before beginning the assembly process to ensure proper assembly of this product. Please open and inspect the contents of box(es) to see that all parts and hardware are included. 2. Tools Required Phillips Screwdriver 3.
Page 3 Parts List: Panels ITEM DESCRIPTION QTY. PACK. Lift and Hardware 2 of 2 Door Panel 1 of 2 Left Side Panel 1 of 2 Door Hinge Panel 1 of 2 Right Side Panel 1 of 2 Back Panel 1 of 2 Door Bin Front Panel 1 of 2 Door Bin Right Side Panel...
Page 4 Parts List: Hardware Cam Lock 8x30 Dowel Pin x28 Magnet and Catch Plate Set x1 Cam Bolt Cam Cover 6 x 9/16” Flat Head 8 x 1/2” Countersunk Screw Screw x12 6 x 3/4” Flat Head 4 x 1/2” Countersunk Screw Screw x14 Snag-Free Hinge x2...
Page 5 Step 1: Cabinet Shell Begin by inserting (5) Cam Locks and (4) Cam Lock Dowel Pins into Panel I, as shown. NOTE: there are (2) Panel I pieces. Repeat with the second Panel I. Dowel Pin X10 Insert (4) Cam Locks and 2 Dowel Pins into Panel E, as shown.
Page 6 Step 1: Cabinet Shell NOTE: The next few steps are accomplished UPSIDE DOWN. Cam Cover Attach both Panel I pieces to Panel E as shown, with cam locks facing the back of the cabinet. Tighten cam locks and apply Cam Covers. Judy Assembly Instructions...
Page 7 Step 1: Cabinet Shell Screw x3 Dowel Pin X4 Cam Bolt Screw Cam Lock Magnet x1 Lift Rail (Right) Prepare Panel F as follows: Insert (2) Cam Bolts, firmly pressing until the bolt is fully anchored in the board. Insert (4) Cam Locks Insert (4) Dowel Pins into the edges of Panel F Attach the Magnet using (2) rs3 Screws.
Page 8 Step 1: Cabinet Shell Cam Cover Attach Panel F to both Panel I pieces as shown. Tighten cam locks and apply Cam Covers. Judy Assembly Instructions...
Page 9 Step 1: Cabinet Shell Wrench x1 Locking Casters x2 Non-Locking Casters x2 Cam Bolt Attach Casters to Panel A as shown, tightening with provided Wrench.. NOTE: Non-Locking (rt1) Casters must be installed at the Back Edge of the board. Locking (rt2) Casters must be installed at the front edge.
Page 10 Step 1: Cabinet Shell Cam Cover Attach Panel A to Panels E, I and F as shown. Tighten cam locks and apply Cam Covers. Carefuly tip the cabinet up onto its wheels. You may need a partner to help you with this step, but it is not required. Judy Assembly Instructions...
Page 11 Step 2: Lift and Top LIFT INSTALLATION WARNING: For video instructions, please visit www.arrowsewing.com/assembly and find the “How to Install Your Hydraulic Lift” video. DO NOT remove the small wooden block from the Lift until assembly is complete. If the block is removed or falls out before lift assembly is complete, the cables will retract, making installation more difficult.
Page 12 Step 2: Lift and Top For video lift installation instruc- tions, visit www.arrowsewing.com/ assembly and find the “Installing Your Hydraulic Lift” video. Cable Plastic guides on Lift Lift rail Rail tabs Lift rail Guide Lift onto Lift Rails using plastic guides. Insert ends of cable into rail tabs; make sure the cable is hooked into the rail tabs on both sides.
Page 13 Step 2: Lift and Top Screw x6 Cam Bolt Snag-Free Hinge x2 Attach Snag-Free Hinges to Panel B as shown, using (6) rs2 Screws. Insert (7) Cam Bolts into Panel B, firmly pressing until the bolt is fully anchored in the board. Judy Assembly Instructions...
Page 14 Step 2: Lift and Top Cam Cover Carefully lower Panel B into place, guiding cam bolts into cam locks. Tighten cam locks and apply Cam Covers. Judy Assembly Instructions...
Page 15 Step 3: Door Cam Bolt Cam Lock Prepare Panels J and K as follows: Dowel Pin x10 - Insert (1) Cam Bolt into each panel, firmly pressing until the bolt is fully anchored in the board. (2 Cam Bolts) - Insert (2) Cam Locks into each panel (4 Cam Locks) - Insert (2) Dowel Pins into the edges of each panel (4 Dowel Pins) Cam Cover Prepare Panel L as follows:...
Page 16 Step 3: Door Cam Bolt Insert (4) Cam Bolts into Panel M as shown, firmly pressing until the bolt is fully anchored in the board.. Cam Cover Finish assembling the door bin as shown, guiding cam bolts on Panel M into cam locks on Panels J, K and L.
Page 17 Step 3: Door Cam Bolt Wrench x1 Magnet Catch Plate x1 Locking Caster x1 Screw Screw Insert (7) Cam Bolts into Panel H, firmly pressing until the bolt is fully anchored in the board. Attach Magnet Catch Plate to Panel H using (2) rs4 Screws. Attach Caster Bracket to Panel H as shown, using (4) rs1 Screws.
Page 18 Step 3: Door Cam Cover Attach assembled door bin to Panel H as shown, guiding cam bolts into cam locks. Tighten cam locks and apply Cam Covers. Flush Hinge x3 Screw Dowel Pin x4 Prepare Panel G as follows: - Attach (3) Flush Hinges using (6) rs4 Screws - Insert (4) Dowel Pins into the edge of the panel Cam Lock - Insert (3) Cam Locks...
Page 19 Step 3: Door Screw Handle x1 Handle Bolt x2 Cam Cover Attach Panel G to the side of the cabinet, screwing the hinges on Panel G into the edge of Panel E as shown. Use (6) rh4 Screws. Attach Panel H to Panel G, carefully guiding cam bolts into cam locks.
Page 20 Step 4: Table Leaf Screw FULLY OPEN THE DOOR AND LOCK THE DOOR CASTER IN POSITION. Balance Panel C on the open door and attach snag-free hinges to Panel C using (6) rs2 Screws. DO NOT OPEN THE CABINET’S SIDE LEAF WITHOUT THE DOOR LOCKED IN POSITION.
Page 21 Completed Cabinet Visit arrowsewing.com/assembly for helpful video tutorials on hydraulic lift adjustment and operation. Judy Assembly Instructions...
Page 22 (detailed receipt), and photos of the product. Arrow will replace any defective part (at its sole option), excluding labor. Replacement parts will be warranted for only the remaining period of the original Warranty.
Page 23 COMPLETE YOUR SEWING STUDIO! Elevate your sewing experience with Arrow’s Best-Selling Accessories! Custom Sewing Inserts Sewing Chairs Enhance your sewing experience with a custom acrylic Arrow’s #1 Rated Height Adjustable Sewing Chair is sewing insert! Custom acrylic sewing inserts are...
