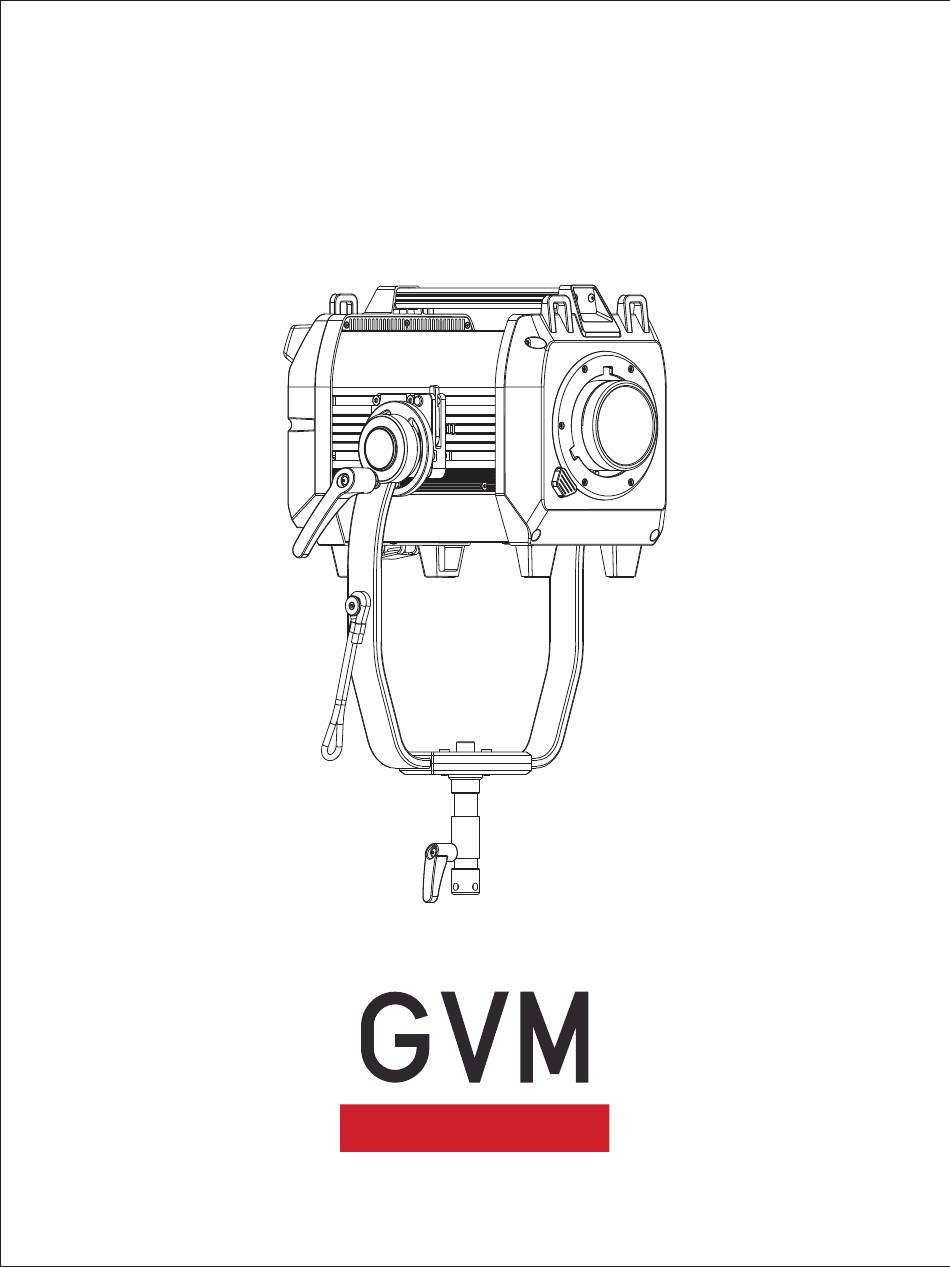

- Page 1 GVM 1200B AIO...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Precautions -------------------------------------------------------------------- Page 4 Product Structure Diagram --------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~9 Description Of Product Control Keys --------------------------------------- Page 10 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This product is professional lighting and staging equipment and should only be operated by a qualified lighting technician or used under the supervision of a professional. Always follow the precautions below to ensure safe and proper usage. 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing the “GVM 1200B AIO”. This product is specifically designed for photography and videography enthusiast. This product is suitable for use in live stream /outdoor /studio and YouTube shoots. The main features of the product are: 1．This light features seamless dimming and is equipped with COB LED technology... -
Page 6: Product Parameter
Features : CCT/Source Matching/Effect mode, brand-new LCD screen, high color rendering index LED light engine, support for RDM ◆ Control Methods : On board control, GVM Mesh Bluetooth APP control, DMX control ◆ The data port can be optionally equipped with accessories: ① DMX/RDM (UNIT-BD), ②... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Carry Handle Bowen S Mount Light Engine Bowen S Mount Release Button Ratcheting Disk Brake Handle U-shaped Yolk 1/4''-20 Secure Screw Junior Pin (1.125in/28mm) Multi-function knob Heat Dissipation Vent Lock key Back key Menual key Display screen Mode key Power Input Port USB port... -
Page 8: Installation Method
INSTALLATION METHOD Slide the 5/8” receiver over the spigot/stud at the top of the light stand. Lower it fully down so the receiver fits snugly onto the stand. Tighten the securing knob on the yoke. Make sure the light does not wobble or spin. Loosen the angle locking handle on the side of the yolk then adjust the tilt angle of the light to your needs, and then tighten the angle locking handle. - Page 9 Installation and removal of standard reflector. (Standard reflector need to be purchased separately.) Installation: Match the three prongs (lugs) on the reflector with the notches on the light’s Bowens mount. Insert the reflector by pushing it straight in so the prongs slide into the corresponding notches.
- Page 10 Disassemble the light from the U-shaped yolk: Press the release mechanism on both side of the yolk, then pull the light straight up to remove it from the frame. Installing the light to the U-shaped yolk: Align the grooves on both side of the yolk, Insert the light from top to bottom into the yolk until the lock of the U-frame automatically locks.
- Page 11 Connect the power cord to the power supply. The data transmission port can be connected to the GVM DMX box accessory and corresponding control function can be carried out. ( The accessories need to be purchased separately. The supported accessories models includes:...
-
Page 12: Description Of Product Control Keys
【Click】Go to the menu or confirm the selection. ON/OFF key: Long press this key to power On/Off the light. Data transmission port: Connect the GVM BOX series accessories to achieve the corresponding control mode. ( The attachments need to be purchased separately. The supported attachment models are: DCB-XLR5(DMX&RDM), CCB-XLR5(CRMX&DMX), LCB-RJ45(Ethernet Art-Net/sACN).) -
Page 13: Function Introduction & Instructions For Use
The GVM data box accessories needs to be purchased separately. The supported accessories models are: DCB-XLR5(DMX&RDM), CCB-XLR5(CRMX&DMX). Connect the GVM data box to the data transmission port → Rotate the [knob] to select → Press the [knob] to enter the selection. - Page 14 BT State BT Reset Open Close CRMX This function can only be used by connecting to the external GVM data box accessories. The GVM data box needs to be purchased separately. The supported attachment models are: CCBXLR5(CRMX&DMX). CRMX This function requires inserting GVM CRMX Box to use.
- Page 15 Fan Settings Rotate the [knob] to select [Smart/High/Silent] → Press the [knob] to confirm the selection. Smart: Adjust the fan speed as the temperature changes. High: The fan operates at the maximum rotational speed. Silent: The silent mode will stop the fan from rotating and reduce the light output power to 110W.
- Page 16 Products Check the current [Firmware VN] and [Hardware VN] of the product. Products Firmware VN: V1.10 Hardware VN: V1.00 UID:95014087 Language Rotate the [knob] to select the language text displayed on the screen English/中文] → Press the [knob] to confirm the selection. Language English 中文...
-
Page 17: Effect Mode
② Status indication specification ： Dimming curve: Linear Dimming curve: Exp Fan mode: Smart Dimming curve: Log Dimming curve: S Fan mode: High Bluetooth connected Fan mode: Silent DMX mode is enabled and the DMX console is connected. The attachment is successfully connected and the corresponding function can be used. The attachments need to be purchased separately. -
Page 18: App Control
New Devices Device-adding Ble Devices Bluetooth devices nearby Searching for nearby ble devices... 1．Before adding a device, please make GVM-XXXXXX SigMesh Ble Devices sure you have turned on your phone’s Add Device Bluetooth and network data, accessibility SigMesh Groups to Bluetooth and network data, then Create Group reset the lighting device’s Bluetooth. -
Page 19: Account Login
Figure 5 Account Login Use e-mail to get the verification code to log in (the first login ◆ My Devices automatically registers the account). (Figure 5) Verification Code Login Auto registration for the first login ◆ There may be a delay in sending the verification code, and Email the speed of delivery depends on the e-mail server you are Verification code... -
Page 20: Quick Troubleshooting
QUICK TROUBLESHOOTING Check the product Troubleshooting Issue Whether the connection The indicator does not Make sure the adapter is well connected between the light and the light up. with the power plug. power supply is normal. Follow these steps: 1. Turn on phone’s Bluetooth and network Check if the device is turned data function, android devices need to While using the APP to add... -
Page 21: Use And Maintenance
USE AND PRESERVATION Do not place the product in a high humidity, strong electromagnetic field, direct sunlight, or high-temperature environment. If the product will not be used for a long time, please disconnect power. Cleaning: Unplug the power before cleaning. Use a dry cloth only—avoid cleaning agents or solventbased liquids, as they may damage the surface. -
Page 22: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... -
Page 23: How To Obtain Warranty Service
8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty. - Page 24 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
