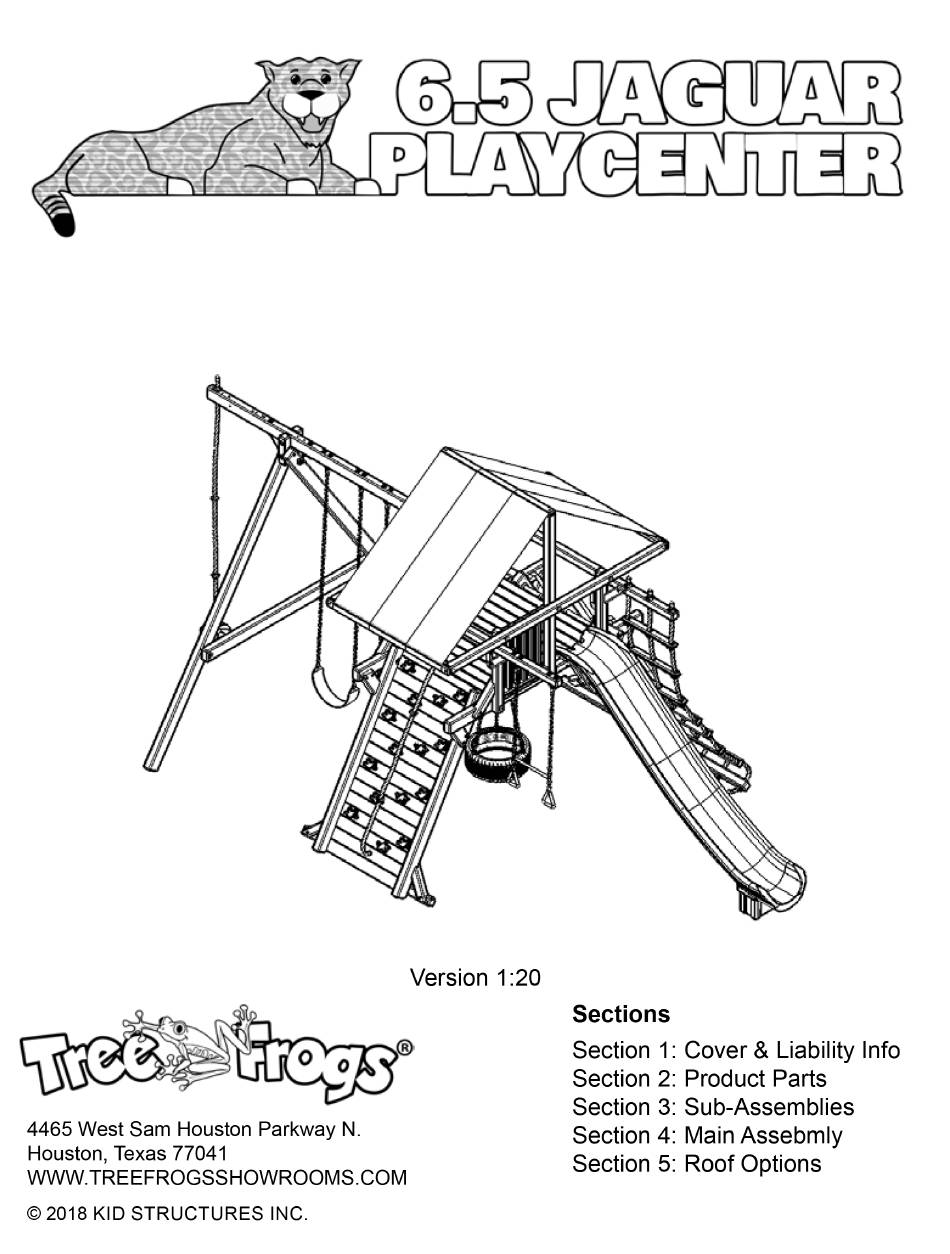

Tree Frogs 6.5 Jaguar playcenter Manual

Hide thumbs Also See for 6.5 Jaguar playcenter:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6.5 Jaguar playcenter and is the answer not in the manual?

Questions and answers

Related Manuals for Tree Frogs 6.5 Jaguar playcenter

Summary of Contents for Tree Frogs 6.5 Jaguar playcenter

  • Page 2 Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 3 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 4 ● Be sure that the sealant you select is non-toxic and child safe. Your local Tree Frogs Wooden Swing Set Factory dealer may offer a complete power wash and reseal and maintenance program.
  • Page 5 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set. and/or injury to the users.
  • Page 6 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 7 And for a period of 1-Year Tree Frogs warranties all ropes, structural foam molded slides to be free of defects in material and workmanship. Fading is not considered a defect and may occur with seasonal and geographical conditions.
  • Page 8 KSI-462- 6.5 Jaguar Playcenter Lumber Description QTY. 462-1 43 7/8” Rockwall Board- Slim (CC-071) 462-2 43 7/8” Rockwall Board w/ Hole (CC-068) 462-3 43 7/8” 1- Rock Rockwall Board (CC-069) 462-4 43 7/8” 2- Rock Rockwall Board (CC-070) 462-5 43 7/8” Blank...
  • Page 9 KSI-462- 6.5 Jaguar Playcenter Lumber Description QTY. (CC-100) 462-8 25” Rail Bottom (CC-099) 462-9 25” Rail Top (CC-103) 462-10 28” Rope Rung (CC-104) 462-11 30” Deck Runner (CC-116) 462-12 60 3/4” Center Tarp Board (CC-118) 462-13 67 1/2” Tarp Board...
  • Page 10 KSI-462- 6.5 Jaguar Playcenter Lumber Description QTY. (CC-135) 462-15 30” Center Support Deck (CC-124) 462-16 54” Deck Board (CC-240) 462-17 7 7/8” Small A-Frame Block (CC-143) 462-18 9” Rope Block (CC-244) 462-19 13 3/8” A-Frame Block w/ Sinks (CC-243) 462-20 13 3/8”...
  • Page 11 KSI-462- 6.5 Jaguar Playcenter Lumber Description QTY. (CC-148) 462-22 19” Left Gusset (CC-142) 462-23 25” Entrapment Block (CC-173) 462-24 38 7/8” Corner Post (CC-174) 462-25 70” Ground Runner (CC-175) 462-26 80 5/8” Center Post (CC-176) 462-27 100” Upper Rope Arm...
  • Page 12 KSI-462- 6.5 Jaguar Playcenter Lumber Description QTY. (CC-178) 462-29 10 1/16” Lower Rope Runner 462-30 119 1/2” Top Joist 462-31 119 1/2” Swingbeam Top Joist (CC-188) 462-32 16” Left Gusset (CC-189) 462-33 16” Right Gusset 462-34 88 1/2” Left Rockwall 462-35 88 1/2”...
  • Page 13 KSI-462- 6.5 Jaguar Playcenter Lumber Description QTY. 462-36 88 1/2” Left Step Ladder Leg 462-37 88 1/2” Center Pipe & Step Ladder Leg 462-38 88 1/2” Right Pipe Ladder Leg (CC-245) 462-39 88” A-Frame Crossmember 462-40 107” Mainbeam (CC-184) 462-41 132 5/8”...
  • Page 14 KSI-456 JPC Wood Roof Description QTY. 456-1 15 3/8” Short Fan Board 456-2 19” Wood Roof Support 456-3 20 1/4” Center Fan Board 456-4 21” Long Fan Board (CC-020) 456-5 25” Wood Roof Support 456-6 69 3/4” Bottom Fan Board (CC198) 456-7 14”...
  • Page 15 KSI-456 JPC Wood Roof Description QTY. 456-8 67 1/2” Wood Roof Tarp Board 456-9 73 3/8” Left WR Runner 456-10 73 3/8” Right WR Runner 456-11 67 1/2” Wood Roof Board -Ripped 456-12 67 1/2” Wood Roof Board...
  • Page 16 KSI-457 JPC Treehouse Panel Description QTY. 457-1 24 13/16” Panel Support 457-2 4 1/2” Upper Panel Board #9 457-3 7 13/16” Upper Panel Board #2 457-4 10 1/4” Upper Panel Board #12 457-5 10 5/16” Upper Panel Board #3 457-6 16 3/4”...
  • Page 17 KSI-457 JPC Treehouse Panel Description QTY. 457-8 19 1/4” Upper Panel Board #6 457-9 19 13/16” Upper Panel Board #7 457-10 42 1/2” Upper Inside Panel Support 457-11 23” Upper Panel Board #11 457-12 6 15/16” Upper Panel Board #1 (CC-057) 457-13 14”...
  • Page 18 KSI-457 JPC Treehouse Panel Description QTY. 457-15 14 1/4” Upper Panel Board #4 457-16 23” Upper Panel Board #10 457-17 23 1/16” Upper Panel Board#8 (CC-089) 457-18 27 1/2” Lower Panel Filler Board...
  • Page 19 KSI-462- 6.5 JAGUAR PLAYCENTER HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag- A-1 Bag-A-2 Bag- A-3 3/8”x-16 Acorn Nut Plated 1/2”- 13 Acorn Nut Plated 1/2”-13 x 4 1/2” Carriage Bolt ZP QTY;...
  • Page 20 KSI-462- 6.5 JAGUAR PLAYCENTER HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag-A-10 Bag-A-9 Bag-B Bag-C #2 &#3 M10 x 80 Spring Clip #8 x 2 1/2” Coated Deck Screw 1/2”-13 Hex Nut ZP...
  • Page 21 KSI-462- 6.5 JAGUAR PLAYCENTER HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag-N Bag-L Bag-M Bag-O Bag-P 1/4” Uss Flatwasher ZP 3/8” Split Lockwasher ZP 1/2” Split Lockwasher ZP 3/8”Uss Flatwasher Zp...
  • Page 22 KSI-462-SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SBH-1 SBH-2 SBH-3 3/8”-16 Acorn Nut Plated 1/2”-13 Acorn Nut Plated 1/2”-13 x 3 1/2” Carriage Bolt ZP QTY;10 QTY;...
  • Page 23 KSI-462-SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SBH-6 SBH-7 3/8”-13 Hex Nut ZP 1/2” -13 Hex Nut ZP QTY;2 QTY; 9 SBH-8 3/8”-16 x 7” Hex Bolt ZP QTY;8 SBH-9 3/8”-16 x 10”...
  • Page 24 KSI-462-SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SBH-12 SBH-11 3/8” x 5 Hex Lag Screw ZP 3/8” x 3 1/2” Hex Lag Screw ZP QTY; 2 QTY;...
  • Page 25 KSI-456 -WOOD ROOF HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag- A-2 Bag-A-3 Bag-A-1 3/8”- 16 x5 Carriage Bolt ZP #8 x 1 1/4” Coated Deck Screw 3/8”...
  • Page 26 457-TREEHOUSE PANELS- HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag- A-1 Bag-A-2 Bag-A-3 #8 x 1 1/2” Coated Deck Screw #8 x 2” Coated Deck Screw #2 & #3 QTY;...
  • Page 27 Picture Description QTY. 462-A 48” Plastisol Coated Chain 462-B Tire Swivel 462-C Large Rocks 462-D 19” Ship’s Wheel 462-E 80” Chained Belt Swing 462-F 20” Trapeze-Bar w/ Rings-60”Chain 462-G 1”x 16’ Polyester Rope W/Rope Caps...
  • Page 28 Picture Description QTY. 462-H 1”x18’ Polyester Rope W/Rope Caps 462-I 21”x 63” Chain Ladder 462-J 1 1/4”Dia x 16 ga x 25” PlayGrip Tube,PC Coated 462-K 1 1/4”Dai x 16ga x 44” PlayGrip Tube,PC Coated 462-L Ductile Iron Swing Hanger 462-M 1 1/4”...
  • Page 29 Picture Description QTY. 462-O Swingbeam T Bracket 462-P Swingbeam 45 Degree Bracket 462-Q Heavy Duty Tire Eye Bolt 462-R Disc Swing 462-S Telescope...
  • Page 30 6.5 Rockwall Board Assembly PARTS NEEDED HARDWARE NEEDED CC-068-1-Rock Rockwall Board- I- 1/4”-20 x 1 1/4” Pan Phil M/S ZP- (26) CC-069-2- Rock Rockwall Board- K- 1/4”-20 x 7/16 4 Prong Tee Nut ZP- (26) 462-C- Large Rocks- (13) N- 1/4” Uss Flatwasher ZP- (26)
  • Page 31 6.5 Rockwall Assembly PARTS NEEDED HARDWARE NEEDED CC-071- Rope Hole Rockwall Board- 462-1- Rockwall Board -Slim- B- #8 x 2 1/2” Coated Deck Screw (68) CC-070- Rockwall Board -Blank- 462-34- Left Rockwall Leg- 462-35- Right Rockwall Leg-...
  • Page 32 6.5 Combo Ladder Assembly PARTS NEEDED HARDWARE NEEDED CC-133- Wood Step- E- 1/4” x 4 1/2” Hex Lag Screw ZP (20) 462-37- Center Step & Pipe Ladder Leg- N- 1/4” Uss Flatwasher ZP (20) 462-36- Left Step Ladder Leg- 462-38- Right Pipe Ladder Leg- 462-I- 21”x 63”...
  • Page 33 6.5 Combo Ladder Assembly HARDWARE NEEDED J- Metal Tap Screw-...
  • Page 34 Deck Assembly PARTS NEEDED HARDWARE NEEDED CC-104- Deck Runner- B- #8 x 2 1/2” Coated Deck Screw- (72) CC-134- Deck Board Slim- CC-135- Center Deck Support- CC-124- Deck Board- Make 2 of these Assembly...
  • Page 35 6.5 Swingbeam Assembly PARTS NEEDED HARDWARE NEEDED CC-240- Center A-Frame Block- SBH-1- 3/8” Acorn Nut Plated- SBH-2- 1/2” Acorn Nut Plated- CC-243- A-Frame Block- SBH-6- 3/8” Hex Nut- SBH-7 1/2” Hex Nut- CC-244- A-Frame Block Sinked- SBH-15- 3/8” Split Lockwasher- SBH-16- 1/2”Split Lockwasher- CC-246- A-Frame Leg- SBH-17- 3/8”...
  • Page 36 6.5 Swingbeam Assembly PARTS NEEDED HARDWARE NEEDED CC-184- Jaguar Universal Swingbeam- SBH-1- 3/8”-16 Acorn Nut Plated- SBH-6- 3/8”-13 Hex Nut- 453-L- Ductile Iron Swing Hanger- SBH-8- 3/8”-16 x 7” Hex Bolt- SBH-13- 3/8” Nylon Insert- SBH-15- 3/8” Split Lockwasher- SBH-17- 3/8” Uss Flatwasher- SBH-20- 3/8”...
  • Page 37 6.5 Swingbeam Assembly PARTS NEEDED HARDWARE NEEDED Swingbeam Assemly- SBH-1- 3/8”-16 Acorn Nut Plated- SBH-2- 1/2” Acorn Nut Plated- A-Frame Legs Assembly- SBH-6- 3/8”-13 Hex Nut- SBH-7- 1/2” Hex Nut- SBH-15- 3/8” Split Lockwasher- SBH-16- 1/2”Split Lockwasher- SBH-17- 3/8” Uss Flatwasher- SBH-18- 1/2”...
  • Page 38 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED Rockwall Assembly- F- 3/8” x 3 1/2” Hex Lag Screw- Ladder Assembly- G- 3/8”x 5 “ Hex Lag Screw- CC-149- Left Gusset- O- 3/8” Uss Flatwasher- (13) CC-148- Right Gusset- CC-174- Ground Runner- CC-178- Lower Rope Runner-...
  • Page 39 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED Rockwall Assembly- A-5- 1/2” x 7” Carriage Bolt- A-2- 1/2” Acorn Nut Plated- Ladder Assembly- C- 1/2” Hex Nut- M- 1/2” Split Lockwasher- 462-40- Mainbeam- P- 1/2” Uss Flawasher- Q- 3/4” Uss Flatwasher-...
  • Page 40 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED CC-188- Left Gusset- F- 3/8” x 3 1/2” Hex Lag Screw- (16) CC-189- Right Gusset- O- 3/8” Uss Flatwasher- (16)
  • Page 41 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED Deck Assembly- E- 1/4”x 4 1/2” Hex Lag Screw- N- Uss Flatwasher-...
  • Page 42 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED 453-B- Tire Swivel- A-3- 1/2” x 4 1/2” Carriage Bolt- A-2- 1/2” Acorn Nut Plated- C- 1/2” Hex Nut- M- 1/2” Split Lockwasher- P- 1/2” Uss Flawasher- Q- 3/4” Uss Flat Washer- USING A 9/16”...
  • Page 43 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED CC-173- Corner Post- A-4- 1/2” x 6 1/2” Carriage Bolt- A-2- 1/2” Acorn Nut Plated- CC-175- Center Post- C- 1/2” Hex Nut- M- 1/2” Split Lockwasher- P- 1/2” Uss Flawasher- Q- 3/4” Uss Flat Washer-...
  • Page 44 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED 462-30- Top Joist- A-4- 1/2” x 6 1/2” Carriage Bolt- A-2- 1/2” Acorn Nut Plated- 462-31- Top Joist -SB- C- 1/2” Hex Nut- M- 1/2” Split Lockwasher- P- 1/2” Uss Flawasher- Q- 3/4” Uss Flat Washer-...
  • Page 45 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED CC-176- Upper Arm- A-4- 1/2” x 6 1/2” Carriage Bolt- A-2- 1/2” Acorn Nut Plated- CC-177- Trapeze Arm- C- 1/2” Hex Nut- M- 1/2” Split Lockwasher- 462-L- Ducile Iron Swing Hanger- P- 1/2” Uss Flawasher- Q- 3/4”...
  • Page 46 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED CC-149- Left Gusset- F- 3/8” x 3 1/2” Hex Lag Screw- (12) CC-148- Right Gusset- O- 3/8” Uss Flatwasher- (12)
  • Page 47 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED CC-100- Rail Bottom- G- 3/8” x 5” Hex Lag Screw- O- 3/8” Uss Flatwasher- CC-143- Rope Block- D- 1/4”x 3” Hex Lag Screw- N- 1/4”Uss Flatwasher- CC-142- Entrapment Block-...
  • Page 48 6.5 JPC Main Assembly PARTS NEEDED CC-103- Rope Rung- 462-G- 16’ Rope w/Rope Caps- 462-H- 18’ Rope w/Rope Caps-...
  • Page 49 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED 462-M- Safety Handle- H- #14 x 2” Pan Phillip T/S- (12) 462-N- PlayGrip Ladder Handle- N- 1/4” Uss Flatwasher- (12)
  • Page 50 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED Tire- A-9- M10 x 80 Spring Clip- 462-A- 43” Plastisol Coated Chain- 462-Q- Heavy Duty Tire Eye Bolt-...
  • Page 51 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED Slide- A-9- 8 x 80mm Spring Clip- 462-E- 20” Trapeze Bar W/ Ring-43” Chain- H- #14 x 2” Pan Phillip T/S- N- 1/4” Uss Flatwasher-...
  • Page 52 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED 462-D- 19” Ship’s Wheel- SBH-2- 1/2” Acorn Nut Plated- SBH-3- 1/2” x 3 1/2” Carriage Bolt- 462-O- Swingbeam T Bracket- SBH-7- 1/2” Hex Nut- SBH-16- 1/2” Split Lockwasher- 462-S- Telescope- SBH-18- 1/2” Uss Flatwasher- SBH-19- 3/4”...
  • Page 53 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED Swingbeam Assembly- SBH-2- 1/2” Acorn Nut Plated- SBH-4- 1/2”-13 x 7” Carriage Bolt- SBH-5- 1/2” x 9 Carriage Bolt- SBH-7- 1/2” Hex Nut- SBH-16- 1/2” Split Lockwasher- SBH-18- 1/2” Uss Flatwasher- SBH-19- 3/4” Uss Flat washer-...
  • Page 54 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED CC-182- A-Frame Crossmember- SBH-2- 1/2” Acorn Nut Plated- SBH-4- 1/2” x 7” Carriage Bolt- SBH-7- 1/2” Hex Nut- SBH-16- 1/2” Split Lockwasher- SBH-18- 1/2” Uss Flatwasher- SBH-19- 3/4” Uss Flat washer- USING A 9/16” DRILL BIT AT MARKED HOLE AND ASSEMBLE AS SHOWN...
  • Page 55 6.5 JPC Main Assembly PARTS NEEDED HARDWARE NEEDED 462-F- 80” Chained Belt Swing- SBH-21- 8 x 80mm Spring Clip- 462-G- 14’ Polyester Rope w/ Rope Caps- SBH-12- 3/8”x5” Hex Lag Screw- 462-R- Disc Swing- SBH-17- 3/8” USS Flat Washer- SBH-21...
  • Page 56 Tarp Option PARTS NEEDED HARDWARE NEEDED CC-116- Center Tarp Board- E- 1/4” x 4 1/2” Hex Lag Screw- N- 1/4” Uss Flatwasher- CC-118- Tarp Board- R- Phillips Screw Snap- Tarp- MARK THE PLACEMENT OF THE TARP SNAPS...
  • Page 57 Tarp Option...
  • Page 58 Wood Roof Option PARTS NEEDED HARDWARE NEEDED 456-8- Wood Roof Tarp Board- A-1- 3/8” Acorn Nut Plated- A-2- 3/8” x 5” Carriage Bolt- 456-9- Left WR Runner- A-5- 3/8-13 Hex Nut- A-8- 3/8” Split Lockwasher- 456-10- Right WR Runner- A-10- 3/8” Uss Flatwasher- A-11- 1/2”...
  • Page 59 Wood Roof Option PARTS NEEDED HARDWARE NEEDED 456-2- Wood Roof Support- A-3- 1 1/4” Coated Deck Screw- (36) CC-020- Wood Roof Support- A-4- 1 1/2” Coated Deck Screw- (136) 456-11- Wood Roof Board-Ripped- 456-12- Wood Roof Board- (32)
  • Page 60 Wood Roof Option PARTS NEEDED HARDWARE NEEDED 456-1- Short Fan Board- A-4- 1 1/2” Coated Deck Screw- (136) A-6- 1/4” x 1 1/2” Hex Lag Screw- (14) 456-3- Center Fan Board- A-9- 1/4” Uss Flatwasher- (14) 456-4- Long Fan Board- 456-6- Bottom Fan Board- 456-7- Center Fan Board- MAKE 2 OF THESE...
  • Page 61 WOOD ROOF...
  • Page 62 Open Rail PARTS NEEDED HARDWARE NEEDED CC-088- Rail Spindle- (15) B- 2 1/2” Coated Deck Screw- (60) CC-100- Rail Bottom- CC-099- Rail Top- MAKE 3 OF THESE CC-099...
  • Page 63 Open Rail Install PARTS NEEDED HARDWARE NEEDED Rail Assembly- D- 1/4”x3” Hex Lag Screw- E- 1/4” x 4 1/2” Hex Lag Screw- N- 1/4” Uss Flatwasher- (12)
  • Page 64 Closed Panel PARTS NEEDED HARDWARE NEEDED B- #8 x 2 1/2” Coated Deck Screw (30) CC-088- Rail Spindle- (15) A-4 #8 x 1 1/2” Coated Deck Screw (108) CC-100- Rail Bottom- CC-099- Rail Top- 457-1- Panel Support- CC-089- Lower Panel Filler Board- (12) MAKE 3 OF THESE...
  • Page 65 Closed Panel Install PARTS NEEDED HARDWARE NEEDED Solid Rail Assembly- D- 1/4” x 3” Hex Lag Screw- E- 1/4” x 4 1/2” Hex Lag Screw- N- 1/4” Uss Flatwasher- (12)
  • Page 66 Treehouse Panel Install PARTS NEEDED HARDWARE NEEDED 457-2- Upper Panel #9- (12) 457-7- Window Arch- A-1- 1 1/2” Coated Deck Screw- (64) 457-11- Upper Panel Board #11- CC-057- Left Treehouse Shutter- CC-058- Right Treehouse Shutter- 457-16- Upper Panel Board #10- 457-17- Upper Panel Board #8-...
  • Page 67 Treehouse Panel Install PARTS NEEDED HARDWARE NEEDED 457-3- Upper Panel Board #2- 457-4- Upper Panel Board #12- A-1- 1 1/2” Coated Deck Screw- (104) 457-5- Upper Panel Board #3- 457-6- Upper Panel Board #5- 457-8- Upper Panel Board #6- 457-9- Upper Panel Board #7- 457-10- Upper Inside Panel Support- 457-12- Upper Panel Board #1- 457-15- Upper Panel Board #4-...
  • Page 68 Treehouse Panel...
  • Page 70 Jaguar Playcenter MegaSized Add-On Assembly Version 1:20 Sections Section 1: Cover & Liability Info Section 2: Product Parts Section 3: Sub-Assemblies 4465 West Sam Houston Parkway N. Section 4: Main Assebmly Houston, Texas 77041 Section 5: Roof Options WWW.TREEFROGSSHOWROOMS.COM © 2018 KID STRUCTURES INC.
  • Page 71 Picture Description QTY. (CC-088) 464-1 27 1/2” Rail Spindle 464-2 11 1/2” Mid Rail Top 464-3 11 1/2” Mid Rail Bottom (CC-104) 464-4 30” Deck Runner (CC-134) 464-5 54” Deck Board Slim (CC-135) 464-6 30” Center Deck Support (CC-124) 464-7 54”...
  • Page 72 Picture Description QTY. 464-8 38 7/8” Mid Rail Post 464-9 137” Mega JPC Mainbeam...
  • Page 73 KSI-458 MEGASIZED HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) MA-1 MA-2 1/2” Acorn Nut Plated 1/2” x 6 1/2” Carriage Bolt QTY. 4 QTY. 4 MA-3 MA-4 MA-5 2 1/2”...
  • Page 74 KSI-458 MEGASIZED HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) MA-8 MA-9 MA-10 MA-11 1/2” Split Lockwasher 1/4” USS Flatwasher 3/8” USS Flatwasher 3/4” USS Flatwasher QTY. 4 QTY.
  • Page 75 MegaSized Sub Assemblies PARTS NEEDED HARDWARE NEEDED CC-088- 27 1/2” Rail Spindle- 464-2- 11 1/2” Mid Rail Top- MA-3- 2 1/2” Coated Deck Screw- (74) 464-3- 11 1/2” Mid Rail Bottom- CC-104- 30” Deck Runner- CC-134- 54” Deck Board Slim- CC-135- 30”...
  • Page 76 MegaSized Assembly PARTS NEEDED HARDWARE NEEDED (PARTS FROM BASE & MEGA) (HARDWARE FROM BASE & MEGA) 464-9- 137” Mega JPC Mainbeam- A-5- 1/2” x 7” Carriage Bolt- Q- 3/4” USS Flatwasher- Ladder Assembly- P- 1/2” USS Flatwasher- M- 1/2” Split Lockwasher- Rockwall Assembly- C- 1/2”...
  • Page 77 MegaSized Assembly PARTS NEEDED HARDWARE NEEDED CC-173- 38 7/8” Corner Post- A-4- 1/2” x 6 1/2” Carriage Bolt- Q- 3/4” USS Flatwasher- CC-175- 80 5/8” Center Post- P- 1/2” USS Flatwasher- M- 1/2” Split Lockwasher- C- 1/2” Hex Nut- A-2- 1/2” Acorn Nut Plated-...
  • Page 78 MegaSized Assembly PARTS NEEDED HARDWARE NEEDED SB Top Joist (From Base)- A-4- 1/2” x 6 1/2” Carriage Bolt- Q- 3/4” USS Flatwasher- Top Joist (From Base)- P- 1/2” USS Flatwasher- M- 1/2” Split Lockwasher- Deck Assembly- C- 1/2” Hex Nut- A-2- 1/2”...
  • Page 79 MegaSized Assembly PARTS NEEDED HARDWARE NEEDED 464-8- 38 7/8” Mid Rail Post- MA-2- 1/2” x 6 1/2” Carriage Bolt- MA-11- 3/4” USS Flatwasher- CC-148- 19” Left Gusset- MA-12- 1/2” USS Flatwasher- MA-8- 1/2” Split Lockwasher- CC-149- 19” Right Gusset- MA-4- 1/2” Hex Nut- MA-1- 1/2”...
  • Page 80 MegaSized Assembly PARTS NEEDED HARDWARE NEEDED Trapeze Arm- A-2- 1/2” Acorn Nut Plated- C- 1/2” Hex Nut- Upper Rope Arm- M- 1/2” Split Lockwasher- P- 1/2” USS Flatwasher- CC-149- 19” Right Gusset- Q- 3/4” USS Flatwasher- A-4- 1/2” x 6 1/2” Carriage Bolt- CC-148- 19”...
  • Page 81 MegaSized Assembly (After Placing On Rail Bottoms, Return to Main Assembly and come back for Rail Install) PARTS NEEDED HARDWARE NEEDED 464-3- 11 1/2” Mid Rail Bottom- MA-9- 1/4” USS Flatwasher- CC-100- 25” Rail Bottom- MA-5- 1/4” x 3” Hex Lag Screw- N- 1/4”...
  • Page 82 MegaSized Rail Install PARTS NEEDED HARDWARE NEEDED Mini Rail- MA-9- 1/4” USS Flatwasher- (16) MA-6- 1/4” x 4 1/2” Hex Lag Screw- Open/ Closed Rail- MA-5- 1/4” x 3” Hex Lag Screw- N- 1/4” USS Flatwasher- (12) E- 1/4” x 4 1/2” Hex Lag Screw- D- 1/4”...
  • Page 83 CABIN LOFT INSTALL MANUAL Version 1:20 Sections Section 1: Cover & Liability Info Section 2: Product Parts Section 3: Sub-Assemblies 4465 West Sam Houston Parkway N. Section 4: Main Assebmly Houston, Texas 77041 WWW.TREEFROGSSHOWROOMS.COM © 2018 KID STRUCTURES INC.
  • Page 84 Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 85 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 86 ● Be sure that the sealant you select is non-toxic and child safe. Your local Tree Frogs Wooden Swing Set Factory dealer may offer a complete power wash and reseal and maintenance program.
  • Page 87 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set. and/or injury to the users.
  • Page 88 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 89 And for a period of 1-Year Tree Frogs warranties all ropes, structural foam molded slides to be free of defects in material and workmanship. Fading is not considered a defect and may occur with seasonal and geographical conditions.
  • Page 90 Picture Description QTY. 048-1 31 1/4” Slim Lower Rail 048-2 6” Chimney Block #2 048-3 7” Chimney Block #1 048-4 14 5/16” Above Window Filler 048-5 10” Short Fan Board 048-6 15” Center Fan Board 048-7 18” Slide Side Short Facia...
  • Page 91 Picture Description QTY. 048-8 18” Entry Side Short Facia 048-9 19 3/4” Side Upper Center 048-10 20” Window Arch 048-11 23 1/2” Spiral Slide Filler 048-12 31 1/4” Lower Rail 048-13 32 3/4” End Center 048-14 38 3/8” Bottom Fan Board...
  • Page 92 Picture Description QTY. 048-15 40 1/4” Panel Support 048-16 44” Center Wood Roof Support 048-17 51 1/4” Side End Board 048-18 54 1/4” Slim Deck Board 048-19 57 1/4” Deck Support 048-20 58 5/8” End Side Board 048-21 61” Slim Facia...
  • Page 93 Picture Description QTY. 048-22 9 3/4” Wood Roof Peak (CC-057) 048-23 14” Left Shutter (CC-058) 048-24 14” Left Shutter 048-25 19 3/4” Side Shutter Support 048-26 31 1/4” Wide Lower Panel Board 048-27 32 3/4” End Shutter Board 048-28 51 1/4” Side Outside Shutter Board...
  • Page 94 Picture Description QTY. 048-29 54 1/4” Large Deck Board 048-30 61” Slide Side Wide Facia 048-31 63 3/4” End Long Shutter Board (CC-198) 048-32 14” Center Fan Facia 048-33 47 7/16” Wood Roof Support 048-34 40 1/4” Monkey Bar 048-35 40 1/4”...
  • Page 95 Picture Description QTY. 048-36 40 1/4” Entrapment Filler-2 048-37 41 1/2” Ladder Step 048-38 17 1/2” Short Joist (CC-149) 048-39 19” Left Gusset (CC-148) 048-40 19” Right Gusset 048-41 19” Gusset for Short Joist 048-42 31 3/4” Underneath Slide Support...
  • Page 96 Picture Description QTY. 048-43 32” Slide Support Post 048-44 54” Mainbeam Facia 048-45 56 1/2” Corner Post 048-46 61” Mainbeam 048-47 61 7/16” Long Joist 048-48 67 1/2” Trapeze Replacement 048-49 71 1/2” Monkey Bar Ground Runner...
  • Page 97 Picture Description QTY. 048-50 9 11/16” Chimney Block #3 048-51 13” Chimney Block (CC-190) 048-52 16” Monkey Bar Left Gusset (CC-191) 048-53 16” Monkey Bar Right Gusset 048-54 28 1/4” Entrapment Block 048-55 98” Left Monkey Bar Overhead 048-56 98” Right Monkey Bar Overhead...
  • Page 98 Picture Description QTY. 048-57 98” Left Ladder Leg 048-58 98” Right Ladder Leg 048-59 67” Wood Roof Board-Ripped 048-60 67” Wood Roof Board...
  • Page 99 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag A-1 Bag A-2 Bag A-3 1/2” Acorn Nut Plated 1/2” x 7” Carriage Bolt 1/2” Hex Nut QTY.
  • Page 100 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag A-13 Bag A-14 Bag B-1 Bag B-2 3/4” USS Flatwasher #2 & 3 Drive Bit 90 Degree Bracket 1/2”...
  • Page 101 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag B-8 Bag B-9 3/8” x 3 1/2” Hex Lag Screw 3/8” x 5” Hex Lag Screw QTY.
  • Page 102 457-HWR- CABIN LOFT HARDWARE BAGS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag C Bag D-1 Bag D-2 1 1/2” Coated Deck Screw 3/8” Acorn Nut Plated 3/8” x 5” Carriage Bolt QTY.
  • Page 103 Picture Description QTY. 048-A Cabin Loft Bracket 048-B 36 1/2” Playgrip Tube 048-C Playgrip Ladder Handle...
  • Page 104 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED 048-38- 17 1/2” Short Joist- 6A-4- 1/2” x 6 1/2” Carriage Bolt- 6Q- 3/4” USS Flatwasher- 048-47- 61 7/16” Long Joist- 6P- 1/2” USS Flatwasher- 6M- 1/2” Split Lockwasher- 458-29- 119 1/2” SB Top Joist- 6C- 1/2”...
  • Page 105 Mega Jaguar Cabin Setup PARTS NEEDED FROM PLAYCENTER HARDWARE CC-148- 19” Right Gusset- 6F- 3/8” x 3 1/2” Hex Lag Screw- 6O- 3/8” USS Flatwasher- CC-149- 19” Left Gusset- A-2- 1/2” x 6 1/2” Carriage Bolt- A-11- 3/4” USS Flatwasher- 458-21- 38 7/8”...
  • Page 106 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED 048-48- 67 1/2” Trapeze Replacement- (1) 6A-4- 1/2” x 6 1/2” Carriage Bolt- 6Q- 3/4” USS Flatwasher- CC-176- 100” Upper Rope Arm- 6P- 1/2” USS Flatwasher- 6M- 1/2” Split Lockwasher- CC-149- 19” Right Gusset- 6C- 1/2”...
  • Page 107 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED 458-7- 11 1/2” Mid Rail Bottom- A-4- 1/4” x 3” Hex Lag Screw- CC-100- 25” Rail Bottom- A-8- 1/4” USS Flatwasher- 6N- 1/4” USS Flatwasher- 6D- 1/4” x 3” Hex Lag Screw-...
  • Page 108 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED CC-142- 25” Entrapment Block- FROM PLAYCENTER HARDWARE 048-41- 19” Gusset for Short Joist- 6G- 3/8” x 5” Hex Lag Screw- 6O- 3/8” USS Flatwasher- FROM CABIN HARDWARE B-14- 3/8” USS Flatwasher- B-8- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 109 Mega Jaguar Cabin Setup PARTS NEEDED HARDWARE NEEDED REMOVE THE GUSSET NEXT TO THE ROCKWALL FINSHED CABIN SETUP...
  • Page 110 Ladder Assembly PARTS NEEDED HARDWARE NEEDED 048-57- 98” Left Ladder Leg- A-4- 1/4” x 4 1/2” Hex Lag Screw- (16) 048-58- 98” Right Ladder Leg- A-10- 1/4” USS Flatwasher- (16) 048-37- 41 1/2” Ladder Step- A-6- 3/8” x 5” Hex Lag Screw- 048-49- 71 1/2”...
  • Page 111 Ladder Assembly Overhead Assembly PARTS NEEDED HARDWARE NEEDED CC-148- 19” Right Gusset- B-14- 3/8” USS Flatwasher- CC-149- 19” Left Gusset- B-8- 3/8” x 3 1/2” Hex Lag Screw- 048-56- 98” (R) Monkey Bar Overhead- A-15- 2” Metal Tap Screw- (12) 048-55- 98”...
  • Page 112 Monkey Bar Assembly PARTS NEEDED HARDWARE NEEDED Ladder Assebmly- B-3- 1/2” x 7” Carriage Bolt- A-13- 3/4” USS Flatwasher- Overhead Assembly- A-12- 1/2” USS Flatwasher- A-9- 1/2” Split Lockwasher- CC-190- 16” Monkey Bar Left Gusset- A-3- 1/2” Hex Nut- A-1- 1/2” Acorn Nut Plated- CC-191- 16”...
  • Page 113 Monkey Bar Assembly Cabin Inside Wall PARTS NEEDED HARDWARE NEEDED 048-C- Playgrip Ladder Handles- B-13- 1/4” USS Flatwasher- B-11- #14 x 1” Pan Phillips T/S- 048-45- 56 1/2” Corner Post- B-2- 1/2” Acorn Nut Plated- B-4- 1/2” Hex Nut- 048-46- 61” Mainbeam- SB-12- 1/2”...
  • Page 114 Cabin Inside Wall PARTS NEEDED HARDWARE NEEDED 048-44- 56” Mainbeam- B-14- 3/8” USS Flatwasher- 048-21- 61” Slim Facia- B-9- 3/8” x 5” Hex Lag Screw- B-7- 3/8” x 2 1/2” Hex Lag Screw-...
  • Page 115 Cabin Inside Wall PARTS NEEDED HARDWARE NEEDED 048-8- 18” Entry Side Short Facia- B-7- 3/8” x 2 1/2” Hex Lag Screw- C- 1 1/2” Coated Deck Screw- (32) 048-1- 31 1/4” Slim Lower Rail- B-14- 3/8” USS Flatwasher- 048-20- 58 5/8” End Side Board- 048-31- 63 3/4”...
  • Page 116 Cabin Outside Wall PARTS NEEDED HARDWARE NEEDED 048-46- 61” Mainbeam- B-3- 1/2” x 7” Carriage Bolt- B-16- 3/4” USS Flatwasher- 048-45- 56 1/2” Corner Post- B-15- 1/2” USS Flatwasher- B-12- 1/2” Split Lockwasher- 048-44- 54” Mainbeam Facia- B-4- 1/2” Hex Nut- B-2- 1/2”...
  • Page 117 Cabin Outside Wall PARTS NEEDED HARDWARE NEEDED 048-21- 61” Slim Facia- B-14- 3/8” USS Flatwasher- 048-20- 58 5/8” End Side Board- B-7- 3/8” x 2 1/2” Hex Lag Screw- 048-31- 63 3/4” End Long Shutter Board- C- 1 1/2” Coated Deck Screw- (44) 048-26- 31 1/4”...
  • Page 118 Monkey Bar Install PARTS NEEDED HARDWARE NEEDED Monkey Bar- A-2- 1/2” x 7” Carriage Bolt- A-13- 3/4” USS Flatwasher- A-12- 1/2” USS Flatwasher- A-9- 1/2” Split Lockwasher- A-3- 1/2” Hex Nut- A-1- 1/2” Acorn Nut Plated- ATTACH THE MONKEY BAR TO THE UNIT AS SHOWN BELOW PLACE THE MONKEY BAR ON THE DECK OF THE UNIT.
  • Page 119 Monkey Bar Install PARTS NEEDED HARDWARE NEEDED 048-34- 40 1/4” Monkey Bar Cap- A-11- 3/8” USS Flatwasher- 048-35- 40 1/4” Entrapnment Filler-1 A-5- 3/8” x 3 1/2” Hex Lag Screw- 048-36- 40 1/4” Entrapment Filler-2- B-8- 3/8” x 3 1/2” Hex Lag Screw- B-14- 3/8”...
  • Page 120 Cabin Install PARTS NEEDED HARDWARE NEEDED Cabin Inside Wall- B-9- 3/8” x 5” Hex Lag Screw- 048-A- Cabin Loft Bracket- B-14- 3/8” USS Flatwasher- B-8- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 121 Cabin Install PARTS NEEDED HARDWARE NEEDED Cabin Outside Wall- B-14- 3/8” USS Flatwasher- 048-21- 61” Slim Facia- B-7- 3/8” x 2 1/2” Hex Lag Screw- B-9- 3/8” x 5” Hex Lag Screw- 61” Across...
  • Page 122 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-A- Cabin Loft Bracket- B-14- 3/8” USS Flatwasher- 048-18- 54 1/4” Side End Board- B-8- 3/8” x 3 1/2” Hex Lag Screw- 048-29- 54 1/4” Large Deck Board- C- 1 1/2” Coated Deck Screw- (52)
  • Page 123 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-7- 18” Slide Side Short Facia- B-14- 3/8” USS Flatwasher- 048-30- 61” Slide Side Wide Facia- B-7- 3/8” x 2 1/2” Hex Lag Screw-...
  • Page 124 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-21- 61” Slim Facia- B-14- 3/8” USS Flatwasher- 048-43- 32” Slide Support Post- B-7- 3/8” x 2 1/2” Hex Lag Screw- B-13- 1/4” USS Flatwasher- B-6- 1/4” x 3” Hex Lag Screw-...
  • Page 125 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-42- 31 3/4” Underneath Slide Support- B-14- 3/8” USS Flatwasher- 048-1- 31 1/4” Slim Lower Rail- B-9- 3/8” x 5” Hex Lag Screw- 048-28- 51 1/4” Side Outside Shutter Board- C- 1 1/2” Coated Deck Screw- (24) 048-17- 51 1/4”...
  • Page 126 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-19- 57 1/4” Deck Support- B-11- #14 x 1” Pan Phillips T/S- B-13- 1/4” USS Flatwasher- C- 1 1/2” Coated Deck Screw- (13)
  • Page 127 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-26- 31 1/4” Wide Lower Panel Board- C- 1 1/2” Coated Deck Screw- (60) D-2- 3/8” x 5” Carriage Bolt- 048-17- 51 1/4” Side End Board- B-15- 1/2” USS Flatwasher- B-14- 3/8” USS Flatwasher- 048-28- 51 1/4”...
  • Page 128 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-22- 9 3/4” Wood Roof Peak- D-4- 2” Coated Deck Screw- CC-198- 14” Center Fan Facia- C- 1 1/2” Coated Deck Screw- (24) 048-6- 15” Center Fan Board- 048-5- 10” Short Fan Board- 048-14- 38 3/8” Bottom Fan Board- MAKE 2 FAN ASSEMBLIES 17 1/2”...
  • Page 129 Cabin Install PARTS NEEDED HARDWARE NEEDED Fan Assembly- C- 1 1/2” Coated Deck Screw- (32) 048-13- 32 3/4” End Center- 048-27- 32 3/4” End Shutter Board-...
  • Page 130 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-15- 40 1/4” Panel Support- C- 1 1/2” Coated Deck Screw- (24) 048-4- 14 15/16” Above Window Filler- (16)
  • Page 131 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-10- 20” Window Arch- C- 1 1/2” Coated Deck Screw- (72) CC-057- 14” Left Shutter- CC-058- 14” Rigth Shutter-...
  • Page 132 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-21- 61” Slim Facia- B-14- 3/8” USS Flatwasher- 048-9- 19 3/4” Side Upper Center- B-7- 3/8” x 2 1/2” Hex Lag Screw- 048-25- 19 3/4” Side Shutter Support- C- 1 1/2” Coated Deck Screw-...
  • Page 133 Cabin Install PARTS NEEDED HARDWARE NEEDED CC-057- 14” Left Shutter- C- 1 1/2” Coated Deck Screw- (112) CC-058- 14” Right Shutter- 048-60- 67” Wood Roof Board- (10)
  • Page 134 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-16- 44” Center Wood Roof Support- D-3- 1 1/4” Coated Deck Screw- (20) 048-60- 67” Wood Roof Board- (10) C- 1 1/2” Coated Deck Screw- (20)
  • Page 135 Cabin Install PARTS NEEDED HARDWARE NEEDED 048-59- 67” Wood Roof Board- Ripped- C- 1 1/2” Coated Deck Screw- 048-11- 23 1/2” Spiral Slide Filler- B-13- 1/4” USS Flatwasher- B-5- 1/4” x 2” Hex Lag Screw-...
  • Page 136 MEGA JAGUAR PLAYCENTER WITH CABIN LOFT...
  • Page 137 Super 360 Spiral Slide Installation Manual Version 1:19 Sections Page 1: Part List Page 2: 5.8’ Deck Height Assembly Page 3: 5’ & 7’ Deck Height Assembly 4465 West Sam Houston Parkway N. Houston, Texas 77041 Page 4: 6.5’ Deck Height Assembly WWW.TREEFROGSSHOWROOMS.COM ©...
  • Page 138 PARTS 3/8” x 5” 5/16” x 1 1/2” Lag Screw Lag Screw QTY. 2 QTY. 26 5/16” x 1” Hex Bolt QTY. 99 5/16”-18 Lock Nut QTY. 97 5/16” Flatwasher QTY. 222 3/8” Flatwasher QTY. 2...
  • Page 139 Quick Reference Guide #1 For 5.8’ Deck Height 1) Turn 10° 1 Bolt Hole CCW 2) Turn 30° 1 Bolt Hole CCW 3) Turn 90° Elbow 0 Bolt Hole to even seam 4) Turn 90° Elbow 2 Bolt Holes CW 5) Turn 90°...
  • Page 140 Quick Reference Guide #2 For 5’ & 7’ Deck Heights 1) Turn 10° 1 Bolt Hole CW 2) Turn 30° 0 Bolt Hole With Even Seem 3) Turn 90° 1 Bolt Hole CW 5) Turn 90° Elbow 2 Bolt Holes CW 4) Turn 90°...
  • Page 141 Quick Reference Guide #3 For 6.5’ Deck Height 1) Turn 10° 1 Bolt Hole CCW 2) Turn 30° 2 Bolt Hole CW 3) Turn 90° Elbow 1 Bolt Hole CW 4) Turn 90° Elbow 2 Bolt Holes CCW 5) Turn 90° Elbow 2 Bolt Holes 6) Attach Exit Chute Level To Ground...
  • Page 142 Step #1 Assemble the Elbow Section Halves together with the hardware as shown. Note the position of the Overlap Flanges in relation to the direction of the Bolts. 90 Section RH Lock Nut Washer Overlap Flanges 90 Section LH Bolt Washer...
  • Page 143 Step #2 Using Nuts, Washers and Bolts, attach the 10 Elbow to Entry Panel in the "Quick Reference" orientation. Step #3 After properly blocking the slide entrance on the playset, attach the Entry Chute/first Elbow assembly to the playset with the Lag Screws and Washers provided. Step #4 Bolt Washer...
  • Page 144 Step #5 Using Nuts, Washers and Bolts, attach the 90 Elbow to the previous Elbow in the "Quick Reference" orientation. Step #6 Using Nuts, Washers and Bolts, attach the 2nd 90 Elbow to the previous Elbow in the "Quick Reference" orientation.
  • Page 145 Step #8 Place the end of the Exit Chute up against the last Elbow Section and make it level with the ground. If any of the last Elbow bolt holes line up with the Exit Chute attach with Bolts and Washers (possibly 2 Places). For all the holes that don't line up attach with Lag Screws and Washers.
