Assa Abloy Yale nexTouch AU-NTB613-NR Installation And Programming Instructions

Assa Abloy Yale nexTouch AU-NTB613-NR Installation And Programming Instructions

Touchscreen and push button access cylindrical lock
Hide thumbs

Advertisement

Table of Contents

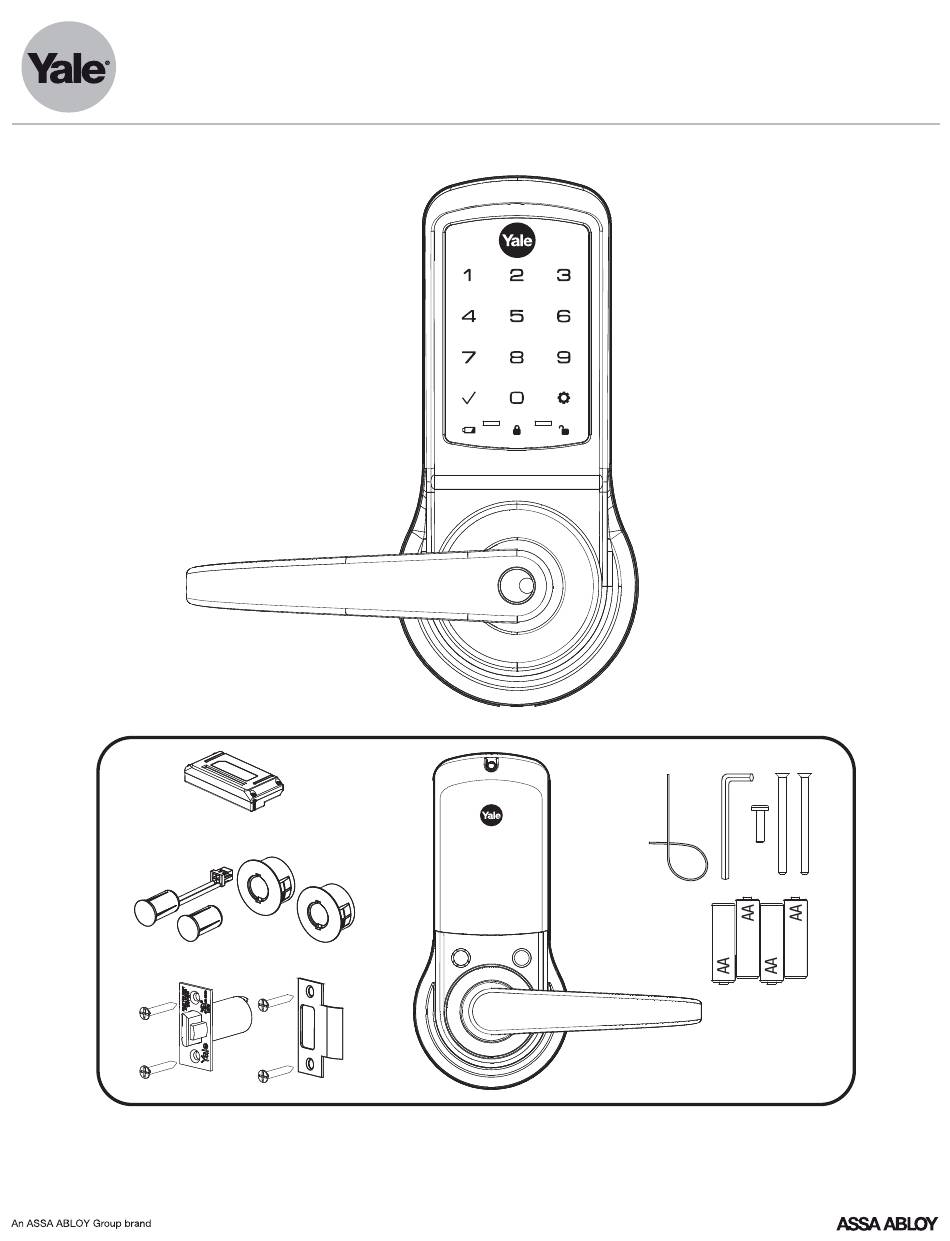

nexTouch
™
Touchscreen and Push Button Access Cylindrical Lock
Installation and Programming Instructions
3/32"
Optional
Optional
Retrofitting or modifying this product may impact fire rating, safety features and warranty.
Consult with code specifications to ensure compliance with all codes and ratings.
1
P/N 80-9150-0080-010 (10-17)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Yale nexTouch AU-NTB613-NR and is the answer not in the manual?

Questions and answers

Related Manuals for Assa Abloy Yale nexTouch AU-NTB613-NR

Summary of Contents for Assa Abloy Yale nexTouch AU-NTB613-NR

  • Page 1 nexTouch ™ Touchscreen and Push Button Access Cylindrical Lock Installation and Programming Instructions 3/32" Optional Optional Retrofitting or modifying this product may impact fire rating, safety features and warranty. Consult with code specifications to ensure compliance with all codes and ratings. P/N 80-9150-0080-010 (10-17)
  • Page 2 Determining Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you initially unlock and enter. Left Hand “ ”, Hinges Left. Left Hand Reverse " ", Hinges Left. Open Inward.
  • Page 3 Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. *Metal Door: nexTouch™ is a trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2017, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
  • Page 4 Preparing Frame 7-16 / 8-32 x 1" UNCWS DPS Option Frame Wood Frame: 3/8" Dia. x 1" *Metal Frame: 3/4" Dia. x 1" See Instruction A7983B Frame Inside 3-1/2" of Door 1" Dia. x 1/2" Deep *Metal Frame Installations Supplied plastic collar MUST installed for to function properly.
  • Page 5 Preparing Inside Escutcheon Do not take apart the outside assembly. P/N 80-9150-0080-010 (10-17)

  • Page 6: Removing Battery Cover

    Installing Latchbolt 2-3/8" Latchbolt for thin doors sold separately. See Installation Options. 7-16 / 8-32 x 1" UNCWS Inside of Door Curved edge of latchbolt faces direction door closes. Removing Battery Cover P/N 80-9150-0080-010 (10-17)
  • Page 7 Installing Outside Assembly Thin door gaskets sold separately. See Installation Options. Inside of Door Optional DPS Inside of Door Two moving "T" tabs must be fully captured in retractor pocket. Mounting Flanges must be in Mounting Flange Pockets. View from Outside of Door Mounting Flange Mounting Flange Pocket "T"...
  • Page 8 Installing Inside Support Assembly 10-32 x 2-1/2" PFHMS Inside of Door Optional DPS Do Not Overtighten Screws P/N 80-9150-0080-010 (10-17)

  • Page 9: Attaching Cables

    Attaching Cables Touchpad Connection Motor Connection Optional Connection P/N 80-9150-0080-010 (10-17)
  • Page 10 Installing Inside Escutcheon Thin door gaskets sold separately. See Installation Options. Avoid pinching cables Testing Inside Lever Operation P/N 80-9150-0080-010 (10-17)
  • Page 11 Installing Batteries & Cover "Welcome to Yale." Optional Network or Yale Accentra Key module must be installed BEFORE batteries. See Installation Options. Congratulations, you've installed the Yale nexTouch Lock! ™ Continue on next page to customize your product. P/N 80-9150-0080-010 (10-17)

  • Page 12: Installation Options

    Installation Options Adjusting for 1-3/8" Door (if necessary) Order 1-3/8" Thin Door Kit: 14-4761-0106 2-3/8" Latchbolt Outside Gasket Inside Gasket Inside of Door Privacy Switch Door Position Switch Option enables Privacy feature Metal Frame/Door Installations Supplied plastic collars MUST installed for to function properly.

  • Page 13: Programming Instructions

    Programming Instructions 9Volt Battery Override Terminal Low Battery Unlock Indicator Indicator Lockout Mode Indicator Privacy Button Speaker Exterior Escutcheon Interior Escutcheon Lock Activation Master Code must be created before any further programming. Max User Codes = 500 P/N 80-9150-0080-010 (10-17)
  • Page 14 Creating Master Code Creating a Master Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. "Register Master Code. Press the gear Press key to continue."...

  • Page 15: Creating User

    Creating User Codes Master code must be created first. *Max User Codes = 500 "Menu Mode, enter number." Enter Master code Press "Register User code. "Register User code. Press the gear key Press the gear key to continue." to continue." Press Press Press...
  • Page 16 Creating User Codes con't Enter 4-8 digit code followed by "Registered. Press the check key to complete. Press the gear key to continue." Adding more User Codes: To end programming: Press Press Enter 4-8 digit code "Completed." Press "Registered. Press the check key to complete.
  • Page 17 Locking & Unlocking Door with Registered Master or User Code Enter Code Press P/N 80-9150-0080-010 (10-17)
  • Page 18 Testing Outside Lever Operation Locking Door with Privacy Button P/N 80-9150-0080-010 (10-17)
  • Page 19 Resetting Lock to Factory Default Reset Button Interior Escutcheon Lever Removal Tool Hex Wrench When lock is reset to factory defaults all user codes (including the Master code*) are deleted and all programming features are reset to original default settings (see Factory Settings).
  • Page 20 Definitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) code access. When attempting to enter a code while the unit is in Lockout, the locked padlock will appear on the screen. (Main Menu selection #6.) Automatic Re-lock Time: After a successful unlock, the unit will re-lock automatically after 5 seconds or for a duration selected in the Advanced Lock Settings...
  • Page 21 Feature Programming Through Menu Mode Using Master code* 1. Touch screen with back of hand or palm to activate. 2. Enter 4-8 digit master code* followed by key. Lock Response: "Menu mode, enter number (Enter digit corresponding to the function to be performed), press the key to continue."...

  • Page 22: Programming Troubleshooting

    Programming Troubleshooting Symptom Suggested Action Touchscreen becomes active when pressed w/whole hand. • Lock does not respond – Use a larger area of the hand or fingers and verify contact with at least 3 areas. door is open and accessible. If touchscreen numbers are visible, check to see if they •...

  • Page 23: Hardware Troubleshooting

    Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Door is binding. Latchbolt will not deadlock. a. Either strike is out of alignment or the gap between door and jamb is too great. Realign strike or shim strike out towards flat area of latchbolt. Latchbolt does not retract or extend properly.
  • Page 24 équipment. Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. nexTouch™ and Accentra™ are trademarks of Yale Security Inc., an ASSA ABLOY Group company.
