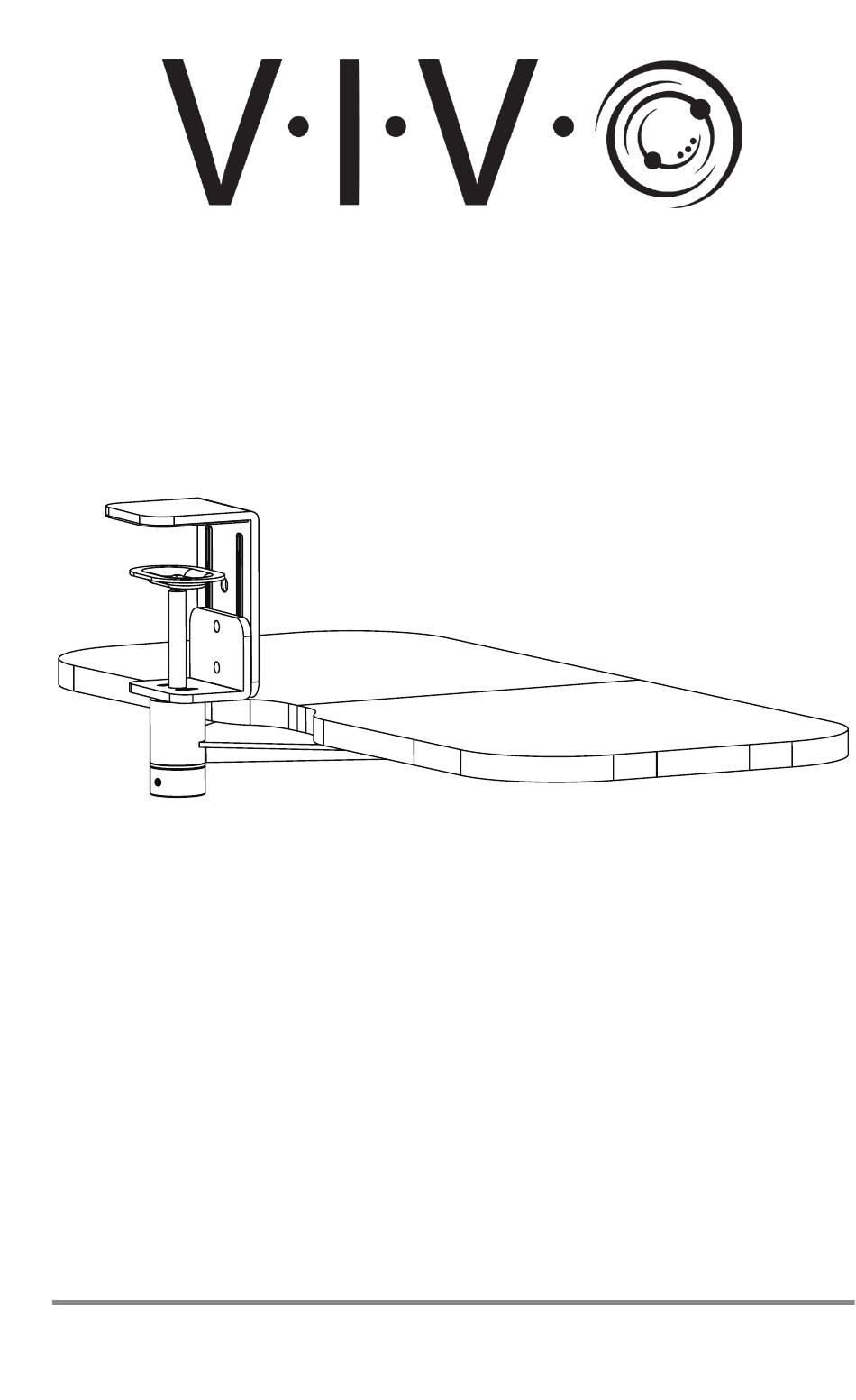

- Page 1 Single Clamp Rotating Keyboard Tray MOUNT-KB04CB Assembly Manual...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x1) Keyboard Tray Connecting Clamp Plate Brace D (x1) E (x1) F (x2) Clamp Sticker Plastic Bushing G (x1) Swivel Cap Included Hardware & Tools S-A (x4) S-B (x10) T-A (x1) T-B (x1) M8x12mm M5x12mm 3mm Allen Wrench... -
Page 5: Assembly Steps
Assembly Steps STEP 1 Assemble Keyboard Tray (A) together using Connecting Plate (B) and M5x12mm Screws (S-B). Tighten screws using a Phillips screwdriver. - Page 6 STEP 2 Attach Clamp (D) to the Connecting Plate (B) using Plastic Bushings (F) and Swivel Cap (G) as shown.
- Page 7 STEP 3 Remove adhesive backing from Sticker (E) and apply to Clamp Brace (C) as shown. Secure Clamp Brace (C) to the Clamp (D) using M8x12mm Screws (S-A) and 5mm Allen Wrench (T-B), as shown.
- Page 8 STEP 4 Clamp the assembly onto your desktop. Tighten Clamp (D) by turning the Internal Screw using 5mm Allen Wrench (T-B). Secure by tightening the Set Screw on the Swivel Cap (G) with 3mm Allen Wrench (T-A). CAUTION The Set Screw on the Swivel Cap MUST BE TIGHTENED to prevent the Swivel Cap from loosening and allowing the...
- Page 9 STEP 5 Adjust as desired. 360° Place your accessories onto the Keyboard Tray (A).
- Page 10 ***Optional Alternative Assembly*** Higher Tray Assembly If you need additional leg room beneath the Keyboard Tray (A), follow the instructions below to gain an additional 1.0” under the Tray. With the Assembly removed from the desktop, dissasemble Clamp Brace (C) from the Clamp (D) by removing M8x12mm Screws (S-A) with 5mm Allen Wrench (T-B).
- Page 11 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
