Vivo MOUNT-KB05-4D Assembly Manual
Clamp-on keyboard tray with pencil drawer
Hide thumbs
Also See for MOUNT-KB05-4D:
- Instruction manual (9 pages) ,
- Instruction manual (4 pages) ,
- Instruction manual (4 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-KB05-4D
Summary of Contents for Vivo MOUNT-KB05-4D

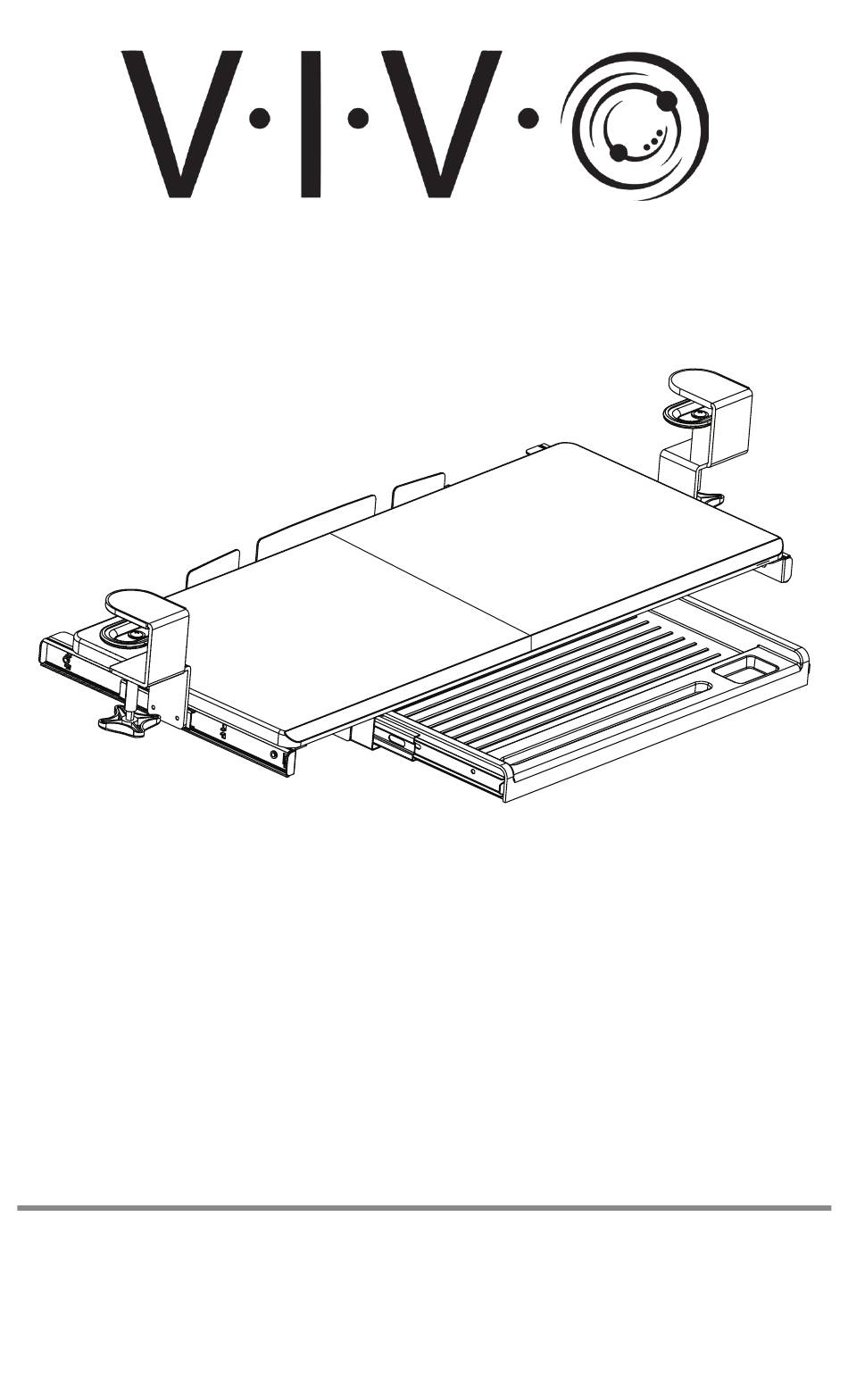

- Page 1 Clamp-on Keyboard Tray with Pencil Drawer MOUNT-KB05-4D Assembly Manual...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents A (x1) B (x2) C (x2) D (x2) Keyboard Tray Rails Clamp E (x2) F (x1) G (x1) Connecting Plate Keyboard Stop Pencil Drawer H (x2) Drawer Slider Included Hardware & Tools S-A (x8) S-B (x8) S-C (x4) S-D (x12) M4x7mm Screw M5x12mm Round Head... -
Page 5: Assembly Steps
Assembly Steps STEP 1 Assemble Keyboard Tray (A) using Connecting Plates (E) and M5x12mm Flat Head Screws (S-D), and tighten with a Phillips screwdriver. STEP 2 Attach Keyboard Stop (F) to the back of Keyboard Tray (A) using M5x12mm Flat Head Screws (S-D). - Page 6 STEP 3 Attach Rails (B) to Keyboard Tray (A) using M5x12mm Round Head Screws (S-B), and tighten with a Phillips screwdriver. Note: With the Tray flipped upside-down, the Bracket with the “R” sticker will go on the left side of the assembly, and the Bracket with the “L” sticker will go on the right. The Rails (B) should protrude from the back of the Keyboard Tray.
- Page 7 STEP 4 Choosing Assembly Method Tray features two assembly options based on the desired extension distance. Extended Standard Standard Extended Tray will extend 9” (23cm) from desktop Tray will extend 10” (25.4cm) from edge when extended. desktop edge when extended. *Ensure you have 12”...
- Page 8 STEP 5 Slide Pencil Drawer (G) back into the open ends of Drawer Sliders (H) until they are latched together. Mount the assembled Pencil Drawer (G) to the underside of Keyboard Tray (A) using ST5x12mm Screws (S-C) and a Phillips screwdriver.
- Page 9 STEP 6 Loosen Clamps (C) and place Pads (D) on the underside of each Clamp. Place assembled Keyboard Mount on the edge of the desk and tighten Clamps to secure. Slide Keyboard Tray (A) and Pencil Drawer (G) forward/back as desired. Tray locks at fully extended position and at fully stored position.
- Page 10 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
