Introduction

The AXB-PT10 PosiTrack 10, AXB-PT15 PosiTrack 15, and AXB-PT30 PosiTrack 30 Camera
Controllers (FIG. 1) are camera/lens controllers used for precise camera-positioning applications.
Each PosiTrack unit supports both AXlink and RS-232 control protocols and connects directly to
an AXlink network. All controllers contain on-board intelligence for consistent motion and lens
control. The AXB-PT10 and AXB-PT15 Camera Controllers use identical connectors and camera
mounts but support different camera/lens weights (refer to the Specifications section for more
detailed information).
LENS POWER
PANJA

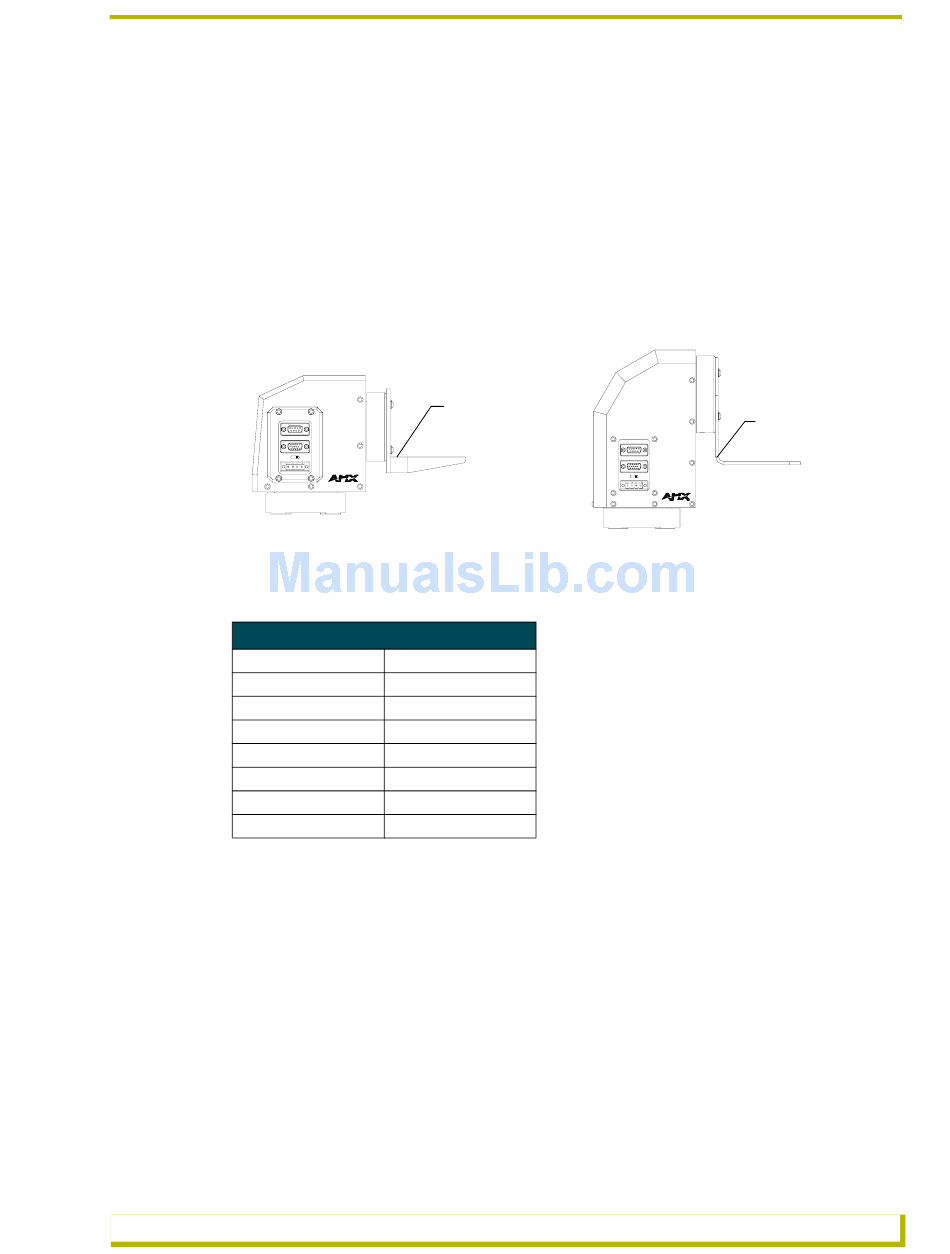

FIG. 1 AXB-PT10 and AXB-PT30 PosiTrack Camera Controllers (side views)
The following table shows the PosiTrack unit lens compatibility.
PosiTrack Unit Lens Compatibility
Fujinon Lenses
MD
BMD
AMSR
MPX
SNPY
MDM
SNDS
AXB-PT10/15/30 PosiTrack Camera Controllers
Dual Camera/
Lens Cradle
PosiTrack 10
Assembly
(PT15 uses the
same camera mount
RS-232
as the PT10)
LENS
CAM
AXlink
T M
Canon Lenses
KTSA
RGE PZF
R
REA
REA-IA
REA-IA PZF
RGE
Single
PosiTrack 30
Camera/Lens
Cradle
RS-232
LENS
LENS POWER
AMX CAM
AXlink
Introduction
