axb-em232

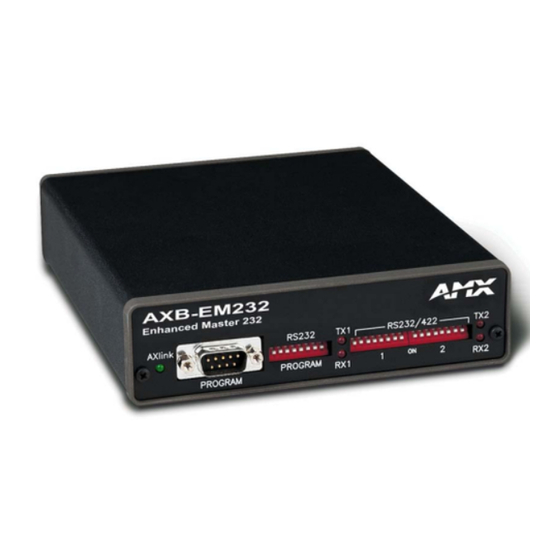

The AXB-EM232 Enhanced Master/RS-232 Controller combines Axcess

Master processing with one RS-232/422/485 and one RS-232 control port

into a single compact enclosure. It is ideal for systems that need the full

power of AMX Axcess programming but few control ports.

As an exhibit controller, the AXB-EM232 can execute pre-timed shows from

two laserdisc players, or trigger presentations from switches or motion sen-

sors (using the eight-input AXP-CPI8 Custom Panel Interface).

The AXB-EM232 can also act as a central coordinator in distributed, multi-

room systems. For example, a number of rooms can be served by a

Television Manager, a four-Port IR/Serial Controller and IR wireless panels,

all connected to the same AXLink data/power bus.

Page 1 (using the eight-input AXP-CPI8 Custom Panel Interface). The AXB-EM232 can also act as a central coordinator in distributed, multi- room systems. For example, a number of rooms can be served by a Television Manager, a four-Port IR/Serial Controller and IR wireless panels, all connected to the same AXLink data/power bus.
Page 2 AXB-EM232 INTERFACE • Acts as AXlink Central Controller with onboard Motorola® M68340 Master processor • Stores Axcess application programs in battery-backed 64K memory, upgradable to 256K • Extends control, using AXlink CardFrames, Bus Controllers, and control panels via the AXlink data/power bus •...
