IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*BODY FRAME MOUNT
*DRILLING/TRIMMING NOT REQUIRED

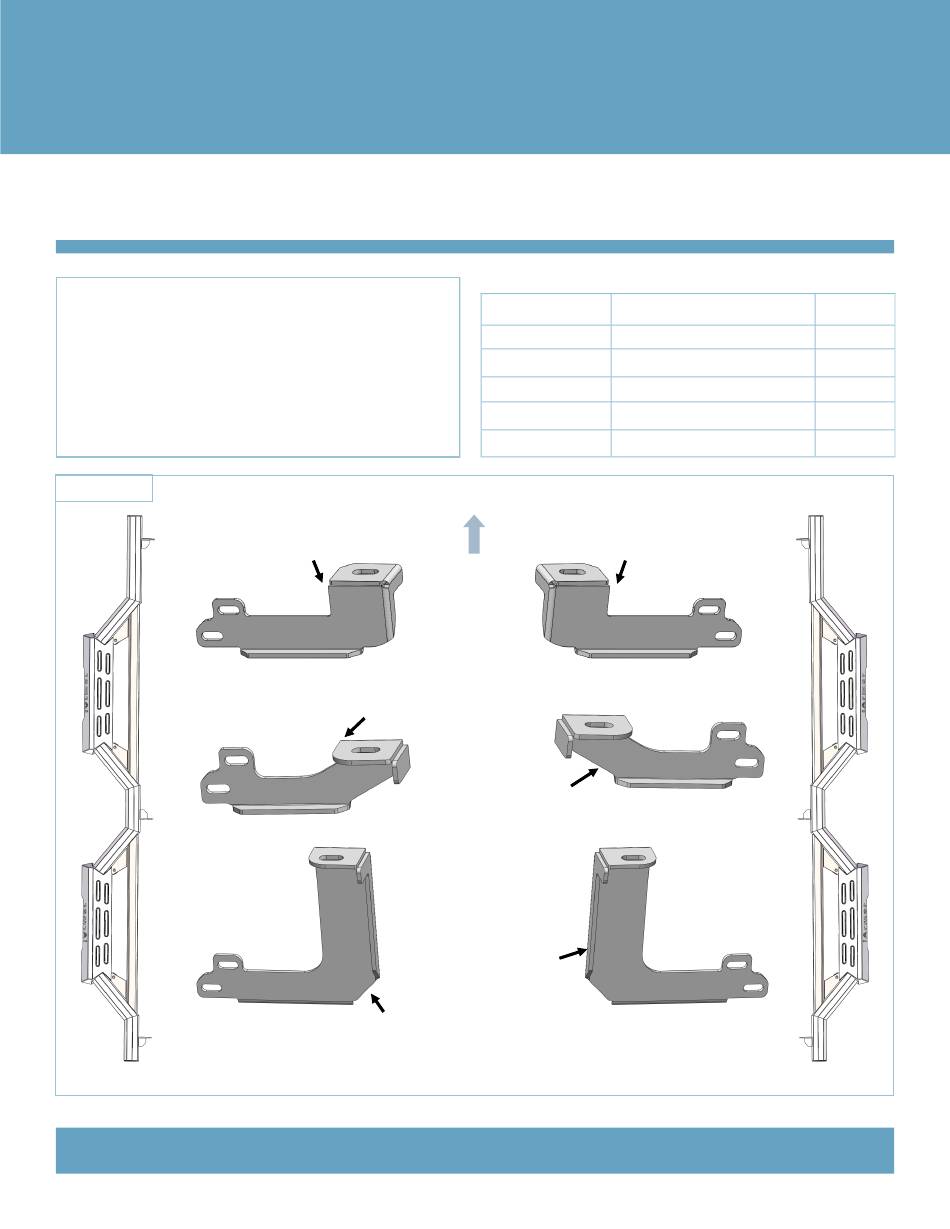

PART LIST
Driver Front Mounting
Bracket (DFM)
Driver Side Step Bar
iArmor
Front
Driver Center Mounting
Bracket (DCM)
Passenger Rear Mount-
ing Bracket (PRM)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Mounting
Bracket (PFM)
Passenger Center
Mounting Bracket
(PCM)
1
®
PART#: IA-W004
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
Rev. 20220501
Required
X
X
√
X
X
Advertisement
Related Manuals for iArmor EDGE IA-W004
Summary of Contents for iArmor EDGE IA-W004
- Page 1 ® IARMOR EDGE™ PART#: IA-W004 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package (For Brackets & Step Bars Installation) Item Description Item Description M10X1.5-25 Hex Bolts M10X1.5 Nylon Lock Nuts M10 Flat Washers Customer Support: info@iarmorauto.com Rev. 20220501...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Front STEP 1 Start the installation under the passenger side of the vehicle.
- Page 4 ® STEP 4 STEP 6 Move to the other side of the vehicle. Repeat Steps 1-5 for the Once all (3) Mounting Brackets have been installed, attach the other Side Step Bar installation. Passenger Side Step Bar to the Mounting Brackets with (6) M10X1.5-25 Hex Bolts, (12) M10 Flat Washers and (6)
