IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING/TRIMMING NOT REQUIRED

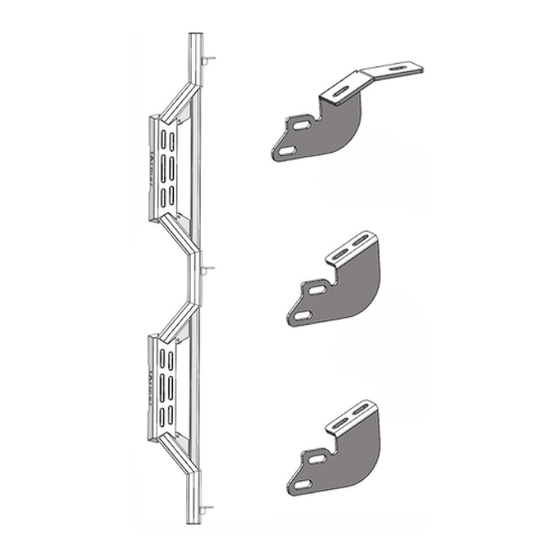

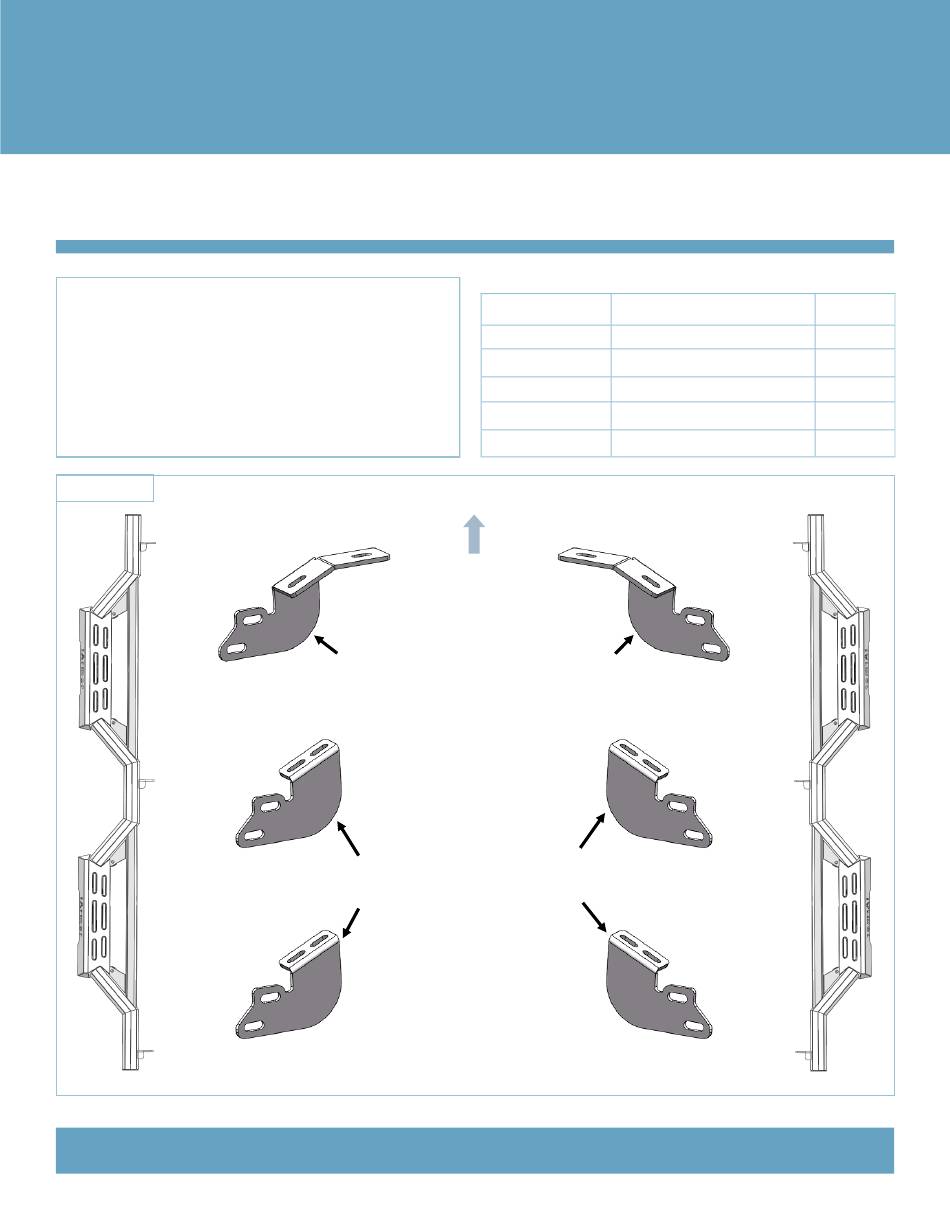

PART LIST
Driver Side Step Bar
iArmor
Front
Driver Front Mounting
Bracket (DFM)
Driver Center/Rear
Mounting Bracket
(DCM/DRM)
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Mounting
Bracket (PFM)
Passenger Center/
Rear Mounting
Bracket (PCM/PRM)
1
PART#: IA-W058
Required
6-7
X
16-18
√
31-32
√
56-58
X
92-94
X
Passenger Side Step Bar
Rev. 20220501
Advertisement
Table of Contents
Related Manuals for iArmor EDGE IA-W058
Summary of Contents for iArmor EDGE IA-W058
- Page 1 ® IARMOR EDGE™ PART#: IA-W058 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package (For Brackets & Step Bars Installation) Item Description Item Description M8X1.25-30 Hex Bolts M10X1.5-25 Hex Bolts M8 Large Flat Washers M10 Flat Washers M10X1.5 Nylon Lock Nuts M8 Lock Washers Customer Support: info@iarmorauto.com Rev. 20220501...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are Front not responsible for any damage caused by the installation. STEP 1 Start from the driver side front of the vehicle, remove all plastic plugs or hex bolts from the factory mounting threaded holes on (2) M8X1.25-30 Hex Bolts...
- Page 4 ® STEP 4 Once all (3) Mounting Brackets have been installed, attach the Driver Side Step Bar to the Mounting Brackets with (6) M10X1.5-25 Hex Bolts, (12) M10 Flat Washers and (6) M10X1.5 Nylon Lock Nuts, (Fig 7). Do not fully tighten hard- ware at this time.
- Page 5 ® (6) M10X1.5-25 Hex Bolts (12) M10 Flat Washers (6) M10X1.5 Nylon Lock Nuts DCM/DRM DCM/DRM Bottom View Front (Fig 7) Driver Side Step Bar Installed Customer Support: info@iarmorauto.com Rev. 20220501...
