IARMOR EDGE
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*BODY FRAME MOUNT
*DRILLING/TRIMMING NOT REQUIRED

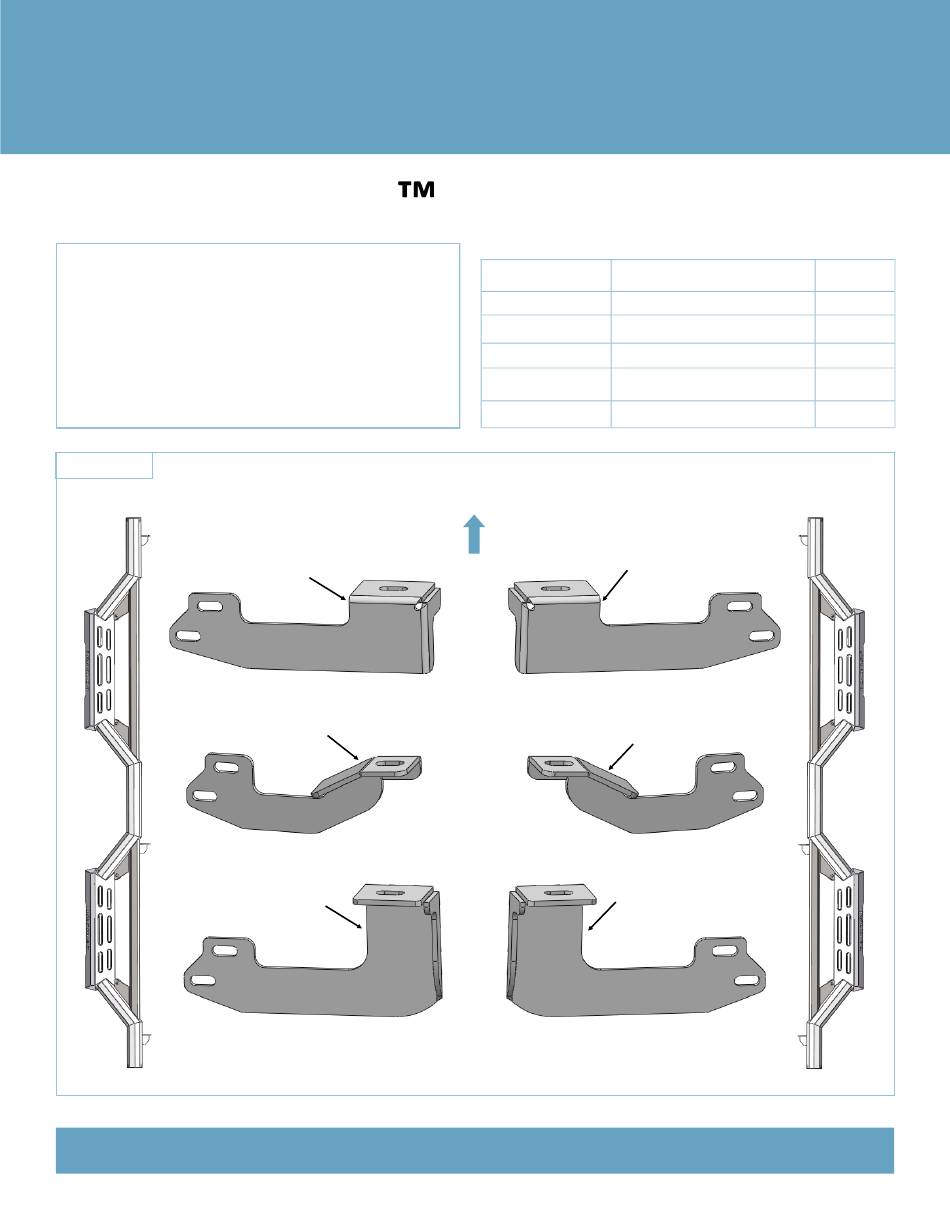

PART LIST
Driver Front Mounting
Bracket (DFM)
Driver Center Mounting
Bracket (DCM)
Driver Rear Mounting
Bracket (DRM)
Driver Side
iArmor
Front
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front
Mounting Bracket
(PFM)
Passenger Center
Mounting Bracket
Passenger Rear
Mounting Bracket
(PRM)
1
PART#: IA-W131
Required
6-7
16-18
31-32
56-58
92-94
(PCM)
Passenger Side
Rev. 20240401
X
X
√
√
X
Advertisement
Related Manuals for iArmor EDGE IA-W131
Summary of Contents for iArmor EDGE IA-W131
- Page 1 ® IARMOR EDGE PART#: IA-W131 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 16-18 STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package (For Brackets & Step Bars Installation) Item Description Item Description M12X1.75-120 Hex Bolts M10X1.5-25 Hex Bolts M12 Large Flat Washers M10 Flat Washers M10X1.5 Nylon Lock Nuts M12 Lock Washers Customer Support: info@iarmorauto.com Rev. 20240401...
- Page 3 ® STEP 2 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Hang the Driver Front & Center & Rear Mounting Brackets to the body mounts using the factory hex bolts, (Fig 2).
- Page 4 ® STEP 4 Attention Do periodic inspections to the installation to make sure Move to the other side of the vehicle. Repeat Steps 1-3 for the that all hardware is secure and tight. other side step bar installation. In order to protect your bars/boards, please use mild soap/non-abrasive products for cleaning only.
