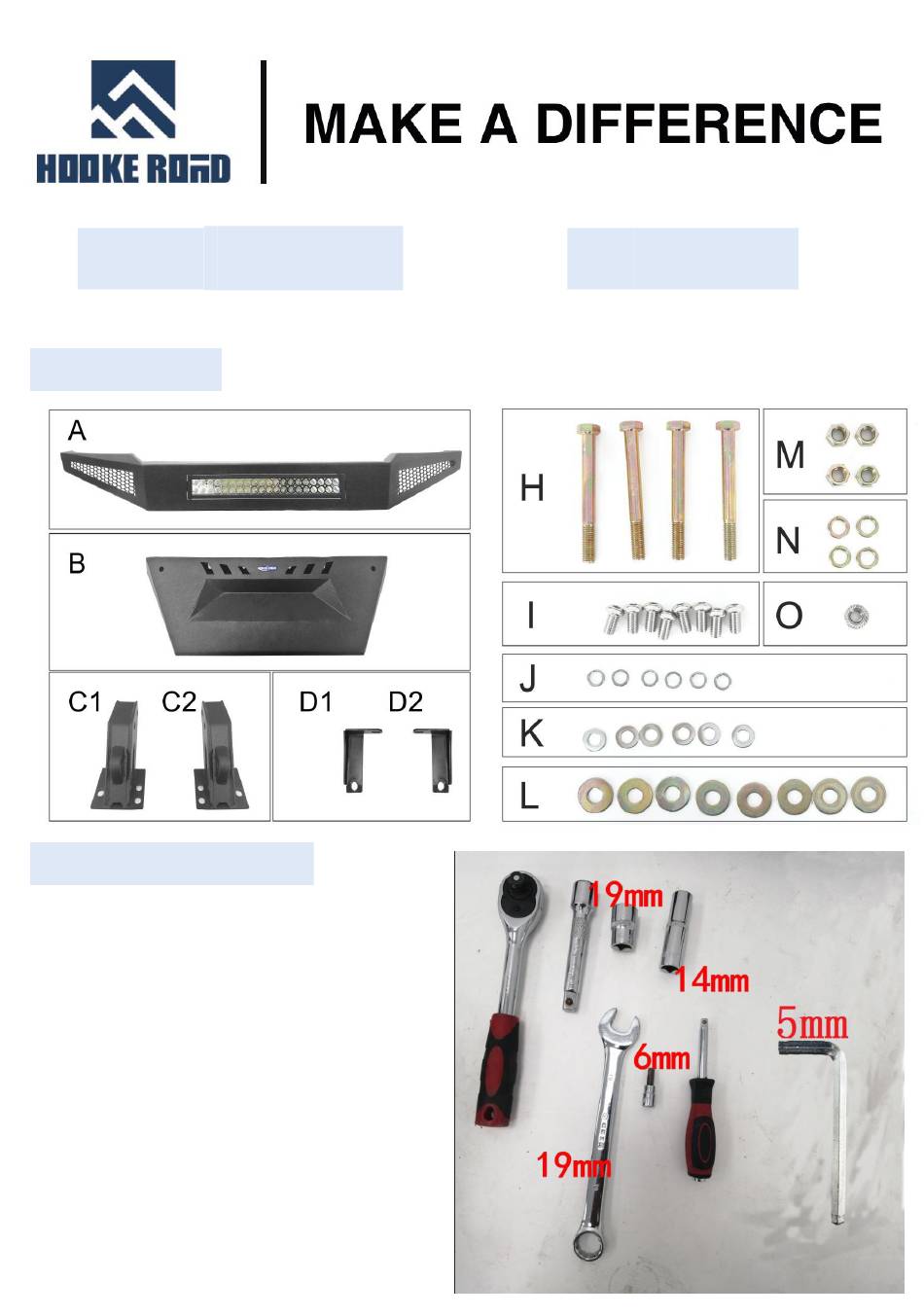

- Page 1 Front Bumper BXG.4008 (1)Contents: (2)Tools required: a. 19mm Socket Wrench; b. 6mm HEX Socket Wrench; c. 14mm Socket Wrench; d. 19mm Wrench; e. 5mm Allen Wrench;...
-
Page 2: Installation Instruction
(3)Installation time: About 2 hours, 2-3 persons needed. Installation time is different according to individual person （ ） (4)Installation instruction: Step 1: Begin the installation by removing the original front bumper. Step 2: Take out all the components of the bumper. - Page 3 Step 3: Assemble the Part”C1”,”C2”and Part“A”with the Part”H”,“P”&”J”. Note:Don’t tighten up all the bolts for a adjustable installation in the next step.
- Page 4 Step 4: Install the Part”A”into the frame with the original bolts. Then tighten up all the bolts.
- Page 5 Step 5: Assemble the Part”D1”,”D2”and Part”A”with the original bolts. Step 6: Assemble the Part”D1”,”D2”and Part”B”with the Part”I”,”J”,”K”&”O”.
- Page 6 Step 7: Assemble the Part”B”&Part”A”with the Part”I”,”J”&”K”.
- Page 7 Step 8: The installation is complete.We hope you enjoy a wonderful off-road life with this quality product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact us if you have any kind of question about your purchase.
