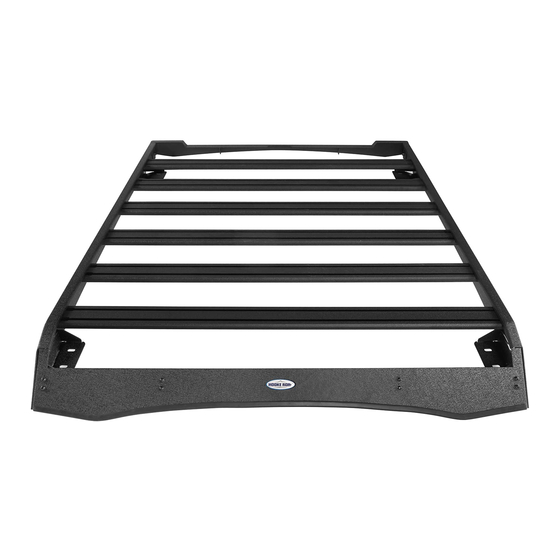

Roof Rack
(1) Contents:
Qty
Part Name
1
Roof Rack Assembly
8
Button Head Socket Cap Bolts Screws
8
Button Head Socket Cap Bolts Screws
24
Button Head Socket Cap Bolts Screws
8
Button Head Socket Cap Bolts Screws
32
Flat Washer
Size(mm)
Qty
8
M6*40
8
M8*20
8
M8*16
8
M6*10
2
M8*20*1.5
2
BXG.4034-S
Part Name
Flat Washer
Flat Washer
Tee Sliding Slot Nuts
Flange Hex Lock Nuts
Rubber Mat
Rubber Mat
Size(mm)
M6*20*1
M6*12*1
M6
M8
Advertisement
Related Manuals for HOOKE ROAD BXG.4034-S
Summary of Contents for HOOKE ROAD BXG.4034-S
- Page 1 BXG.4034-S Roof Rack (1) Contents: Part Name Size(mm) Part Name Size(mm) Roof Rack Assembly Flat Washer M6*20*1 Button Head Socket Cap Bolts Screws M6*40 Flat Washer M6*12*1 Button Head Socket Cap Bolts Screws M8*20 Tee Sliding Slot Nuts Button Head Socket Cap Bolts Screws...
- Page 3 About 40 minutes, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.4034-S), please scan the QR code.
-
Page 4: Installation Instruction
(4) Installation instruction: Step 1: Assemble the rack on the ground. Start by mounting the shortest crossbar into the Front Faring. For this, use the Button Head Socket Cap Bolts Screws (M6*10), Flat Washer (M6*20*1), Tee Sliding Slot Nuts (M6). Make sure the machined slot in the rail of the crossbar is facing the front faring. - Page 5 Step 3: Next, mount the front and rear fairings. To do this, use the Button Head Socket Cap Bolts Screws (M8*20), Flat Washer (M8*20*1.5), Flange Hex Lock Nuts (M8). When mounting the front fairing, adjust it all the way up to avoid contact with the roof and leave the bolts loose enough to be able to make adjustments once it is on the roof of the vehicle.
- Page 6 Step 4: Glue up the rubber mat into the four installation location. As the picture shown. Step 6: Before installing the luggage rack on the car, please distinguish the order of installing the brackets, The above “F” is the front row, the above “R” is the rear row.
- Page 7 Step 7: Put the roof rack into your vehicle, find the holes, install the roof rack with the Button Head Socket Cap Bolts Screws (M6*40), Flat Washer (M6*12*1). Because the installation space is too narrow, we recommend you use the 4mm allen wrench to tighten up those bolts.
- Page 8 Step 8: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
