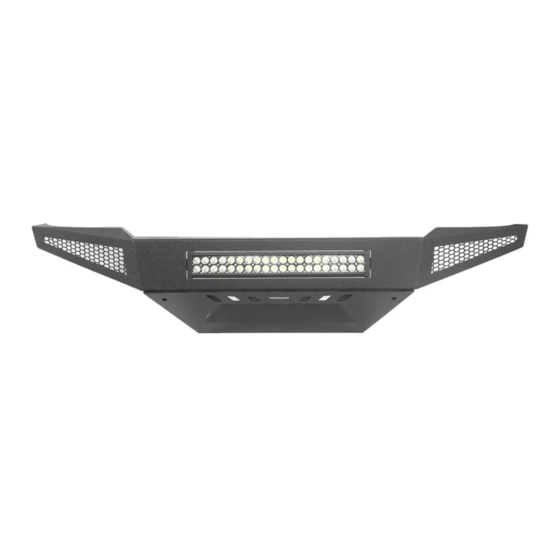

- Page 1 BXG.4008 Front Bumper (1) Contents: (2) Tools required: a. 19mm Socket Wrench; b. 6mm HEX Socket Wrench; c. 14mm Socket Wrench; d. 19mm Wrench;...
- Page 2 About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.4008), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Begin the installation by removing the original front bumper. Step 2: Take out all the components of the bumper. Step 3: Assemble the Part”B1”,”B2”and Part“A”with the Part”M” & “P”. Note:Don’t tighten up all the bolts for a adjustable installation in the next step.
- Page 4 Step 4: Install the Part”A”into the frame with the original bolts.
- Page 5 Then tighten up all the bolts. Step 5:...
- Page 6 Step 6: Install the Part”C”with the Part”H”& Part”J”.
- Page 7 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
