BXG.4031-S
Front Bumper
(1) Contents:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BXG.4031-S and is the answer not in the manual?

Questions and answers

Related Manuals for HOOKE ROAD BXG.4031-S

Summary of Contents for HOOKE ROAD BXG.4031-S

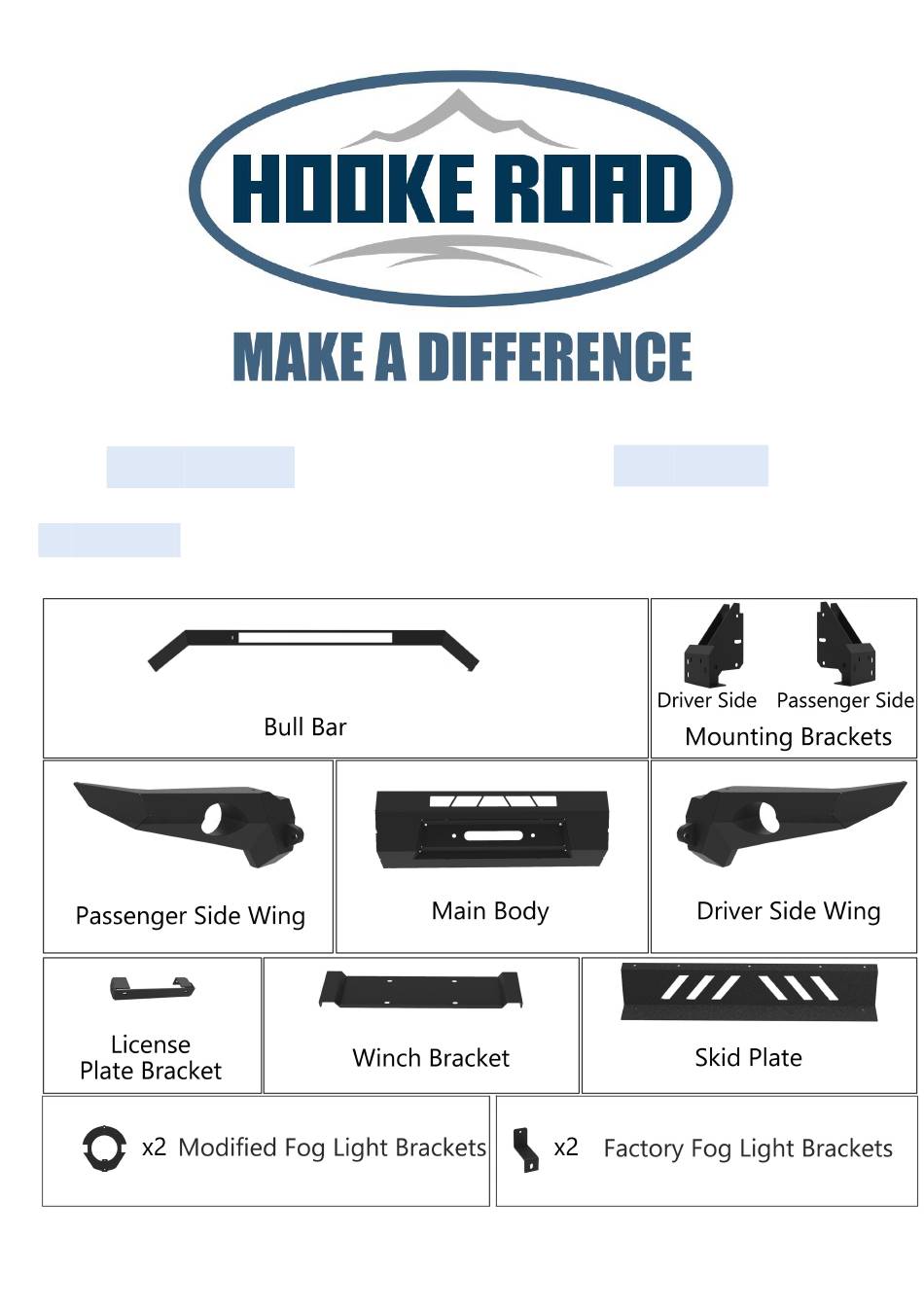

  • Page 1 BXG.4031-S Front Bumper (1) Contents:...
  • Page 2 Part Name Size(mm) Picture Hex Bolts M12*100 Hex Bolts M12*30 Hex Bolts M10*20 Button Head Socket Cap Bolts Screws M8*20 Button Head Socket Cap Bolts Screws M6*16 Button Head Socket Cap Bolts Screws M4*12 Split Lock Washer Split Lock Washer Flat Washer M12*25*2 Flat Washer...
  • Page 3 Flat Washer M6*16*1 Flat Washer M4*10*1 Hex Nuts Flange Hex Lock Nuts Flange Hex Lock Nuts Flange Hex Lock Nuts (2) Tools required: a. Drive Socket Ratchet Wrench; b. 4mm & 5mm Hex Bit Socket; c. 10mm , 13mm, 17mm, 19mm Wrench;...
  • Page 4 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.4031-S), please scan the QR code.
  • Page 5 (4) Installation instruction: Remove the factory fog light: Step 1: Take out the fog light from the factory bumper. Unplug the light wire. Fog Light Installation: (1)Factory Fog Installation: Put the factory fog light into the bumper.
  • Page 6 (2) Modified Fog Light Installation: Align the four holes. Use the button head socket cap bolts screws (M4*12), split lock washer (D4), flat washer (M4*10*1). To install the Modified fog light brackets into the wings. To use the button head socket cap bolts screws (M6*16), flat washer (M6*16*1), flange hex lock nuts (M6).
  • Page 7 Install The Bumper: Step 2: Stick the EVA into the main body. To assemble the wings & the main body. Use the hex bolts (M12*30), split lock washer (D12), flat washer (M12*25*2), hex nuts (M12). Tighten up those bolts. Step 3: To install the bull bar. Use the button head socket cap bolts screws (M10*20), flat washer (M10*20*1.5), Flange Hex Lock Nuts (M10).
  • Page 8 Step 4: To install the mounting brackets. Use the Hex Bolts (M12*100), Split Lock Washer(D12), flat washer (M12*25*2), Hex Nuts (M12). Don’t tighten up those bolts. Step 5: To install the winch bracket. Use the Hex Bolts (M12*30), Split Lock Washer(D12), Flat Washer (M12*25*2), Hex Nuts (M12).
  • Page 9 Step 6: To install the license plate bracket. Use the button head socket cap bolts screws (M8*20), flat washer (M8*20*1), Flange Hex Lock Nuts (M8). Tighten up those bolts. Step 7: Lift up the bumper into your vehicle. Install it into with the factory bolts.
  • Page 10 Keep the bolts loose, raise the bumper, adjust the gap between it and the car, and then tighten the bolts (the step5 & the step 8) after confirming that the desired effect is achieved. Step 8: To install the skid plate. Use the M8 button head socket cap bolts screws groups.
  • Page 11 Step 9: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
